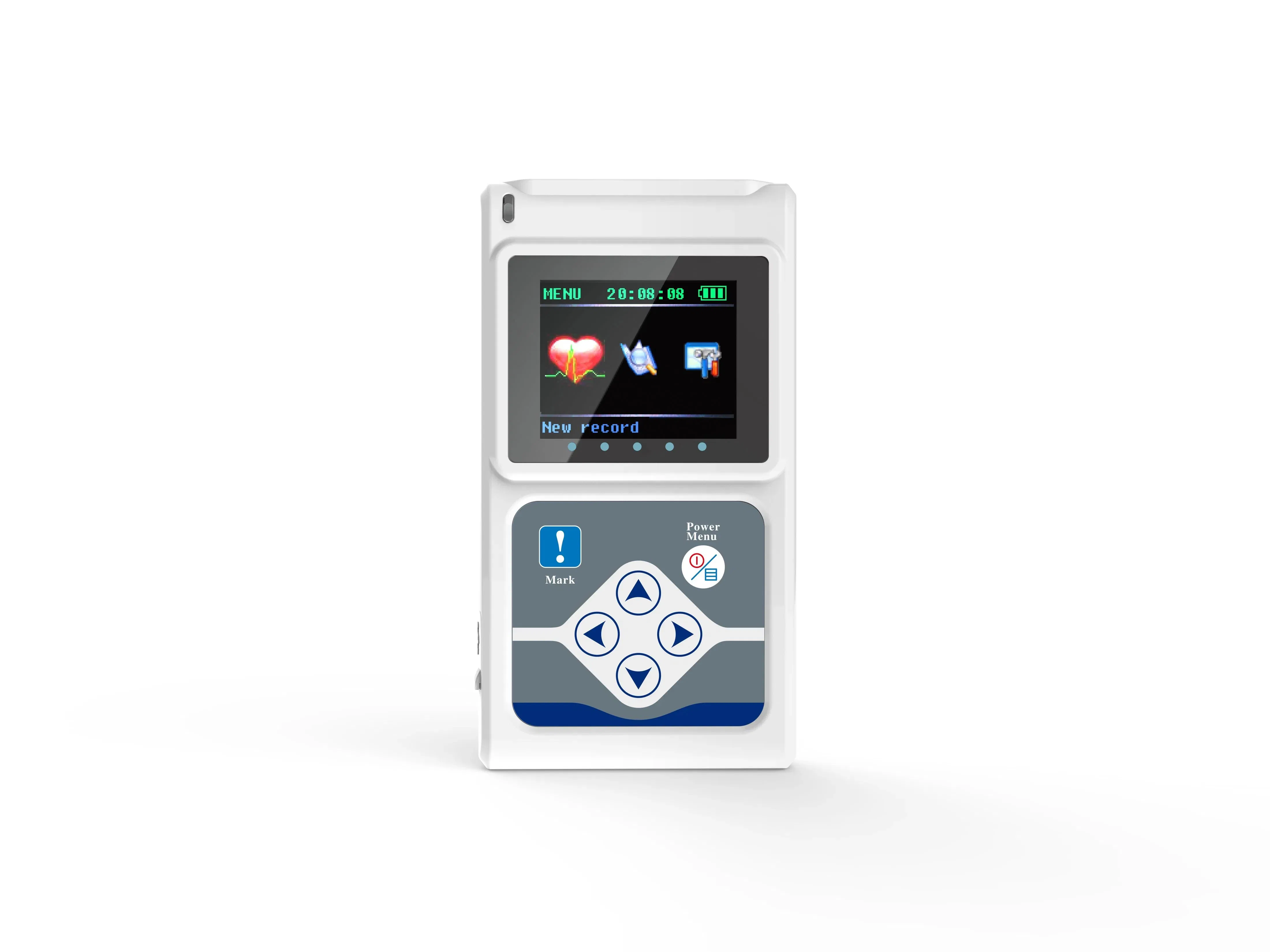

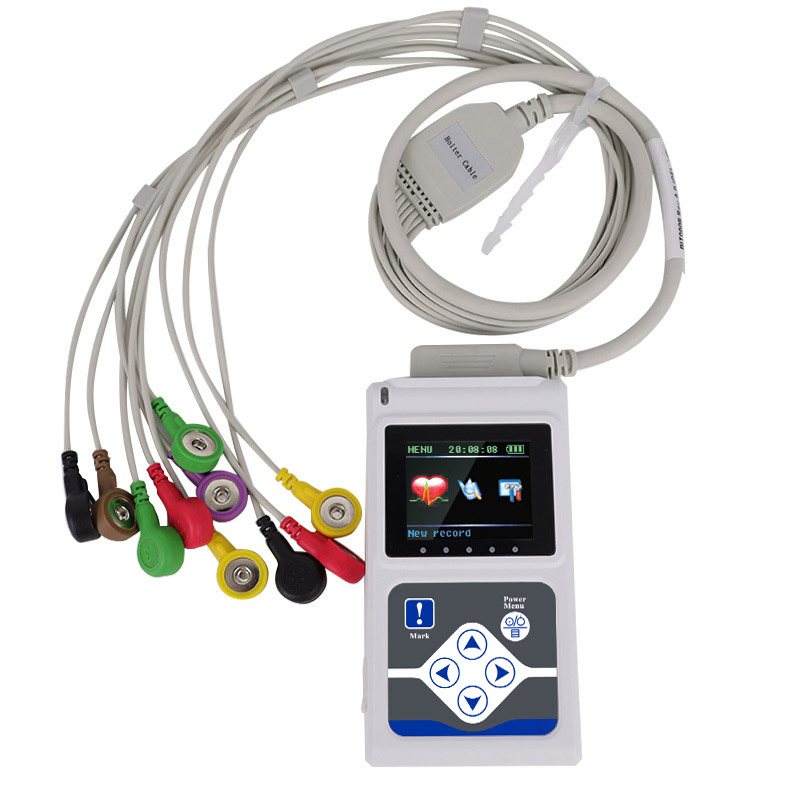

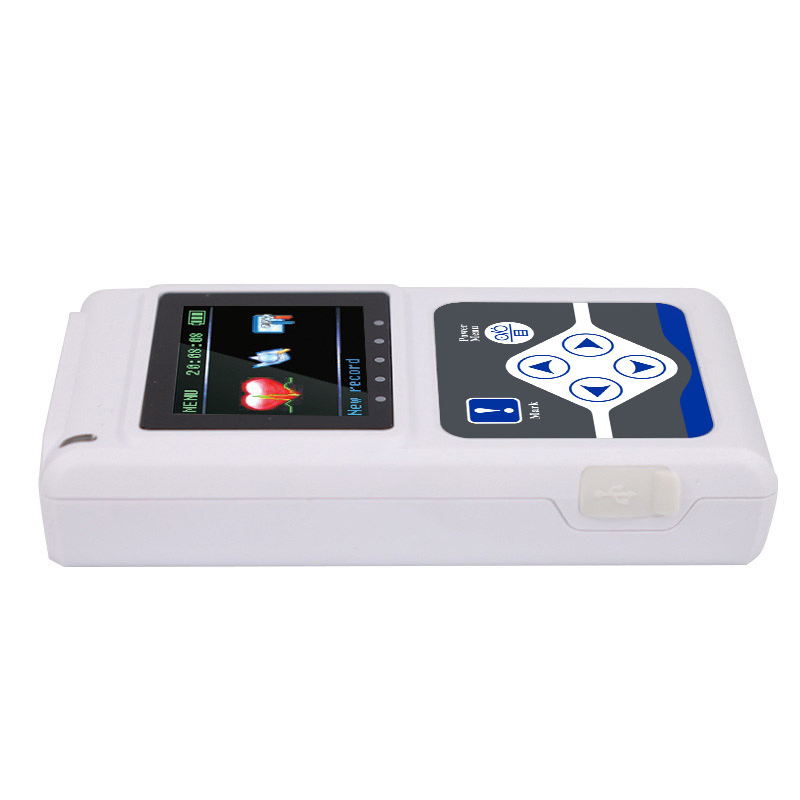

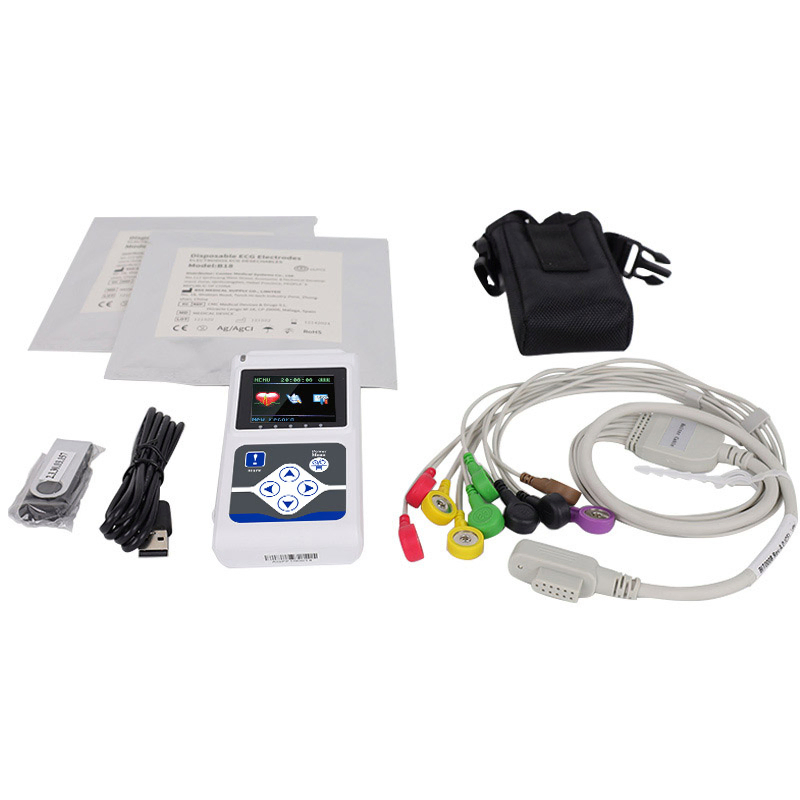

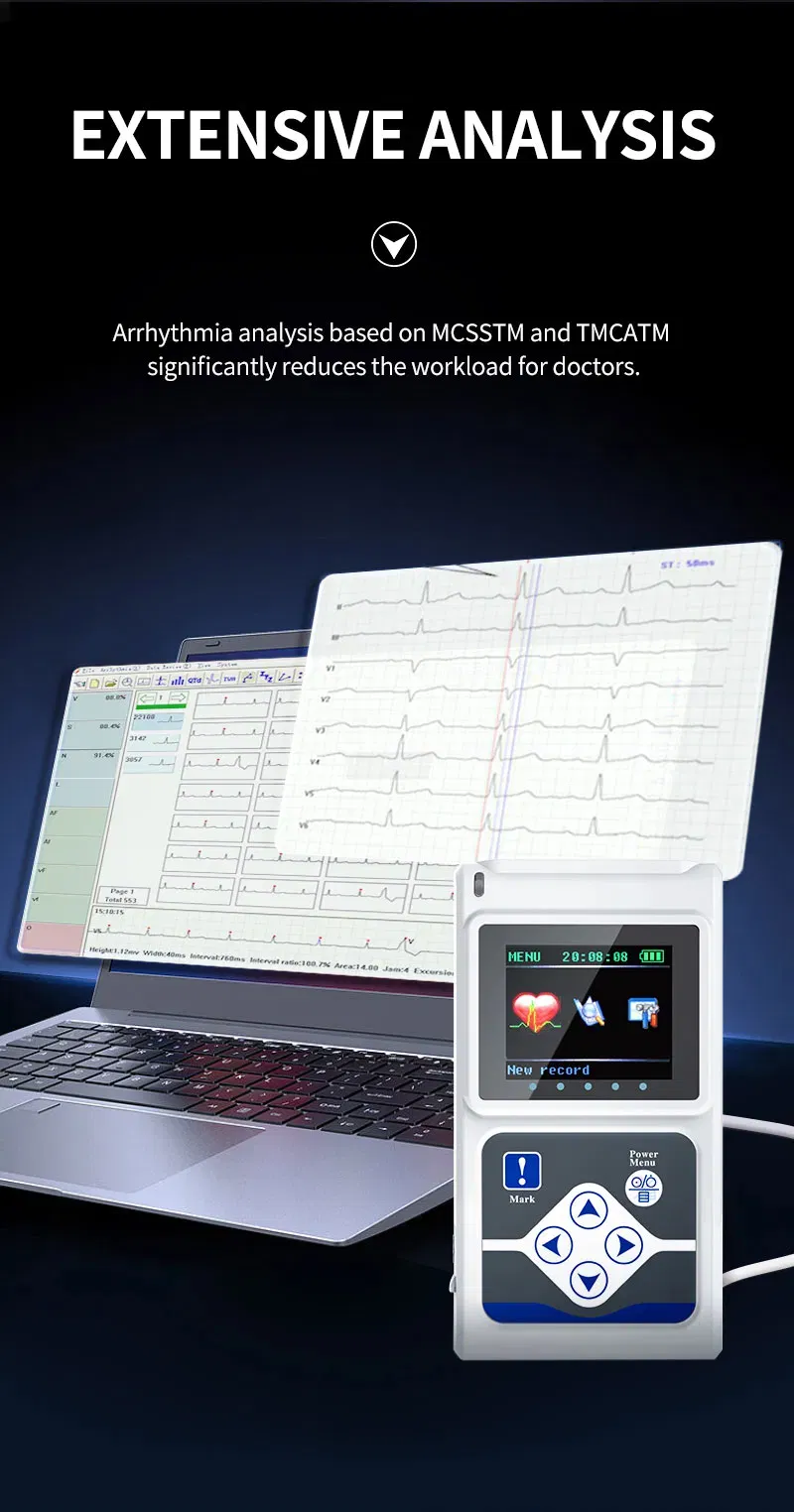

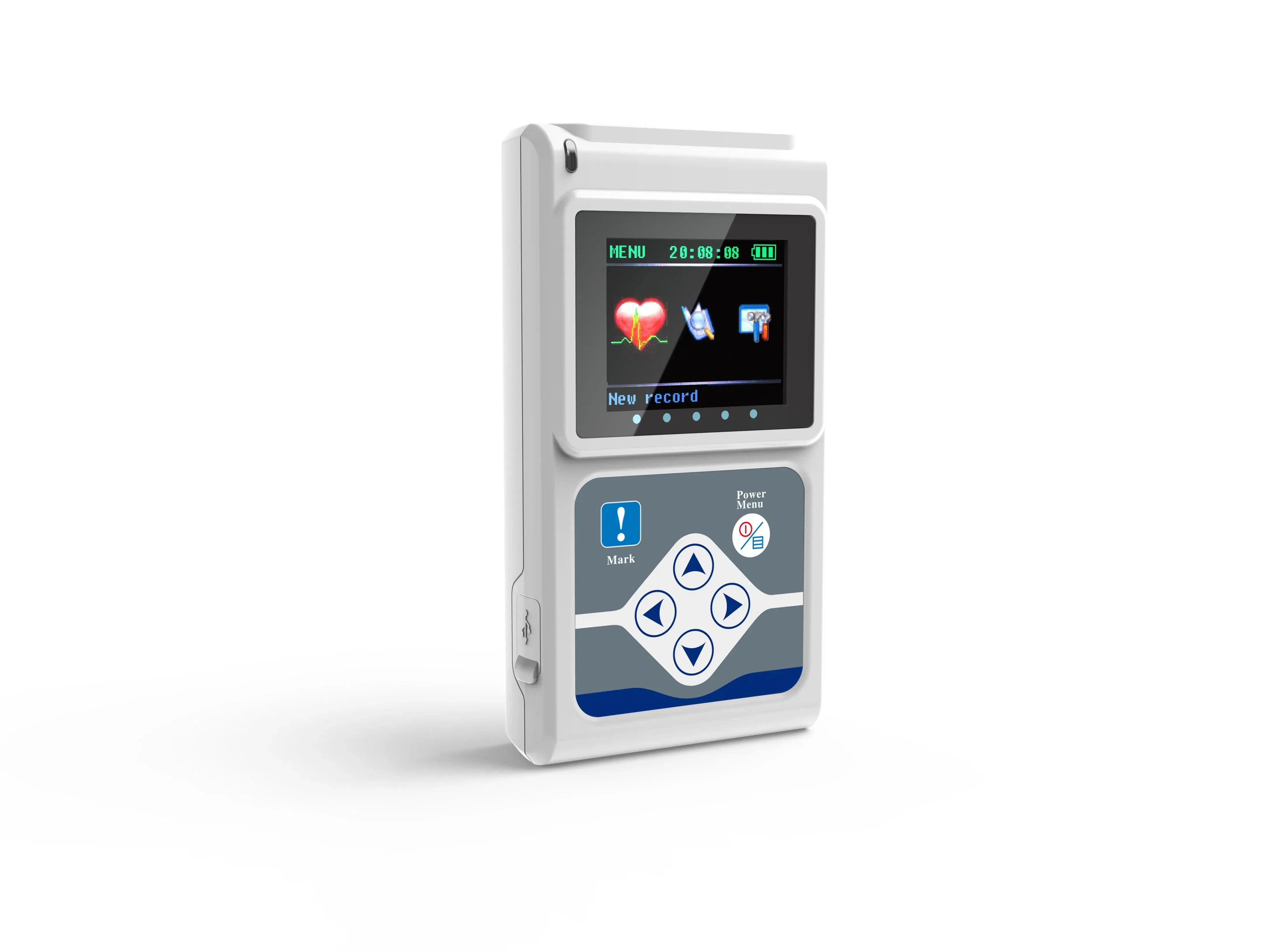

Dynamic ECG Systems adopt a 12-lead system of international standards, which can continuously record ECG waveforms for 24 hours and analyze them via specialized PC software. This system is highly applicable for medical institutions and community health services.
Key Functions & Features
Sync analysis for 12-lead with accurate QRS waveform detection.
10+ templates including atrial premature beat and ventricular premature beat.
Powerful pacemaker analysis for AAI, VVI, DDD models.

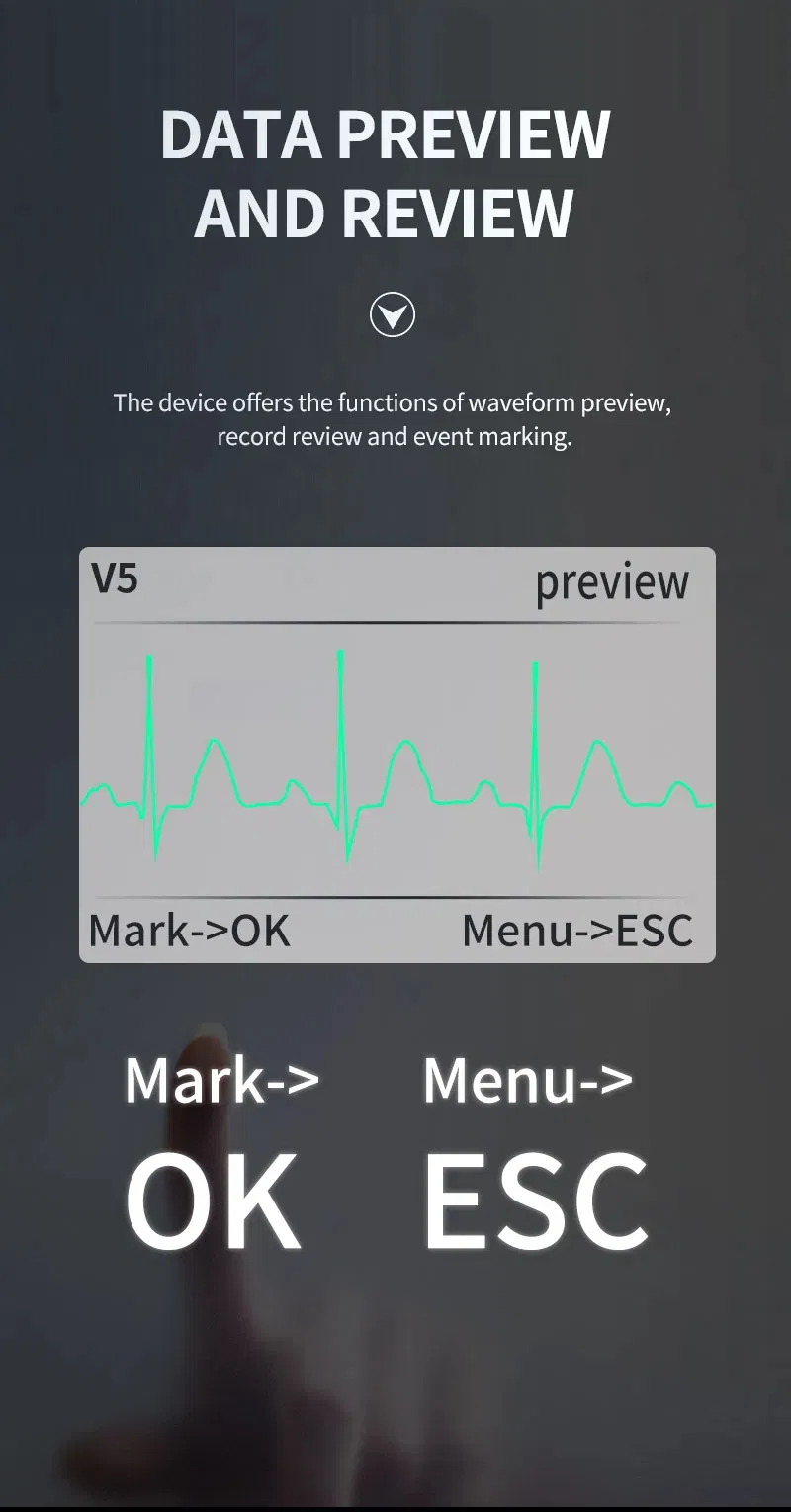

Fast review analysis for any time bucket.
Heart rate variability analysis (5-min, 1-hour, and full-period).
HRT analysis function to predict death risk in myocardial infarction patients.
T-Wave alternation index for malignant arrhythmia prediction.
⚙️
Technical Specifications
Lead Type
Standard 12-lead
CMRR
≥60 dB
Power Supply
One "AAA" alkaline battery
Gain Accuracy
≤ ±10%
Interface
USB 2.0
System Noise
≤50 μV peak-to-peak
Input Impedance
≥10 MΩ
Frequency Response
0.05 Hz to 40 Hz
📦
Related Medical Solutions
🏢

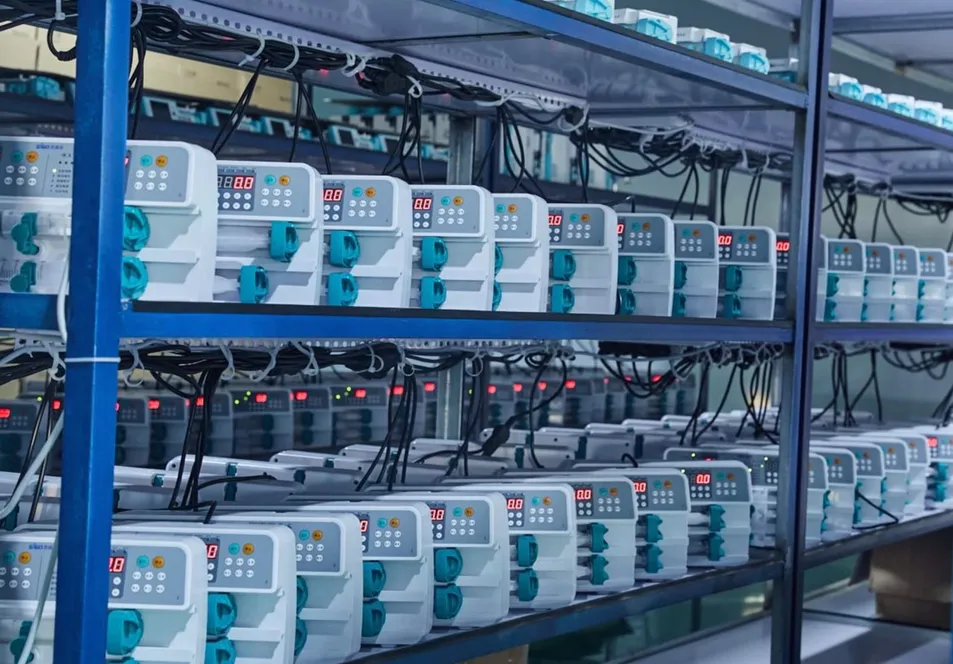

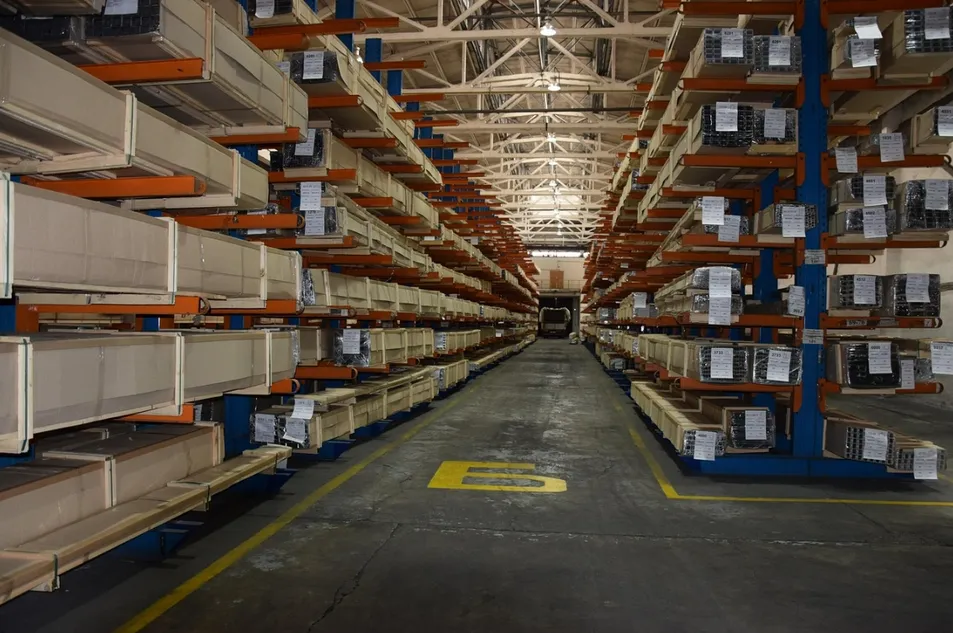

Company Overview
Our company is a comprehensive enterprise specializing in healthcare supply chain management and medical services. For over a decade, we have continued to deepen our expertise in the medical industry. We have grown into an industry leader with extensive supply chain resources and a mature service network both domestically and internationally.
We have established long-term strategic partnerships with more than 300 high-quality brand manufacturers worldwide. Our portfolio includes medical imaging, radiotherapy equipment, life science instruments, medical robots, smart wearable devices, surgical instruments, and critical care devices. We also offer integrated solutions for digital smart hospitals, operating rooms, and ICUs.
🚢

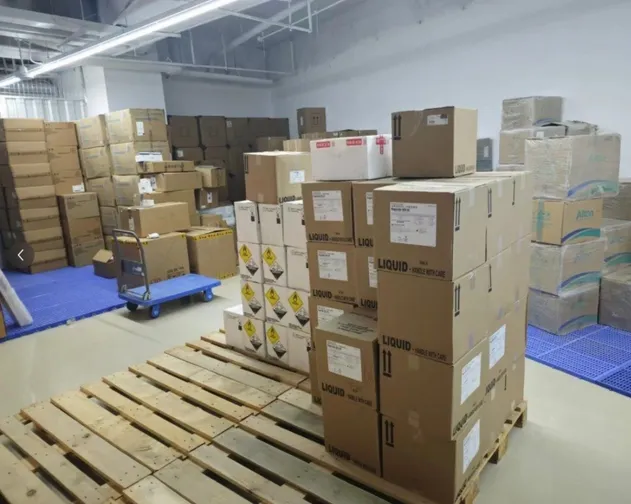

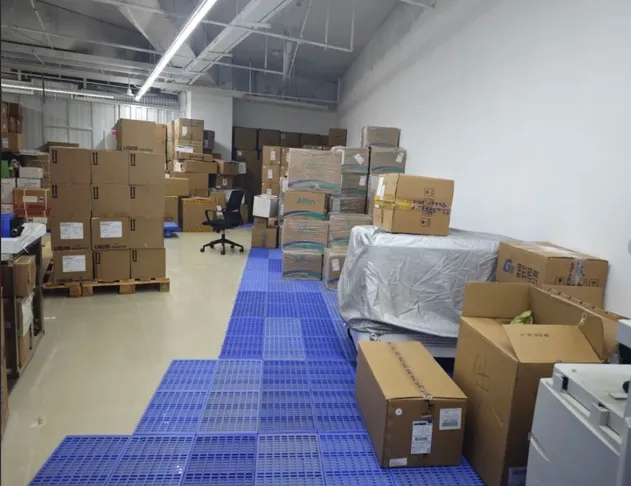

Packaging & Shipping
📜
Certifications
Frequently Asked Questions
What kind of lead system does the TLC-5000 use?
The system uses an international standard 12-lead system for comprehensive cardiac monitoring.
How long can the device record continuously?
It is designed to record ECG waveforms continuously for up to 24 hours on a single AAA battery.
What templates are included in the analysis software?
The software includes over 10 templates, such as atrial premature beat, ventricular premature beat, long interval, and atrial fibrillation.
What payment methods and currencies are accepted?
We accept T/T, D/P, and MIC platform transactions. Supported currencies include USD, EUR, JPY, CAD, AUD, HKD, GBP, and CNY.
What international trade terms do you support?
We offer flexible terms including FOB, CFR, CIF, and EXW to meet global shipping needs.
Do you provide technical support and training?
Yes, we offer full technical support, maintenance, training, and consultation services for all our medical systems.
