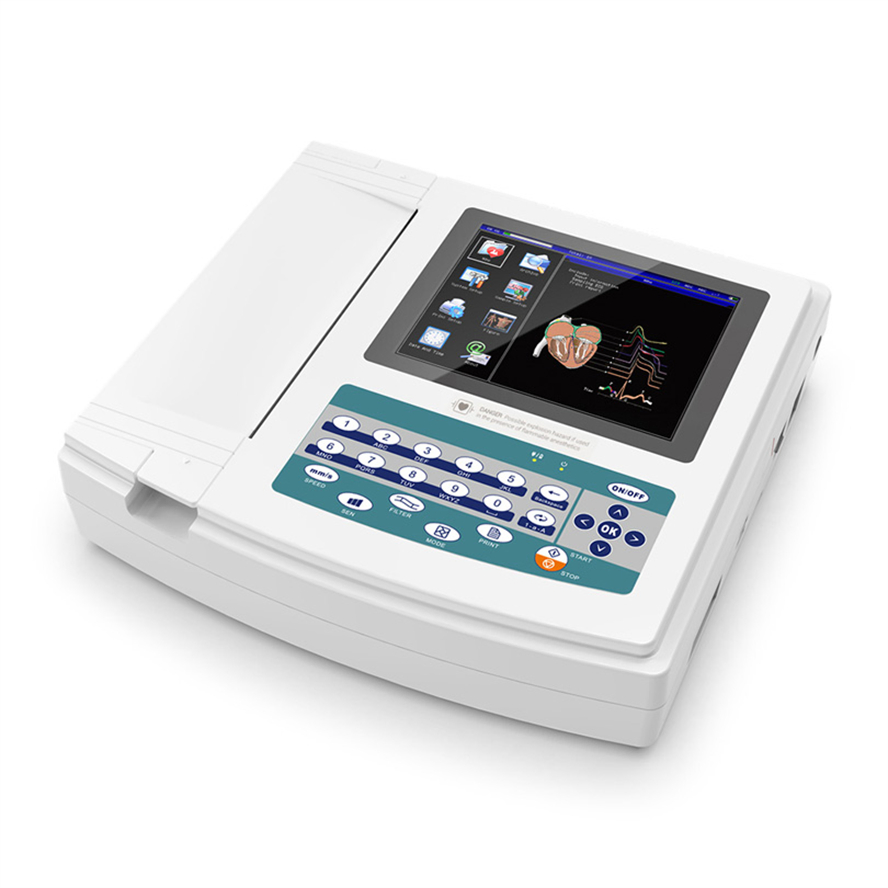

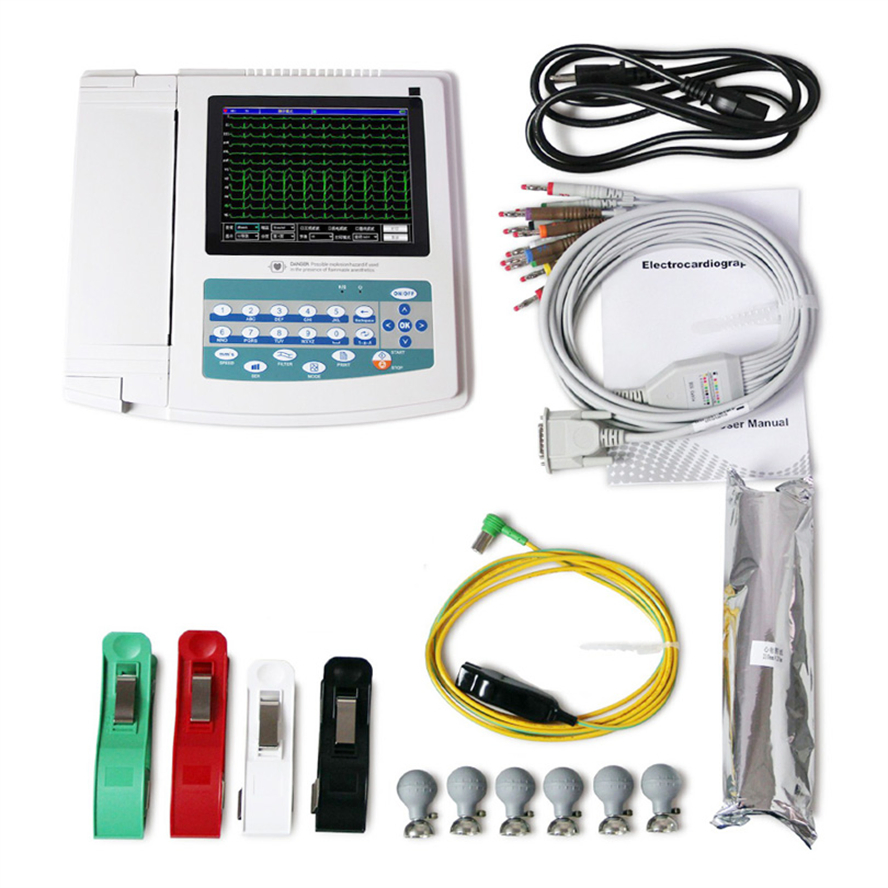

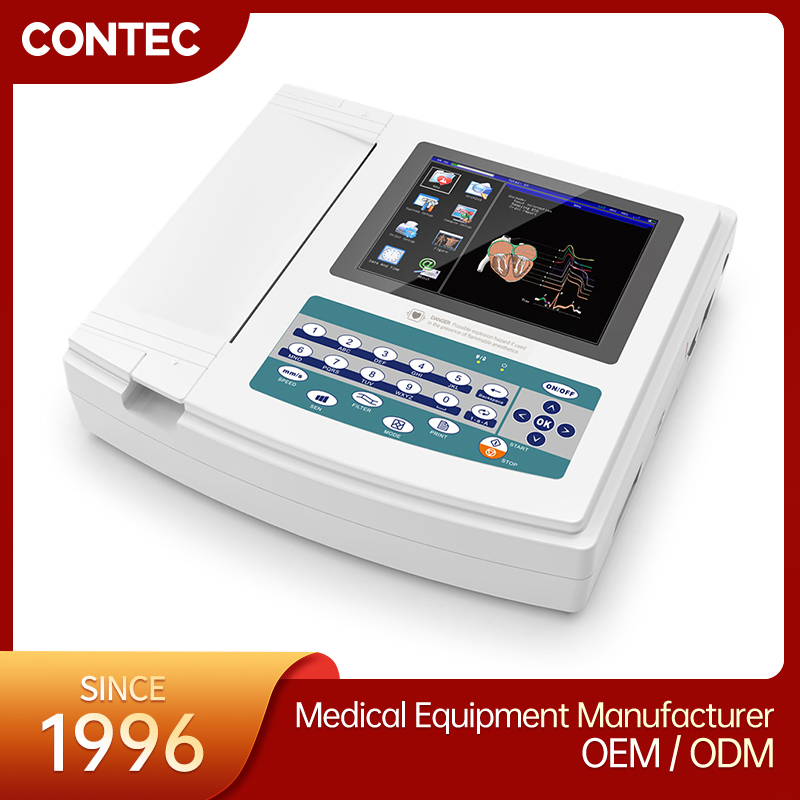

Contec Mdr CE Approved Electrocardiogram Digital 12 Lead 12 Channel ECG Machine
Contec Mdr CE Approved Electrocardiogram Digital 12 Lead 12 Channel ECG Machine
Contec Mdr CE Approved Electrocardiogram Digital 12 Lead 12 Channel ECG Machine
Contec Mdr CE Approved Electrocardiogram Digital 12 Lead 12 Channel ECG Machine
Contec Mdr CE Approved Electrocardiogram Digital 12 Lead 12 Channel ECG Machine
1 / 5
Contec Mdr CE Approved Electrocardiogram Digital 12 Lead 12 Channel ECG Machine
Contec Mdr CE Approved Electrocardiogram Digital 12 Lead 12 Channel ECG Machine
Contec Mdr CE Approved Electrocardiogram Digital 12 Lead 12 Channel ECG Machine
Contec Mdr CE Approved Electrocardiogram Digital 12 Lead 12 Channel ECG Machine
Contec Mdr CE Approved Electrocardiogram Digital 12 Lead 12 Channel ECG Machine

Contec Mdr CE Approved Electrocardiogram Digital 12 Lead 12 Channel ECG Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Info
Model:ECG1200G
Certification:CE, ISO13485
Lead:12 Leads
Screen Size:8 Inches
Paper Size:210mm*20m
Warranty:18 Months
Multi-Language:Yes
Touch Screen:Yes
Product Description
Digital 12-channel ECG

This CE approved Electrocardiogram Digital 12-channel ECG machine is designed for professional medical environments, offering high-precision cardiac monitoring and diagnostic capabilities.

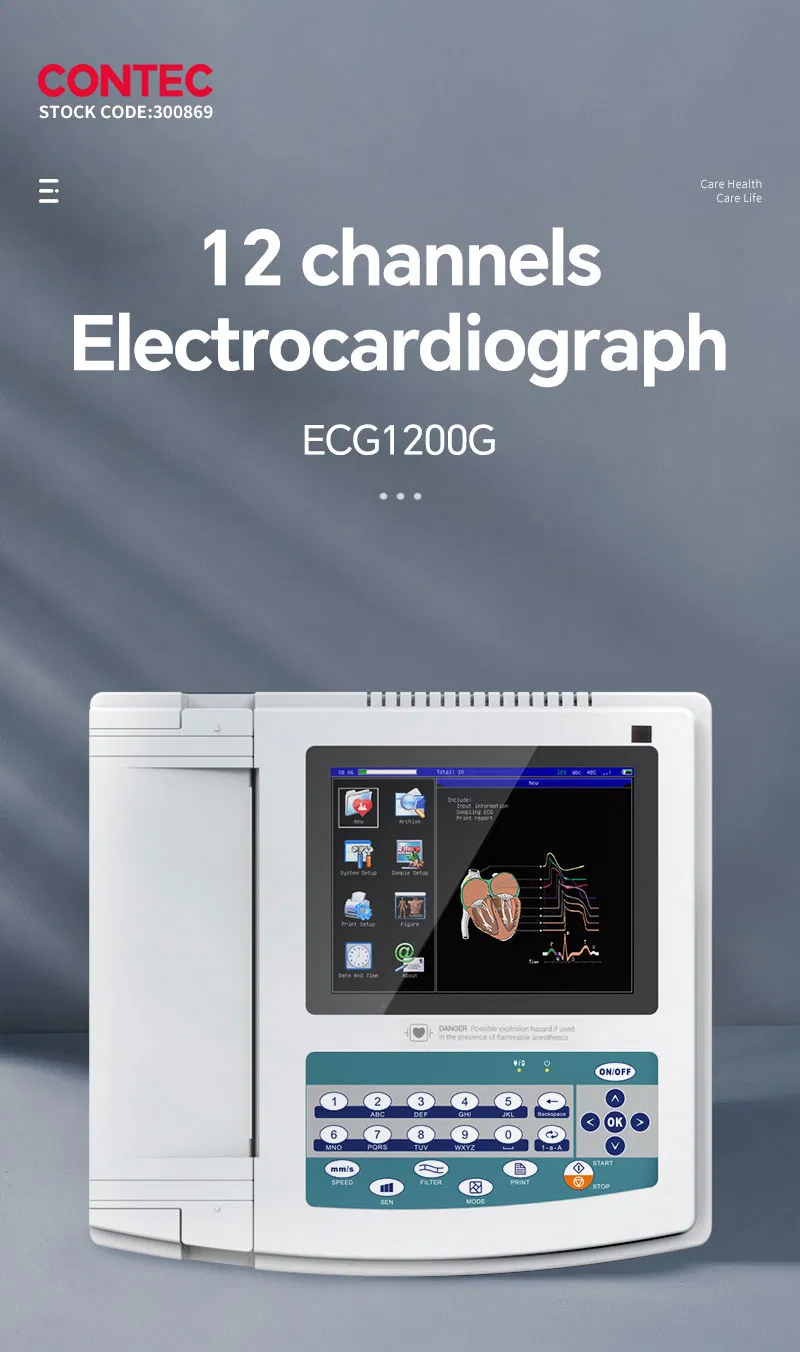

Feature 1

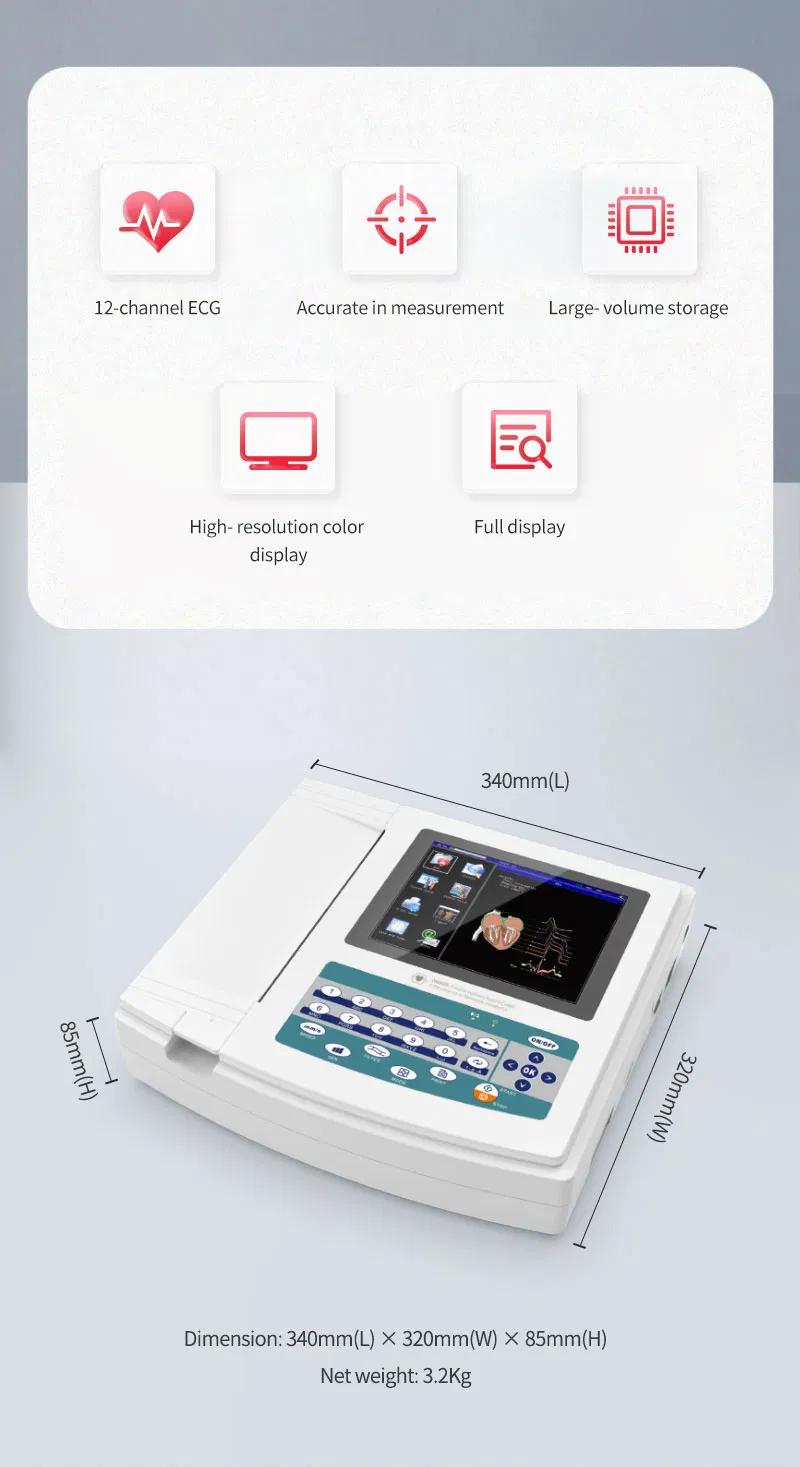

Feature 2

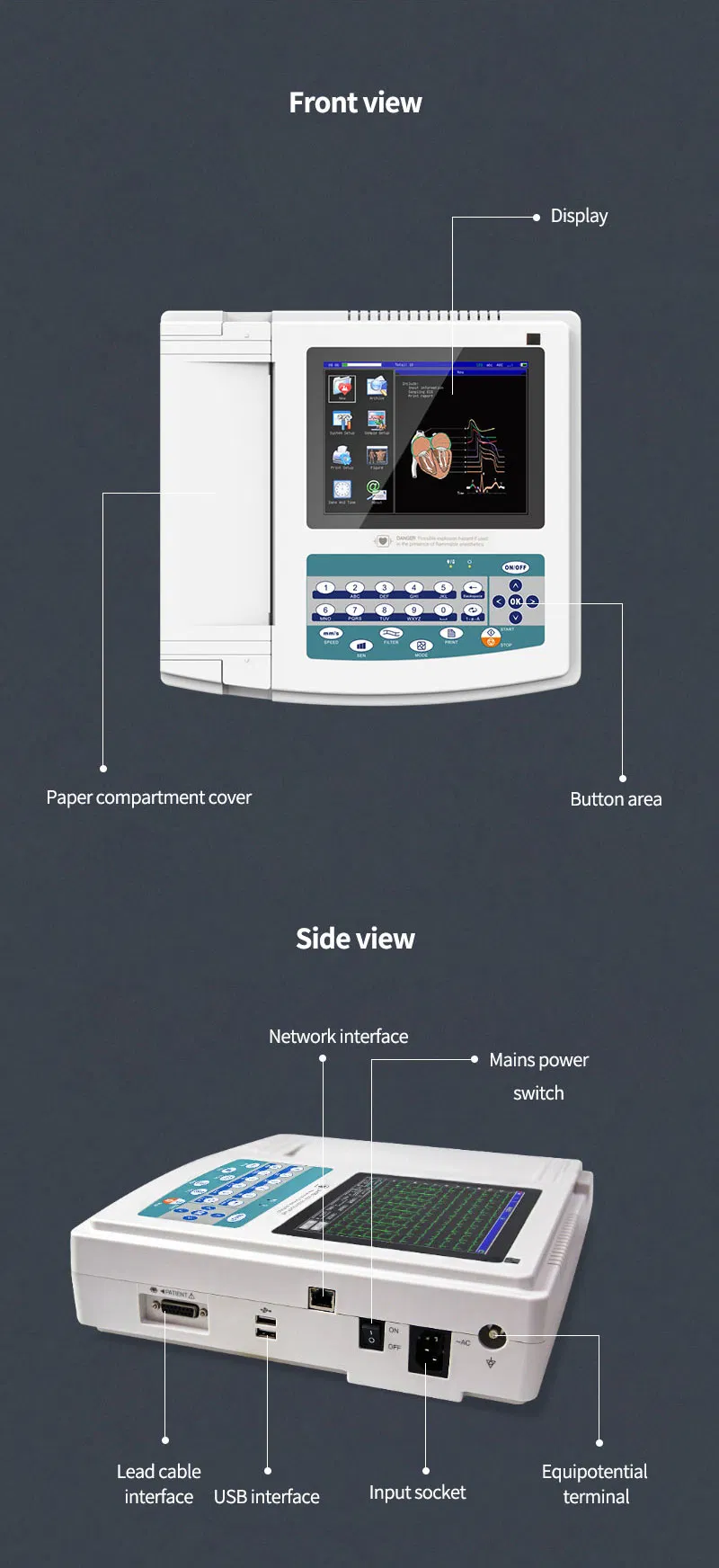

Feature 3
Main Features
  • Sync collection for 12-lead ECG with digital signal processing technology.
  • High-quality ECG waveform via power frequency filter, baseline filter and EMG filter.
  • 8-inch screen displays 3/6/12-lead ECG, print mode, sensitivity, and paper speed.
  • Multiple printing modes: auto 12x1, auto 6x2+1, rhythm 12, manual, and more.
  • Auto-analysis and auto-diagnosis for routine parameters (HR, P-R interval, QRS Duration, etc.).
  • Built-in memory stores up to 1000 cases for easy review.
  • Supports 12 languages including English, Spanish, French, German, and Russian.
  • Rechargeable battery: 10-hour standby time and over 3 hours of continuous printing.
Technical Specifications
Parameter Specification
Input WayFloating and defibrillation protection
Frequency Response0.05Hz~150Hz(-3dB)
CMRR>60dB, >100dB (Adding filter)
Input Impedance≥50MΩ
Patient Leak Current<10µA
Recording WayThermal printing system
Paper SpeedAuto/Rhythm: 25, 50mm/s; Manual: 5, 6.25, 10, 12.5, 25, 50mm/s
Sensitivity Selections2.5, 5, 10, 20, 40mm/mV
Noise Level≤15µVp-p
Dimensions340mm(L) * 320mm(W) * 85mm(H)
Net Weight3.2Kg
Product Detailed Views

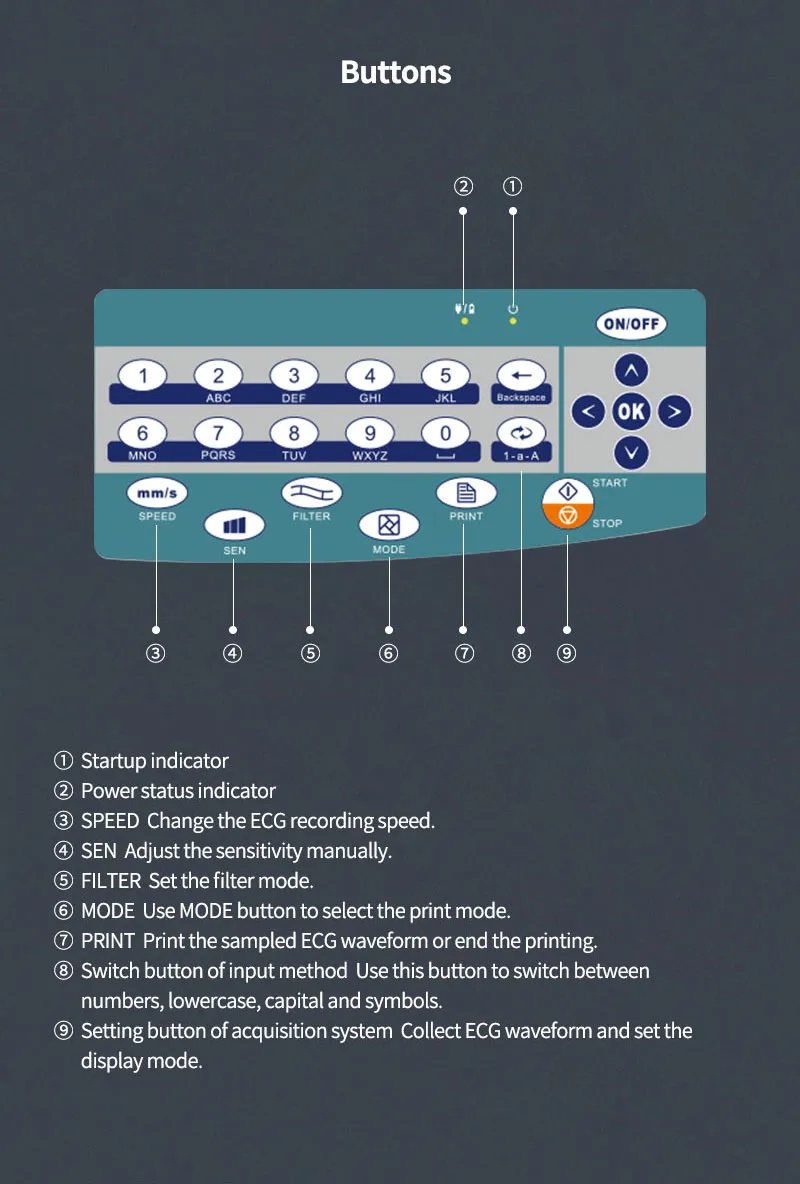

Detail 1

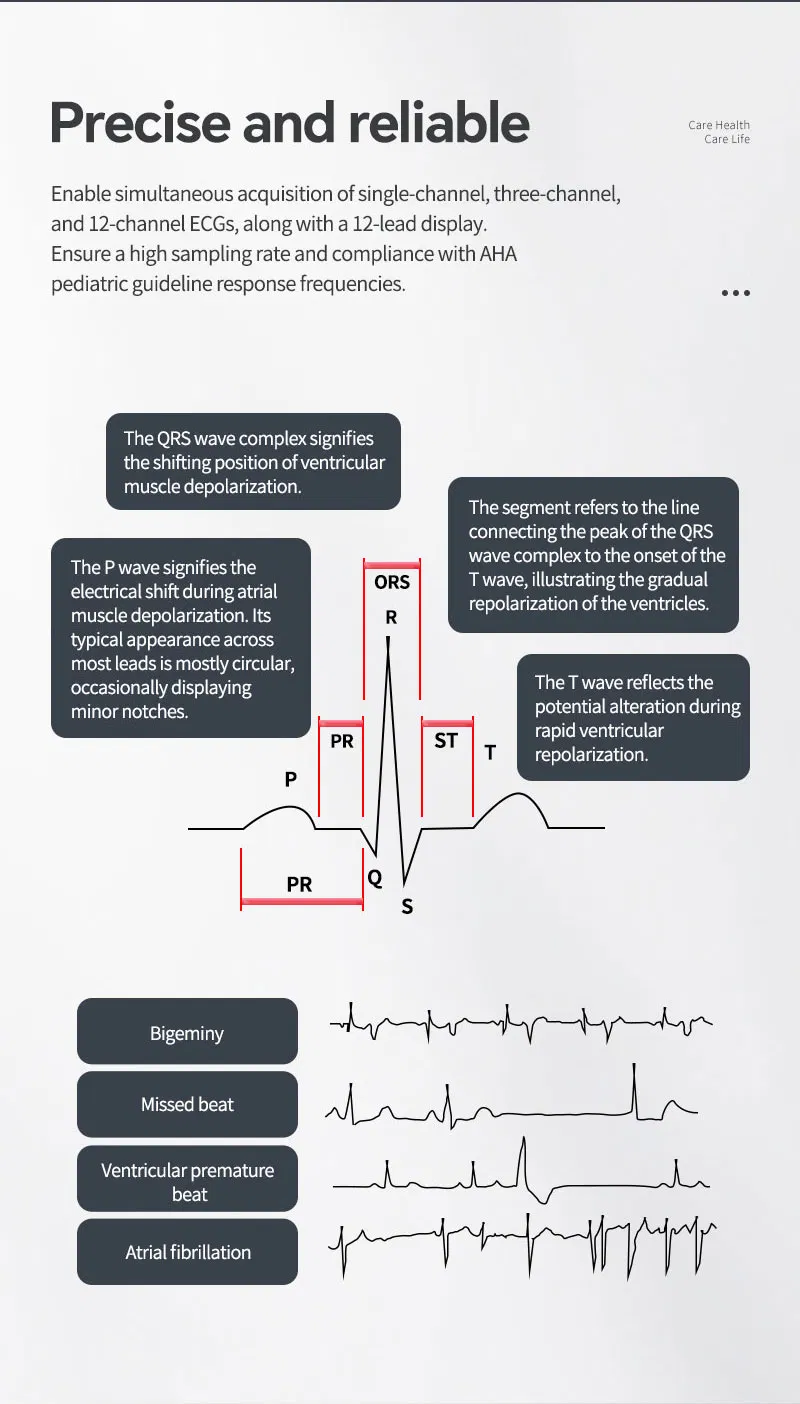

Detail 2

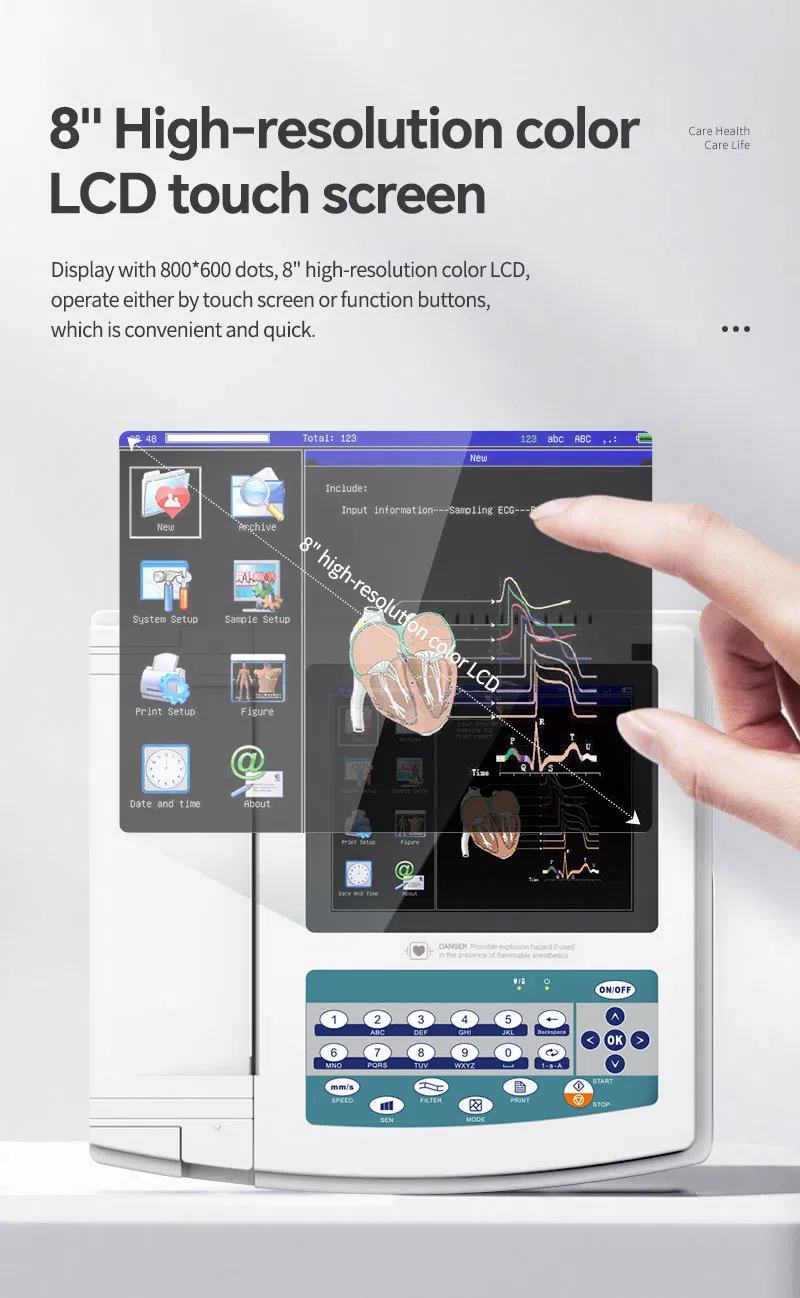

Detail 3
Detail 4
Detail 5

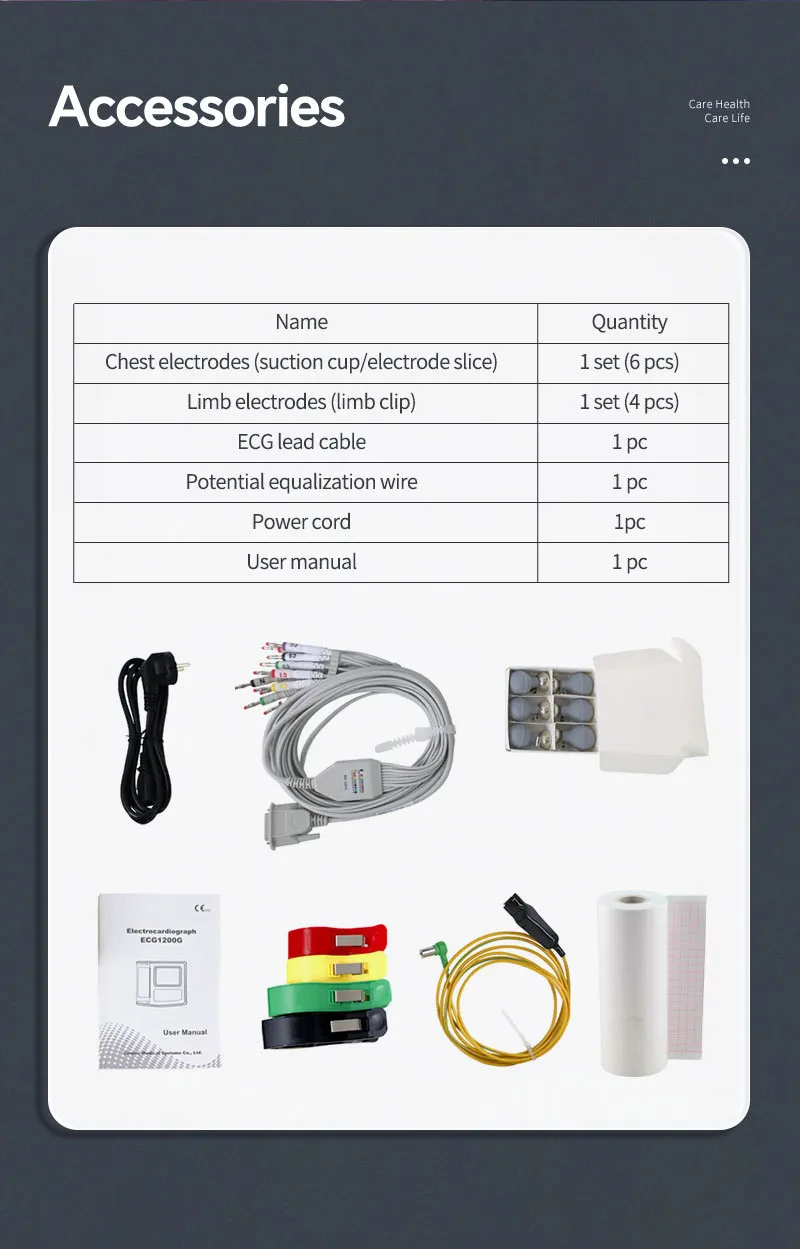

Detail 6
Manufacturing & Quality Control
Factory View 1
Factory View 2

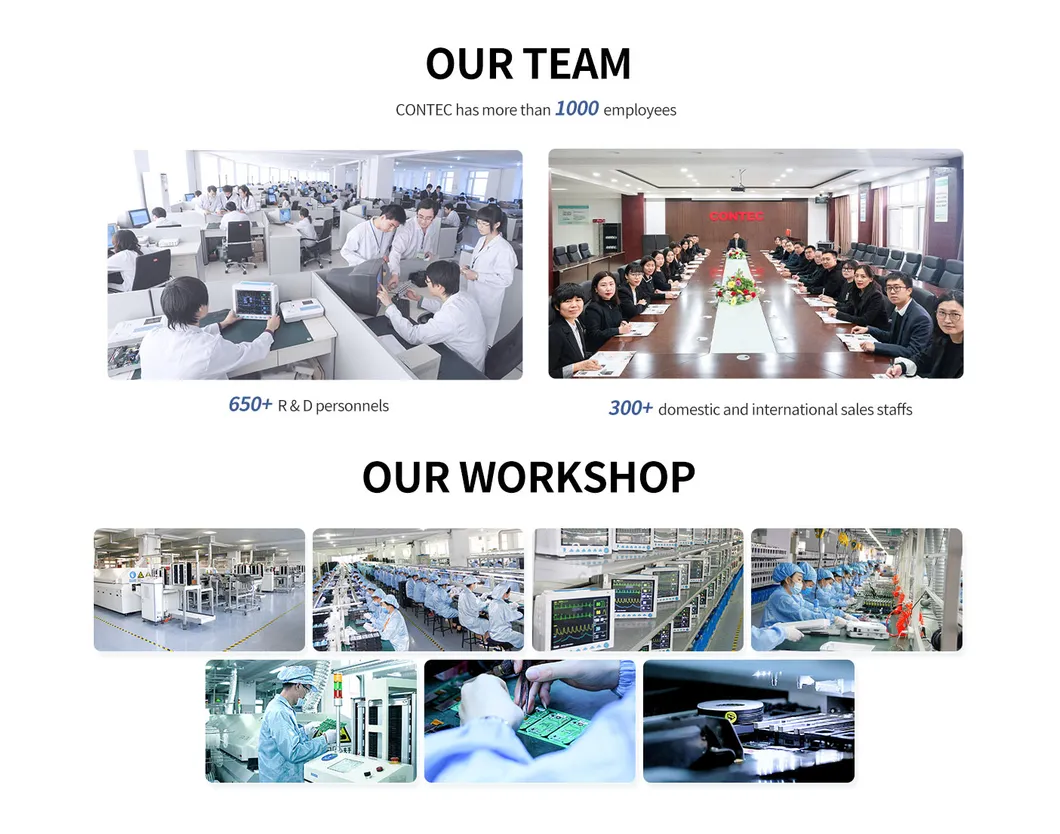

Factory View 3
Frequently Asked Questions
Are you a manufacturer or reseller?
We are a specialized manufacturer focused on developing, manufacturing, and distributing medical devices since 1996.
Where is your facility located?
Our facility is located in China, approximately 2 hours by train from Beijing. We welcome customers for site visits.
Do you support customization (OEM/ODM)?
Yes, we provide full OEM/ODM services, including custom box designs, logo printing on devices, and even structural appearance modifications via new molds.
What is the typical shipping timeline?
Sample orders are dispatched within 2 days. General orders typically take 3-20 days depending on the quantity. Custom orders require mutual negotiation.
How can I place an order and pay?
Orders can be placed directly or through an invoice. We accept various payment methods including T/T, PayPal, L/C, and Western Union.
What is the warranty period for the ECG machine?
The standard warranty for the ECG1200G is 18 months from the date of purchase.
