Product Description

Basic Information

Model NO.

VM 12

Certification

ISO13485

Group

All

Product

Veterinary Patient Monitor

Screen

12 Inch TFT LCD

Warranty

1 Year

Power Supply

Built-in Battery

Transport Package

Carton

Product Description

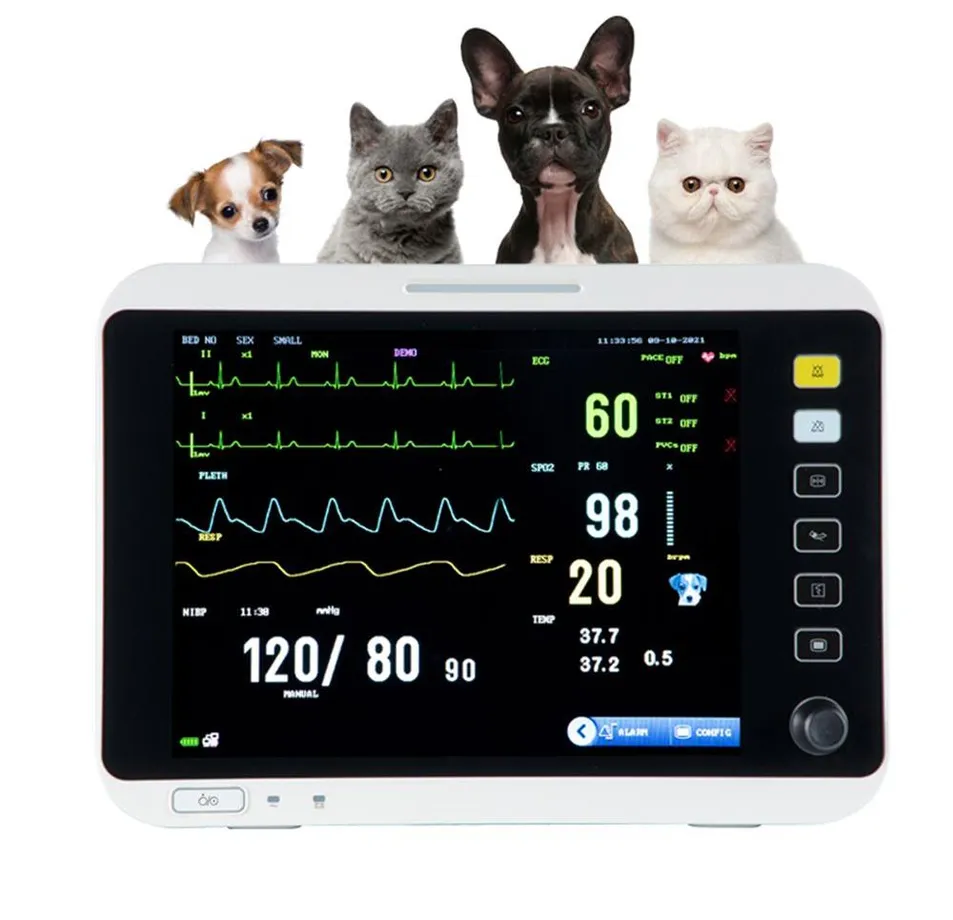

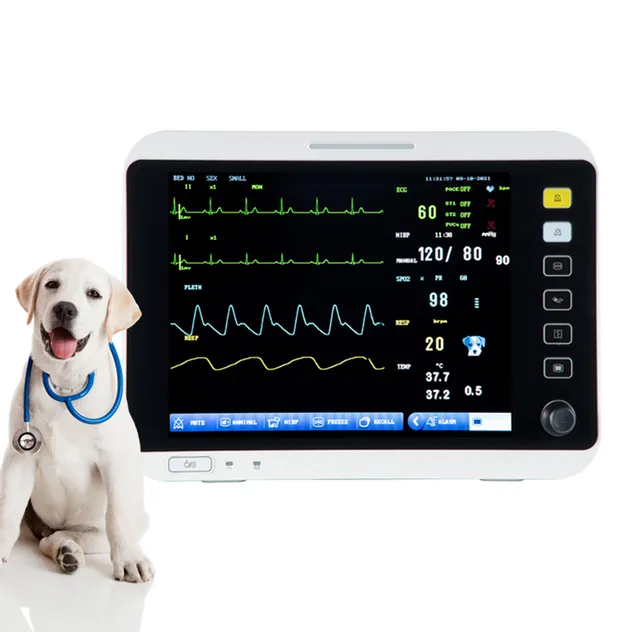

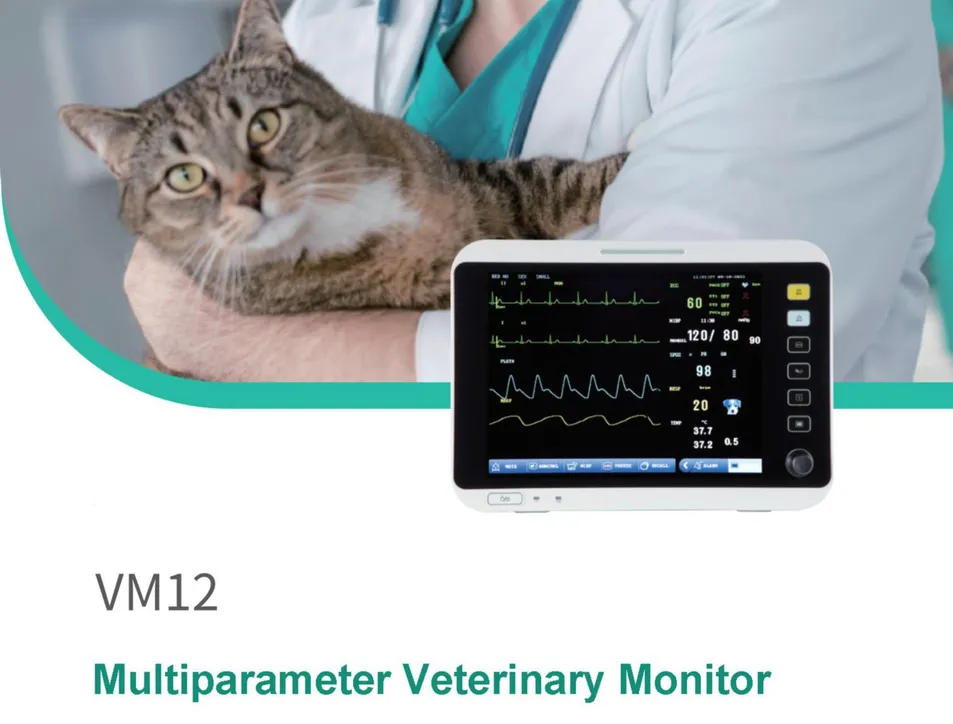

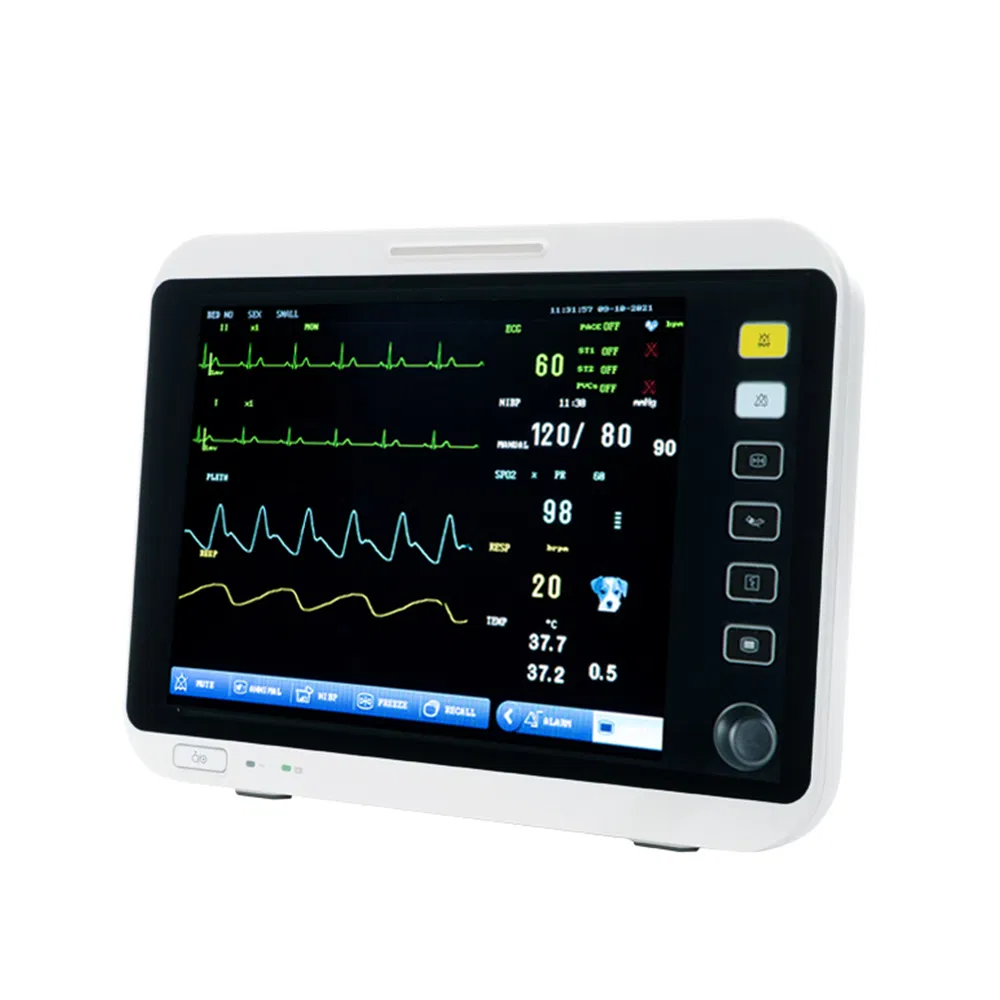

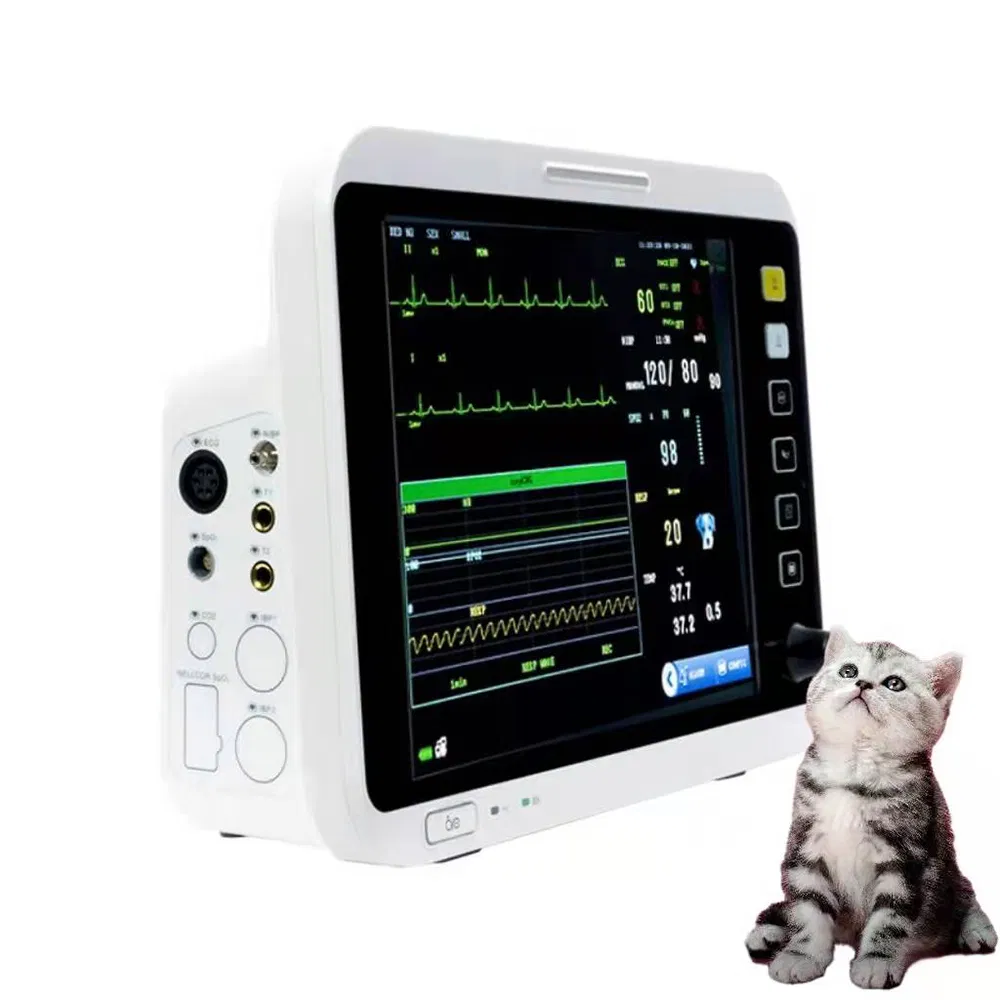

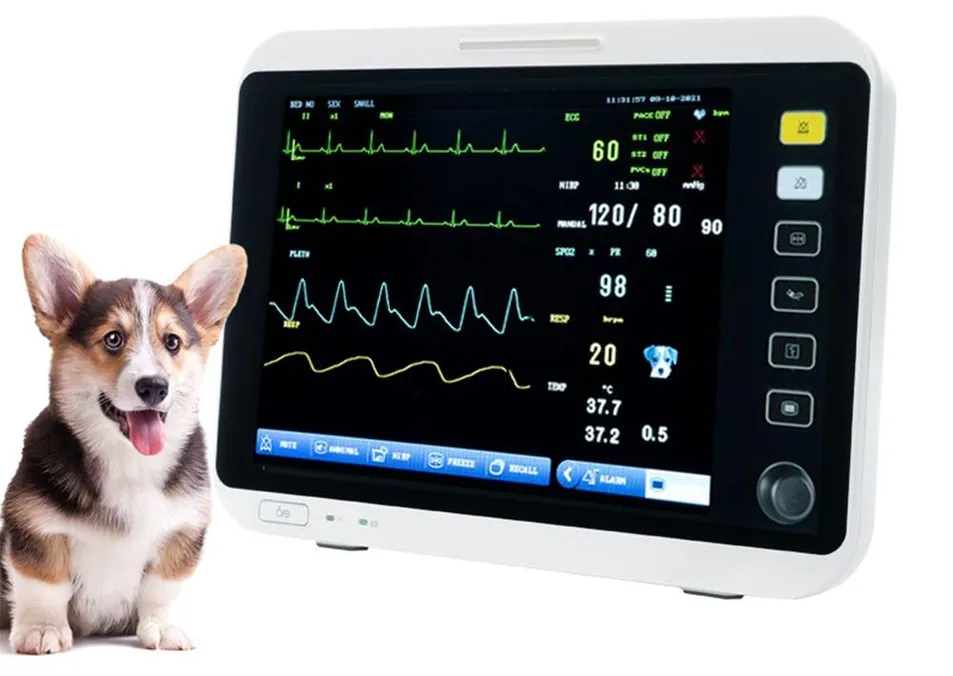

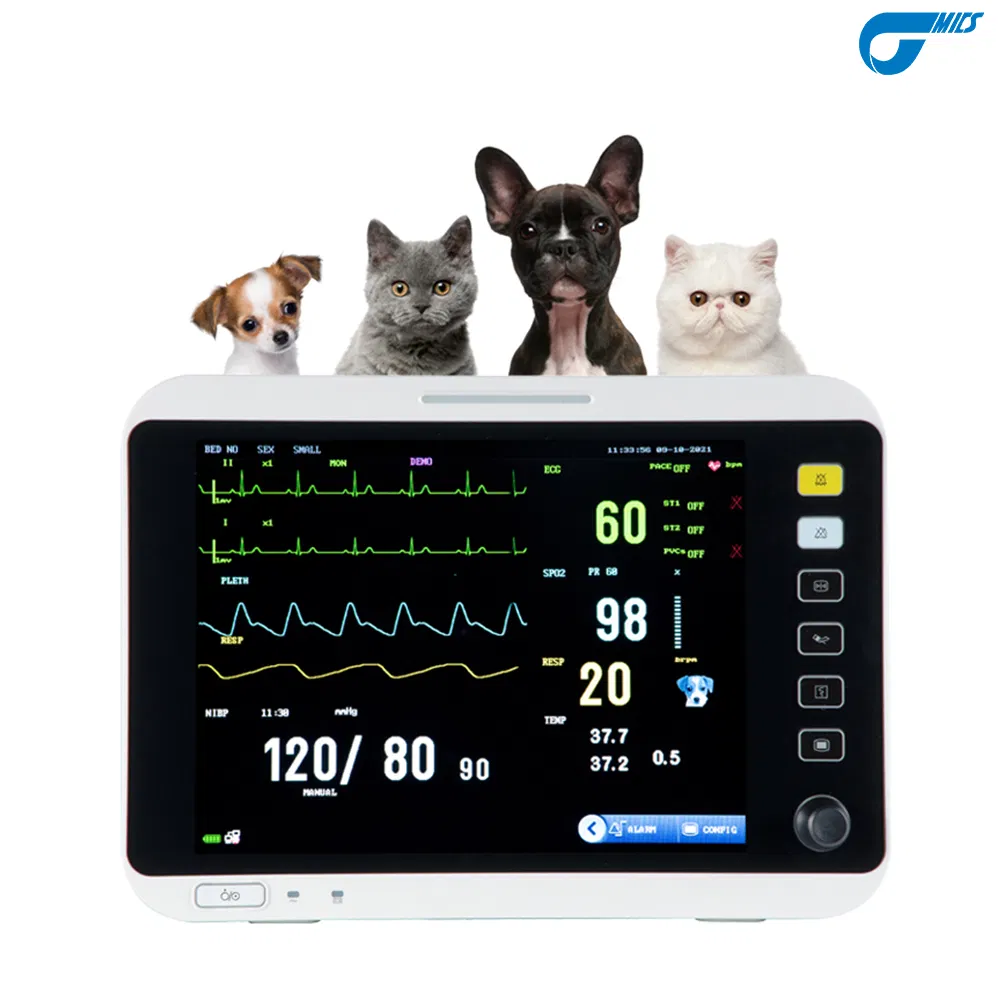

Veterinary Monitor with Multiparameter and 12.1 inch LCD Screen (Model: VM 12)

12.1 inch high brightness LCD monitor
Mirror display with new visual effect and more intimate protection
Multiple working mode: diagnostic, monitoring, surgery
Suitable for different pets with different size

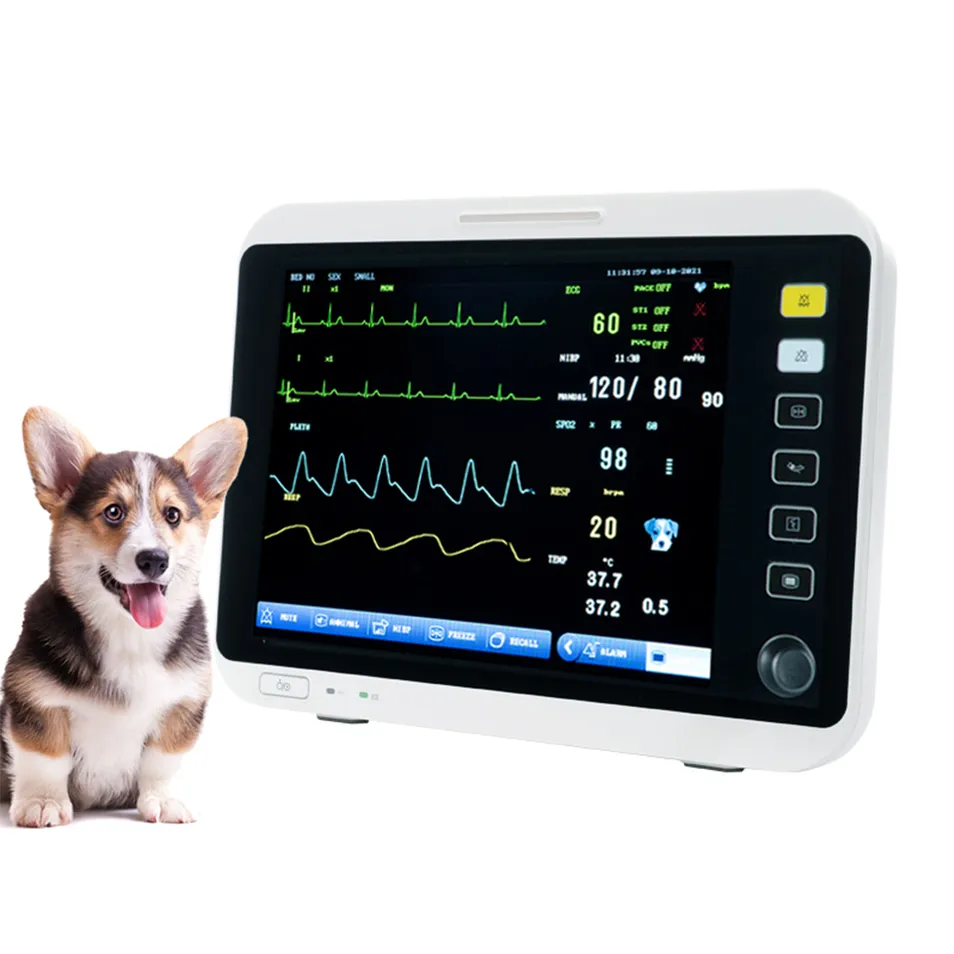

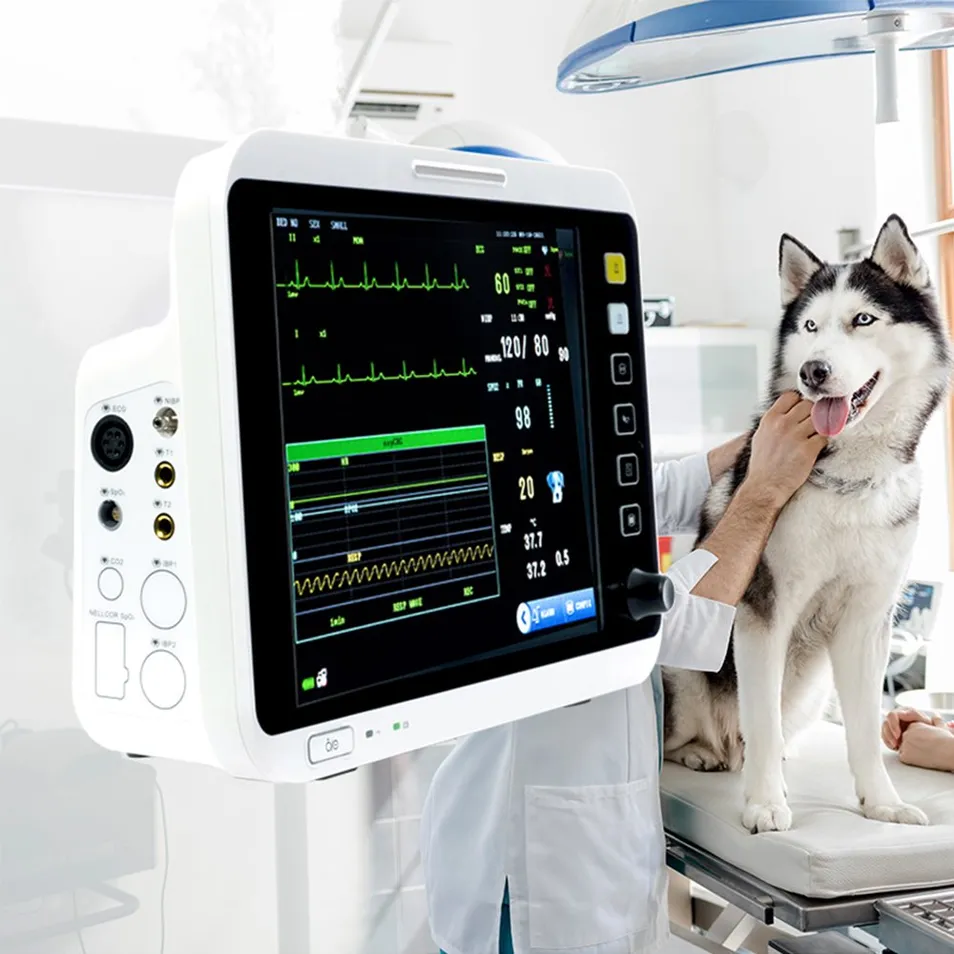

Multiple display mode: standard, large font, trend graph, BP list
Supporting multi lead display of ECG waveforms
Bulit in high capacity Lithium battery with long standby time
Special algorithm for fast & accurate NIBP measurement

Standard configuration: ECG, NIBP, SpO2, RESP., TEMP., HR
Optional configuration: IBP, side stream EtCo2, printer, trolley

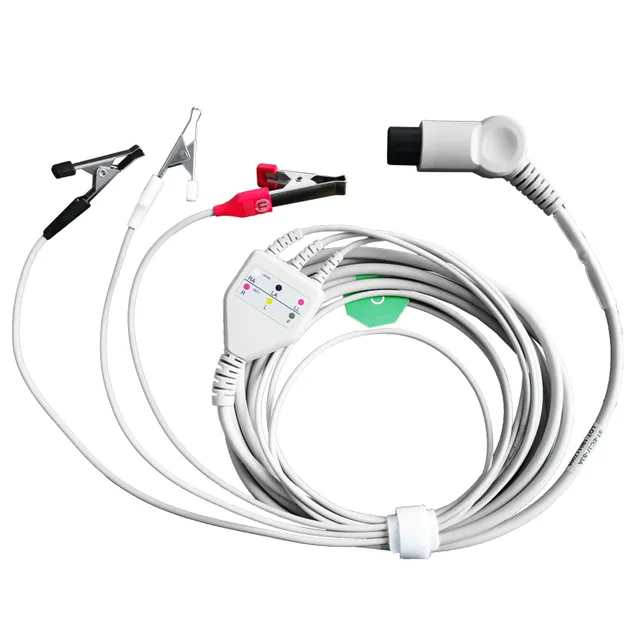

ECG Cable of 3 Lead

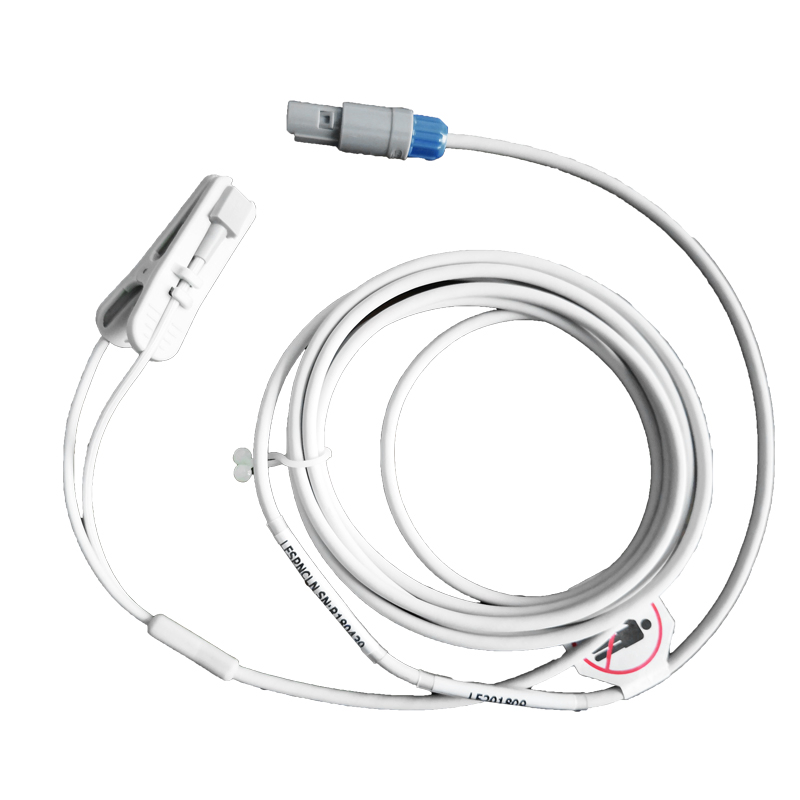

SpO2 Sensor

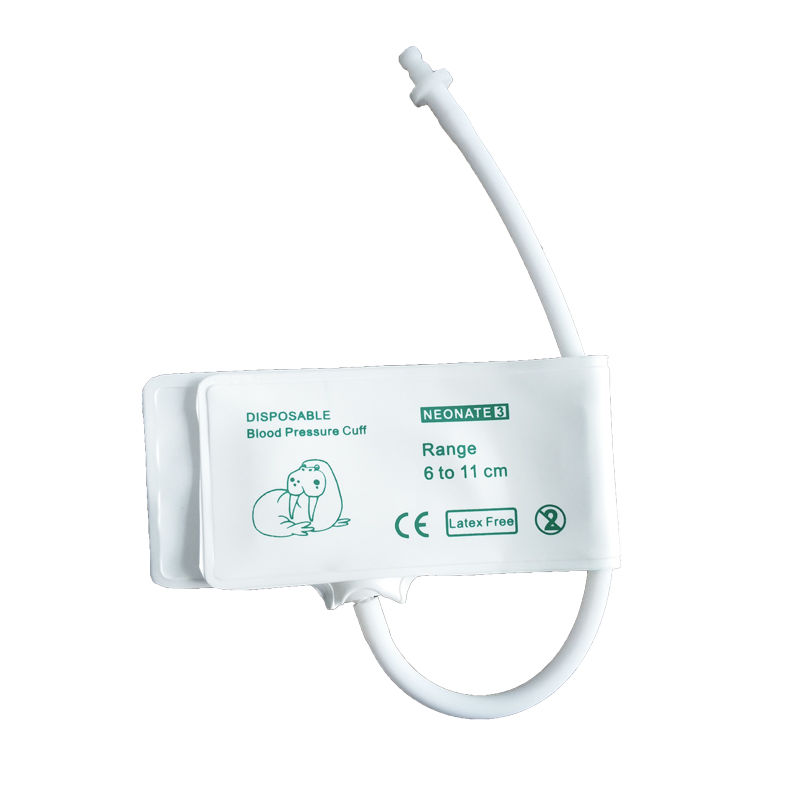

Disposable NIBP Cuff

Technical Specifications

📍 ECG

Lead Mode: 5 Leads (R, L, F, N, C)
Waveform: 3 channel
HR and Alarm Range: 15 ~ 350 bpm
Accuracy: ± 1% or ± 1 bpm
Signal Range: ±8 mV (Vp-p)

📍 SpO2

Measurement Range: 0 ~ 100 %
Accuracy: 70% ~ 100%: ±2 %
Pulse Rate Range: 20 ~ 250 bpm

📍 Temperature

Channel: 1
Range: 0 ~ 50 °C
Accuracy: ± 0.1 °C

📍 NIBP

Method: Oscillometric
Mode: Manual, Auto, STAT
Range: SYS: 40 ~ 280 mmHg, DIA: 10 ~ 220 mmHg

📍 RESP

Method: Impedance between R-F
Measurement Range: 0 ~ 150 rpm
Accuracy: ±2 BrPM

Packing & Delivery

Dimension

25 x 27 x 20 cm

Weight

4 Kg

Packing

1 set / carton

Packing List:
1* VM 12 Monitor, 1* ECG Cable, 1* ECG Electrodes, 1* SPO2 Sensor, 1* NIBP Cuff, 1* Extension tube, 1* Power Wire, 1* Grounding cable, 1* User manual, 1* Warranty card.

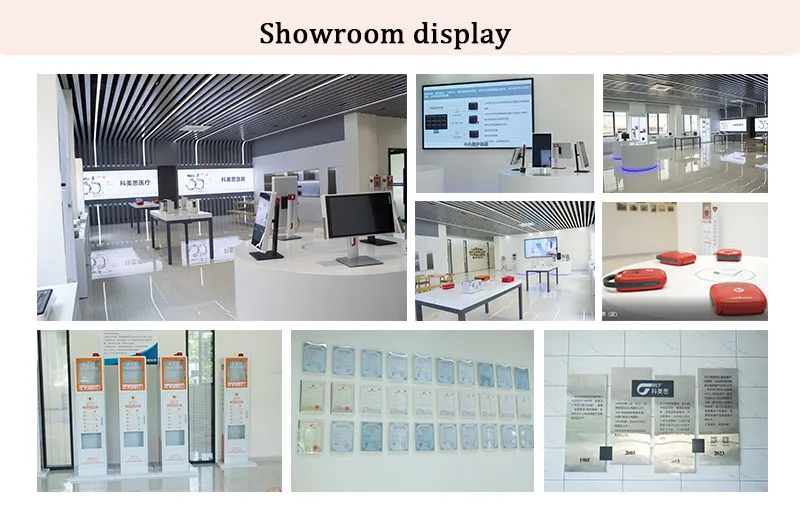

Manufacturing Showcase

Frequently Asked Questions

Q1: What animals can be monitored with the VM 12? A: The VM 12 is designed for a wide range of animals, including dogs, cats, and other pets of various sizes.

Q2: Does this monitor support battery operation for portable use? A: Yes, it features a built-in high-capacity Lithium battery providing long standby time for portable or emergency use.

Q3: Can I see multiple waveforms on the screen at once? A: Yes, the 12.1-inch screen supports multi-lead display of ECG waveforms simultaneously.

Q4: What parameters are included in the standard configuration? A: The standard configuration includes ECG, NIBP, SpO2, Respiration (RESP), Temperature (TEMP), and Heart Rate (HR).

Q5: How accurate is the blood pressure measurement for animals? A: The device uses a special algorithm specifically designed for fast and accurate NIBP measurement in veterinary applications.

Q6: What display modes are available on the monitor? A: It offers multiple display modes, including Standard, Large Font, Trend Graph, and BP List to suit different clinical needs.
