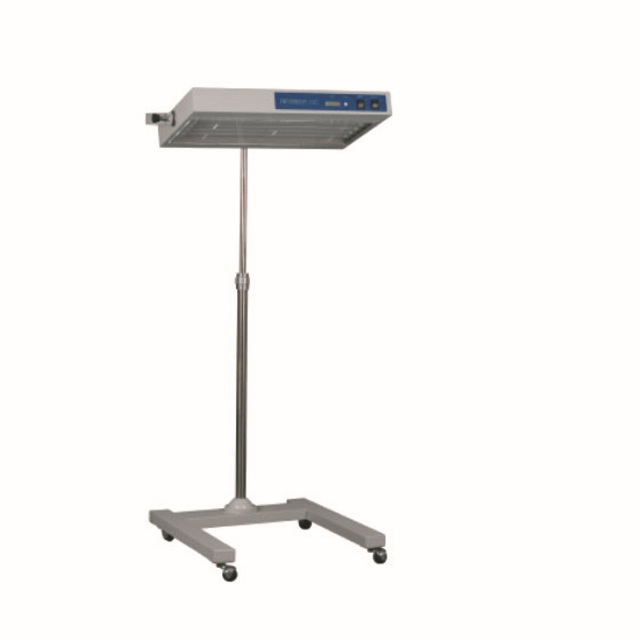

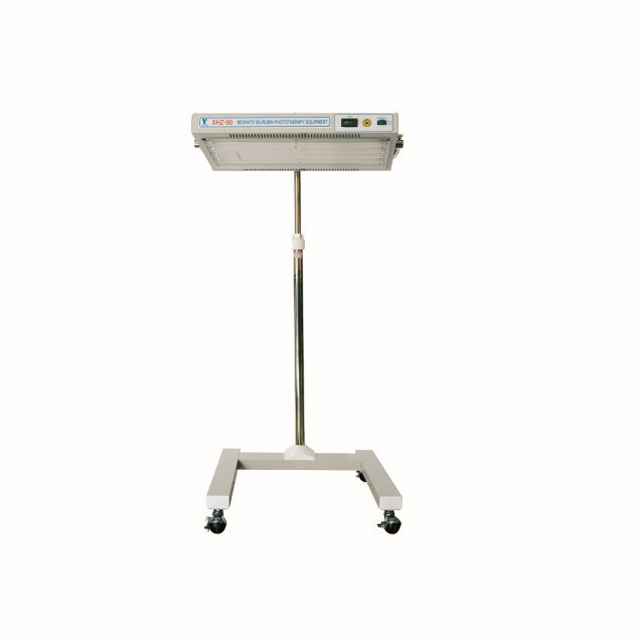

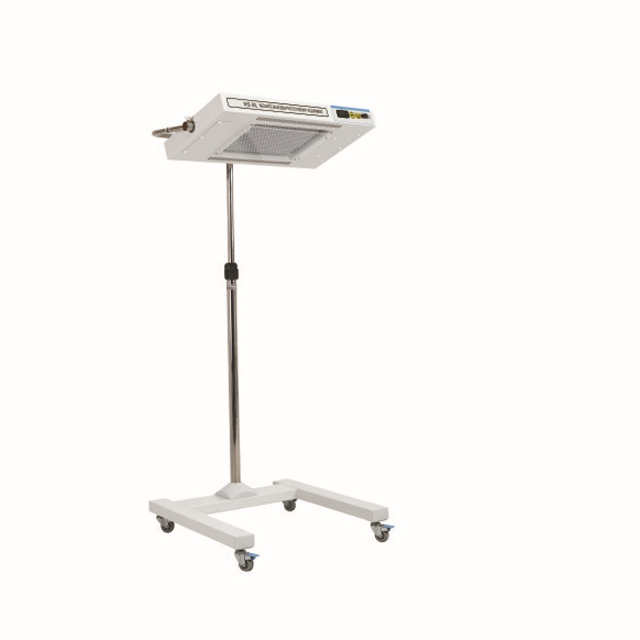

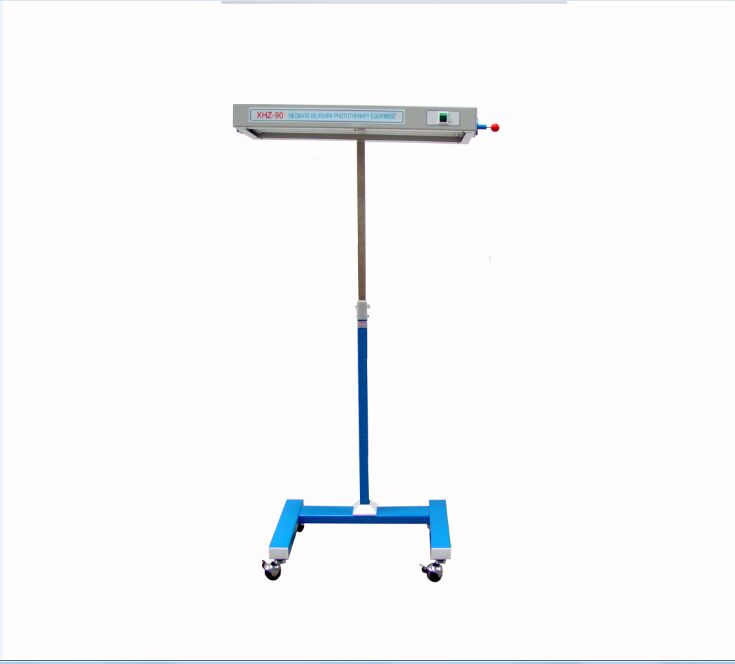

Medical Baby Neonate Phototherapy Unit
The XHZ-90 series provides professional health care solutions for neonatal jaundice treatment, featuring high-intensity blue light therapy and micro-computer servo-controlled systems for precise monitoring and safety.
Technical Specifications
| Parameter |
Specification Details |
| Model No |
XHZ-90 / XHZ-90L |
| Light Source |
Blue fluorescent tube (XHZ-90) / LED (XHZ-90L) |
| Peak Spectrum |
436nm |
| Wave Length |
420 ~ 470 nm |
| Temperature Range |
25 ~ 37° C |
| Skin Sensor Accuracy |
± 0.3° C |
| Bed Temp. Uniformity |
≤ 2.0° C |
| Warm-up Time |
≤ 30 min |
| Heater Head Adjustment |
0 ~ 90° |
| Power Requirement |
AC220V-230V/50Hz or AC110-120V/50-60Hz |
Core Features & Functions
1
Servo-Control System: Skin temperature and manual control servo-controlled by micro-computer.
2
Safety Alarms: Integrated oven temperature alarm system for infant safety.
3
Adjustable Design: Flexible adjustment of radiator and mattress tilting.
4
Illumination: Equipped with one illumination light and two specialized phototherapy lamps.
5
APGAR Connector: Built-in connector for standardized newborn health assessment.
6
Optional Suction: Support for optional suction apparatus integration.
Product Details & Packaging
Packaging Options: We offer flexible packing solutions including Paper packing, Wooden packing, or Foam packing according to your specific requirements for safe international transport.
Frequently Asked Questions
What is the difference between Model XHZ-90 and XHZ-90L?
The main difference lies in the light source. The XHZ-90 uses blue fluorescent tubes, while the XHZ-90L model is equipped with an LED light source.
What is the effective wavelength for the phototherapy treatment?
The unit operates within the blue light wavelength range of 420 to 470 nm, with a radiant light resource peak spectrum at 436nm, which is optimal for treating neonatal jaundice.
How accurate is the temperature monitoring?
The unit features high-precision micro-computer control with a skin sensor accuracy of ± 0.3° C and maintains bed temperature uniformity within ≤ 2.0° C.
Can the infant bed position be tilted?
Yes, the unit is designed with adjustable mattress tilting and a radiator head that can be adjusted from 0 to 90 degrees to accommodate clinical needs.
Is there a safety alarm system included?
Yes, the device is equipped with a micro-computer controlled oven temperature alarm to ensure the environment remains within safe limits for the neonate.
What power supplies are compatible with this unit?
The unit is versatile and supports both AC220V-230V/50Hz and AC110-120V/50-60Hz power requirements, making it suitable for global medical facilities.
