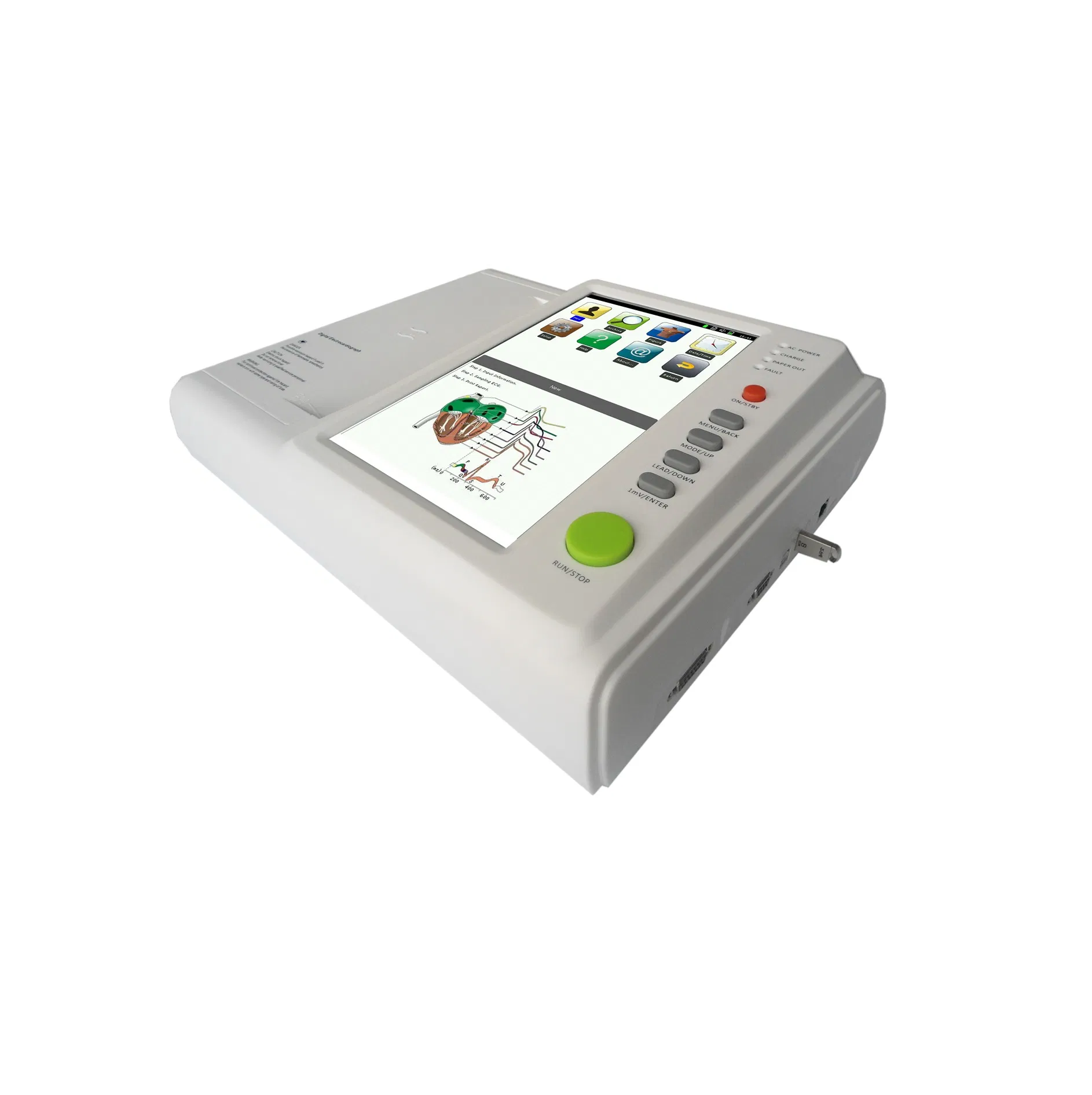

Portable 12-Lead ECG Cardiac Monitor for Home and Clinics
Portable 12-Lead ECG Cardiac Monitor for Home and Clinics
Portable 12-Lead ECG Cardiac Monitor for Home and Clinics
Portable 12-Lead ECG Cardiac Monitor for Home and Clinics
Portable 12-Lead ECG Cardiac Monitor for Home and Clinics
1 / 5
Portable 12-Lead ECG Cardiac Monitor for Home and Clinics
Portable 12-Lead ECG Cardiac Monitor for Home and Clinics
Portable 12-Lead ECG Cardiac Monitor for Home and Clinics
Portable 12-Lead ECG Cardiac Monitor for Home and Clinics
Portable 12-Lead ECG Cardiac Monitor for Home and Clinics

Portable 12-Lead ECG Cardiac Monitor for Home and Clinics

Customization: Available
Model: Stg-1200
Warranty: 1 Years
Send Inquiry

Product Description

Basic Information
Model NO.
STG-1200
Material
Clastic
Power Source
Electric
Safety Standard
ISO13485
Package
Standard for Export
Specification
5kg
Origin
China
Capacity
100,000/Year
Product Description

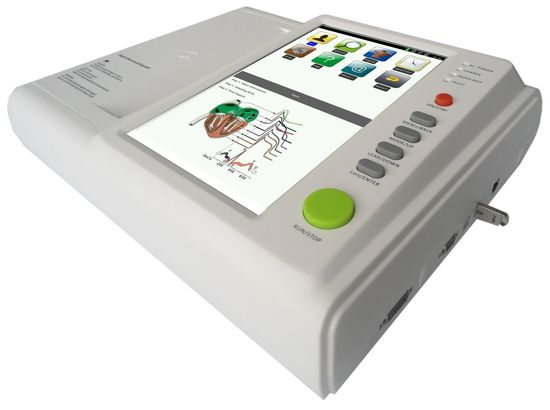

Video Cover
Portable 12-Lead ECG

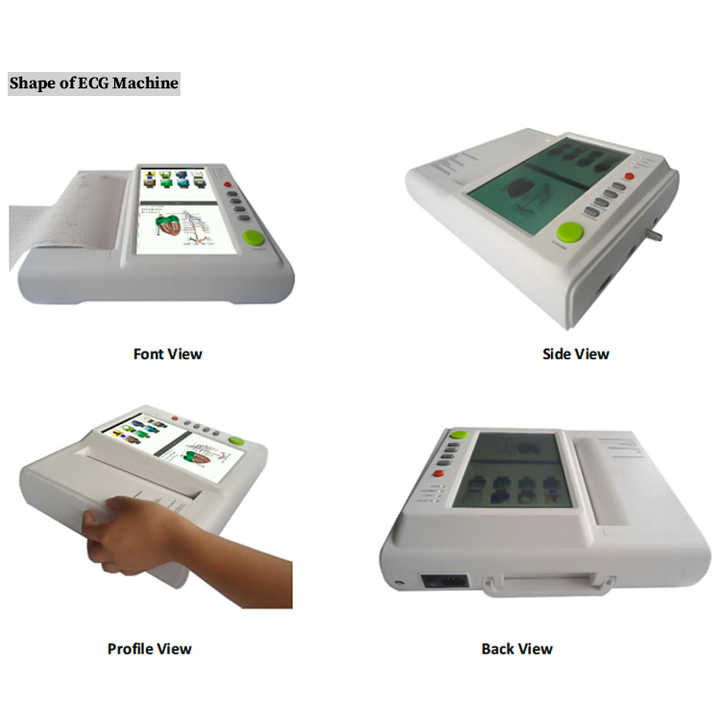

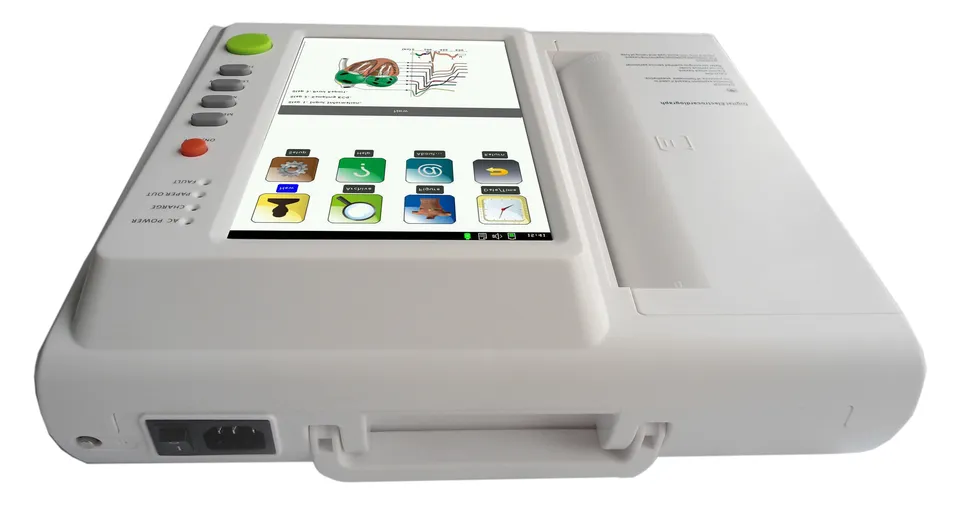

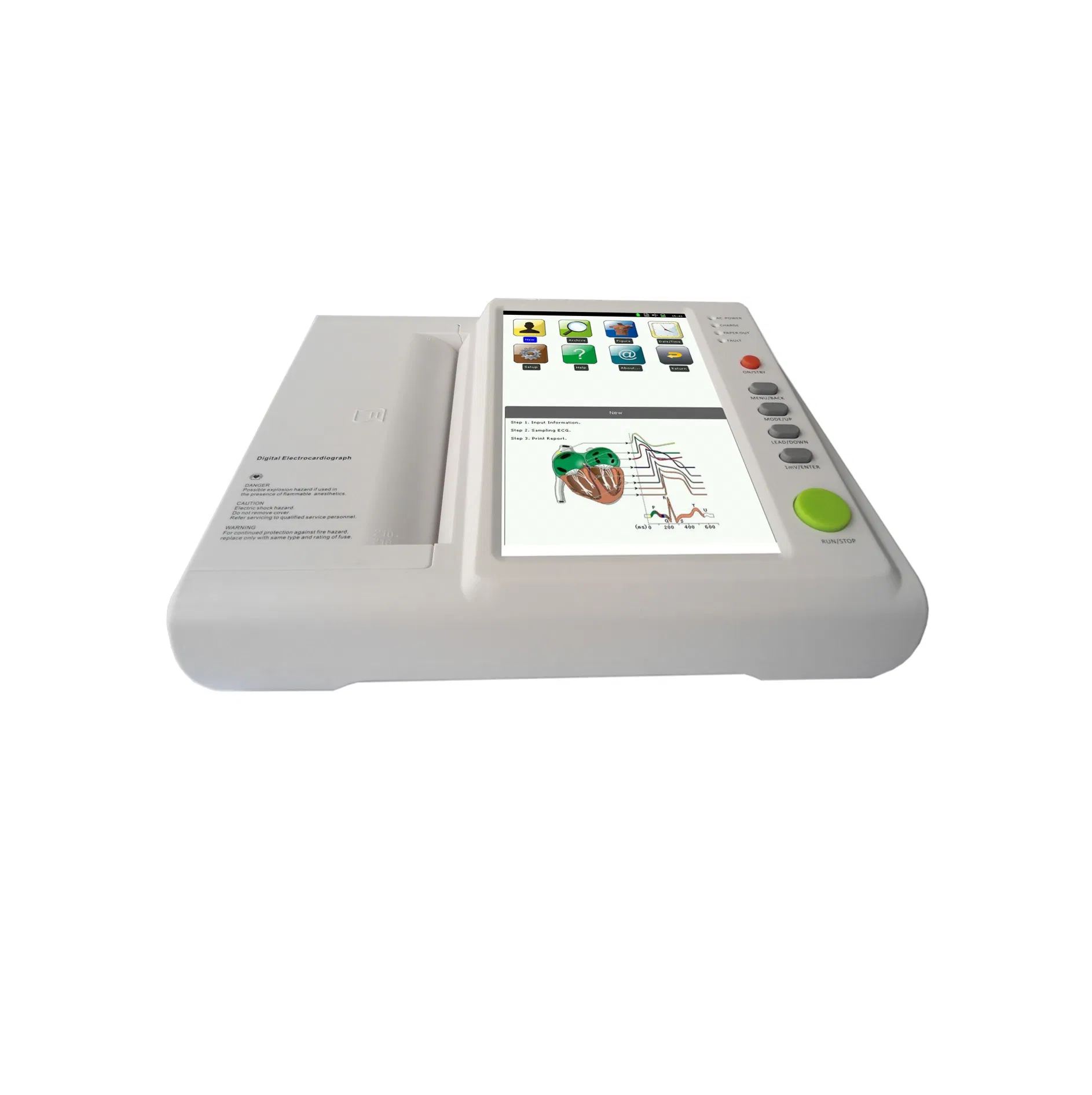

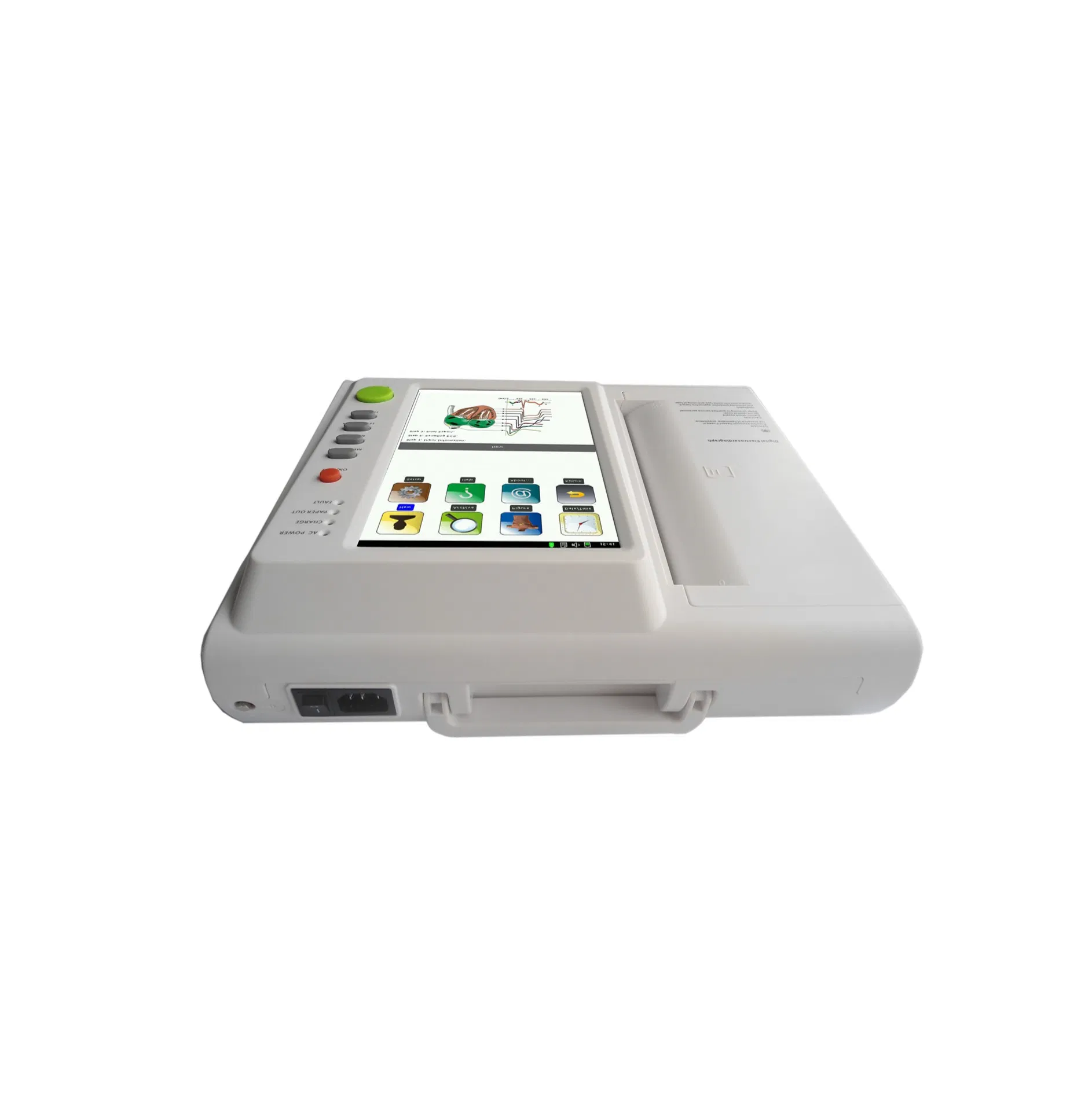

STG-1200 Portable Cardiac Monitor

Experience fast, accurate cardiac monitoring with our portable 12-lead ECG device — designed for clinics, ambulances, and home use. Compact, reliable, and easy to operate anytime, anywhere.

1. Portable & Lightweight Design Easily carried for emergency, clinic, or home monitoring—fits in one hand.
2. Accurate Real-Time Monitoring Captures precise heart signals instantly with advanced filtering technology.
3. User-Friendly Interface Intuitive display and controls for easy operation by professionals or first-time users.
4. Multi-Scene Application Perfect for hospitals, ambulances, community care, or remote rural use.
5. Fast Data Storage & Transfer Supports quick report generation and USB/Bluetooth export for medical review.
Technical Specification
Items Specification
LeadStandard 12 leads
Acquisition ModeSimultaneous 12 leads acquisition
Measurement Range±5mVpp
Input circuitFloating: Protection circuit against Defibrillator effect
Input lmpedance≥50MΩ
Input circuit current<0.05μA
Record modeAutomatic: CHx4+1R, 3CHx4, 3CHx2+2CHx3, 6CHX2; Manual; Rhythm
FilterEMG: 25-150Hz; DFT: 0.05/0.15 Hz; AC: 50/60Hz
CMRR>100dB
Patient leak current<10μA (220V-240V)
Frequency Response0.05Hz~150Hz(-3dB)
Sensitivity2.5, 5, 10, 20 mm/mV
Paper speed12.5 mm/s, 25 mm/s, 50 mm/s
Recording modeThermal printing system
Paper specificationRoll 80mm x 20M
Power SupplyAC:100-240V, 50/60Hz, 30VA~100VA
Packing & Delivery

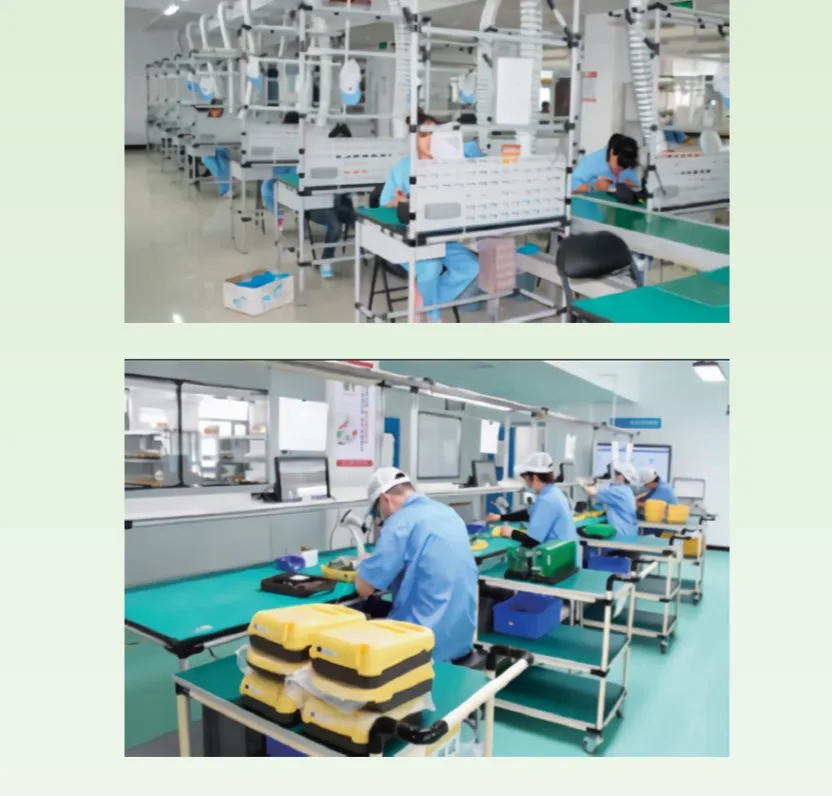

Packing Details 1 Packing Details 2
Company Overview & Certifications

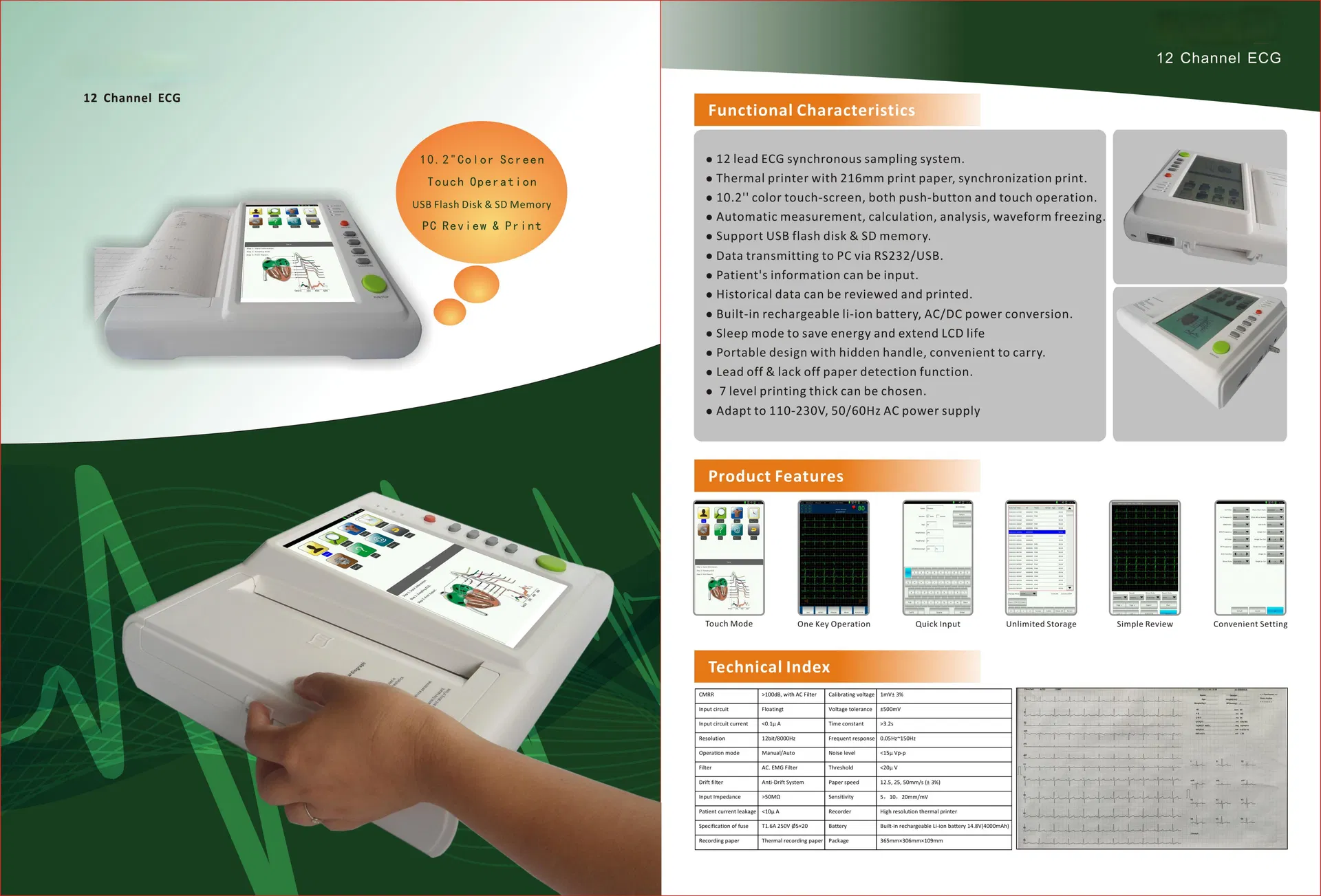

Production Facility Company Profile Certifications
Frequently Asked Questions
Do your products have CE and ISO13485 certification?
Yes, all our products are approved by CE and ISO13485 standards to ensure high quality and safety.
What are the standard packing details for export?
We use standard export packaging, including wooden cases or reinforced carton packages. Every production unit is carefully inspected before delivery.
What is the estimated delivery time?
For products in stock, delivery takes 5-10 days after receiving the deposit. For custom or non-stock items, production takes 20-30 days depending on the order quantity.
What kind of medical equipment do you supply?
We supply a comprehensive range of hospital furniture, operation tables, and advanced hospital diagnostic equipment like ECG monitors.
Can this ECG monitor be used for emergency services?
Yes, the portable and lightweight design makes it ideal for ambulances, emergency clinics, and remote medical services.
Does the device support 12-lead acquisition?
Absolutely. The STG-1200 supports simultaneous 12-lead acquisition for comprehensive cardiac analysis.
