OEM New Hot Sale Fingertip/Hand-Held/Wrist Continuous Pulse Oximetry

1 / 5

OEM New Hot Sale Fingertip/Hand-Held/Wrist Continuous Pulse Oximetry

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.:FU-YK81C

Certification:CE, ISO13485

User Group:Middle-aged and Old

Package:Gift Box

Size:58*36*30mm

Capacity:50,000 PCS/Month

📋

Product Description

OEM Fingertip / Hand-held / Wrist Continuous Pulse Oximetry

Key Features

Integrated with SpO2 probe and processing display module - Small in volume, light in weight and convenient in carrying.
Simple operation with low power consumption.
Displays SpO2 value, Pulse rate value, and bar graph.
Low-voltage indication appears before working abnormally due to low power.
Automatic power-off function: device shuts down within 5 seconds if the finger falls out of the probe.

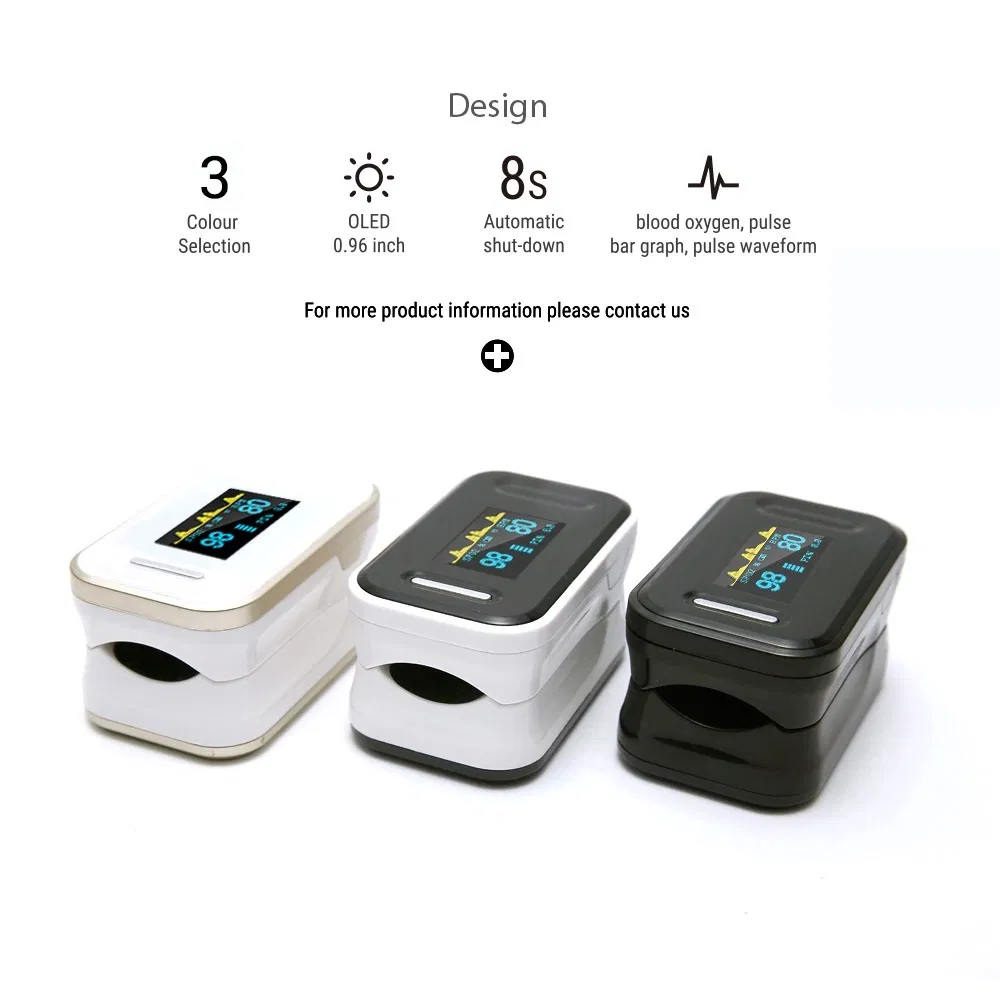

Available in three color selections.

📷

Product Gallery

⚙

Technical Specifications

Display	OLED two color display, waveform display
SpO2 Range	Measurement: 70~99%; Resolution: ±1%; Accuracy: ±2% (70%~99%)
Pulse Rate	Range: 30~240 bpm; Accuracy: ±2bpm or ±2%; Low Perfusion ≤0.4%
Menu Functions	Alarm high and low limits (SpO2 and PR)
Power Supply	1.5V (AAA size) alkaline battery x 2; Voltage: 2.6~3.6V
Working Current	≤30mA
Auto Power-off	Automatically shuts off when no signal is detected for 8 seconds

💡

Operation Instructions

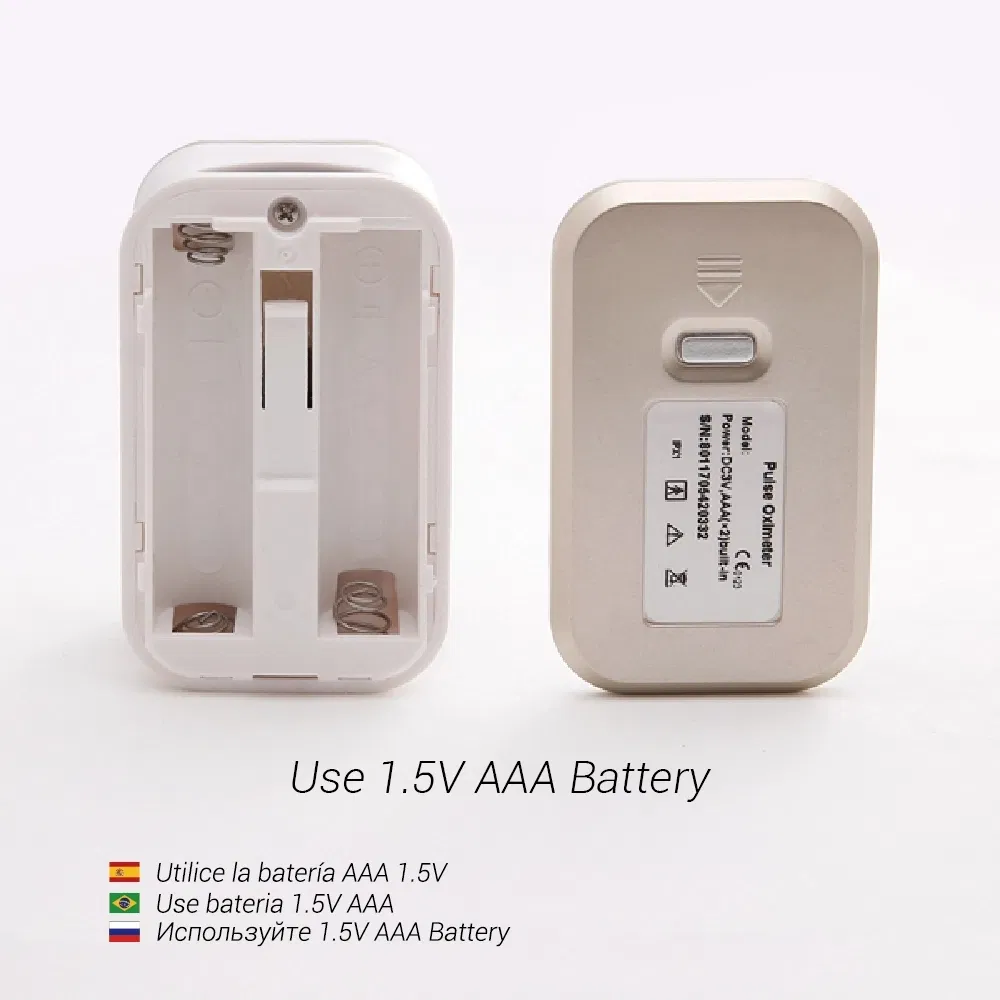

Install two AAA batteries into the battery cassette correctly.

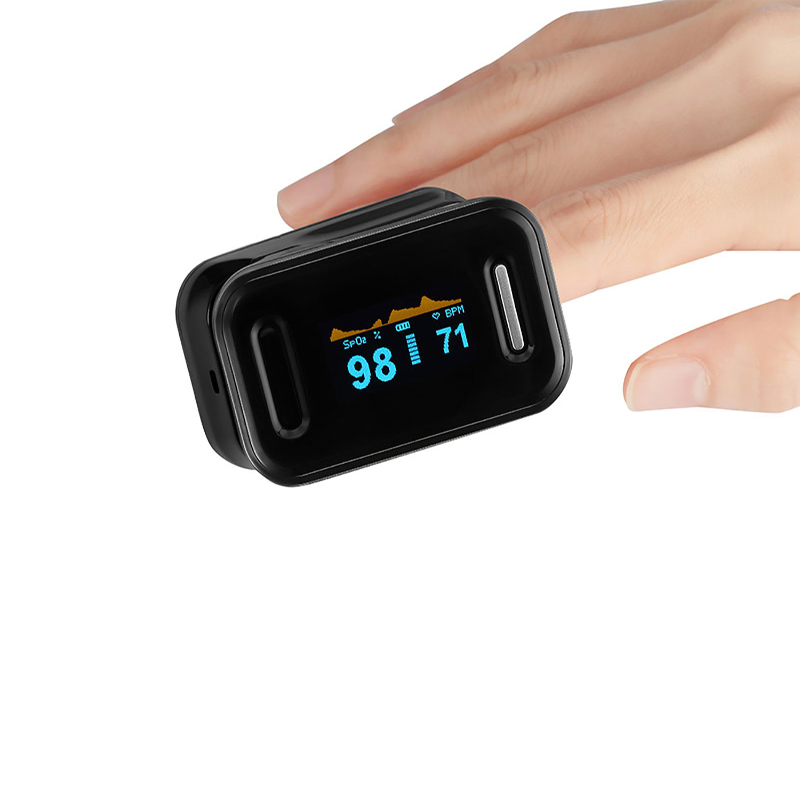

Plug one finger into the rubber hole of the Oximeter with the nail facing upwards.

Press the power button on the front panel to start.

Keep your finger and body still during the measurement process.

Press the button again if you wish to change the display direction.

Read the measurement data directly from the OLED screen.

Replace batteries immediately when the low-power indicator appears.

❓

Frequently Asked Questions

Q1: How accurate is the SpO2 measurement? A: The device provides an accuracy of ±2% within the 70% to 99% range.

Q2: What type of batteries does this oximeter use? A: It requires two standard 1.5V AAA alkaline batteries.

Q3: Does the device save power automatically? A: Yes, it features an automatic power-off function that triggers within 8 seconds when no signal is detected.

Q4: Can I change the orientation of the screen? A: Yes, you can change the display direction by pressing the button on the front panel.

Q5: Is it suitable for all age groups? A: While it can be used by most adults, it is particularly recommended for middle-aged and elderly users.

Q6: What certifications does the FU-YK81C have? A: This model is certified with CE and ISO13485 medical standards.
