Contec Oxygen Saturation Monitor Oximeter Pulse Oximetry

1 / 5

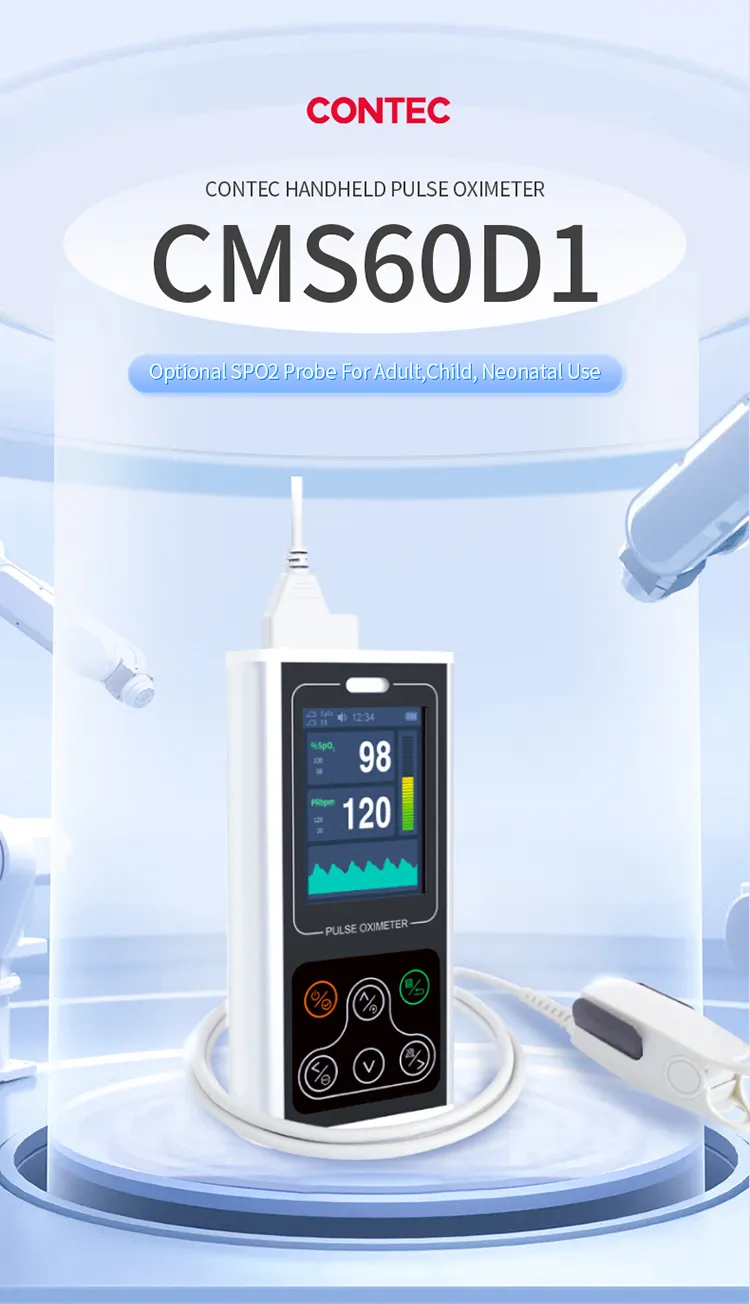

Contec Oxygen Saturation Monitor Oximeter Pulse Oximetry

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

CMS60D1

Certification

Target Group

Middle-aged and Old

Product Name

Handheld Pulse Oximeter Fingertip Oxymetry

Warranty

One Year

Display

2.8'' Color Screen

Resolution

240*320

Battery

Built-in Rechargeable

Weight

About 280g

Dimension

148*72*31mm

Transport Package

Carton

Product Description

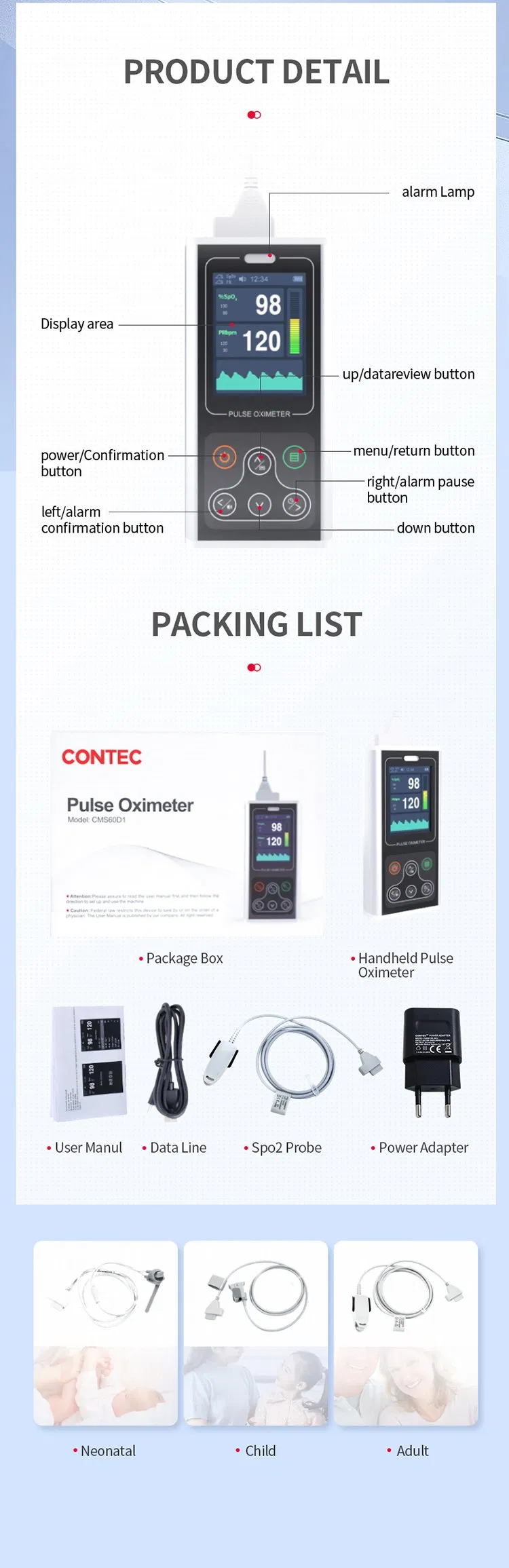

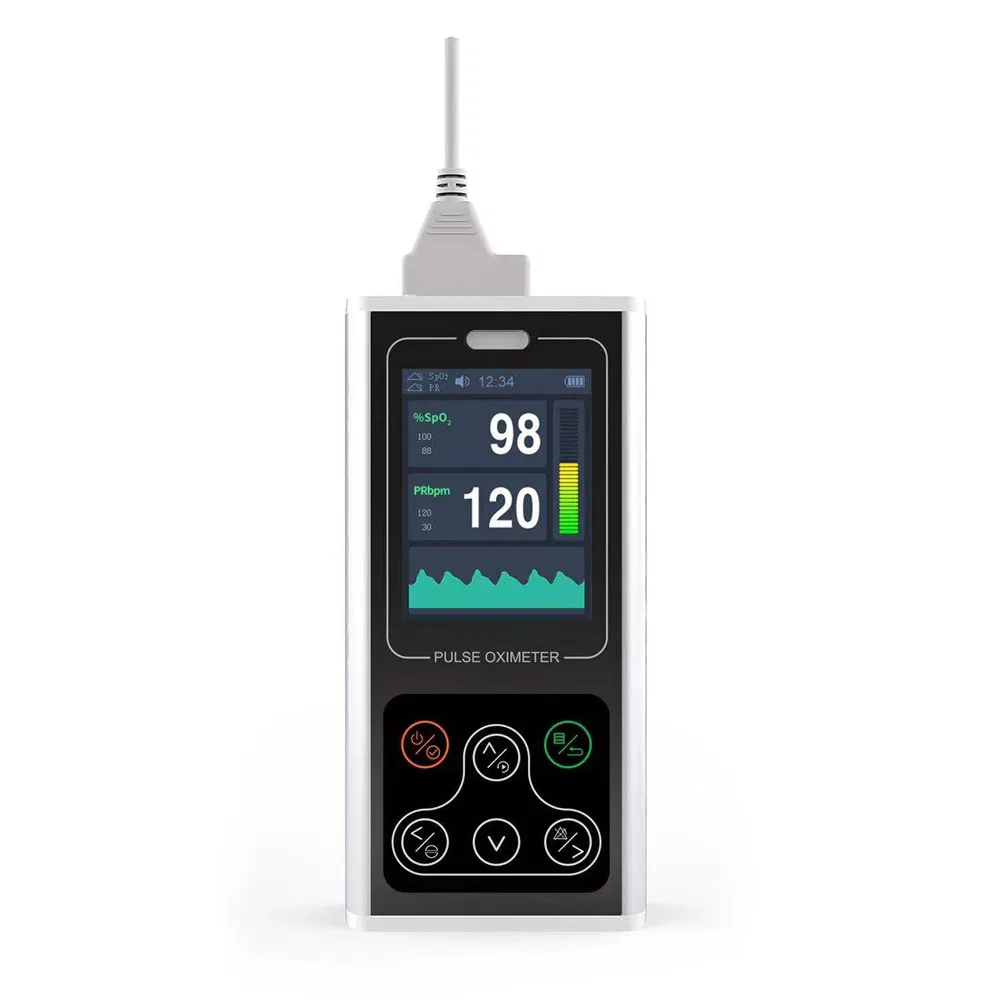

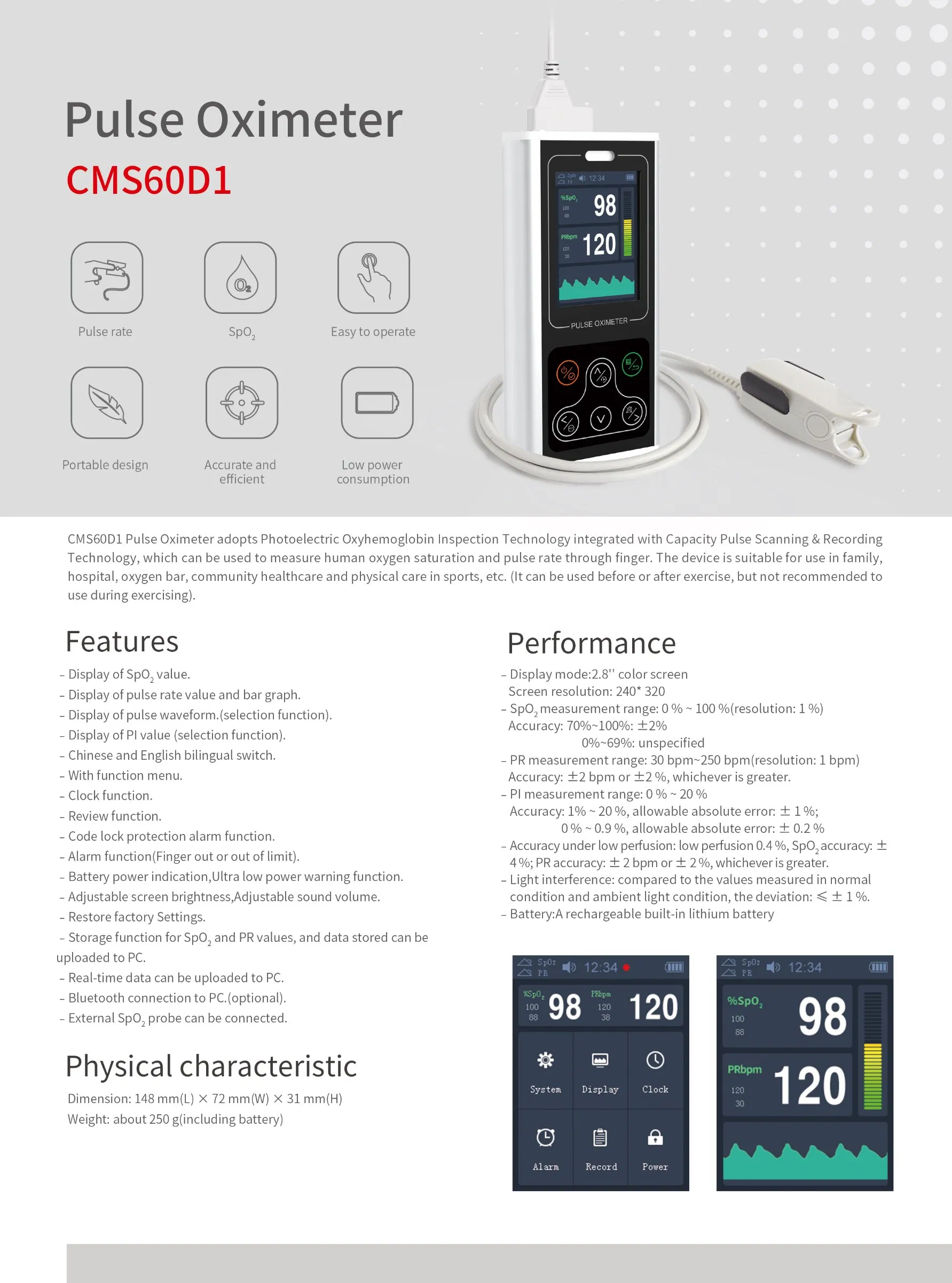

Contec Oxygen Saturation Monitor Oximeter Pulse Oximetry

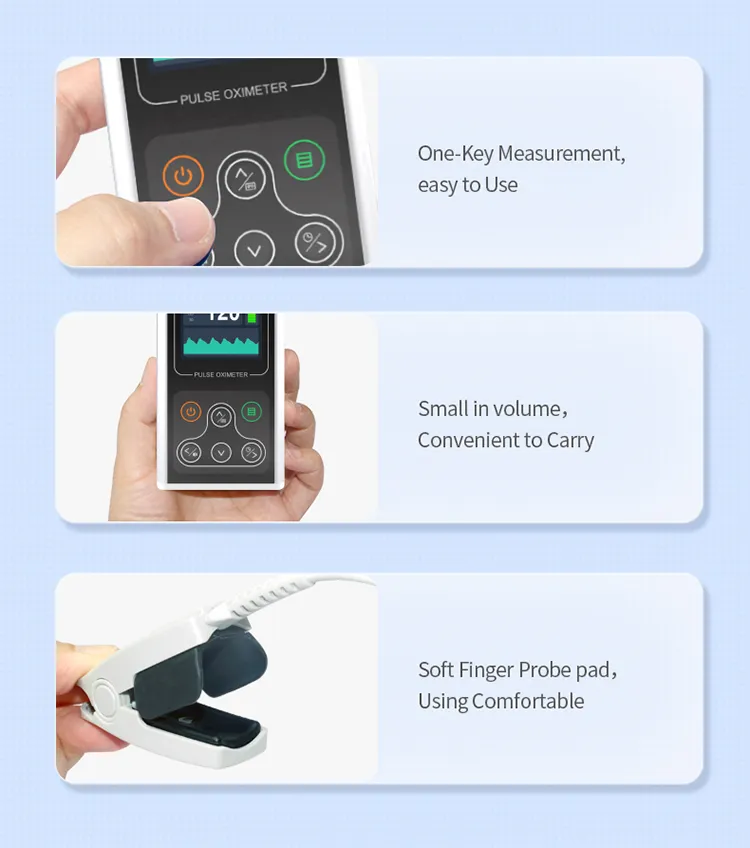

Major Features

Display of SpO2 value, pulse rate value, and bar graph.

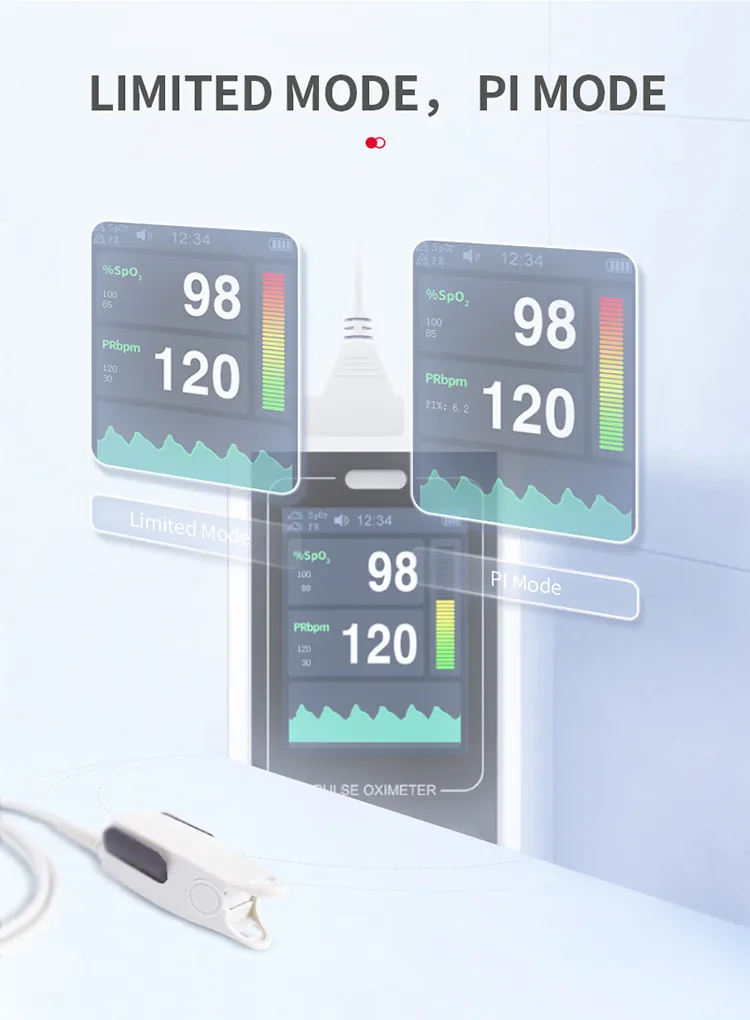

Display of pulse waveform and PI value (selection function).
Chinese and English bilingual switch with functional menu.

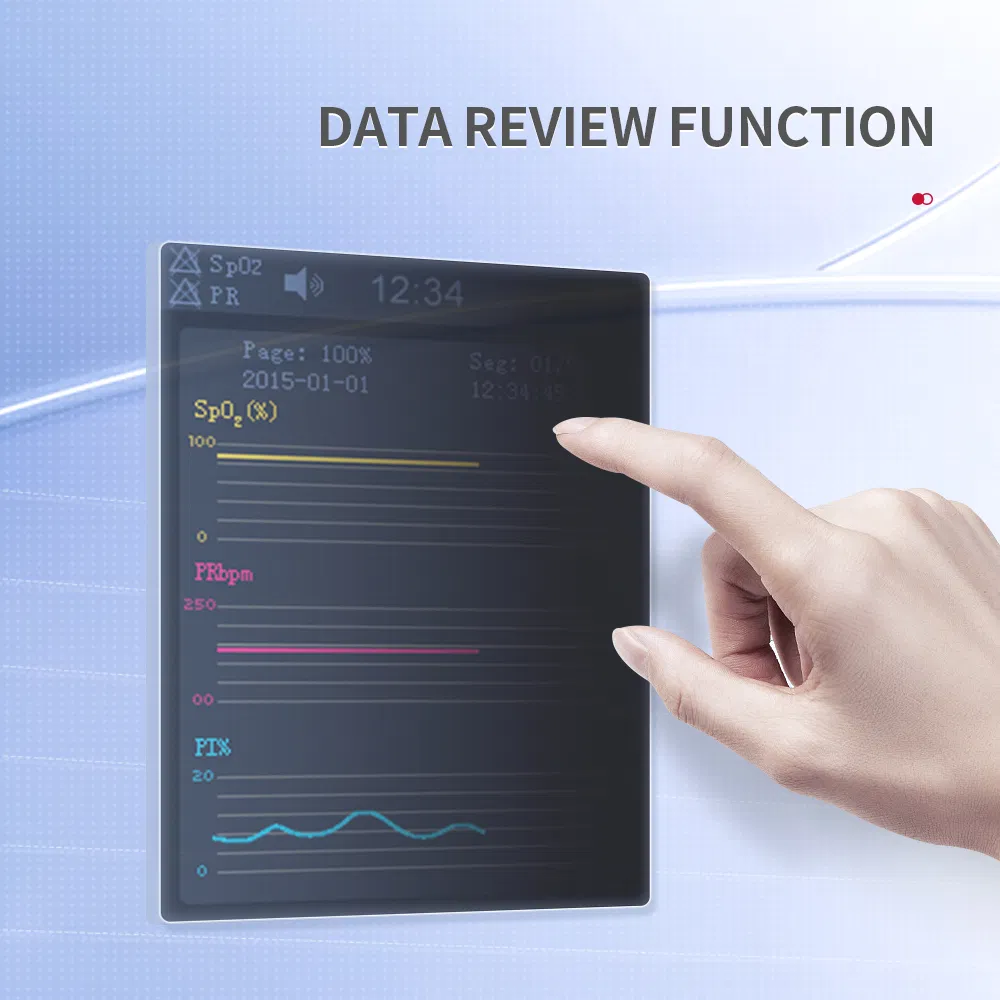

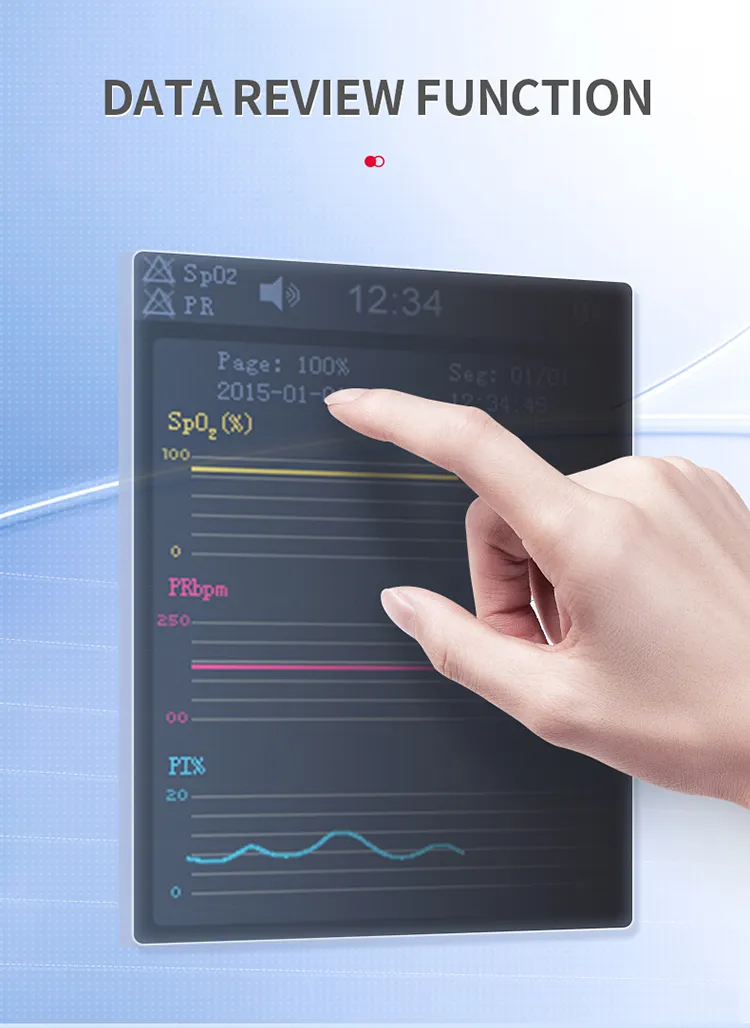

Clock and data review functions.

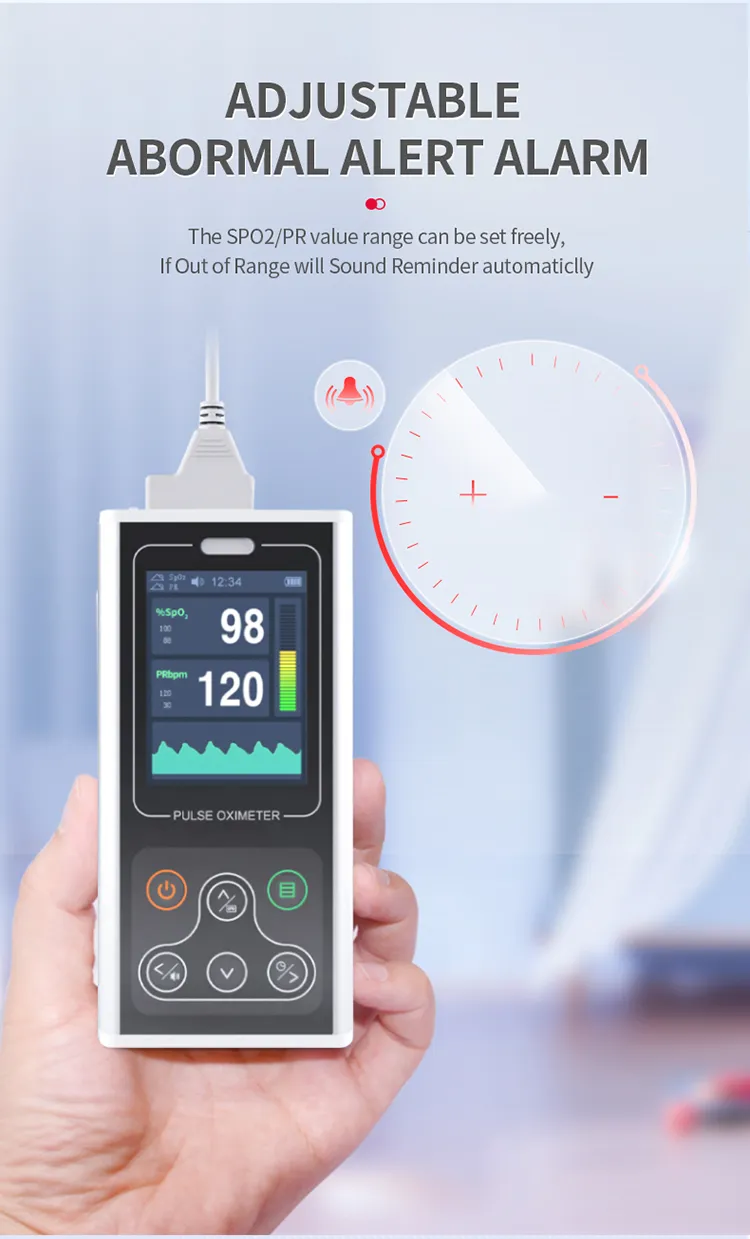

Code lock protection and alarm function (finger out or out of limit).
Battery power indication and ultra-low power warning.
Adjustable screen brightness and sound volume.

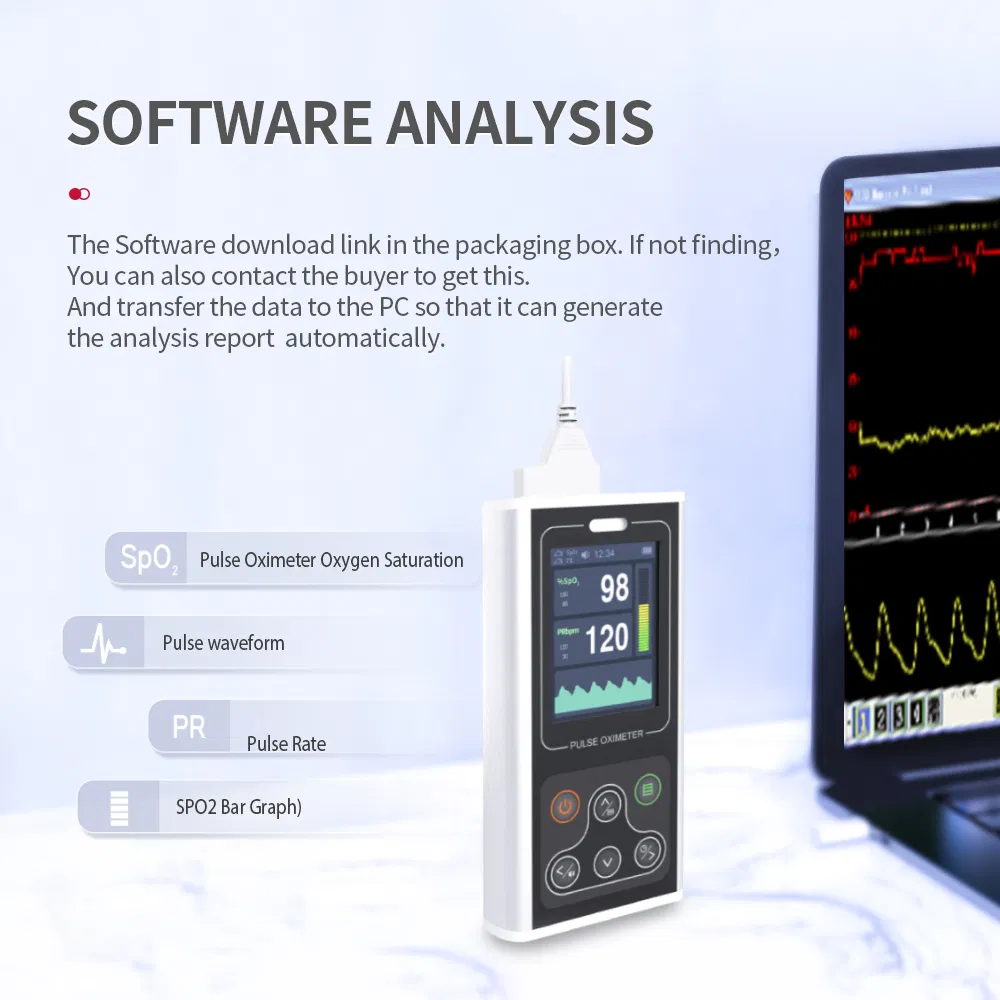

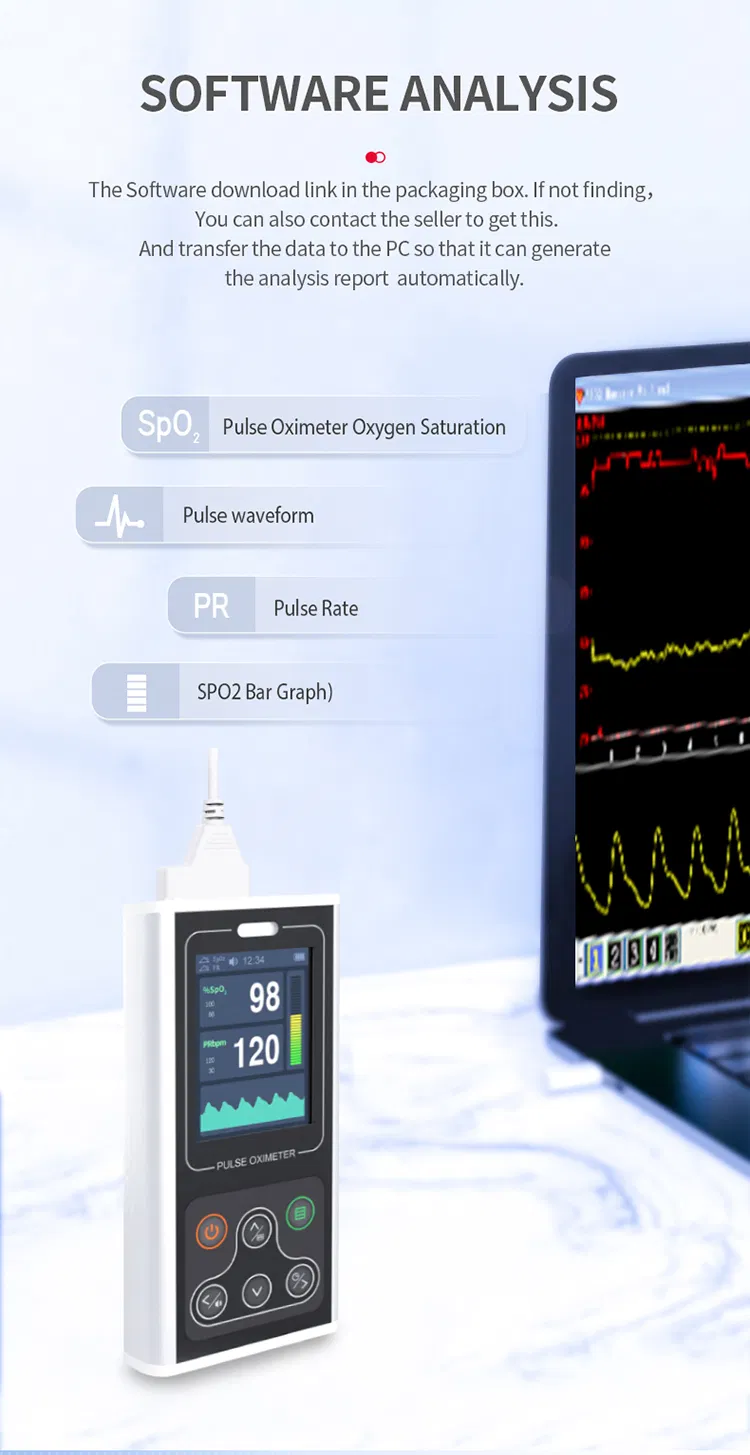

Storage function for SpO2 and PR values with PC upload capability.

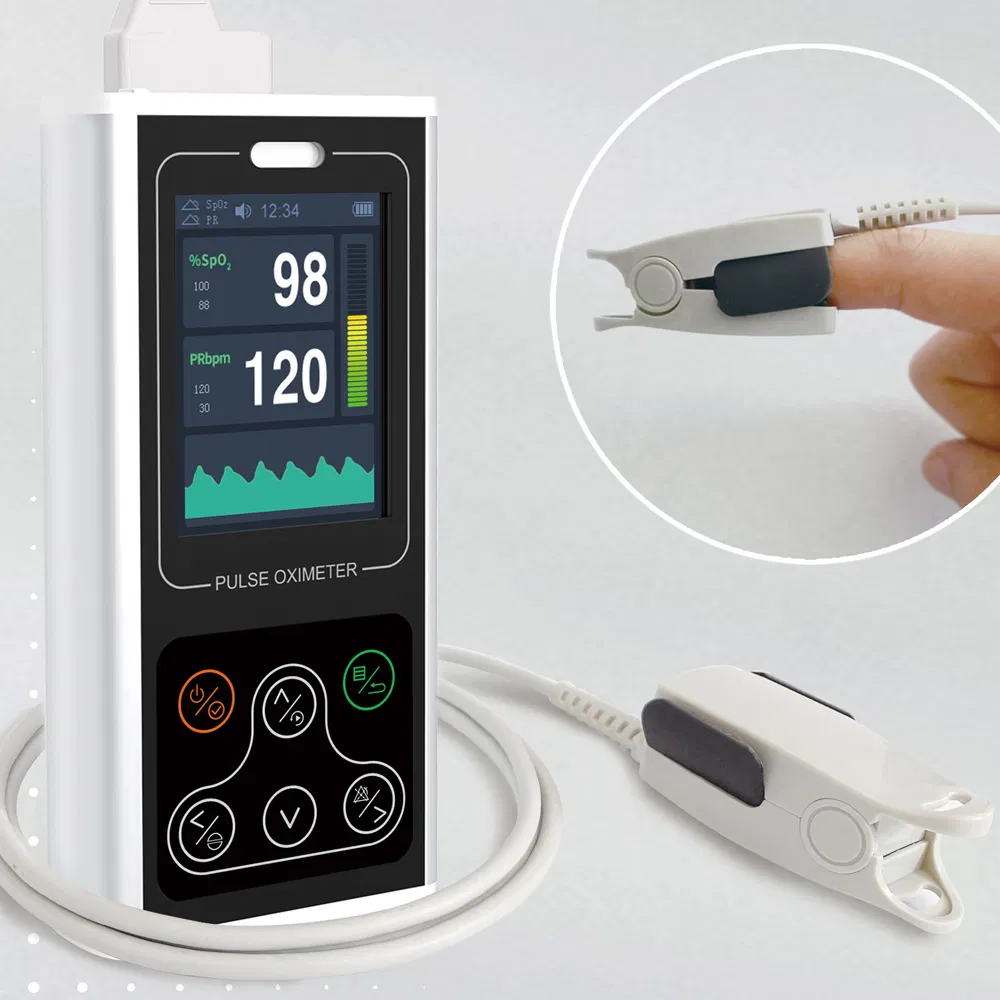

Bluetooth connection to PC (optional) and external SpO2 probe support.

Main Performance

Display Mode: 2.8" color screen, 240*320 resolution.

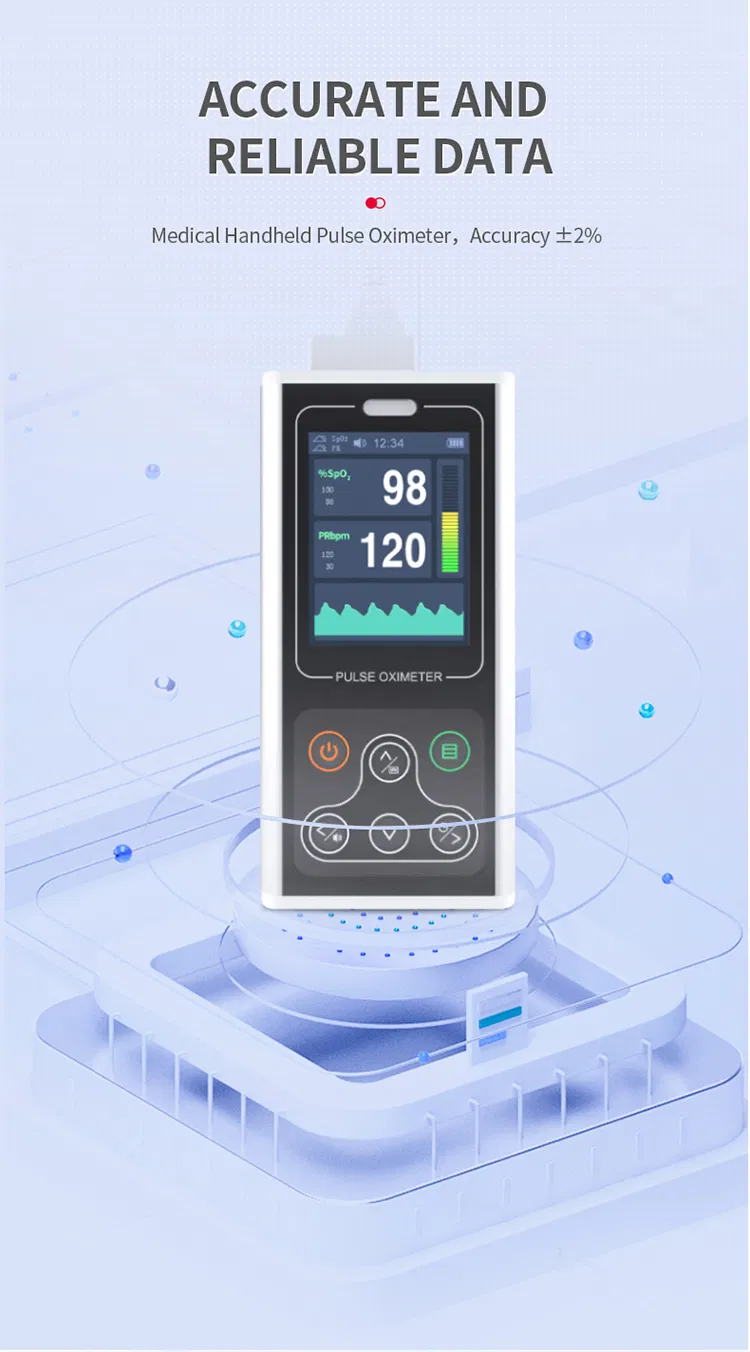

SpO2 Measurement Range: 0%~100% (Accuracy: 70%~100%: ±2%).
PR Measurement Range: 30bpm~250bpm (Accuracy: ±2bpm or ±2%).
PI Measurement Range: 0%~20%.
Low Perfusion Performance: SpO2 accuracy ±4% at 0.4% perfusion.
Light Interference: Deviation ≤ ±1% between natural and dark conditions.
Power: Rechargeable built-in lithium battery.

Technical Display

Frequently Asked Questions

Q1: Can the data from this pulse oximeter be uploaded to a PC?

Yes, the device supports storage for SpO2 and Pulse Rate values. The stored data can be uploaded to a PC for further review and analysis. Real-time data uploading is also supported.

Q2: Does this device include an alarm system?

Absolutely. It features an alarm function for when a finger is out of the probe or when measured values go beyond the set limits. It also includes an ultra-low power warning.

Q3: What kind of battery does the CMS60D1 use?

The device is equipped with a built-in rechargeable lithium battery, making it convenient for long-term handheld use without frequent battery replacements.

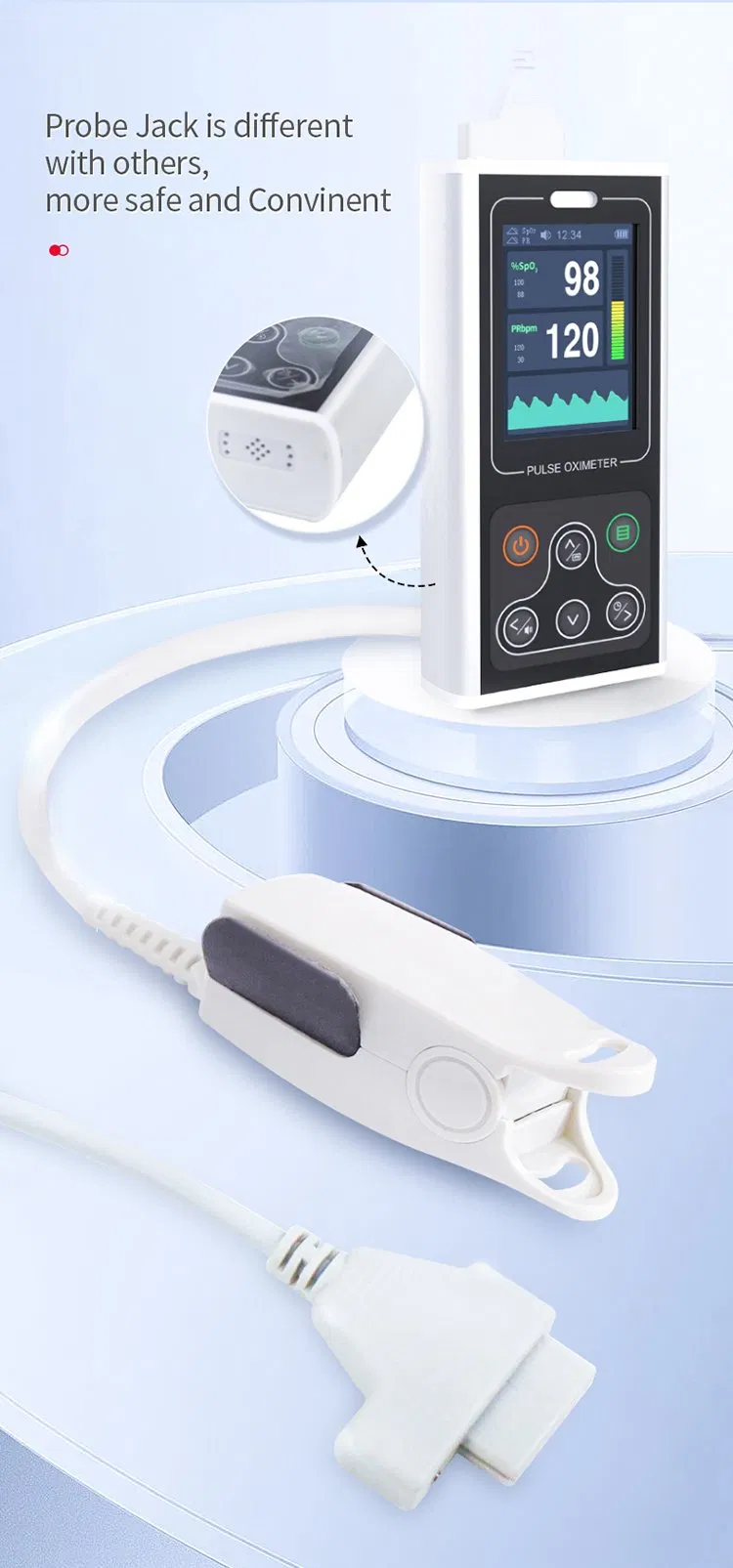

Q4: Can I use an external probe with this handheld unit?

Yes, the design allows for an external SpO2 probe to be connected, providing flexibility for different monitoring scenarios.

Q5: Is the display easy to read in different lighting conditions?

The device features a 2.8" color screen with 240*320 resolution and adjustable brightness, ensuring clear visibility in various ambient light environments.

Q6: Does it support different languages for the menu?

Yes, the system includes a bilingual switch for Chinese and English, allowing users to navigate the functional menu easily.
