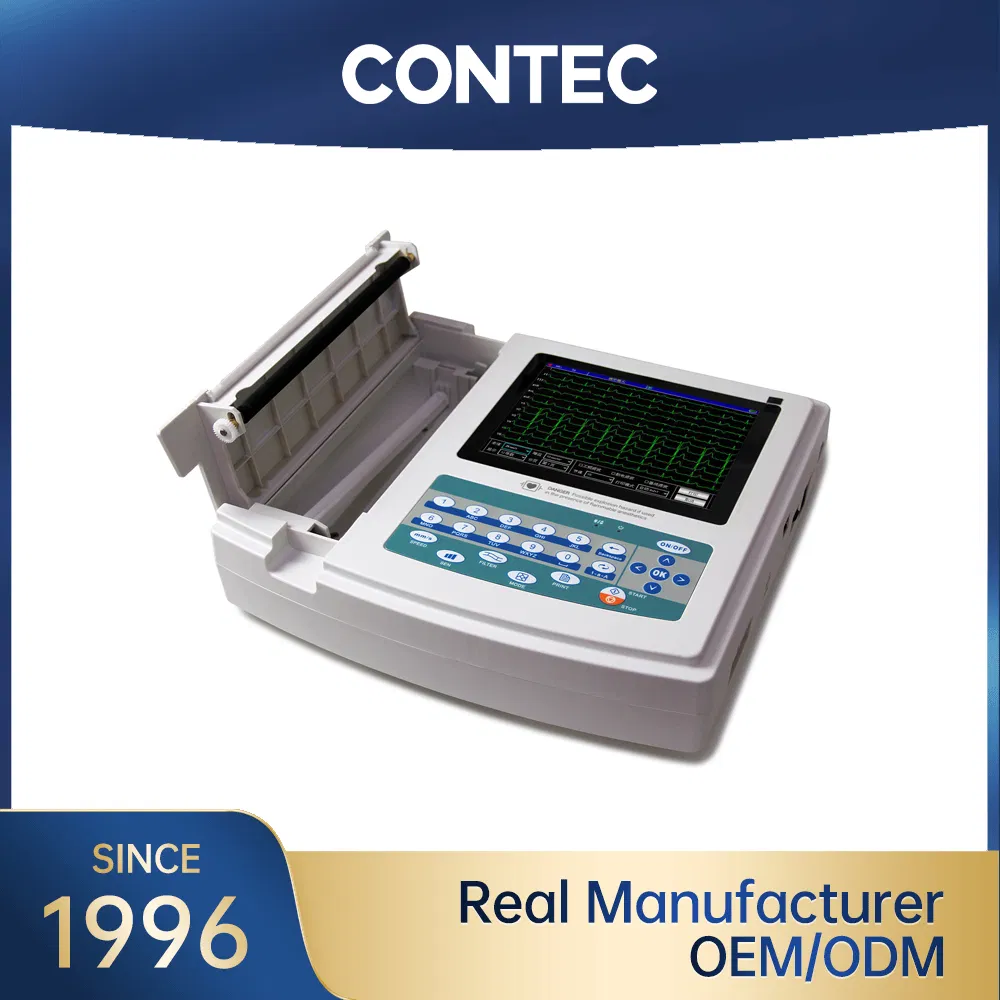

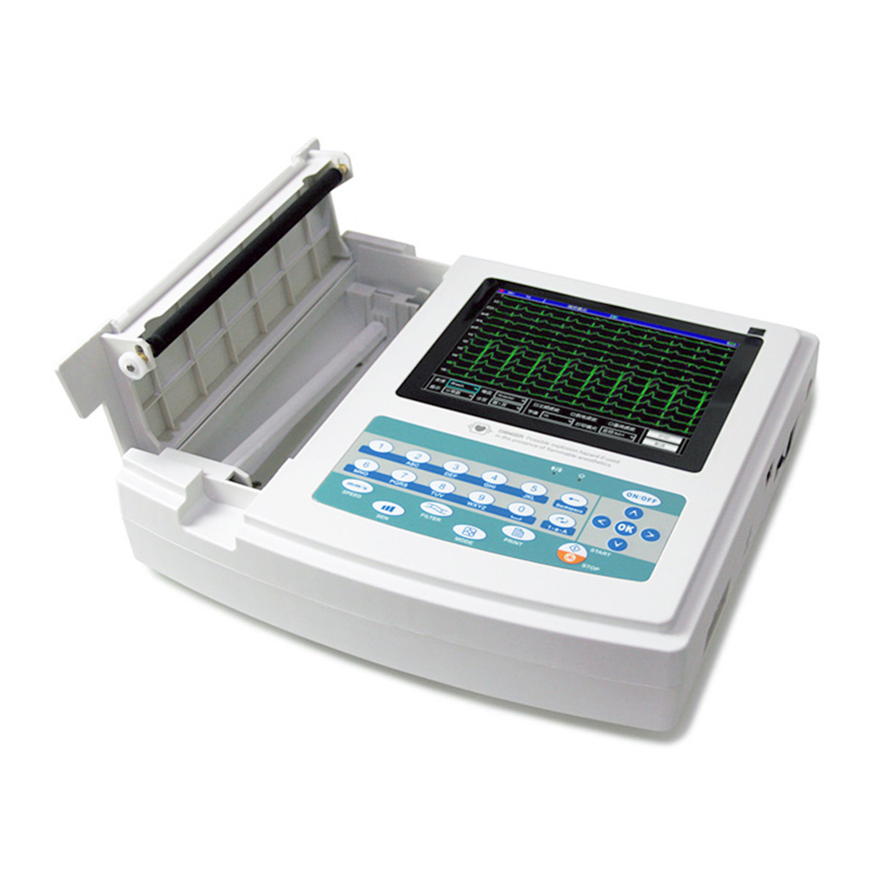

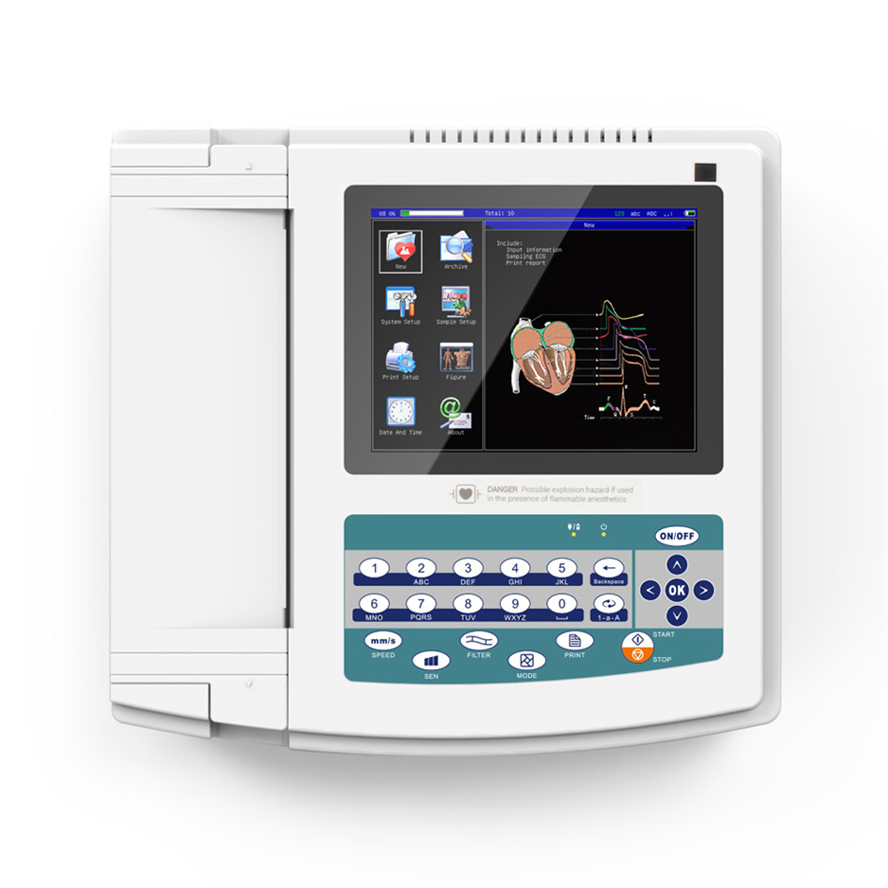

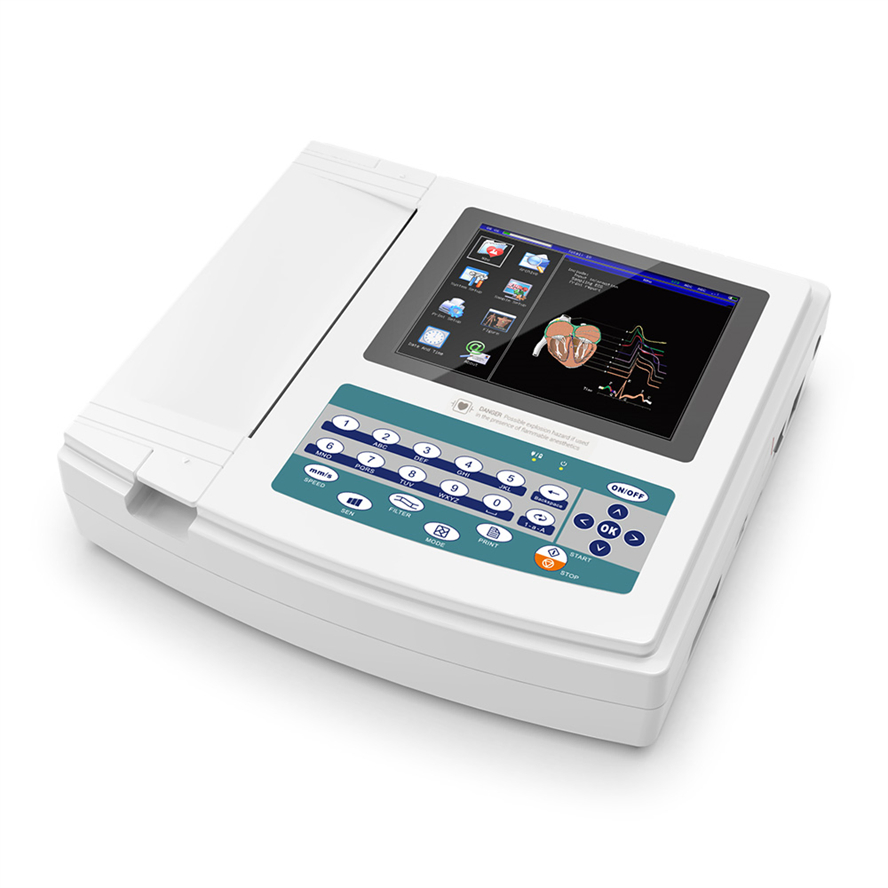

Contec ECG1200g Medical Portable ECG Equipment Electrocardiogragh with Color Screen
Contec ECG1200g Medical Portable ECG Equipment Electrocardiogragh with Color Screen
Contec ECG1200g Medical Portable ECG Equipment Electrocardiogragh with Color Screen
Contec ECG1200g Medical Portable ECG Equipment Electrocardiogragh with Color Screen
Contec ECG1200g Medical Portable ECG Equipment Electrocardiogragh with Color Screen
1 / 5
Contec ECG1200g Medical Portable ECG Equipment Electrocardiogragh with Color Screen
Contec ECG1200g Medical Portable ECG Equipment Electrocardiogragh with Color Screen
Contec ECG1200g Medical Portable ECG Equipment Electrocardiogragh with Color Screen
Contec ECG1200g Medical Portable ECG Equipment Electrocardiogragh with Color Screen
Contec ECG1200g Medical Portable ECG Equipment Electrocardiogragh with Color Screen

Contec ECG1200g Medical Portable ECG Equipment Electrocardiogragh with Color Screen

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: ECG
Send Inquiry

Product Description

Basic Information
Model NO.
ECG1200G
Certification
CE, FDA, ISO13485
Group
Middle-aged and Old
Product Name
Diagnosis Equipment 12 Channel Electrocardiograph
Channel
12
Specification
ISO13485, CE&FDA
Origin
China
HS Code
90181100
Product Description
Product Banner Medical Portable ECG Equipment Electrocardiograph with Color Screen
Model:
ECG1200G
Certificate:
CE/FDA

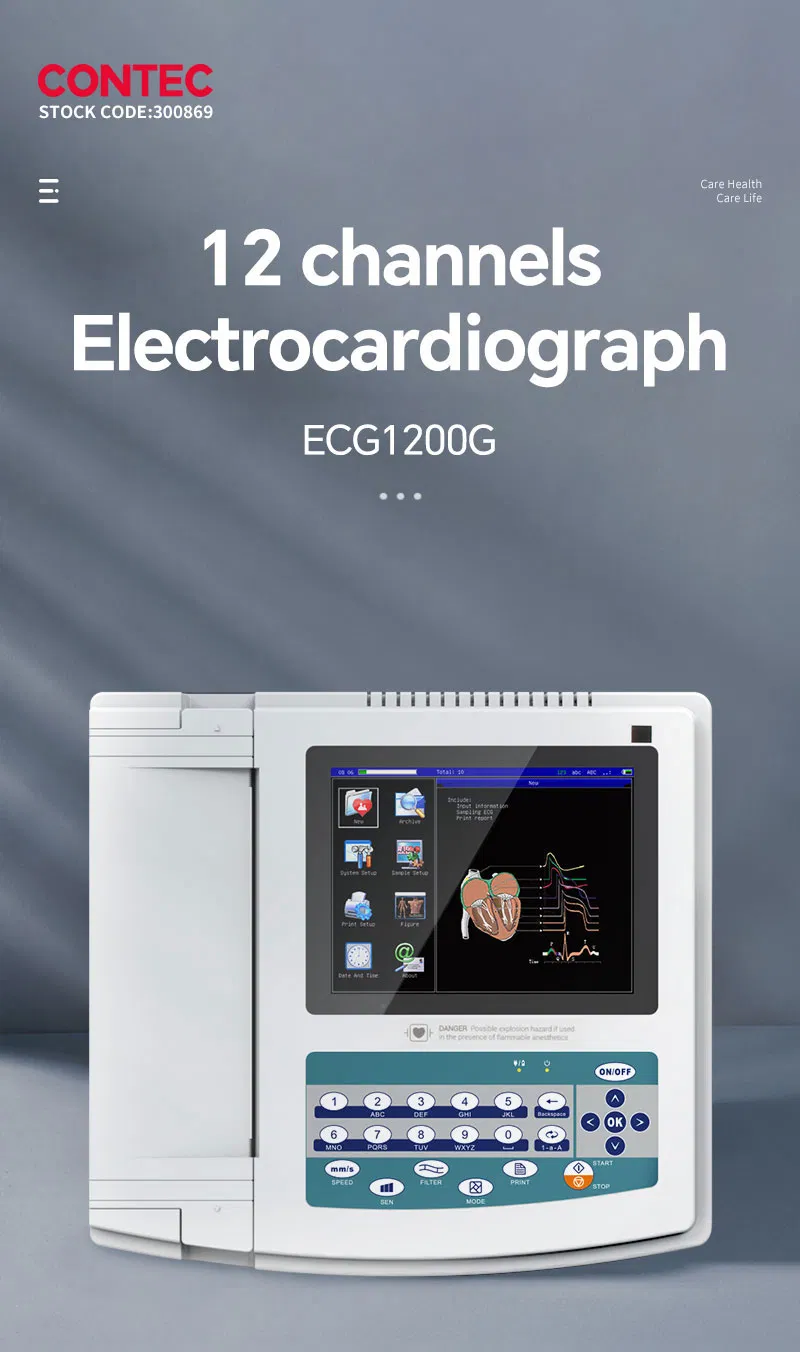

ECG Detail 1
ECG Detail 2

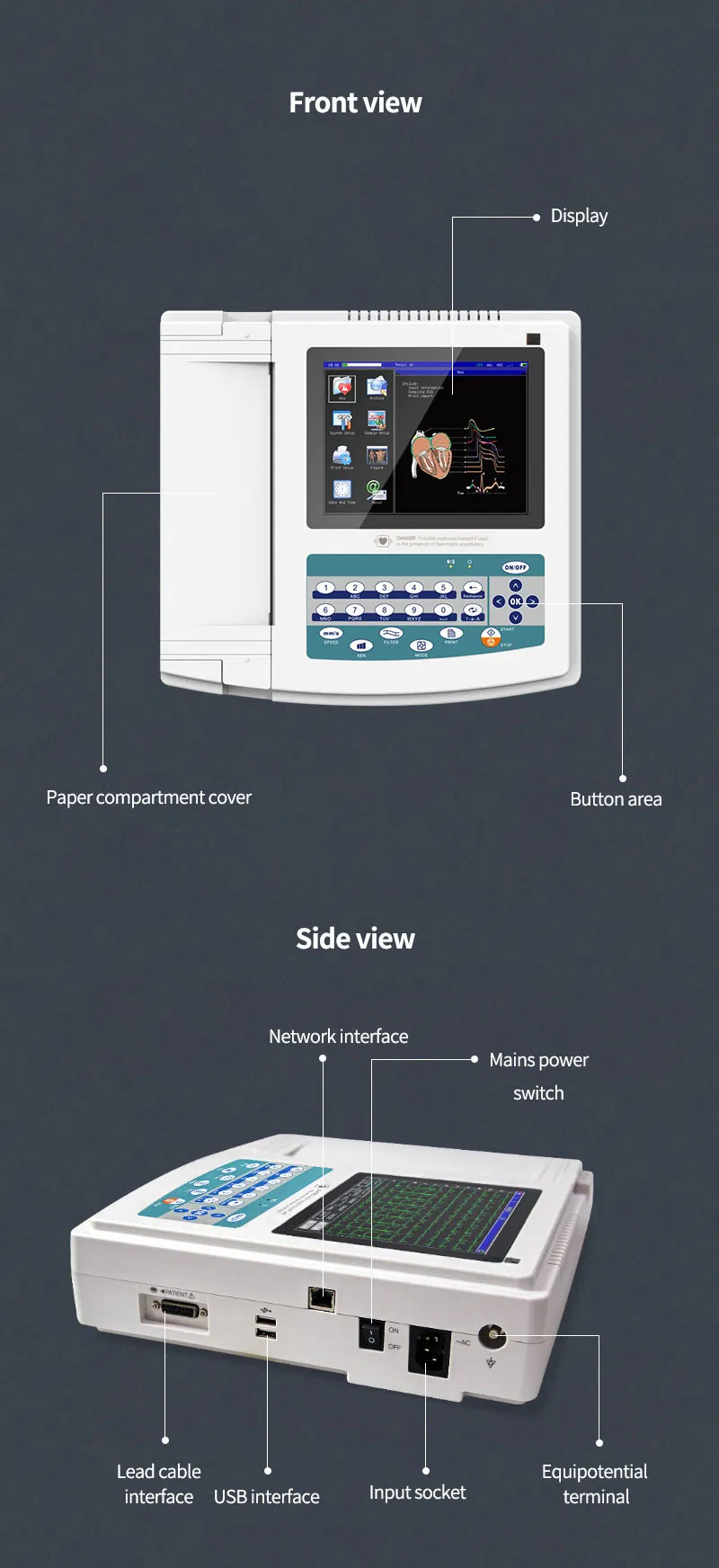

ECG Detail 3

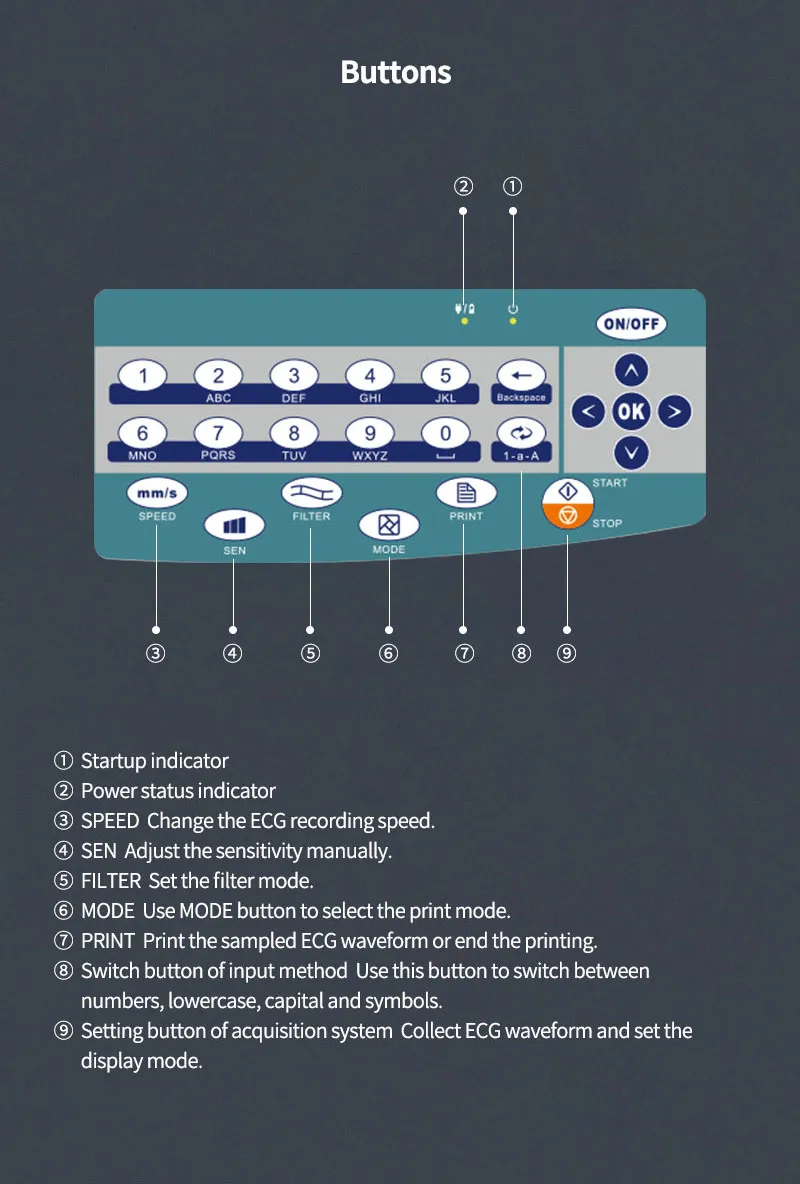

ECG Detail 4

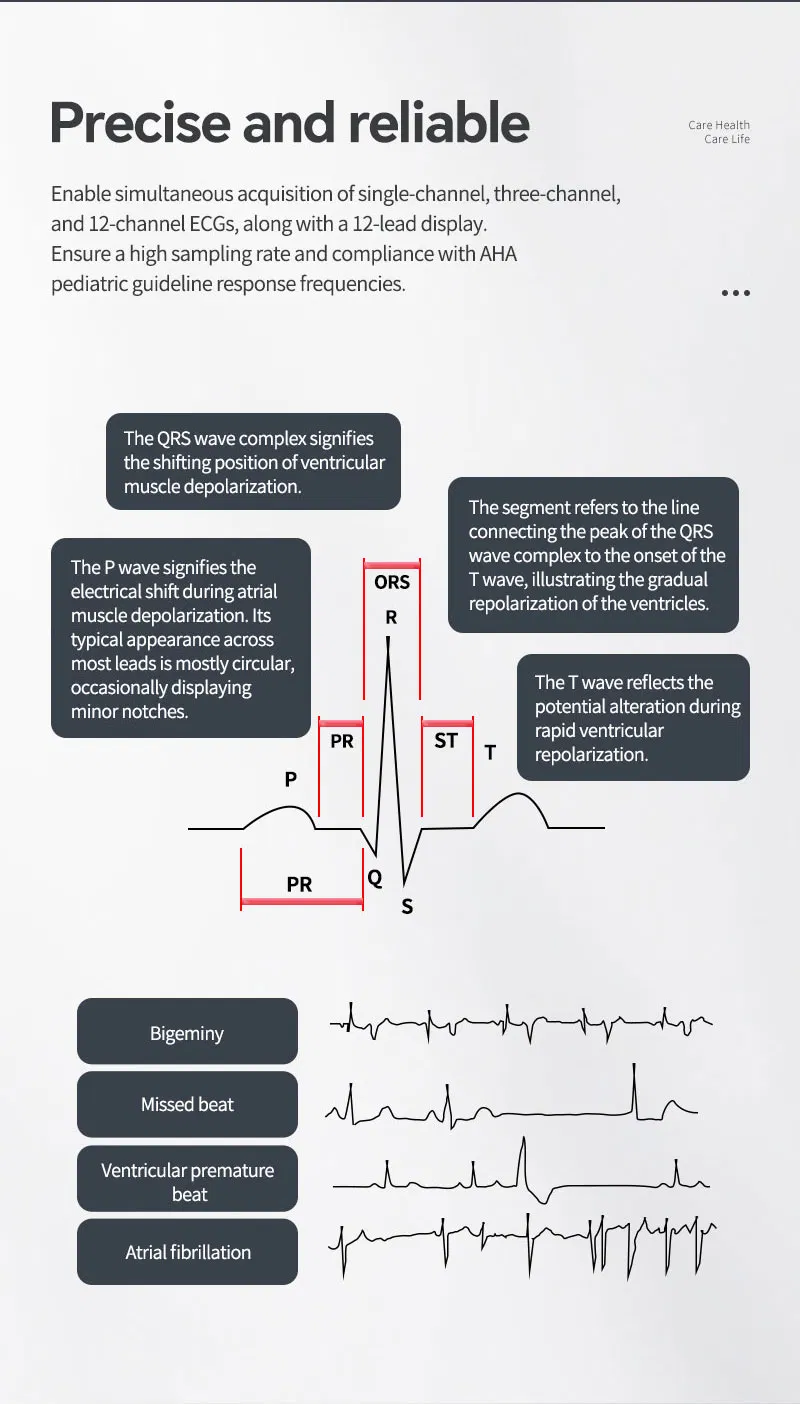

ECG Detail 5

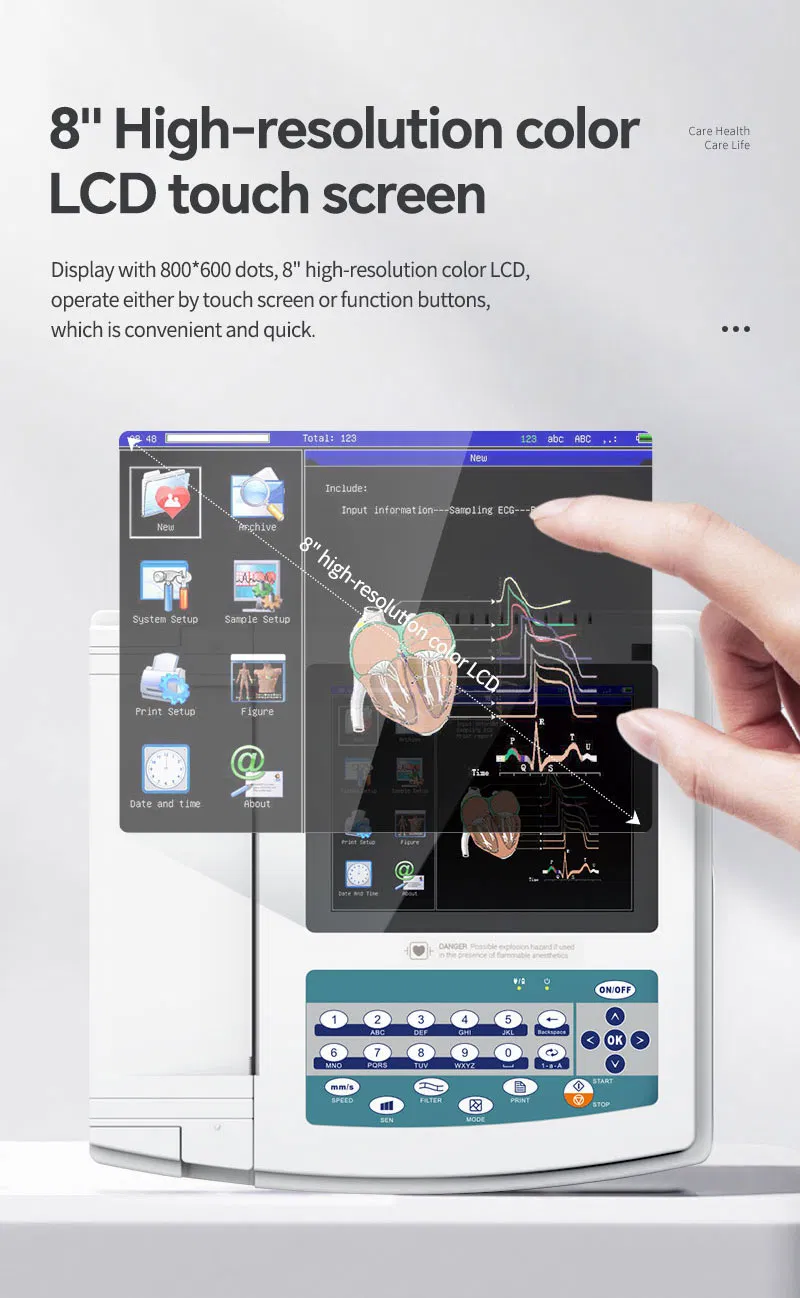

ECG Detail 6
ECG Detail 7
ECG Detail 8

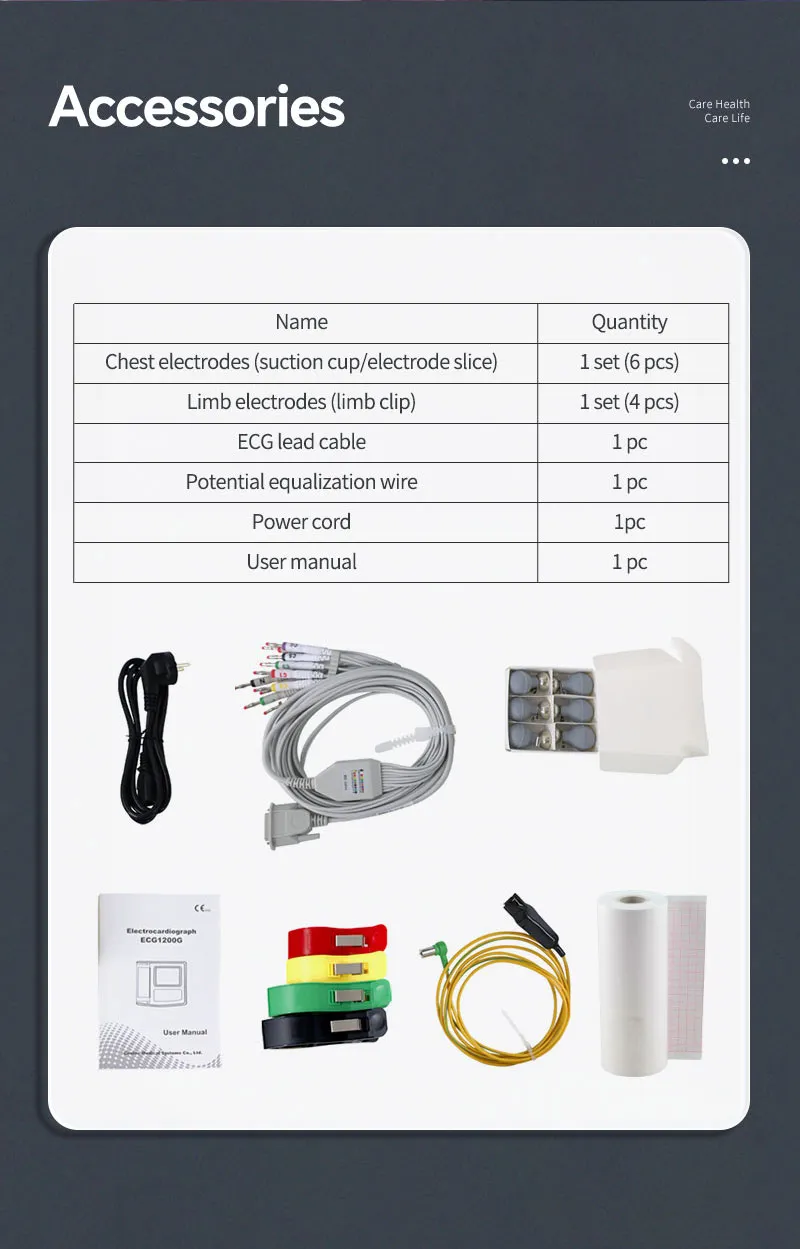

ECG Detail 9

Introduction

12 channel ECG/EKG, model ECG1200G, can collect 12-lead ECG signal simultaneously, and print ECG waveform with thermal printing system.

Displaying ECG waveform in AUTO/Manual mode
Multi-language interface support: Turkish, French, Chinese, English, German, Russian, Spanish, and more.
Case database management with trend chart and histogram printing.

Main Functions

Sync collection for 12-lead ECG with digital signal processing for high-quality waveforms.
Multiply printing modes and formats including auto 12x1, 6x2+1, 3x4+2, and rhythm modes.
Auto-analysis and auto-diagnosis for routine parameters (HR, P-R interval, QRS Duration, etc.).
Built-in memory stores up to 1000 cases for review and statistics.
Up to 10-hour standby time and continuous printing for more than 3 hours in optimal DC state.
Physical Characteristics
Working Environment
Temperature5ºC~40ºC
Relative humidity25%~95%(non-condensing)
Atmospheric pressure700hPa~1060hPa
Transport and Storage Environment
Temperature-40ºC~+55ºC
Relative humidity≤95%

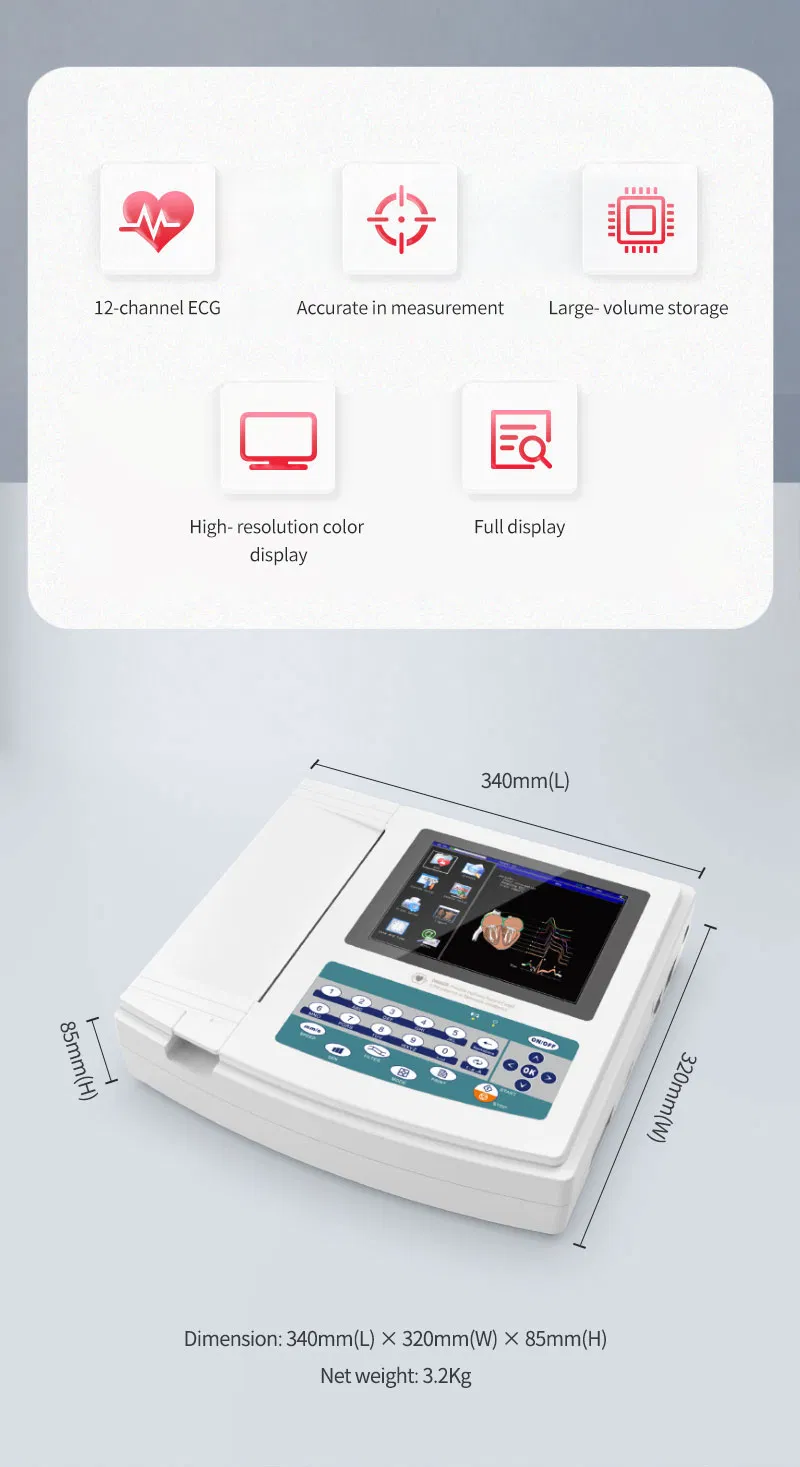

Dimension340mm(L) × 320mm(W) × 85mm(H)
Weight3.2Kg
Product Showcase
Showcase 1
Showcase 2
Showcase 3
Showcase 4
Showcase 5
Frequently Asked Questions
How many waveforms can be displayed on the screen?
The screen can display up to a maximum of 10 waveforms.
What types of batteries are used?
It uses a built-in rechargeable lithium battery.
How many kinds of languages can it support?
It supports multiple languages including Chinese, English, Spanish, Turkish, French, German, Russian, and more.
What is the charging time?
It takes about 6 hours to reach 90% charge, and approximately 8 hours for a full charge.
What can the Multi-function Interface be used for?
It can be used as a nurse call interface, an ECG analog signal output interface for oscilloscopes, or a communication interface for external equipment.
What is the device working life?
The estimated working life of the device is 10 years.
