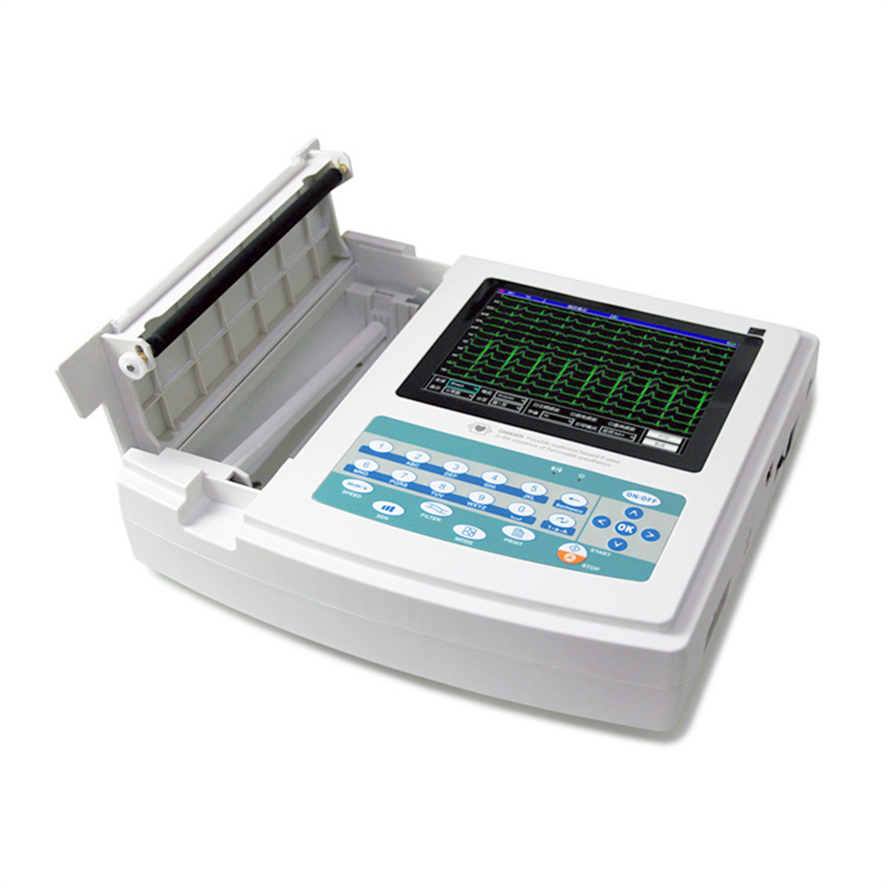

Contec ECG1200g 12 Lead Digital ECG EKG Machine Ce

1 / 5

Contec ECG1200g 12 Lead Digital ECG EKG Machine Ce

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	ECG

Send Inquiry

Product Description

Basic Info.

Model NO.

ECG1200G

Certification

CE, FDA, ISO13485

Group

Middle-aged and Old

Screen Size

8 Inches

Leads

12 Leads

Transport Package

Carton

Specification

CE, FDA, ISO

Origin

China

HS Code

9018110000

Production Capacity

500/Week

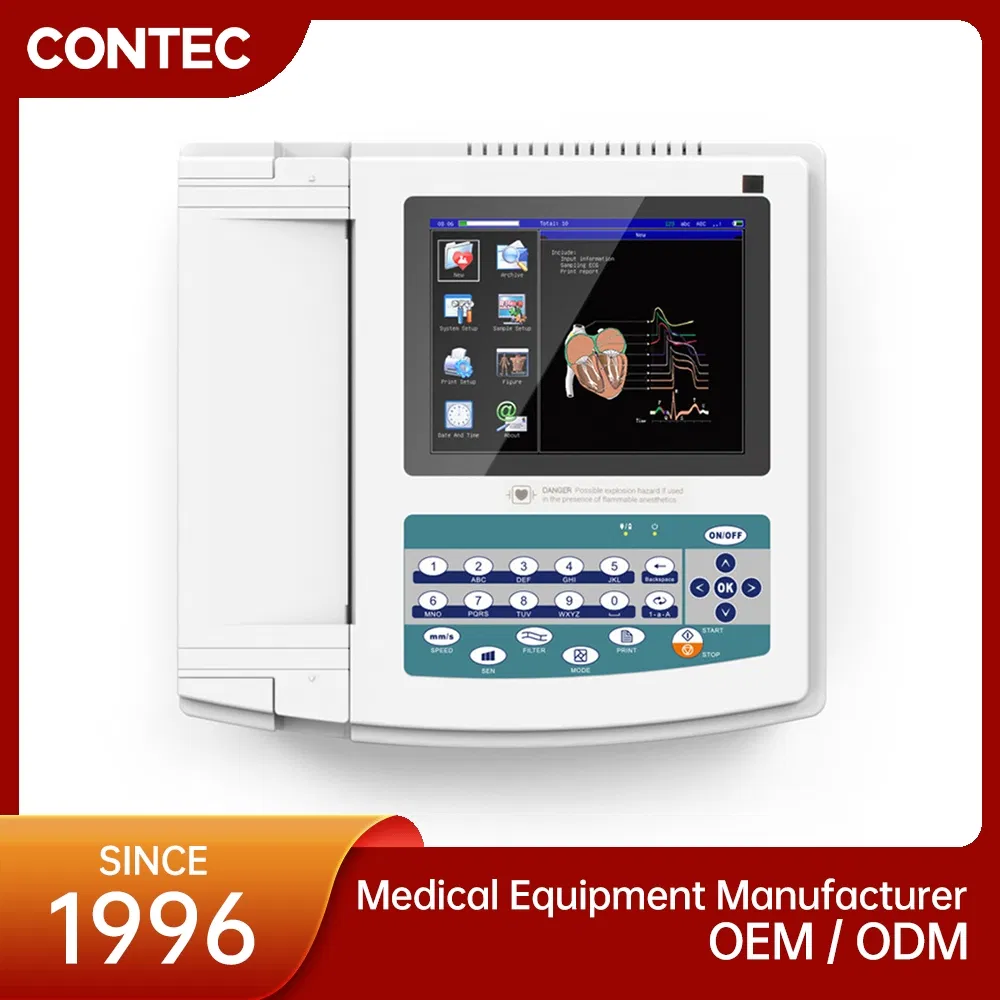

12 Lead Digital ECG EKG Machine

Professional diagnostic performance with 8-inch high-resolution screen.

Key Features

Sync Collection: 12-lead ECG sync collection with digital signal processing for high-quality waveforms via advanced filtering.

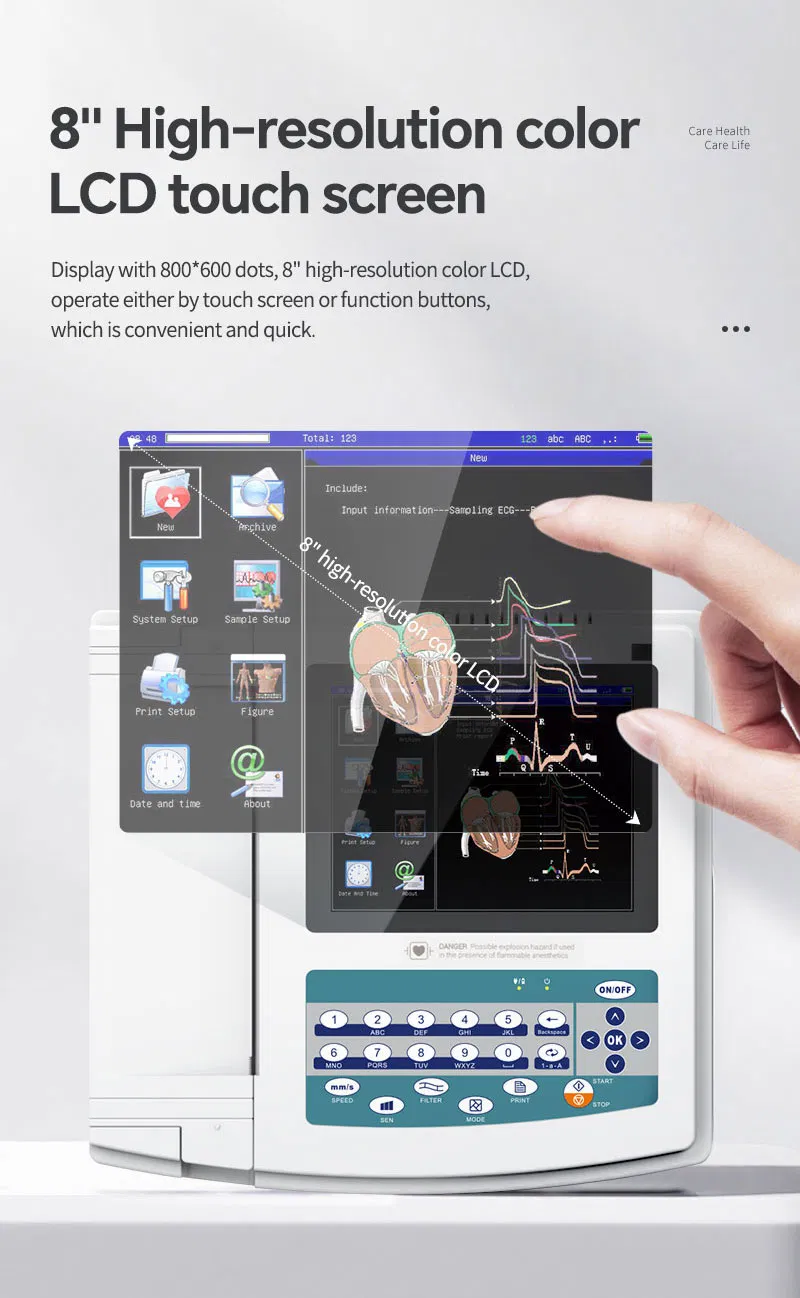

Clear Display: 8-inch screen showing 3/6/12-lead ECG, print mode, sensitivity, and filter states simultaneously.
Versatile Printing: Multiple modes including Auto 12x1, 6x2+1, Rhythm 12/10/8, and manual modes with adjustable waveform length.

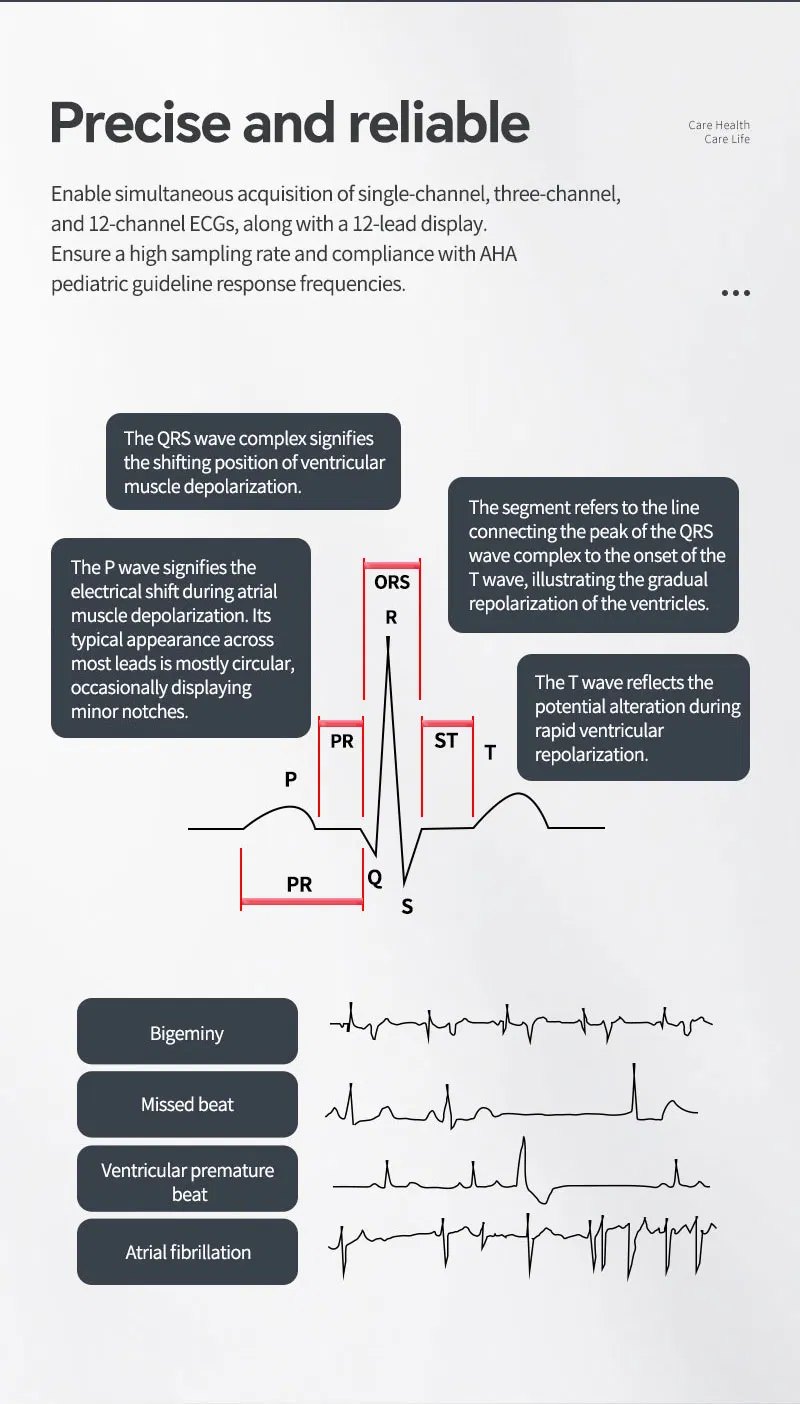

Auto-Analysis: Provides auto-measurement and auto-diagnosis for HR, P-R interval, QRS Duration, Q-T interval, and more.
Large Storage: Built-in memory stores up to 1000 cases for easy review and statistics.
Multi-Language: Supports English, French, Spanish, German, Russian, Portuguese, and many others.
Powerful Battery: Up to 10-hour standby time and 3-hour continuous printing in optimal DC state.

Technical Specifications

Parameter	Detail
Screen Size	8 inches
Input Way	Floating and defibrillation protection
Frequency Response	0.05Hz~150Hz(-3dB)
CMRR	>60dB, >100dB (with filter)
Recording Way	Thermal printing system
Paper Specification	210mm(W) * 20m(L) thermal paper
Paper Speed	5, 6.25, 10, 12.5, 25, 50mm/s
Sensitivity	2.5, 5, 10, 20, 40mm/mV
Safety Class	Class I, Type CF applied part

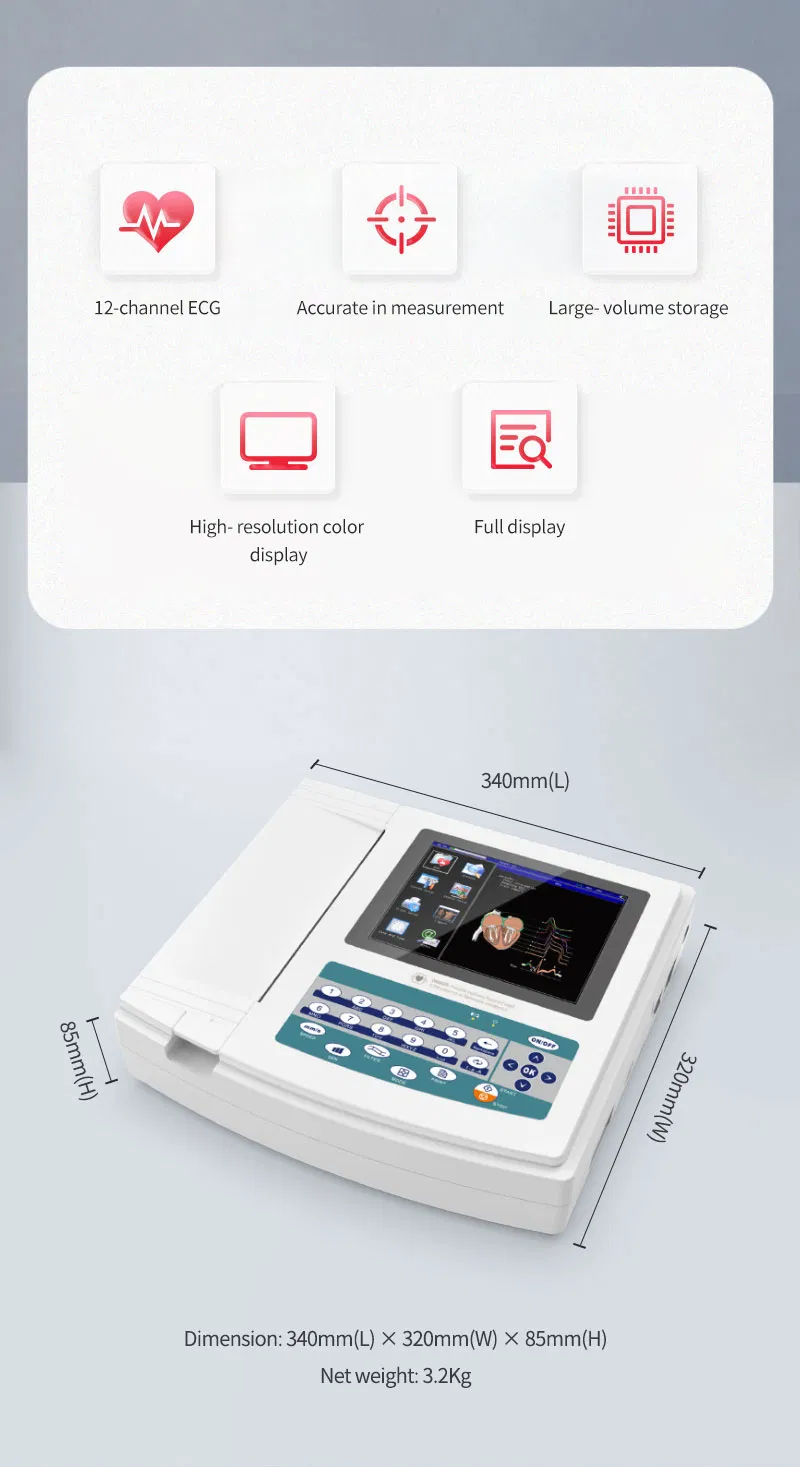

Dimensions	340mm(L) * 320mm(W) * 85mm(H)
Net Weight	3.2Kg

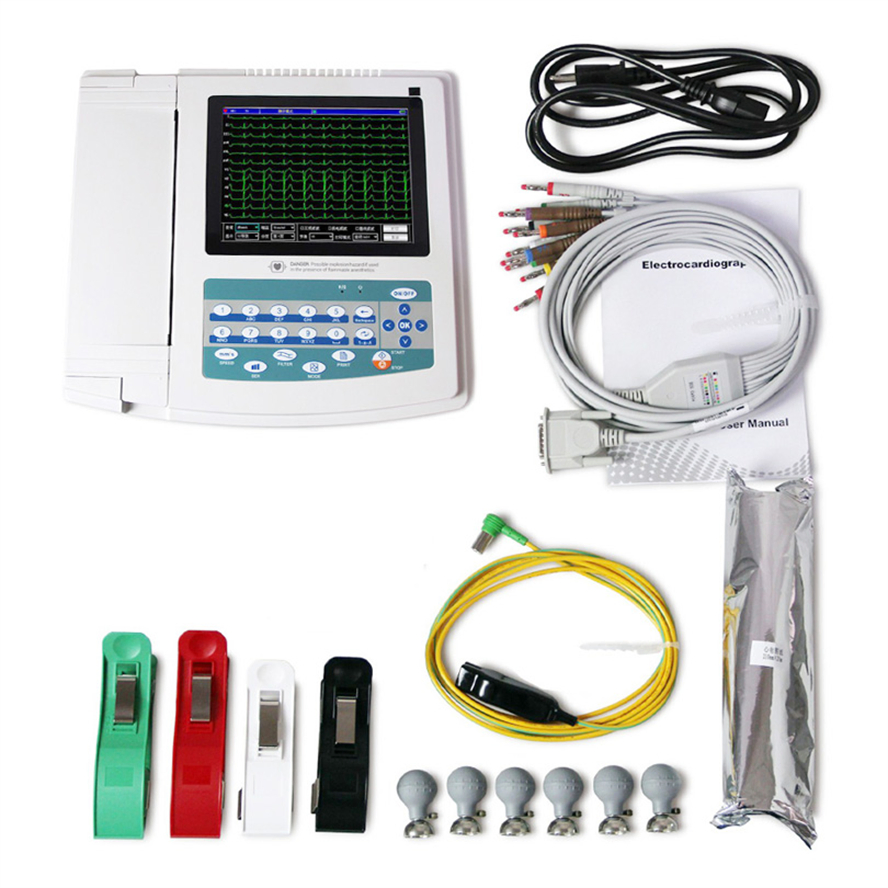

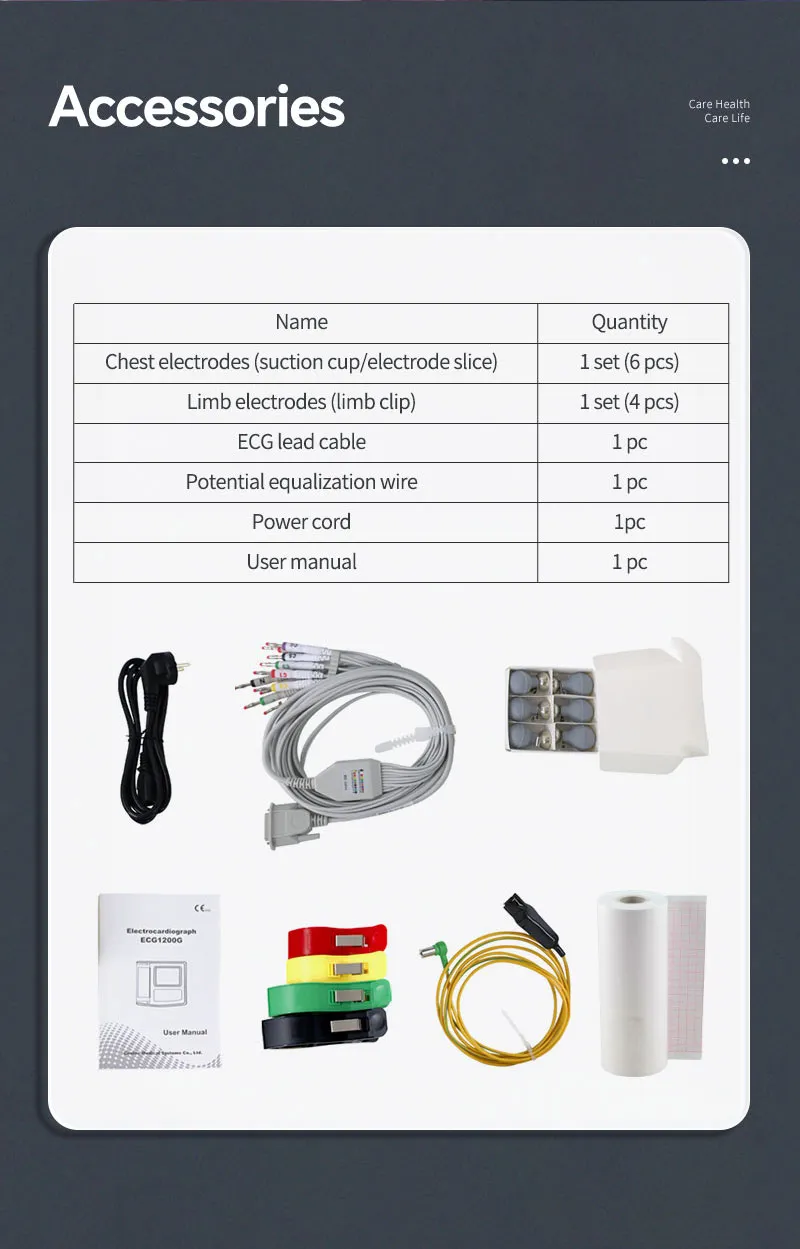

Accessories

Standard Configuration:
- Lead cable
- Limb electrode
- Chest electrode
- Thermal recording paper
- Power cord & Earth wire
- User manual

Optional Items:
- ECG-Sync software + USB cable
- Carry bag
- Conductive paste
- Wi-Fi / 3G card

Product Gallery

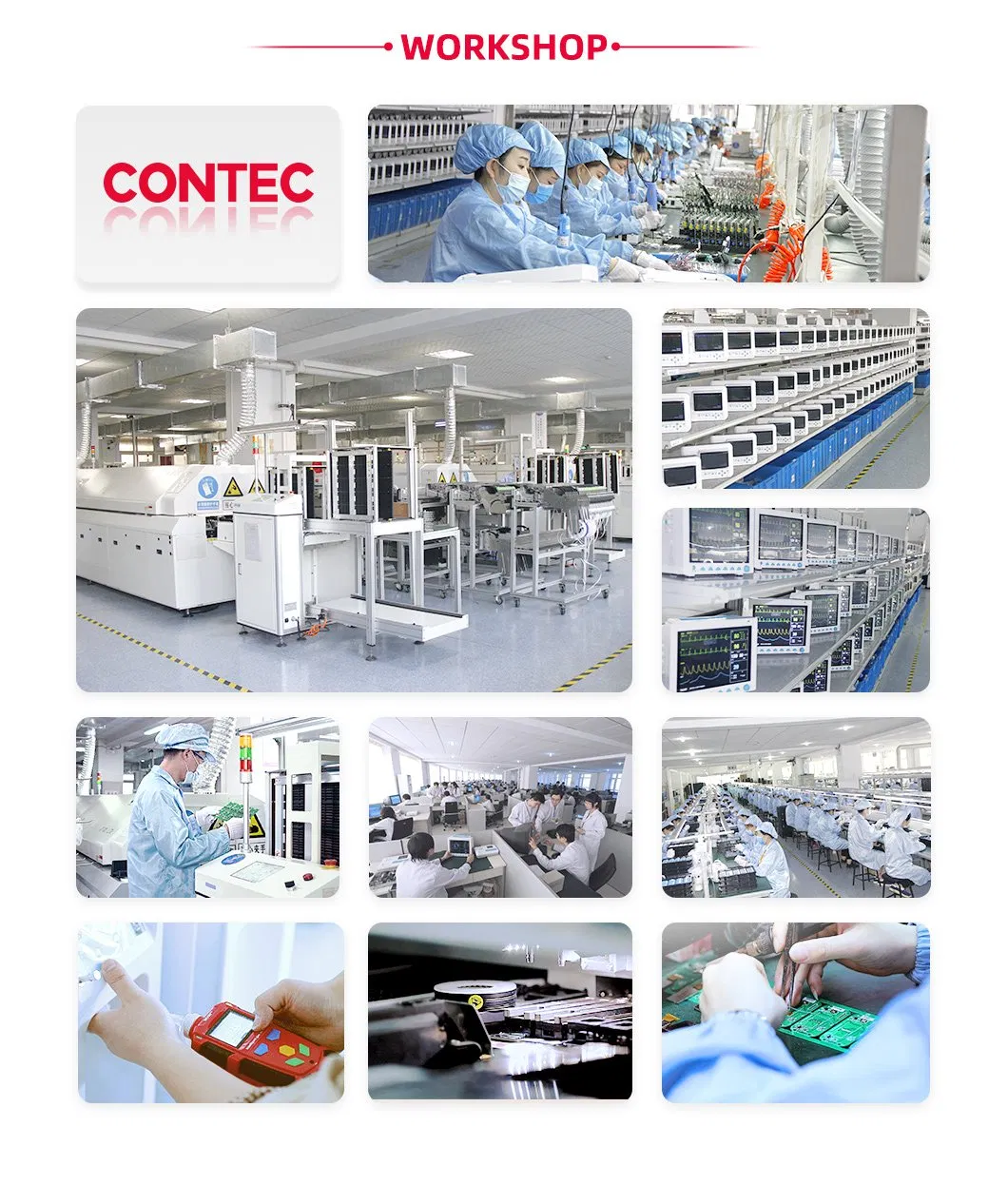

Facility and Standards

Frequently Asked Questions

Q1: How many leads can the ECG1200G capture simultaneously? A: The device supports synchronous collection for all 12 standard leads, providing a comprehensive view of cardiac activity.

Q2: Does this machine provide automatic diagnosis? A: Yes, it features auto-analysis and auto-diagnosis functions for routine ECG parameters, including HR, P-R interval, QRS Duration, and more.

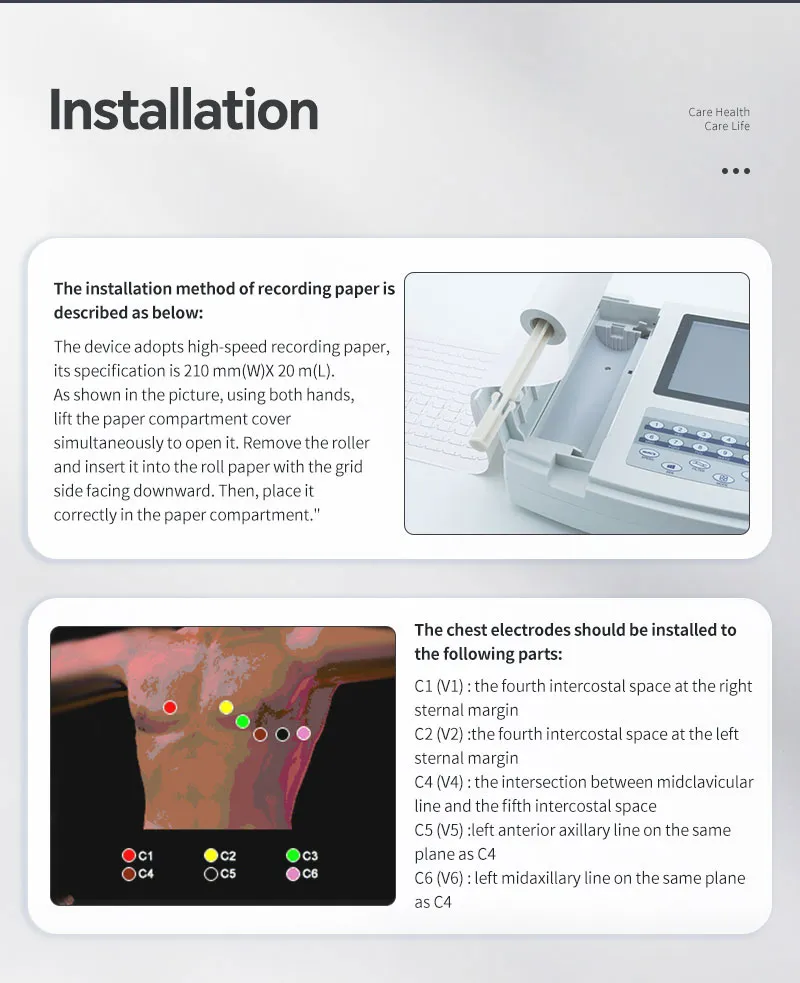

Q3: What type of printing paper is required? A: It uses 210mm(W)*20m(L) high-speed thermal paper, allowing for large-format, clear waveform printouts.

Q4: How many patient records can the device store? A: The built-in memory can store up to 1000 cases, which is convenient for historical review and statistical analysis.

Q5: Is the ECG1200G suitable for portable use or home visits? A: Yes, with a 10-hour standby time and the ability to print continuously for over 3 hours on DC power, it is highly suitable for visiting patients and mobile examinations.

Q6: Which languages are supported in the system interface? A: The interface and reports support multiple languages including English, Spanish, French, German, Portuguese, Russian, Turkish, and more.
