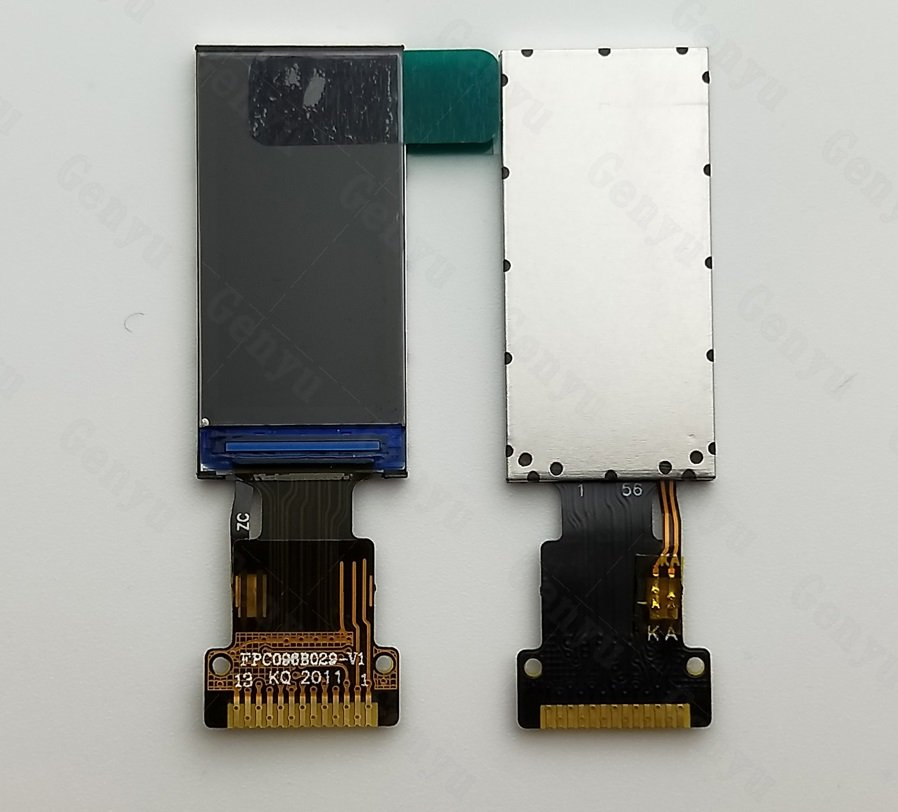

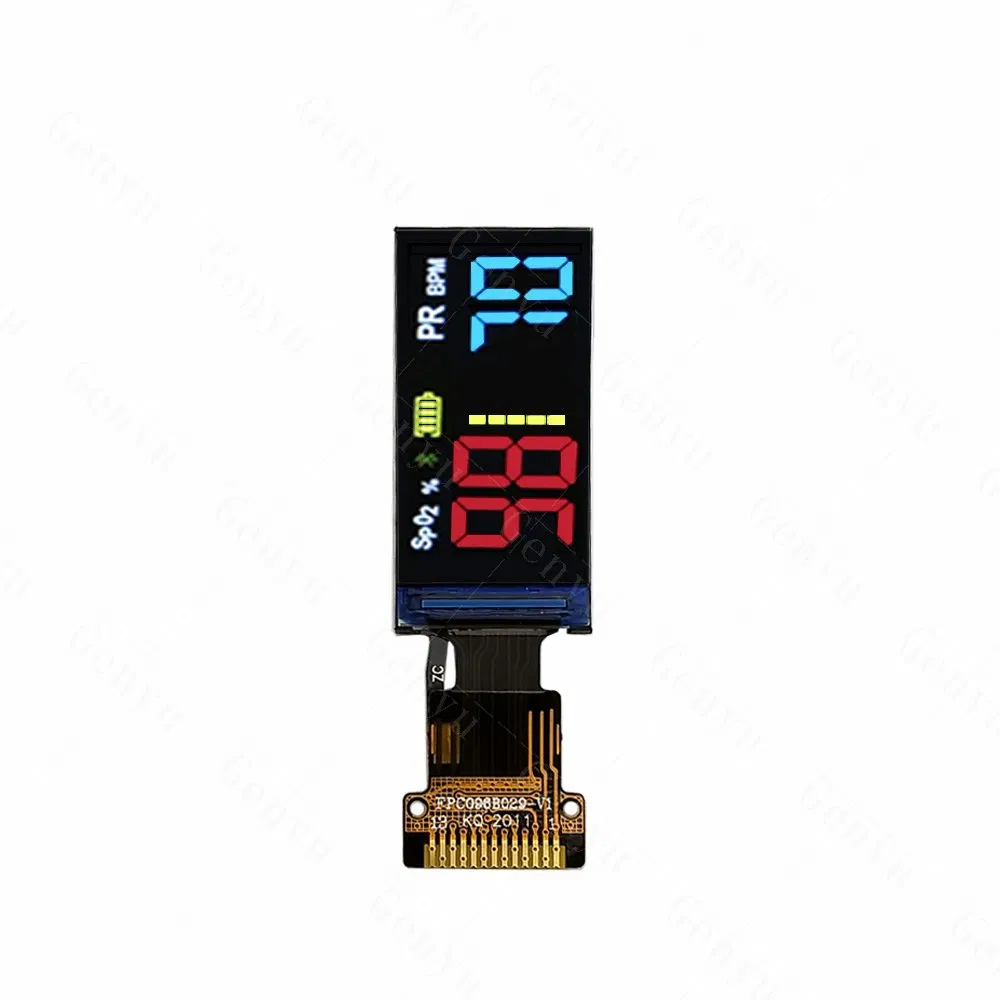

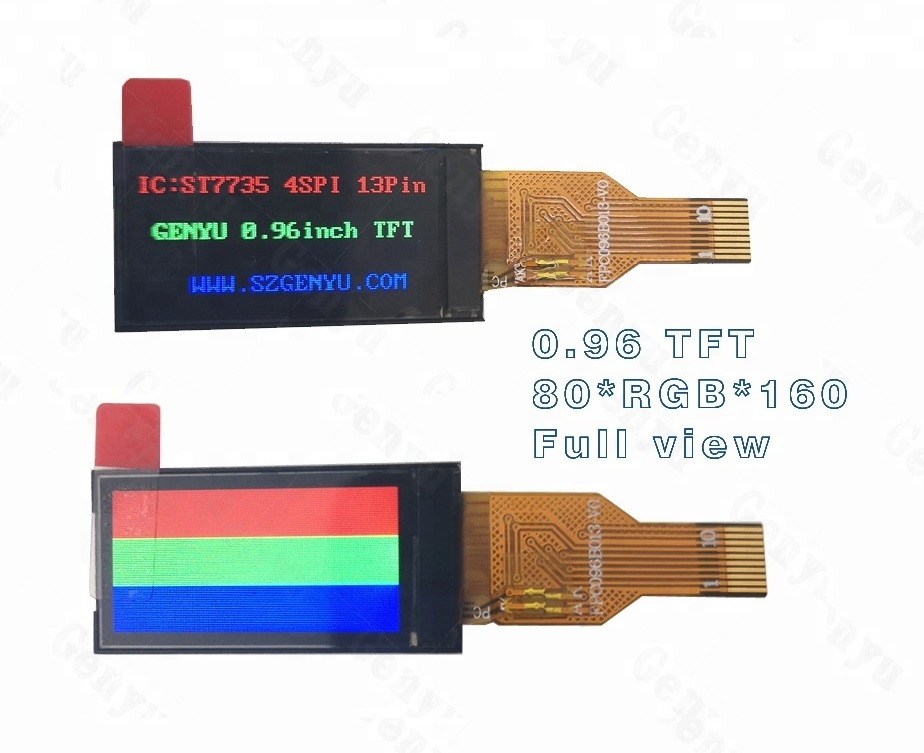

0.96 Inch TFT LCD Display for Finger Pulse Oximetry Monitor

i

Overview & Basic Info

Size:150mm*90mm*12mm

Application:Indoor, Mobile Phone

Aspect Ratio:4:3

Feature:Touch Display

Resolution:3840X2160

Interface:VGA

Capacity:5,000,000 PCS/Month

Origin:China

D

Product Description

3.5 inch TFT-LCD Screen | Resolution 480*272

General Specifications
Item	Standard Value
Size	3.5'
Display Format	320(RGB) * 480
LCD Type	TFT, Transflective, Positive
View Direction	12 O'clock
Backlight	White LED
Interface	RGB & MCU
Driver IC	ILI9488

Mechanical Specifications
Item	Value	Unit
Outline Dimension	54.48(W) * 84.71(L) * 2.4(H)	mm
Active Area	48.96(W) * 73.44(L)	mm
Dot Size	0.153(W) * 0.153(L)	mm

L

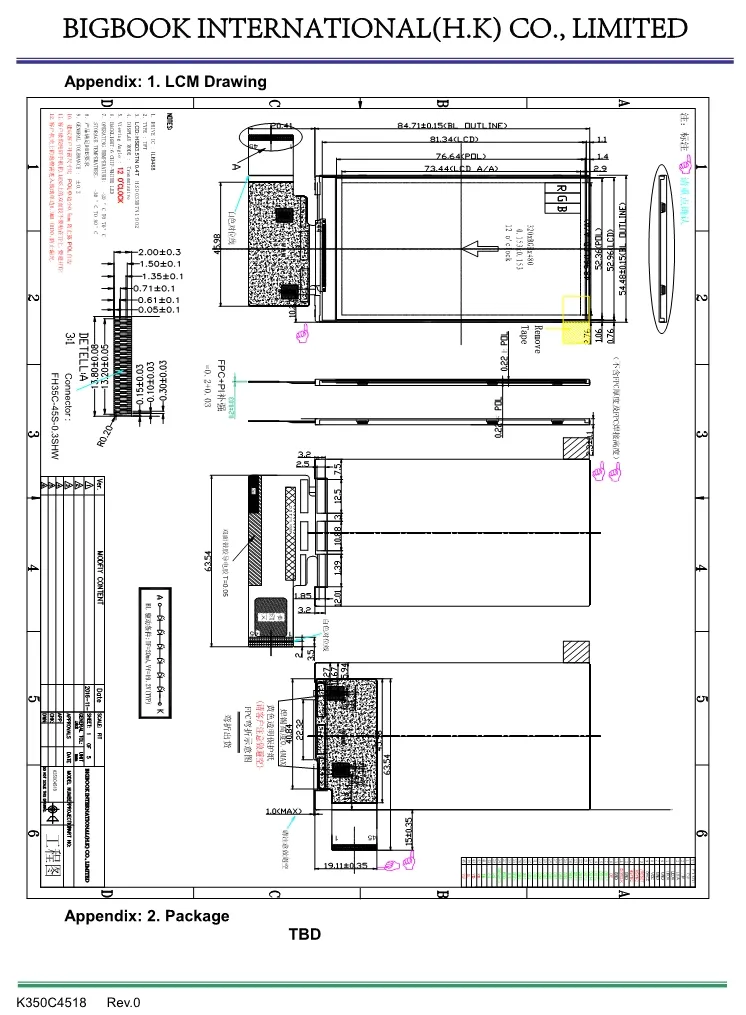

Layout Drawing

P

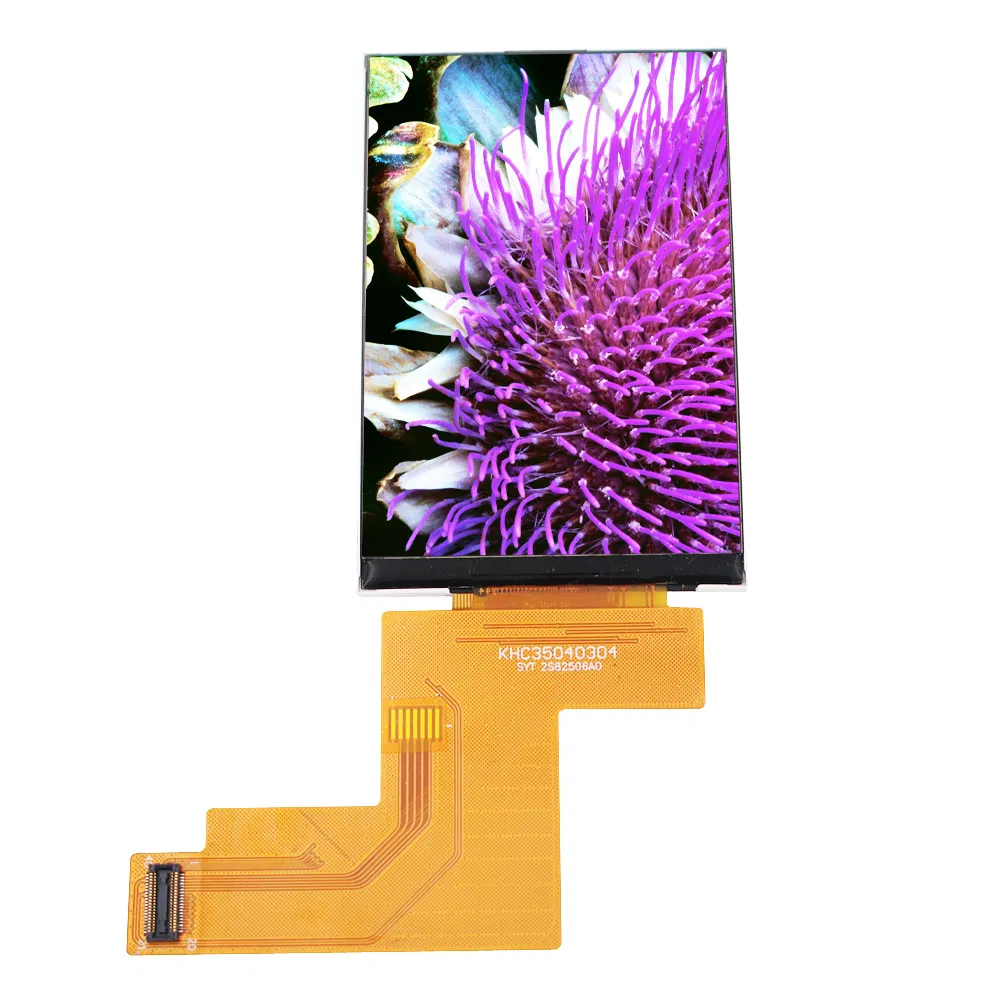

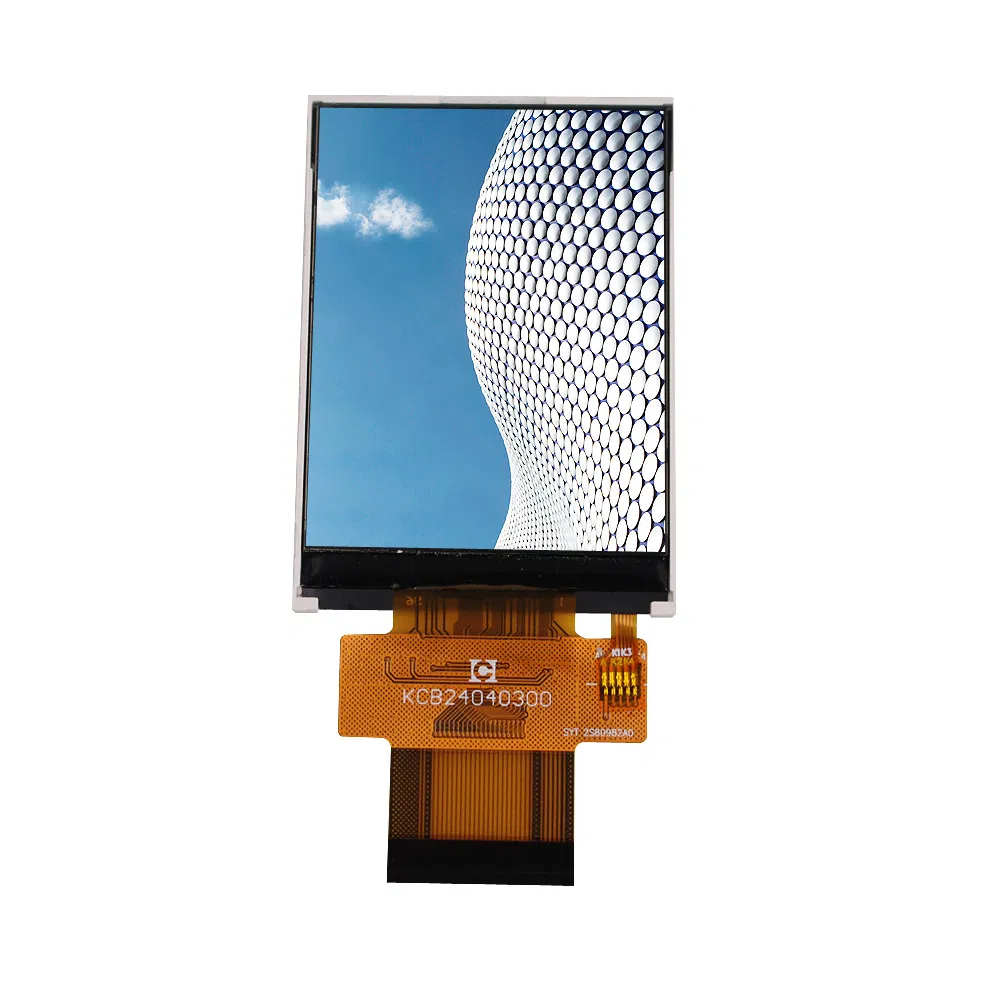

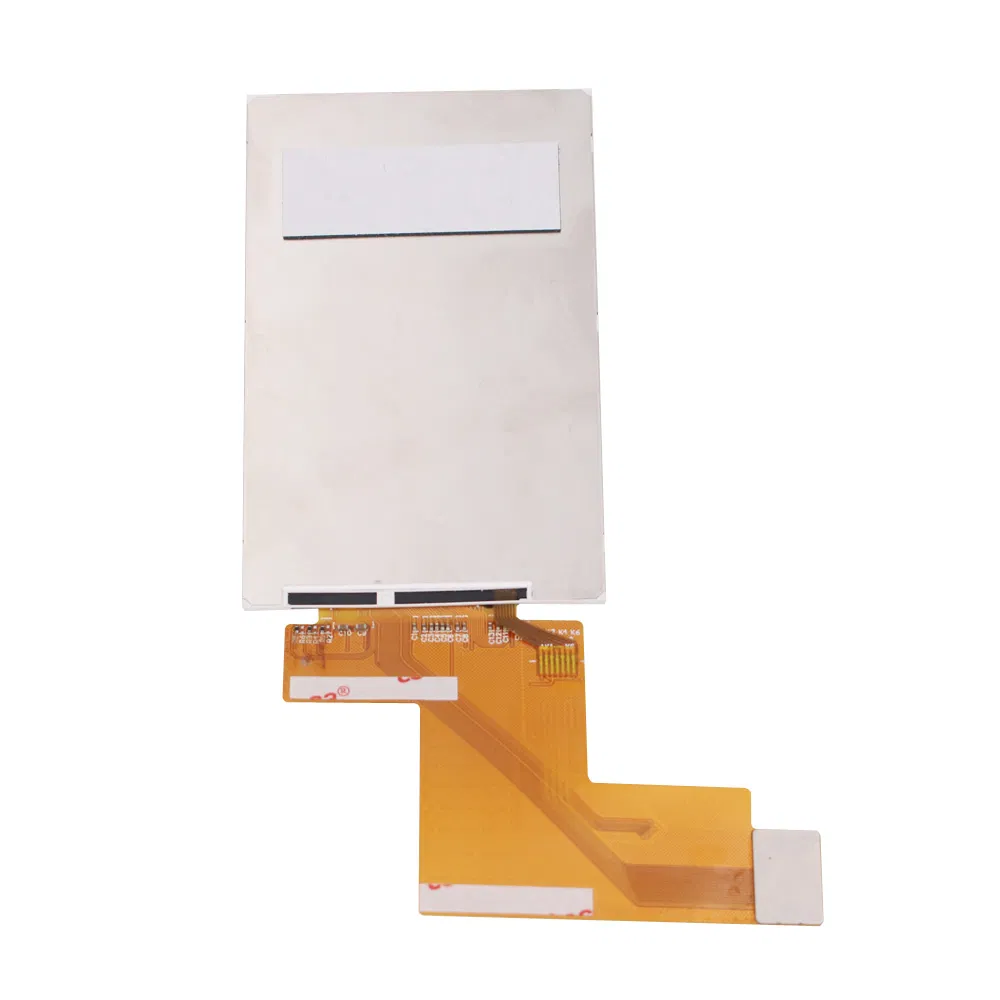

Detailed Photos

A

Our Advantages

Advanced Equipment	Full automatic FPC&IC bonding, CNC machines, and polishing equipment ensure premium quality.
Quality Assurance	100% inspection for every piece before shipment using advanced instruments.
Fast Response	Quick realization of customized ideas with short sample lead times.
Large Capacity	Monthly operation capacity of up to 2KK.

S

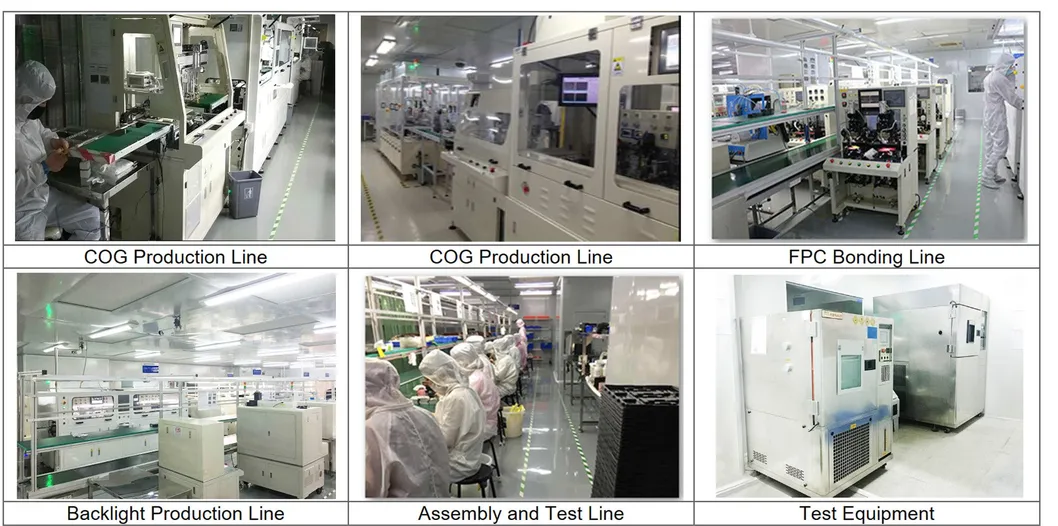

Production Excellence

Clean Room class 100 - 1000 environments.
Antistatic floor protection (1x10 ohm resistance).
4 dedicated COG production lines and 2 Backlight lines.
ISO 9001:2008 & ISO 14001:2004 Certified Management.

T

Packaging & Shipping

We use high-standard packaging including Carton boxes, Cupboards, EPE, and Blister Trays based on product size and customer demand.

?

Frequently Asked Questions

Q1: Can you customize the LCD display size and outline?

Yes, we can customize based on your specifications or drawings. If you don't have a drawing, you can provide samples for us to recommend or customize a solution.

Q2: What is required to modify display content or outline size?

For segment type LCD modules, modifying the outline or content usually requires a new LCD glass module and opening new tooling.

Q3: Can you change the display type (e.g., from HTN to STN)?

Yes, we can adjust the display type according to your specific project requirements.

Q4: What is the lead time for new tooling?

Generally, it takes 15 to 25 days after the drawing confirmation and tooling payment are finalized.

Q5: Do you provide samples for checking before mass production?

Yes, sample orders are available for quality verification and technical compatibility testing.

Q6: What are the standard lead times for production?

Standard items in stock can ship within one day. Mass production for special/customized orders typically takes 15-30 days.
