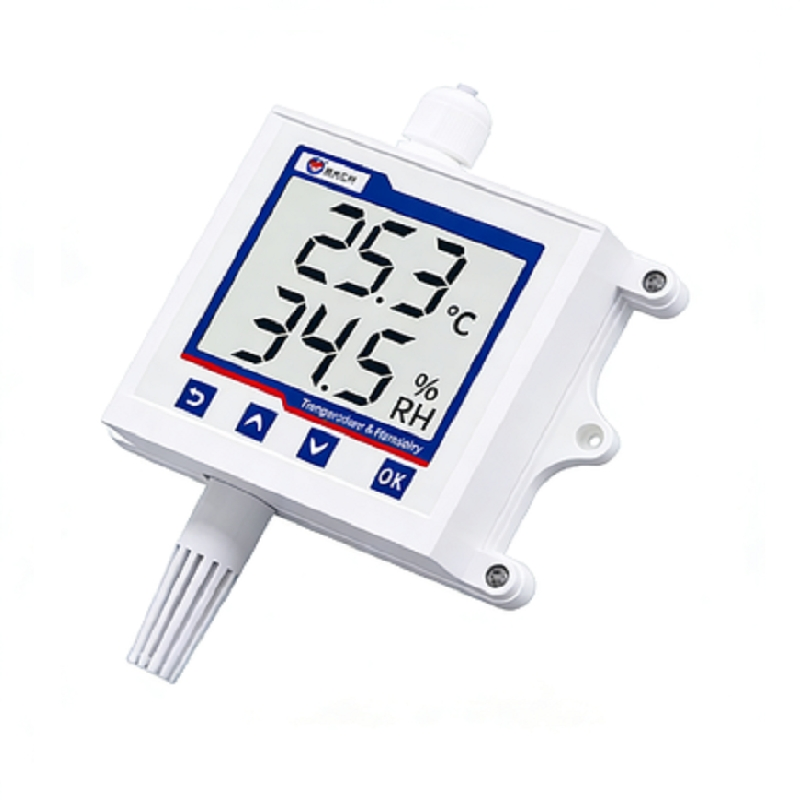

Smart LCD Display for Temperature and Humidity Monitoring Solutions

Customization:	Available
Installation Type:	Wall-Mounted Type
Sensing Type:	Thermocouple

Send Inquiry

Product Description

Basic Specifications

Model NO.

RS-WS-N01-2C*-*-EX

Output Signal

RS485 (ModBus-RTU)

Material

Industrial Plastic

Measuring Medium

Temperature & Humidity

DC Power Supply

10-30V DC

Humidity Accuracy

±3%Rh (60%Rh, 25℃)

Temp Accuracy

±0.5℃ (25℃)

Operating Temp

-40~+80℃

Certification

Resolution

0.1℃ / 0.1%Rh

Product Overview

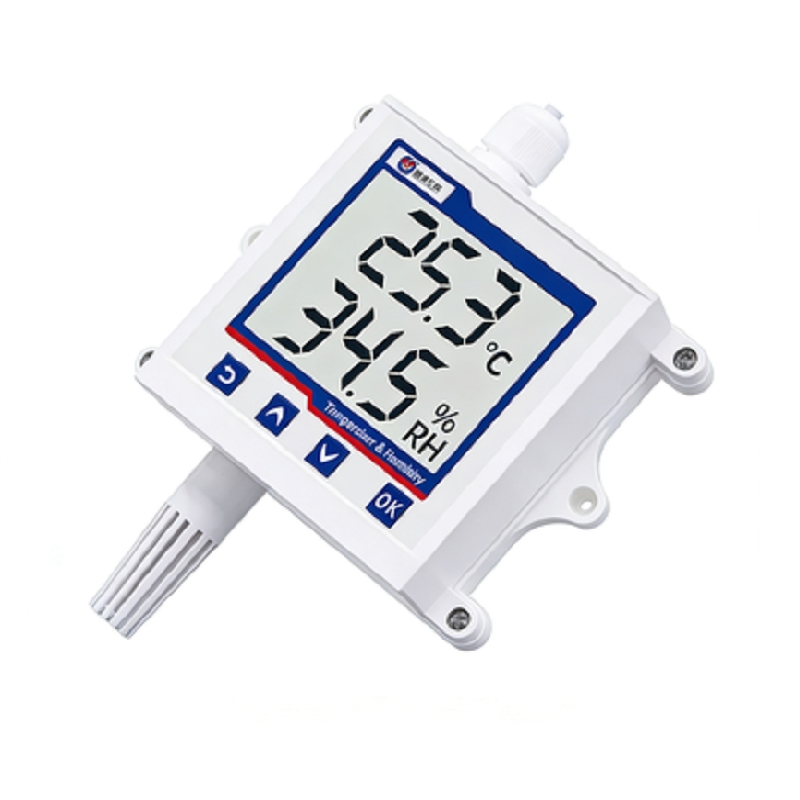

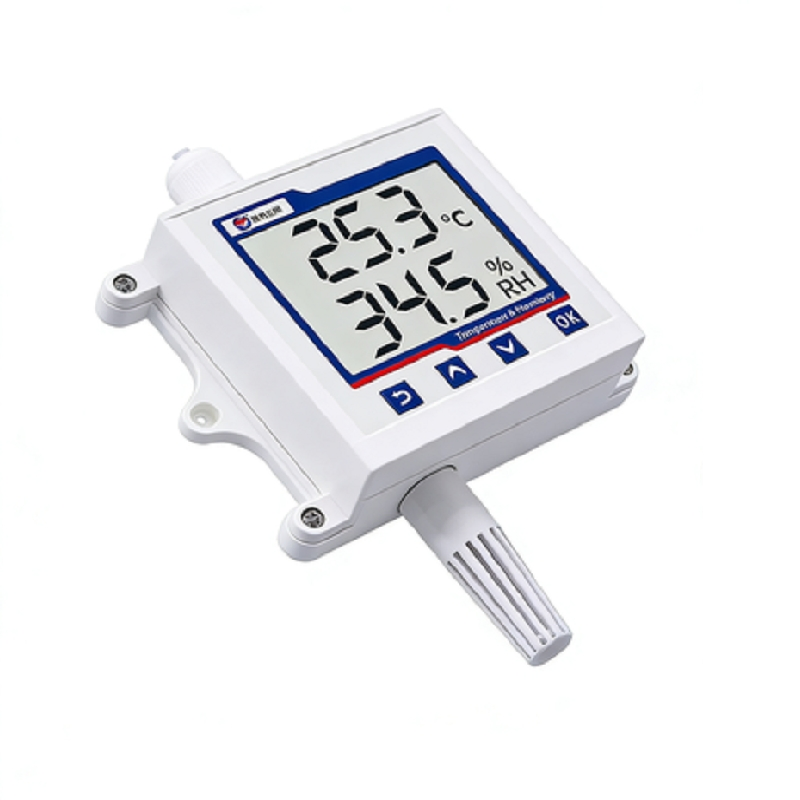

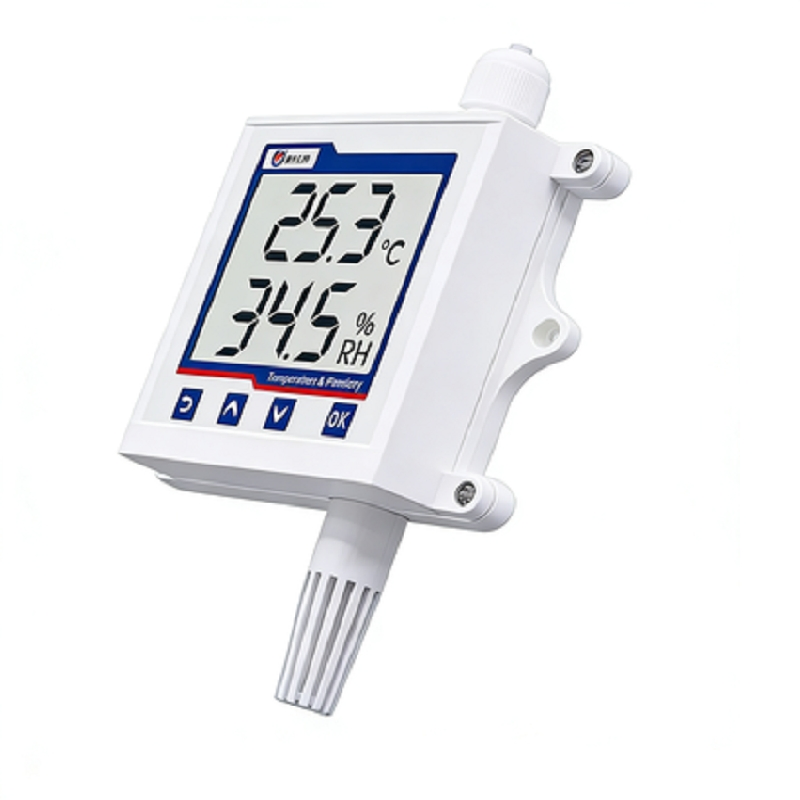

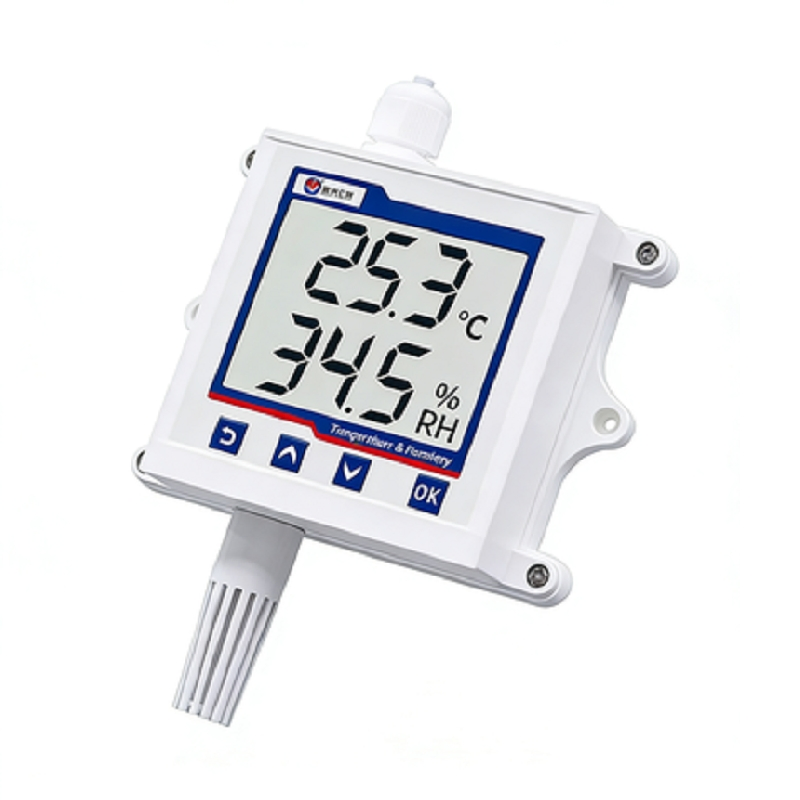

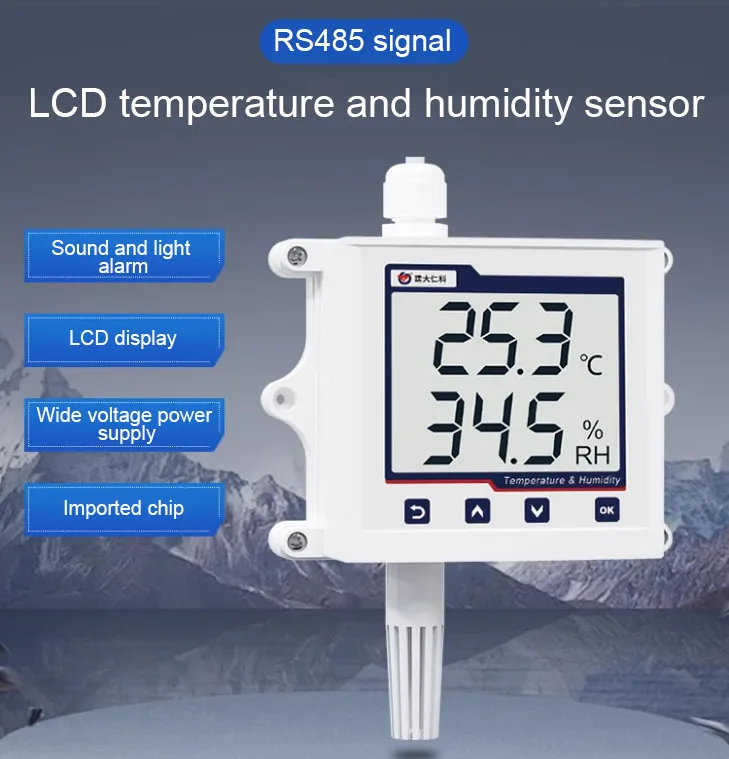

This transmitter features an LCD display for real-time temperature and humidity monitoring. It utilizes the standard ModBus-RTU communication protocol with RS485 signal output, achieving a maximum communication distance of 2000 meters. The probe can be either built-in or extended, making it widely applicable in communication rooms, warehouses, and automated control systems.

Technical Parameters

DC power supply	10-30V DC
Humidity accuracy	±3%RH (60%RH, 25℃)
Temperature accuracy	±0.5℃ (25℃)
Probe operating temperature	-40~+80℃
Probe operating humidity	0~100%RH
Communication Protocol	ModBus-RTU
Output Signal	485 Signal
Display Resolution	0.1℃ / 0.1%RH

Key Features

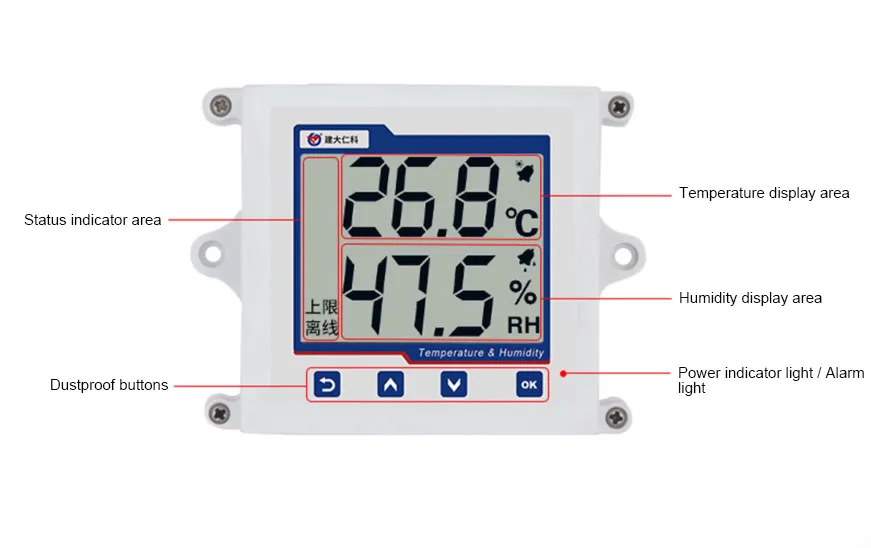

Large LCD screen for clear, aesthetic real-time data display.
High-precision measurement unit with on-site self-calibration for long-term stability.
Dedicated 485 circuit with configurable communication address and baud rate.
Wide voltage power supply range (10~30V DC) for industrial compatibility.

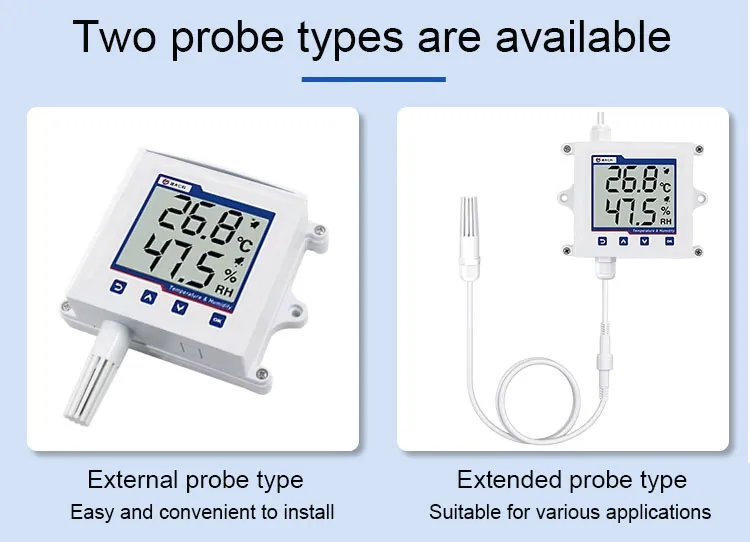

Flexible probe options: Built-in for easy installation or extended (up to 30m) for various environments.
Intuitive button operation for easy parameter setting.

Product Gallery

Frequently Asked Questions

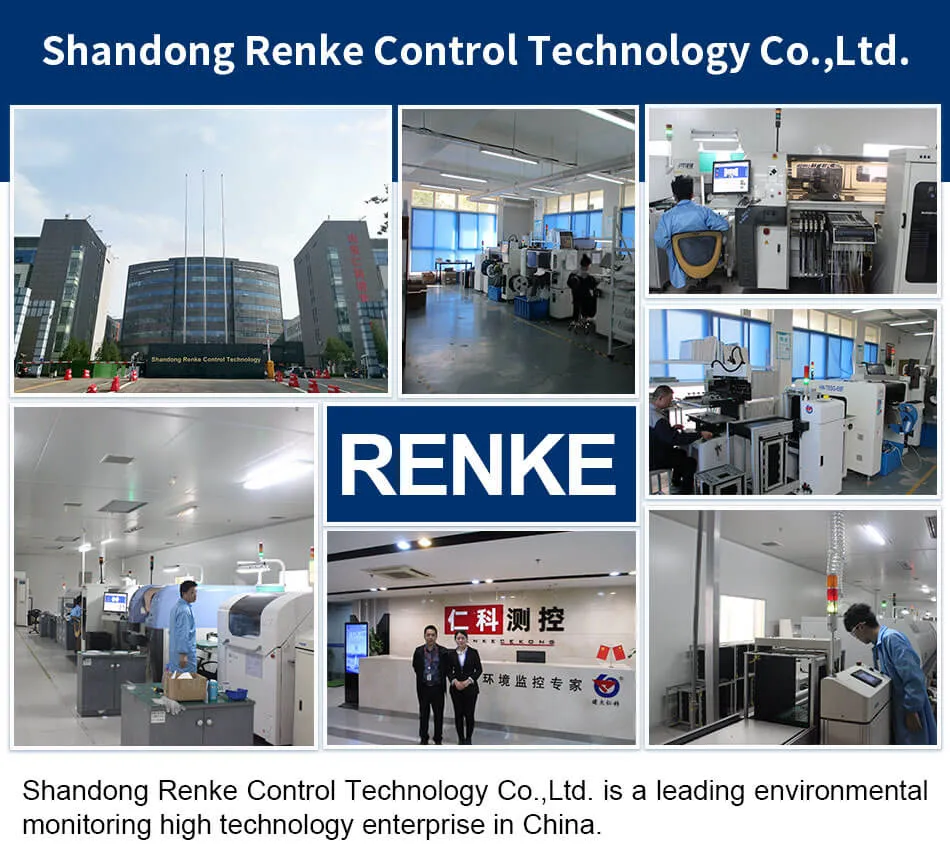

Q: Are you the final manufacturer? A: Yes, we are a leading sensor manufacturer and exporter with over 15 years of industry experience.

Q: Do you offer OEM services? A: Yes, we provide OEM services including custom logo marking and design according to your requirements.

Q: What is the typical delivery time for orders? A: Standard orders are shipped within 24 hours of payment confirmation. Larger orders (100+ pcs) may require an additional 2-3 working days.

Q: What payment methods are supported? A: We accept payments via T/T, PayPal, and various secure online payment platforms.

Q: How do you ensure product quality? A: We offer a 12-month quality guarantee and a free exchange service within the first month for any manufacturing defects.

Q: What shipping methods do you use? A: Goods are typically dispatched via major carriers such as DHL, FEDEX, UPS, EMS, or TNT.
