| Model NO. | WD-V3002M-DIN |
| Support Network | Ethernet |
| Transmission Rate | 400k ~ 400Mbps |
| Transmission Distance | Up to 3500 meters |
| Certification | CE, RoHS, FCC |
| Frequency | 25KHz - 35MHz |
| Voltage Range | DC 10V - 80V |
| Operating Temp | -40°C to 80°C |
| Dimensions | 120mm × 86mm × 44mm |
VDSL (Very High-Speed Digital Subscriber Line) is a next-generation DSL broadband technology that utilizes digital processing to expand transmission bandwidth over existing telephone lines (twisted-pair copper wires).

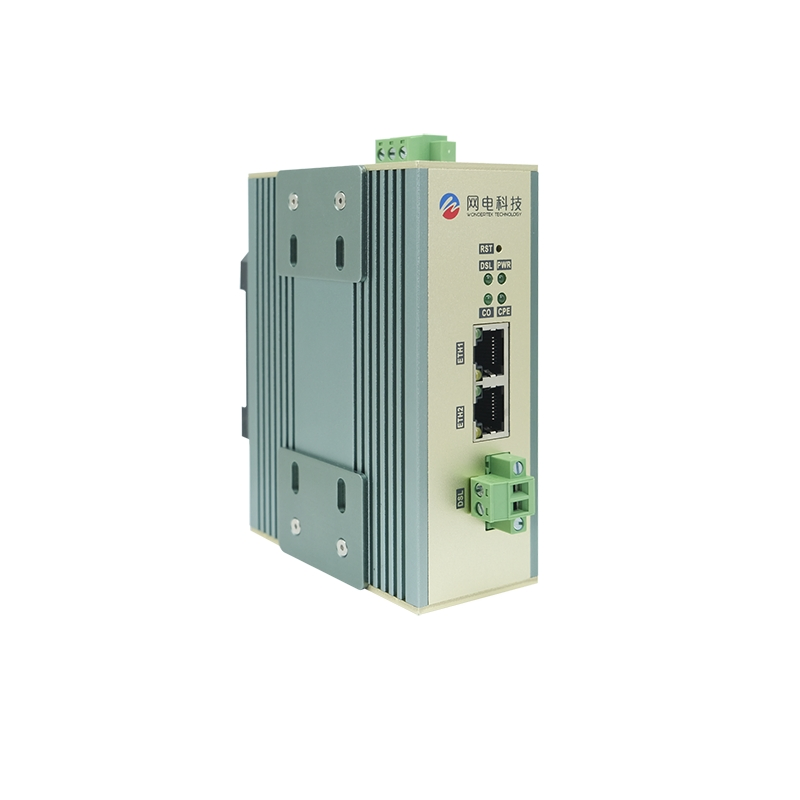

The WD-V3002M-DIN is designed for medium and long-distance high-speed data transmission. It effectively meets the networking requirements of industrial sites using traditional two-core cables, such as video surveillance, data acquisition, and equipment control. Configurable as CO or CPE, it provides a reliable point-to-point dedicated line solution for coal mines, factories, and railways.
Easy installation with no complex setup required. Enables network transmission up to 3.5 kilometers via CO and CPE connection.
DMT modulation technology automatically adjusts data rates to line quality, ensuring stable performance even in noisy environments.
Built for harsh environments with a wide temperature range and IP40 protection, suitable for various industrial applications.
| Interface | DSL, 2*RJ45 10/100/1000Mbps, 1*DC-IN |
| Protocol Standards | G.992.1, G.993.2 (VDSL2), G.993.5, G.998.4, G.999.1 |
| LED Indicators | PWR, ETH, DSL, CO, CPE |

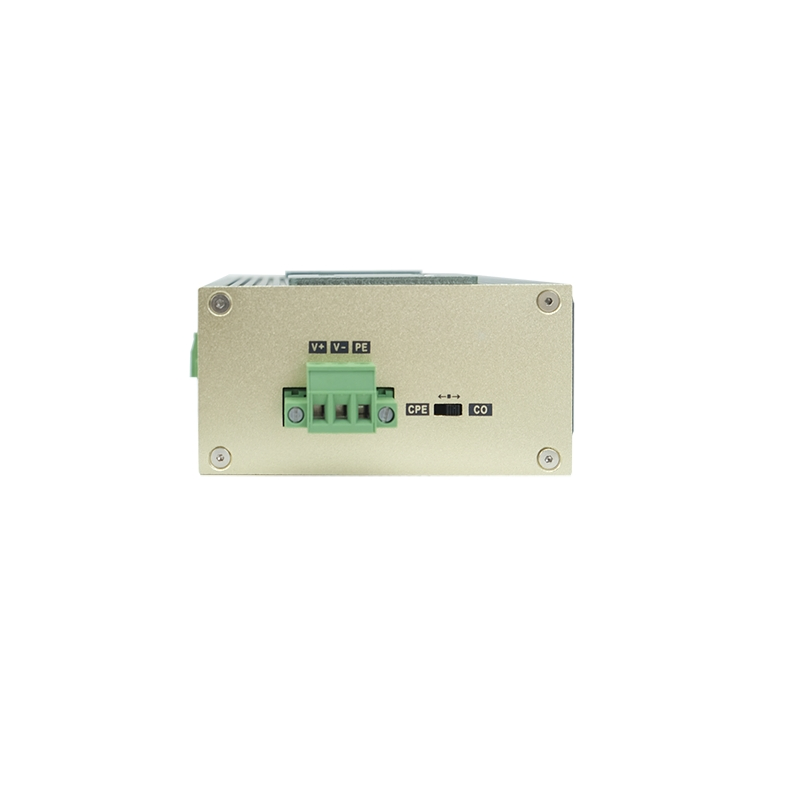

| DIP Switch | CO / CPE Selection |
| Modulation Mode | DMT |
| Power Consumption | ≤ 4W |

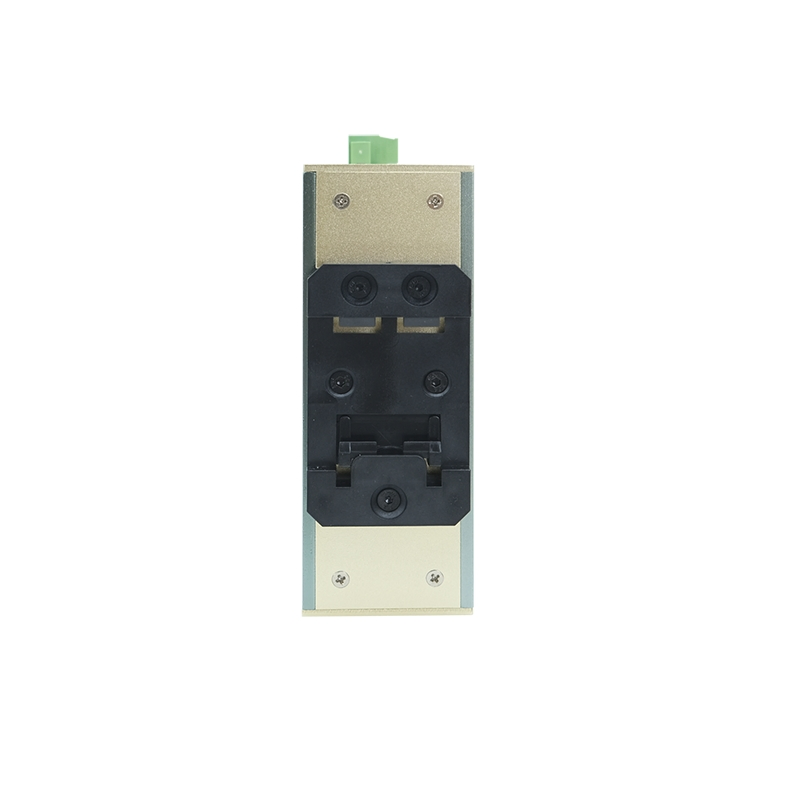

| Installation | DIN rail or fixed hole installation |
| Storage Humidity | 5% to 90% non-condensing |

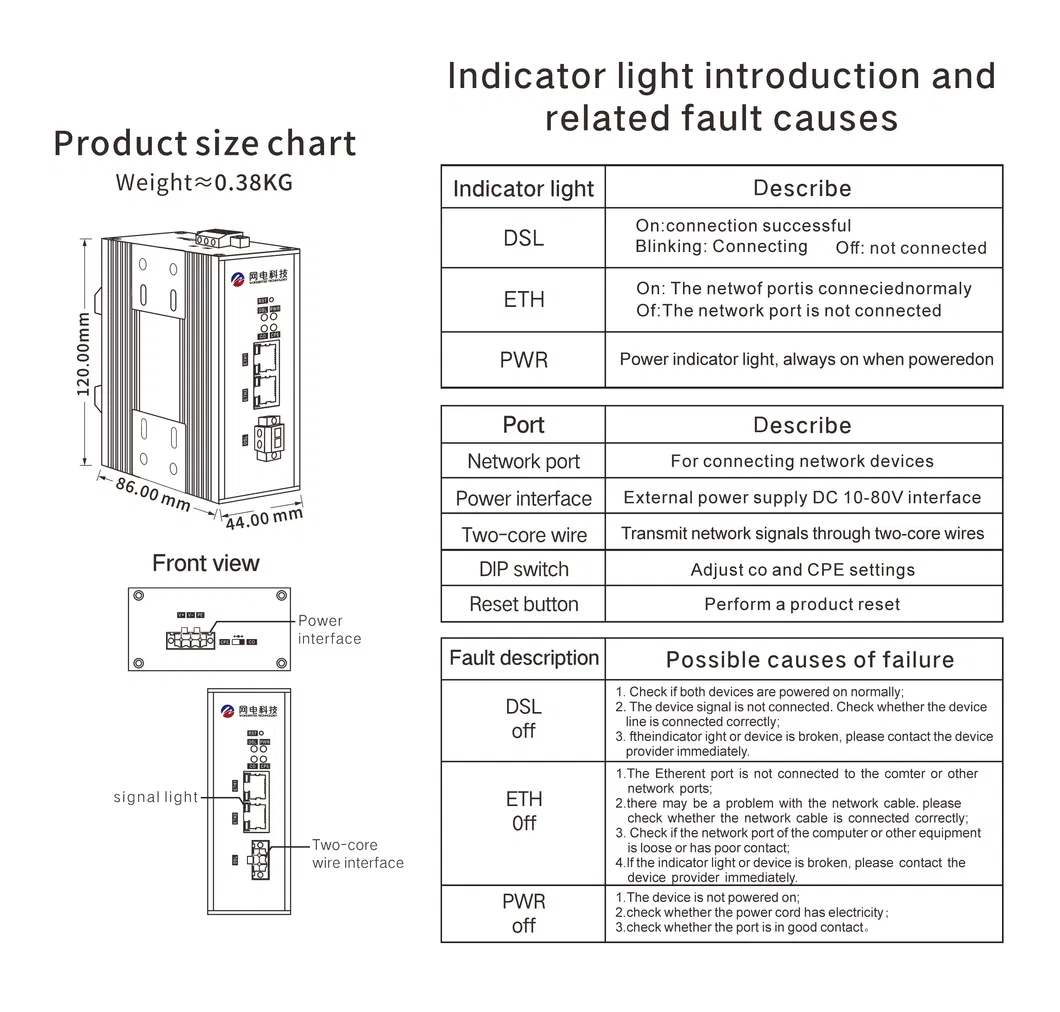

Indicator Light Introduction:

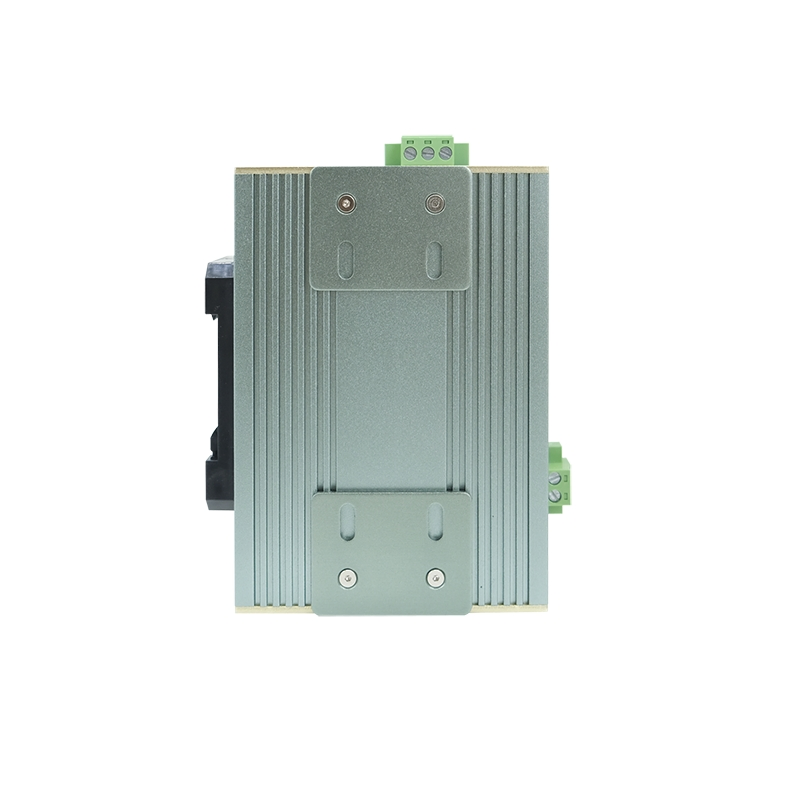

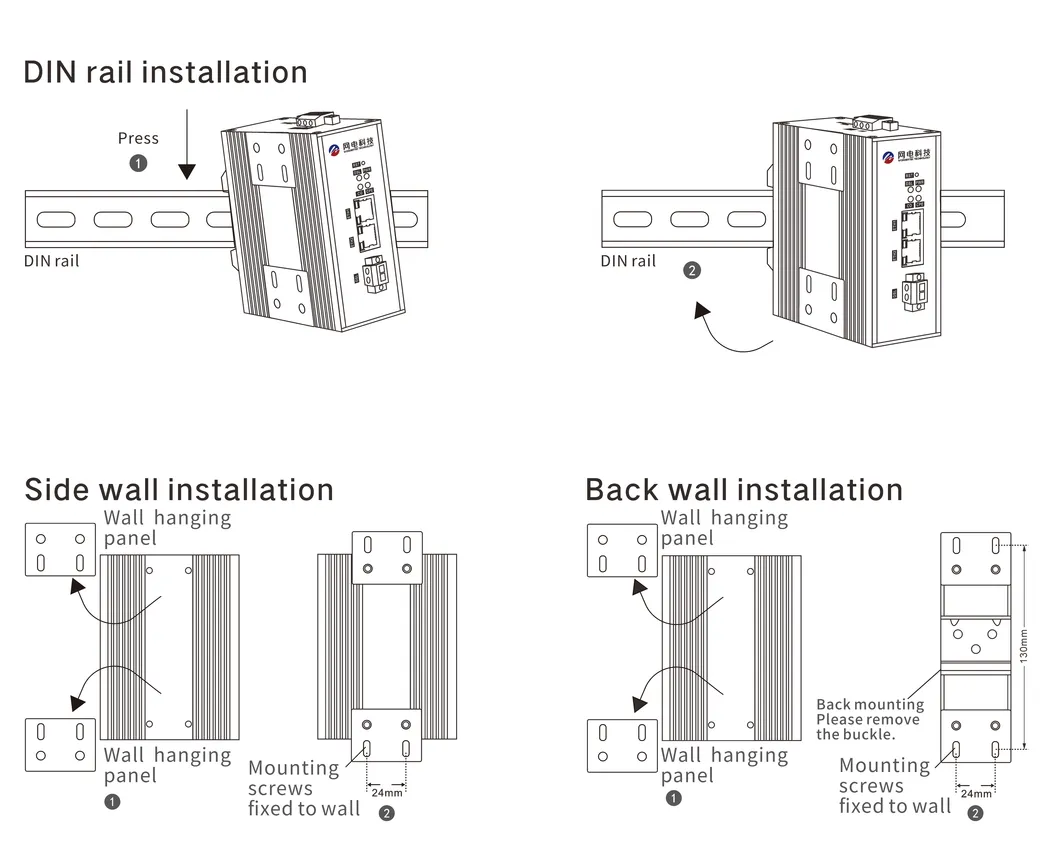

Installation Method:

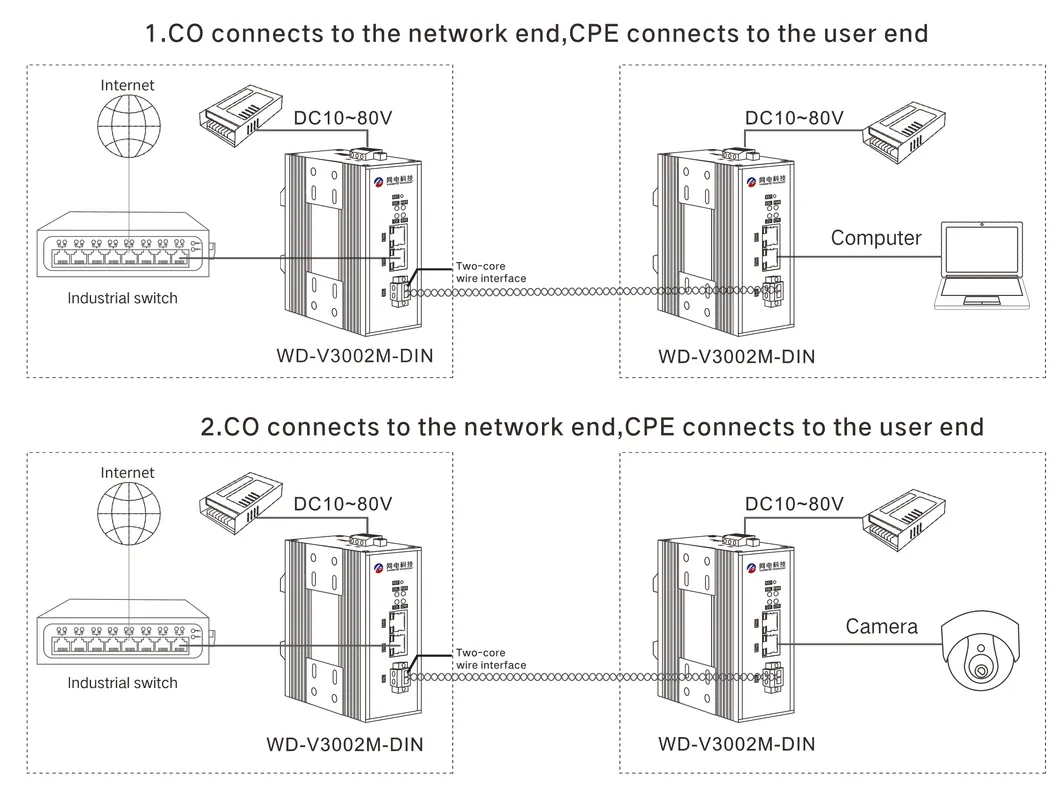

Topology Diagram:
