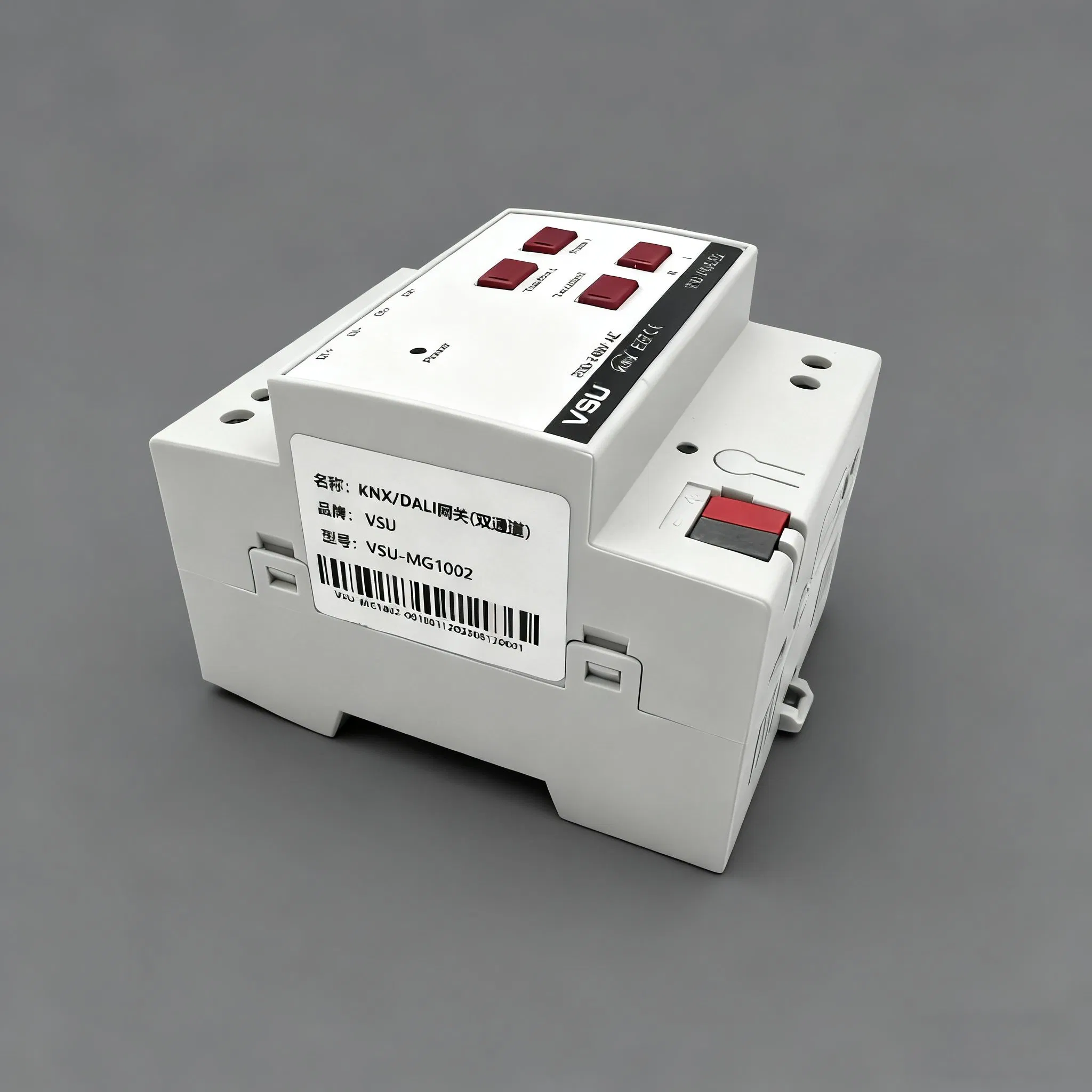

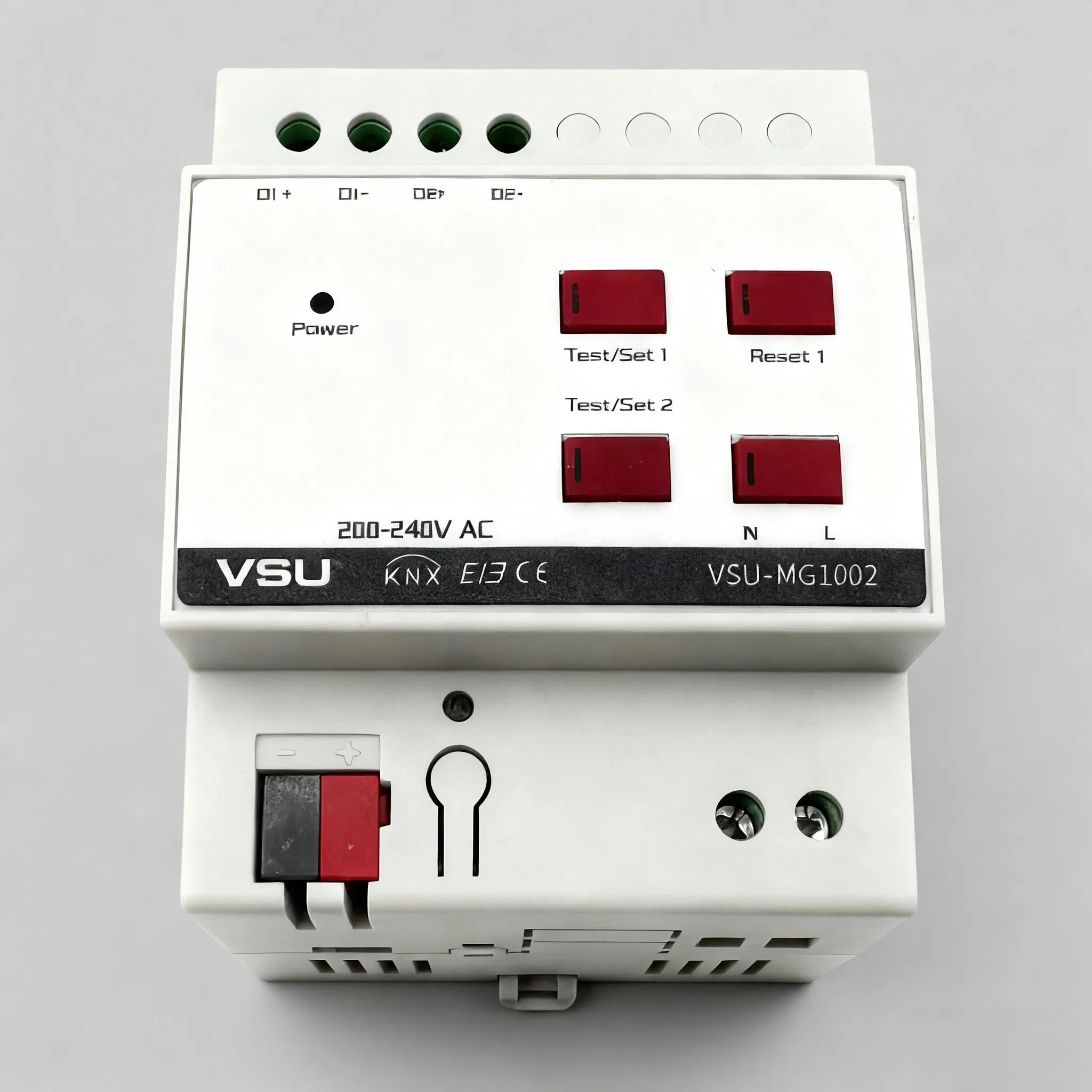

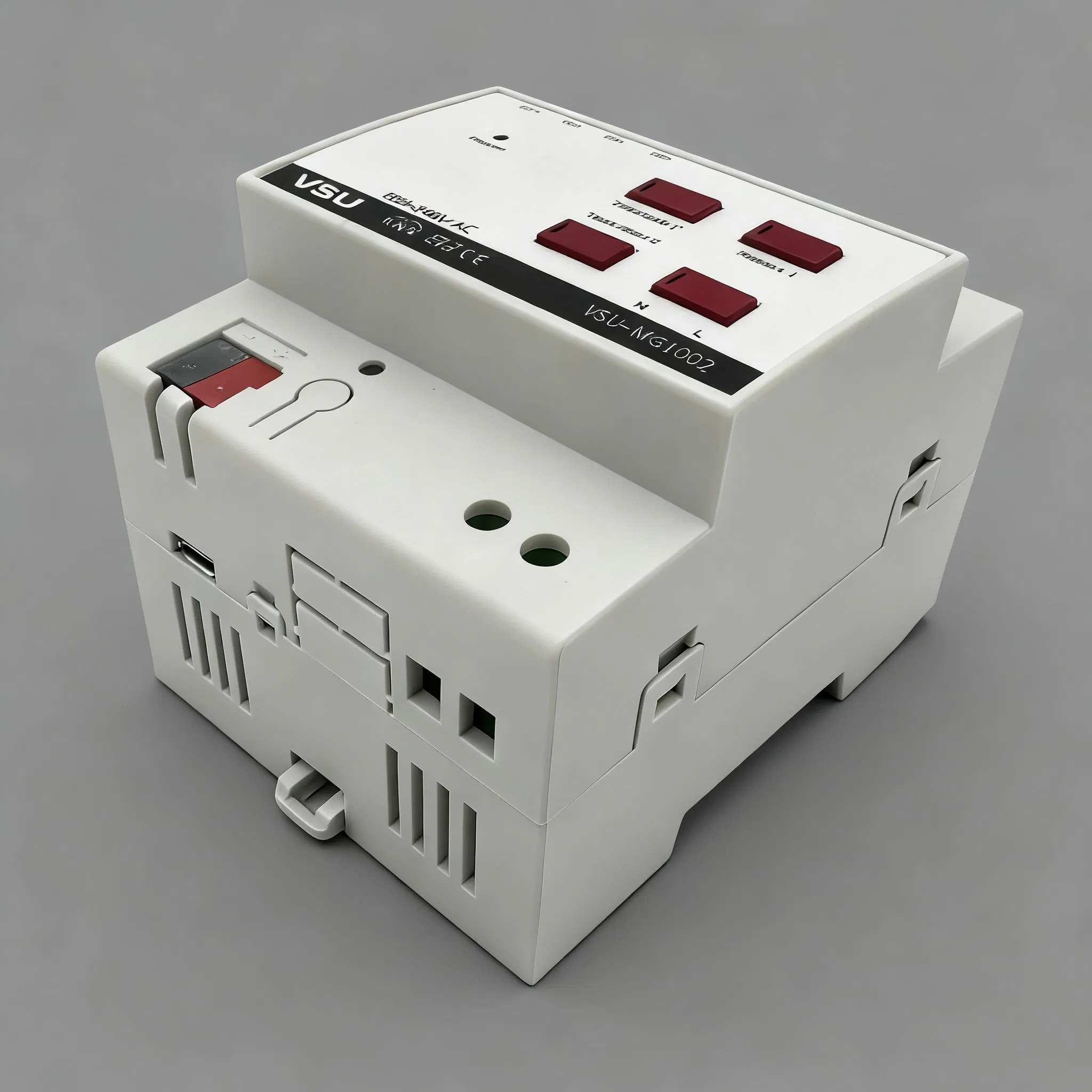

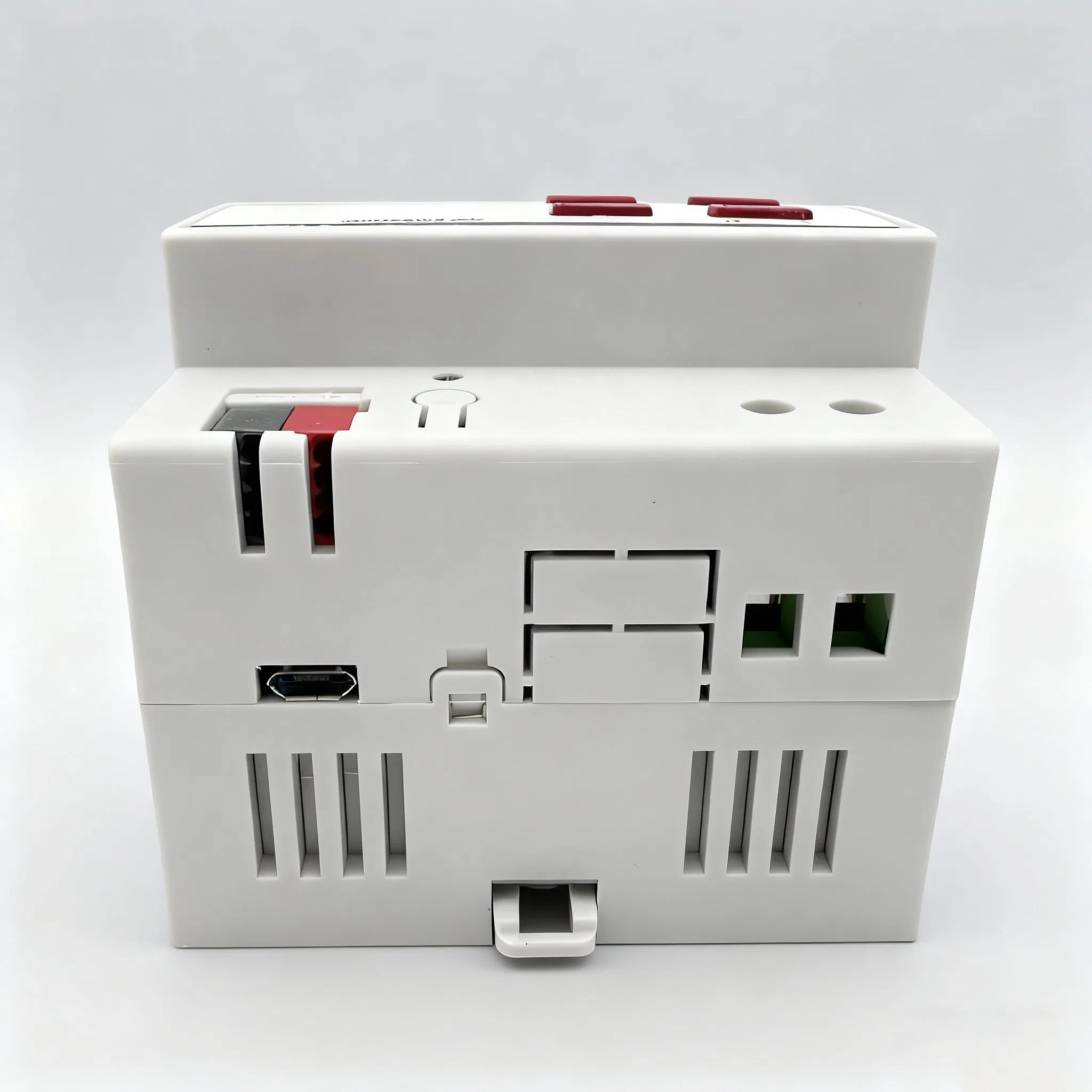

Knx Dali Gateway Smart Light Dimmer Switch Knx Home Domotics PRO

1 / 5

Knx Dali Gateway Smart Light Dimmer Switch Knx Home Domotics PRO

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:VSU-MG1002

Material:Plastic

Certification:CE

Bus Voltage:21-30V DC

Quiescent Current:≤12mA

Standby Power:< 360MW

Auxiliary Voltage:200~240VAC, 50/60Hz

Shell Material:PA66

Operating Temp:-5°C to 45°C

Relative Humidity:Max 90%

Size:W217mm x H90mm x D64mm

HS Code:8517699000

Product & Function Overview

✔Equipped with coupler function, coupling different KNX branches.

✔KNX lines with the same group ID can communicate with each other, while different group IDs remain isolated.

✔Communicates with upper computer intelligent lighting system integrated control software.

✔4-channel RS485 standard interface and 4-channel dry contact I/O contact signal input.

✔3-channel infrared IR emission and 2 LAN network interfaces (built-in 8 TCP/IP or UDP ports).

✔Clock timing management: specific occasion time control, schedule-based lighting, and calendar for up to 128 event times.

✔Scope of use: Projectors, air conditioning, background music, landscape lighting, fire emergency systems, security access, and more.

✔Open integration with third-party software platform systems.

Detailed Parameters

Bus Voltage	21-30V DC
Bus Current	≤12mA
Auxiliary Voltage	200~240VAC, 50/60Hz
Auxiliary Current	<128mA, 220VAC
Distance to DALI Devices	0.5mm²—100m / 1.5mm²—300m
Shell Material	PA66
Size (LxWxH)	72mm x 90mm x 64mm
Weight	Approx. 0.3KG
Installation	35mm DIN rail installation
Relative Humidity	Max 90%

Dimensional and Wiring Diagrams

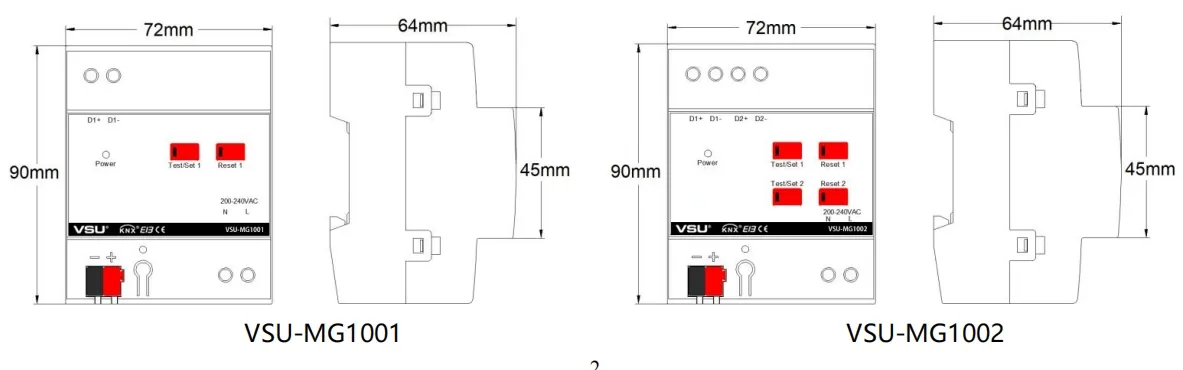

Dimension

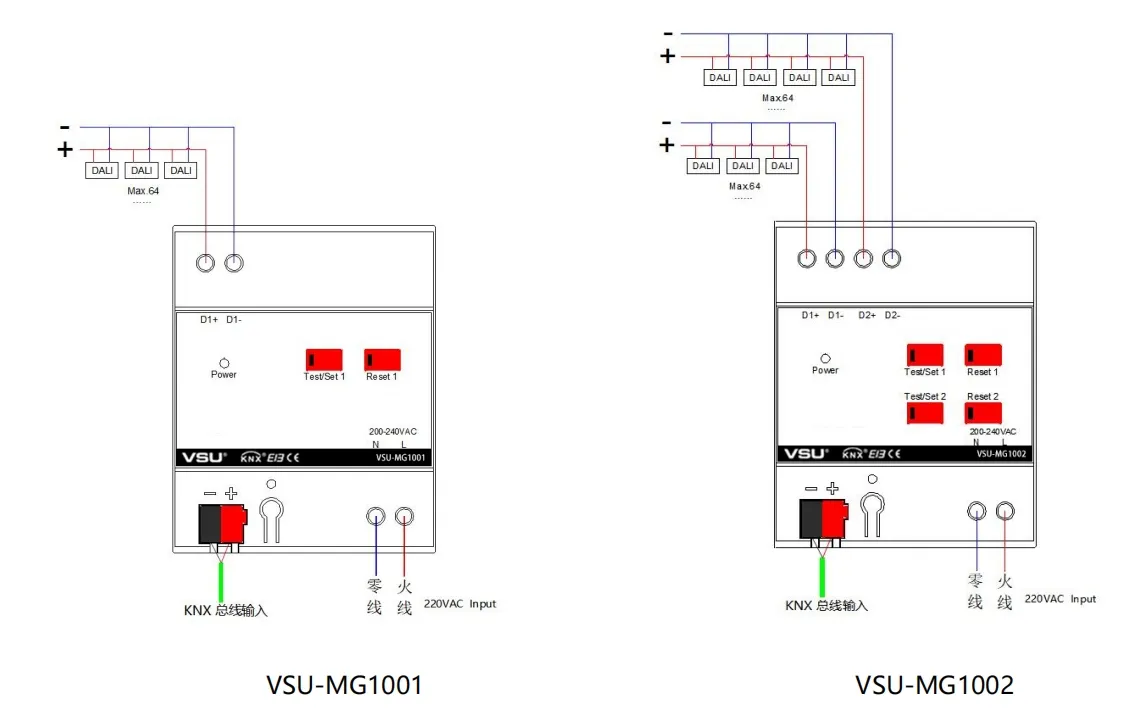

Wiring Diagram

Manufacturing & Innovation

The company is a high-tech enterprise focusing on innovation and upgrading of the electrical industry, specializing in smart electrical solutions. We are committed to enabling traditional power to achieve digital and intelligent management through R&D in high and low voltage electrical equipment and intelligent control systems.

With strong independent innovation capabilities, the enterprise possesses a number of core technologies including smart circuit breakers, IoT gateways, and smart city platforms. Our products have passed international certifications such as CE and ISO9001.

Frequently Asked Questions

Q1: What are your primary product categories?

We specialize in energy conservation, monitoring, and power quality solutions. Our main products include smart electrical systems, energy meters, smart circuit breakers, and smart lighting controllers.

Q2: Are the products original and certified?

Yes, all products are original and produced by original manufacturers. They have passed international CE and quality system certifications.

Q3: What is the typical lead time for orders?

For products in stock, there is no lead time. Most products can be shipped within 7 days after payment confirmation.

Q4: Do you support small orders or sample requests?

Yes, we accept small orders to accommodate customer needs. Sample requests for testing are also welcome, though sample fees may apply.

Q5: What is the warranty period for your equipment?

We offer a standard warranty period. For most parts, it is valid within 90 days after the package has been received.

Q6: Do you provide OEM/ODM services?

Yes, we provide professional OEM/ODM services. Your logo and specific designs can be implemented on the merchandise.
