📊 Basic Info.
| Model NO. | E12 |
| Product Name | Patient Monitor |
| MOQ | 1 |
| Color | White |
| Power Source | Electric |
| After-Sale Service | Online Technical Support |
| Application | Multi Parameter Monitor |

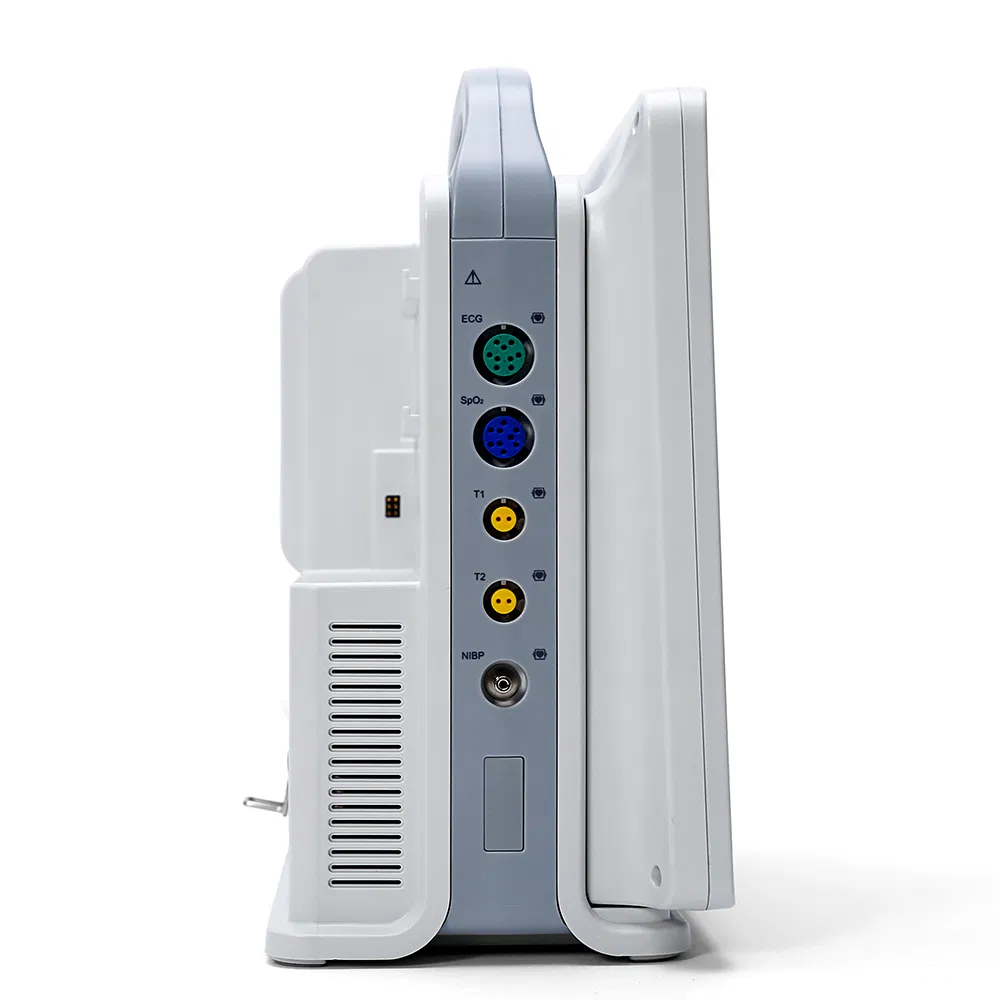

| Parameter | ECG, Comen SpO2, Pr, NIBP, Resp |
| ECG Lead Mode | 5 Lead Mode |
| Display | 12.1" LED Touch Screen |

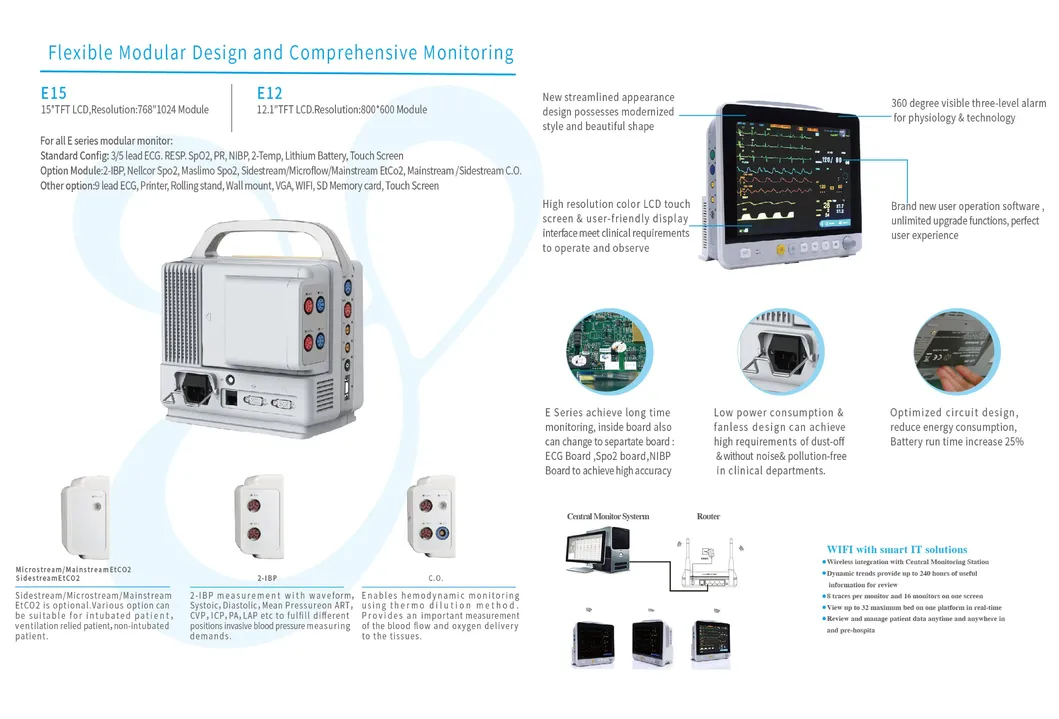

| Optional | Etco2 Moduel, SpO2, 2-IBP Moduel, Touch Sc |
| Language | English, Spanish, Portugal, Poland, Russ |
| Origin | China |
| Production Capacity | 2000 PCS/Month |
📝 Product Description

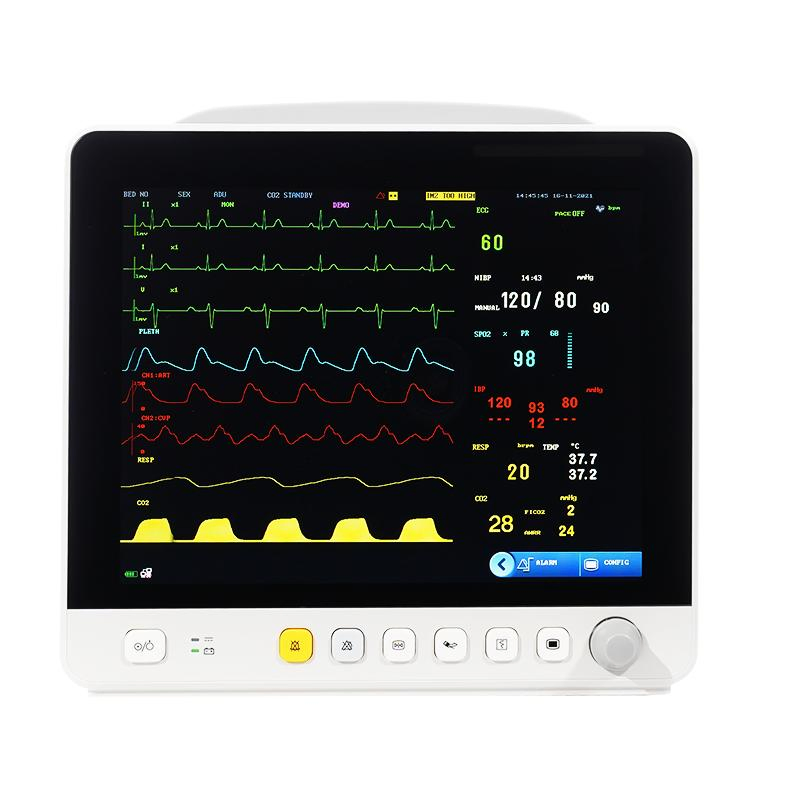

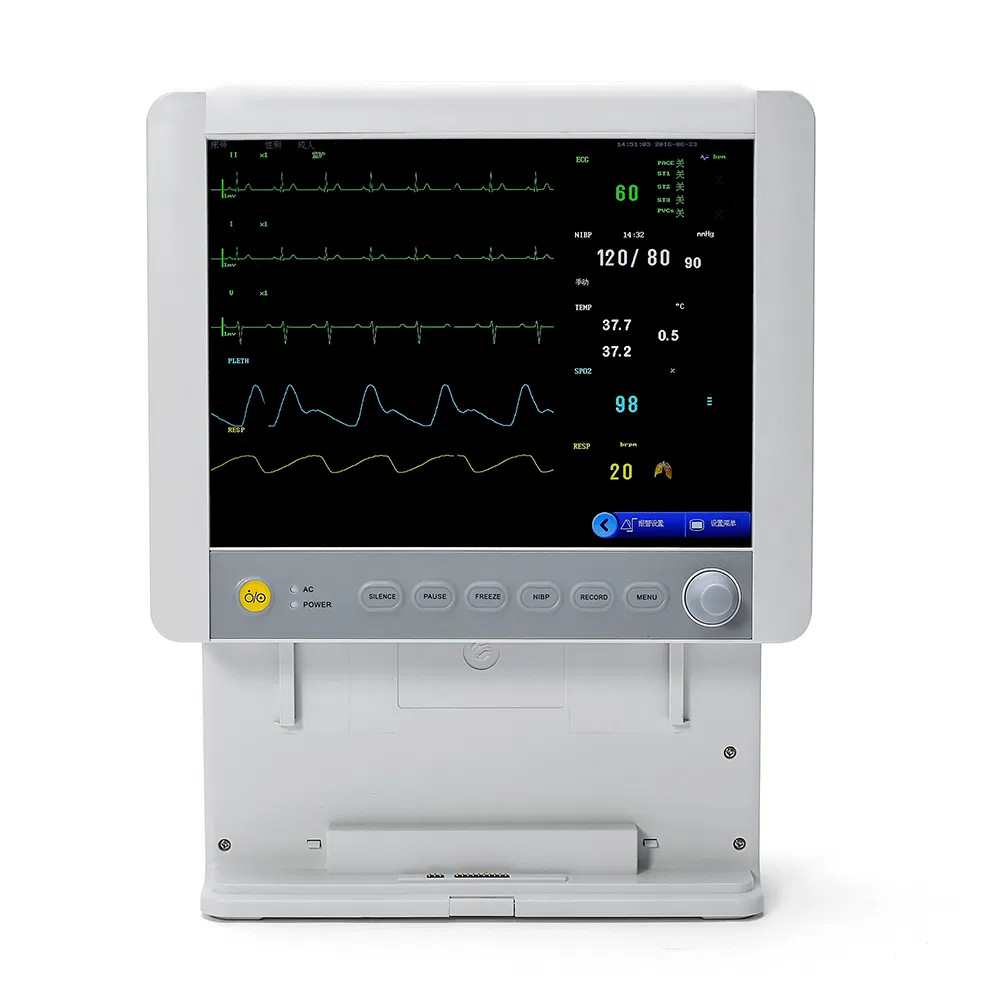

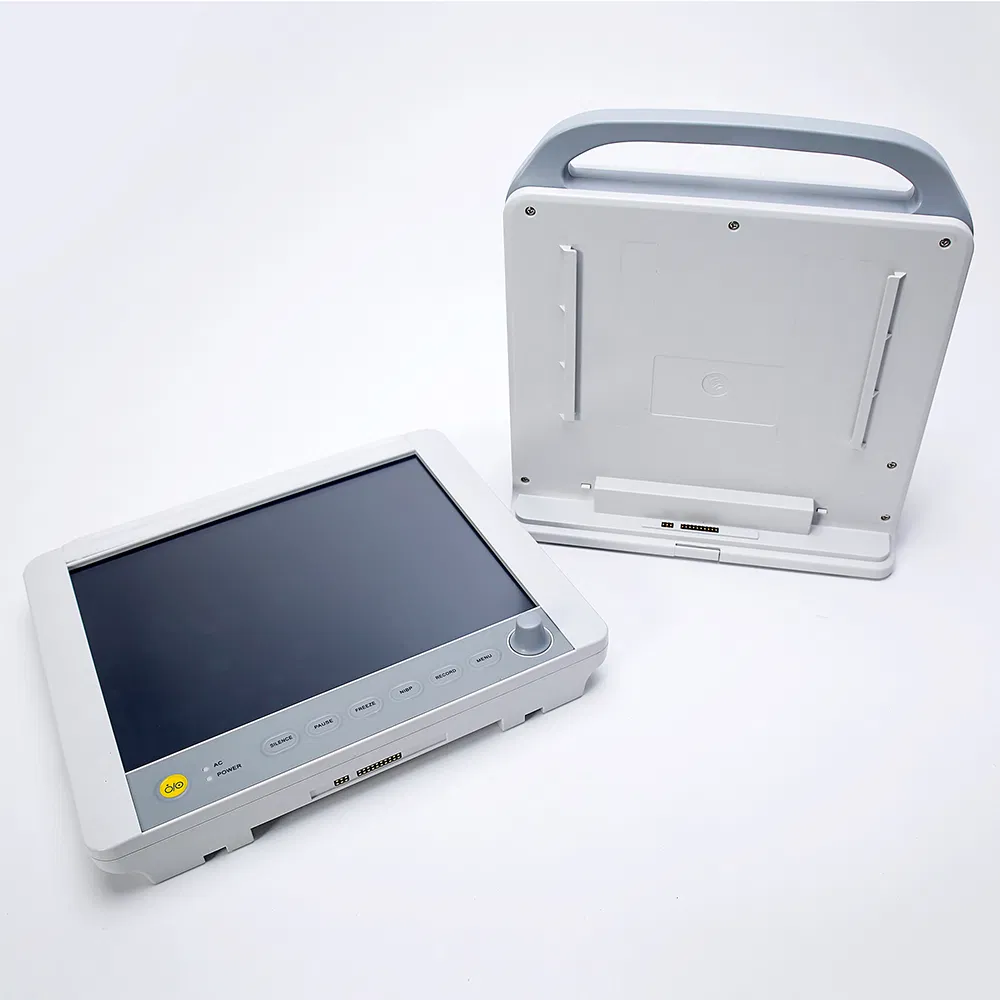

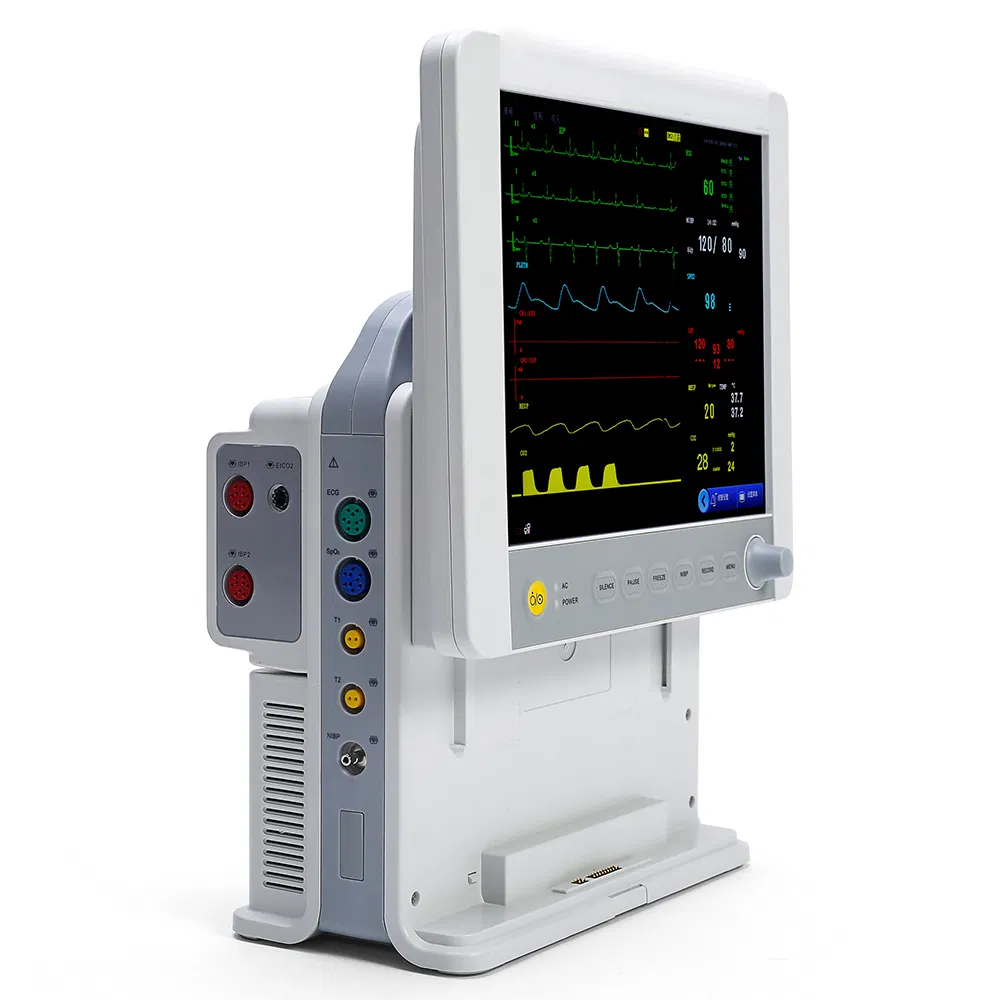

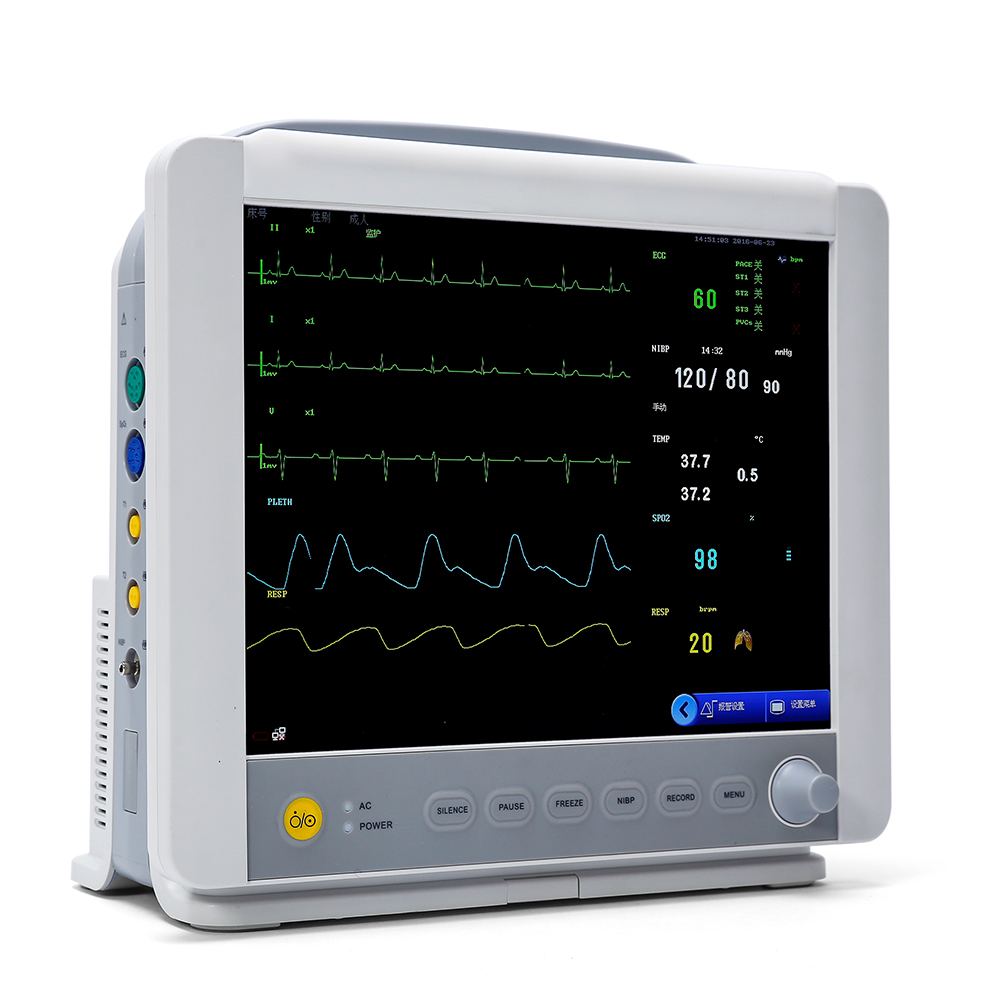

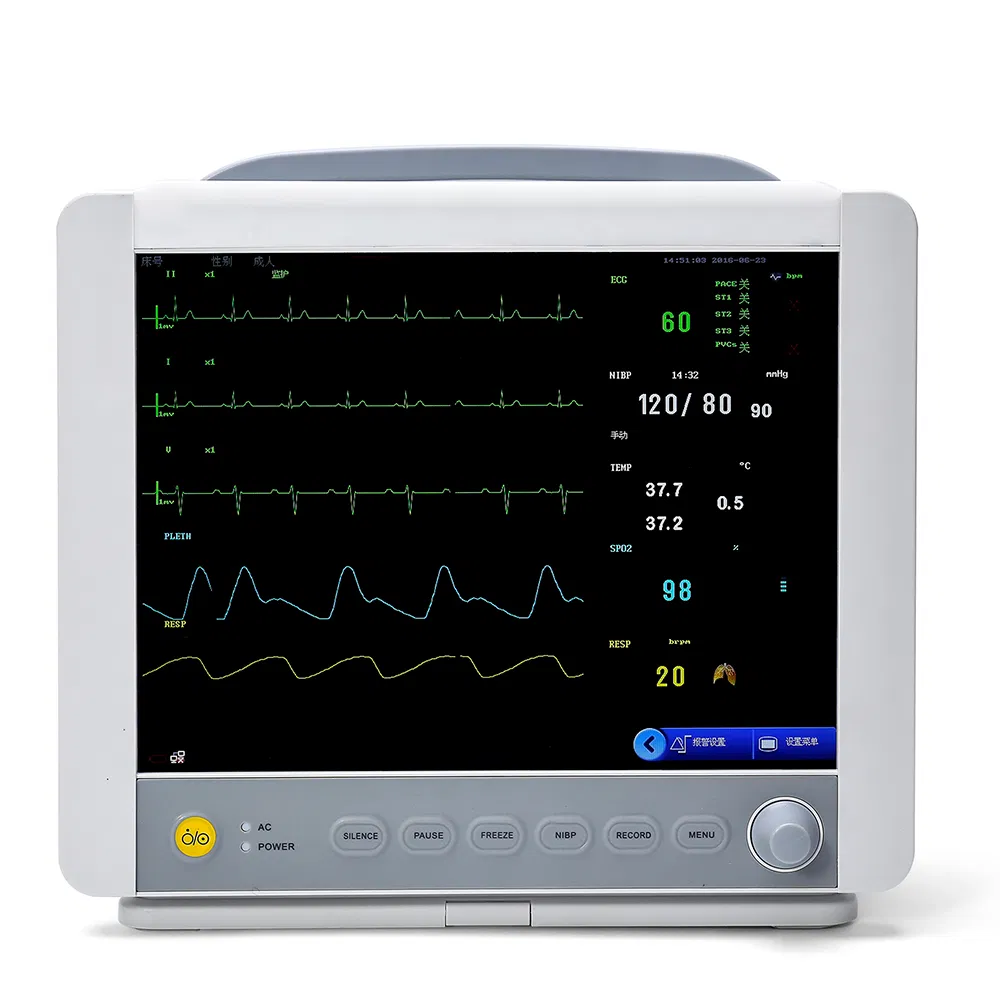

Touch Screen Patient Monitor

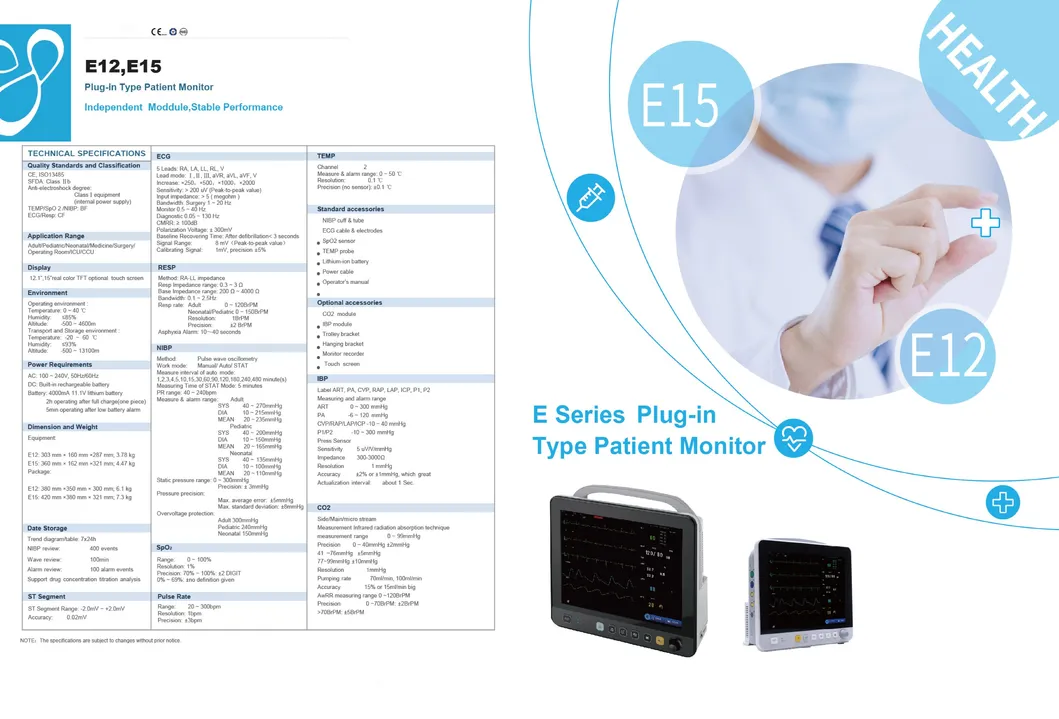

⚙️ TECHNICAL SPECIFICATIONS
Quality Standards and Classification: CE, ISO13485
SFDA: Class II b
Anti-electroshock degree: Class I equipment (internal power supply)
TEMP/Spo 2/NIBP: BF | ECG/Resp: CF
🏥 Application Range
Adult/Pediatric/Neonatal/Medicine/Surgery/Operating Room/ICU/CCU
🖥️ Display
10' 12.1' 15' real color TFT touch screen
🌡️ Environment
Operating: Temperature 0-40ºC, Humidity <=85%, Altitude -500~4600m
Storage: Temperature -20-60ºC, Humidity ≤93%, Altitude -500~13100m
⚡ Power Requirements
AC: 100~240V, 50Hz/60Hz
DC: Built-in rechargeable battery
Battery: 4000MA 11.1V lithium battery (2h operating after full charge, 5min operating after low battery alarm)
❓ Frequently Asked Questions
1. What patient groups is this monitor suitable for?
The E12 Patient Monitor is designed for a wide range of applications including Adult, Pediatric, and Neonatal patients in settings such as ICU, CCU, and Operating Rooms.
2. What are the standard monitoring parameters?
The standard parameters include ECG, Comen SpO2, Pulse Rate (PR), NIBP, and Respiration (Resp).
3. Does it have a touch screen interface?
Yes, it features a 12.1-inch LED touch screen for intuitive operation, with options for 10-inch or 15-inch displays.
4. How long does the battery last?
The built-in 4000mAh lithium battery provides approximately 2 hours of continuous operation after a full charge.
5. What international quality standards does it meet?
The device complies with CE and ISO13485 quality standards and is classified as SFDA Class II b equipment.
6. Can I upgrade the monitor with more modules?
Yes, optional modules are available, including EtCO2 modules and 2-IBP modules to meet specific clinical needs.
