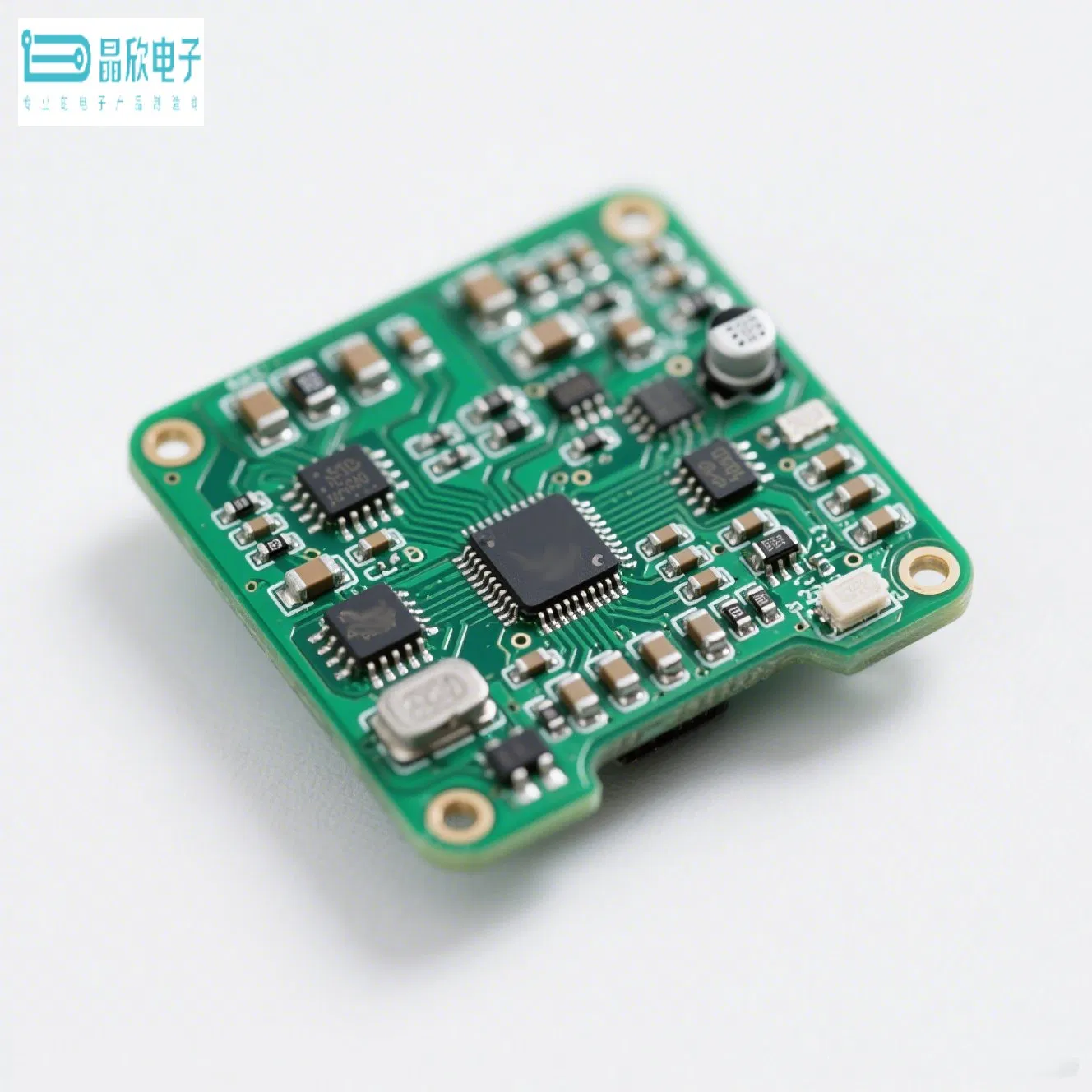

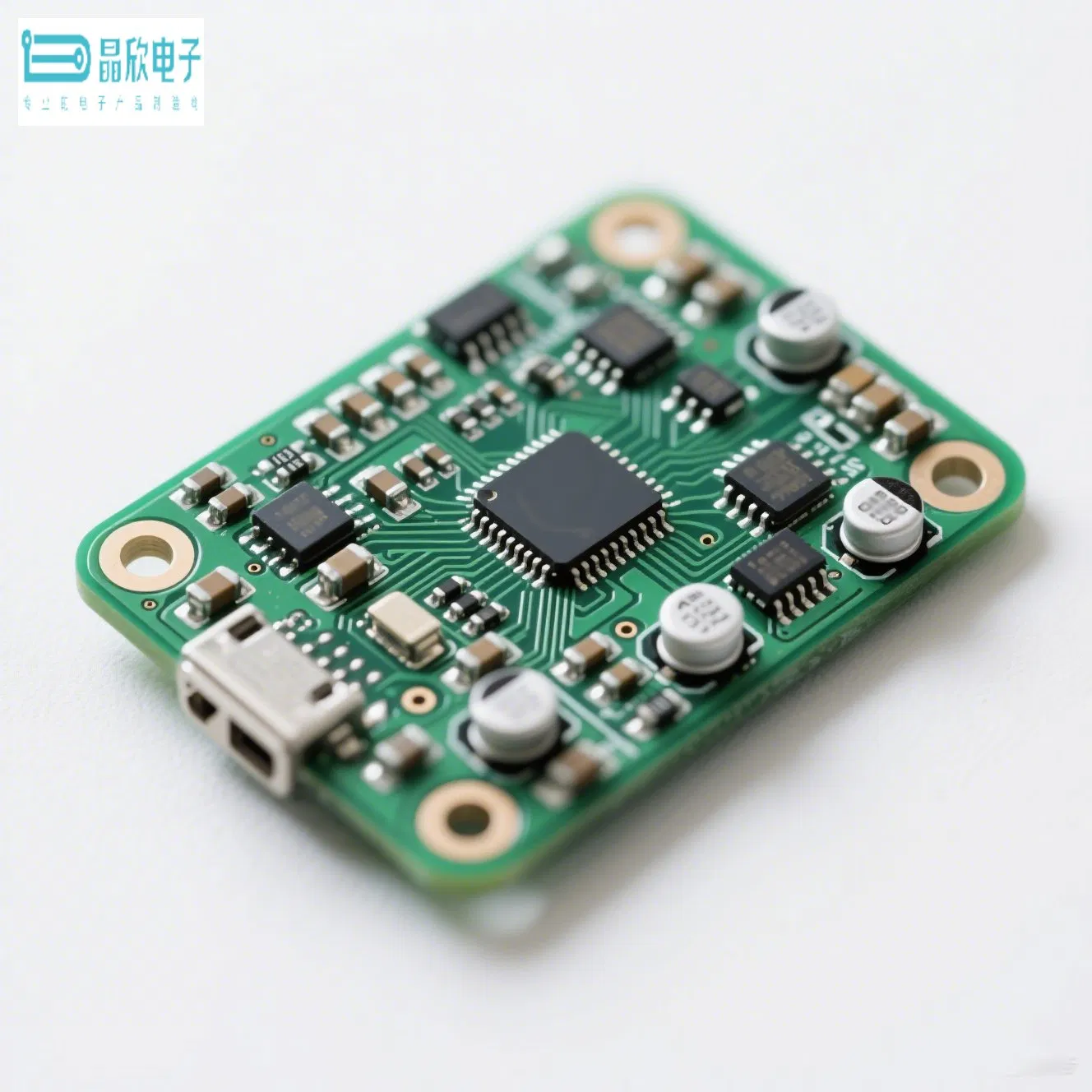

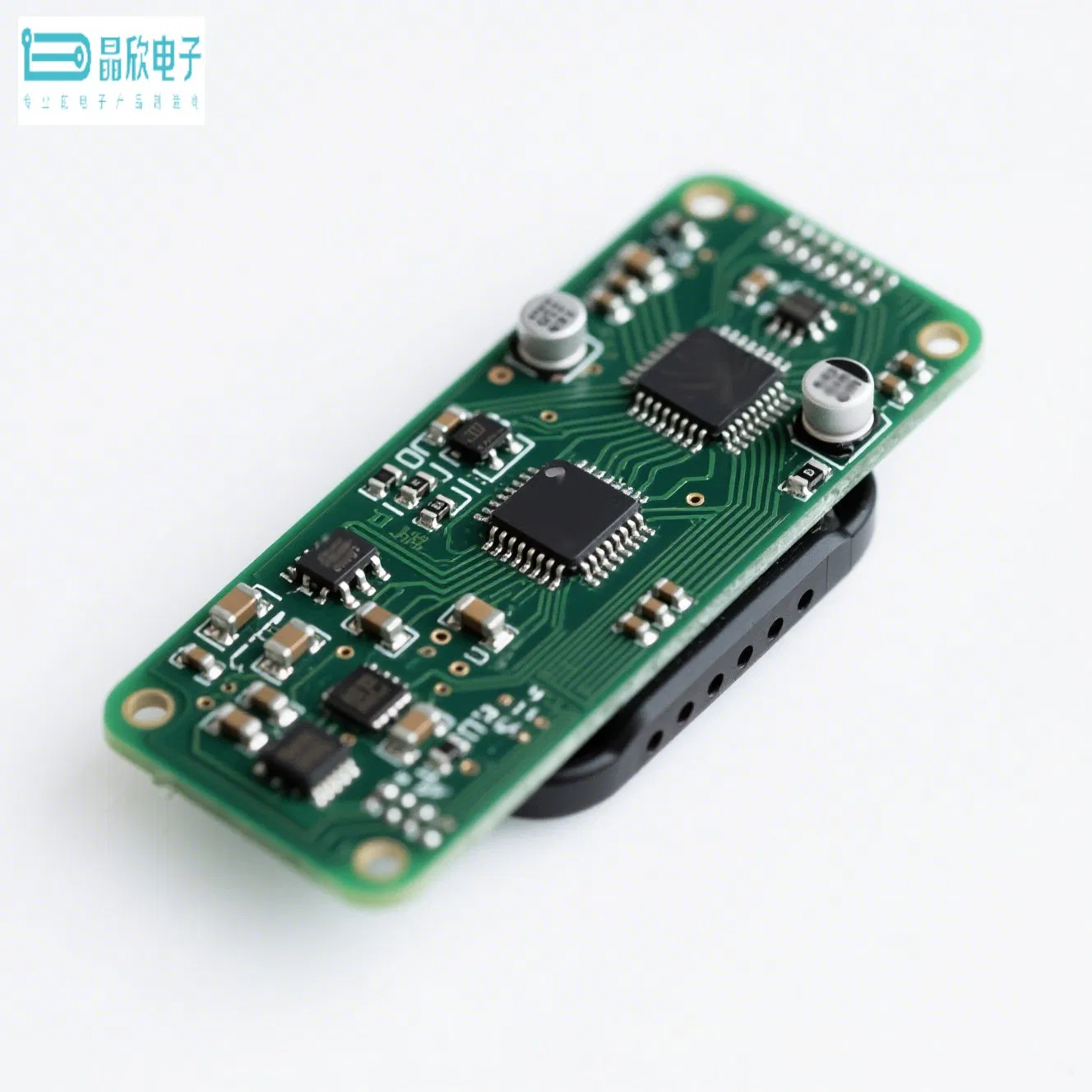

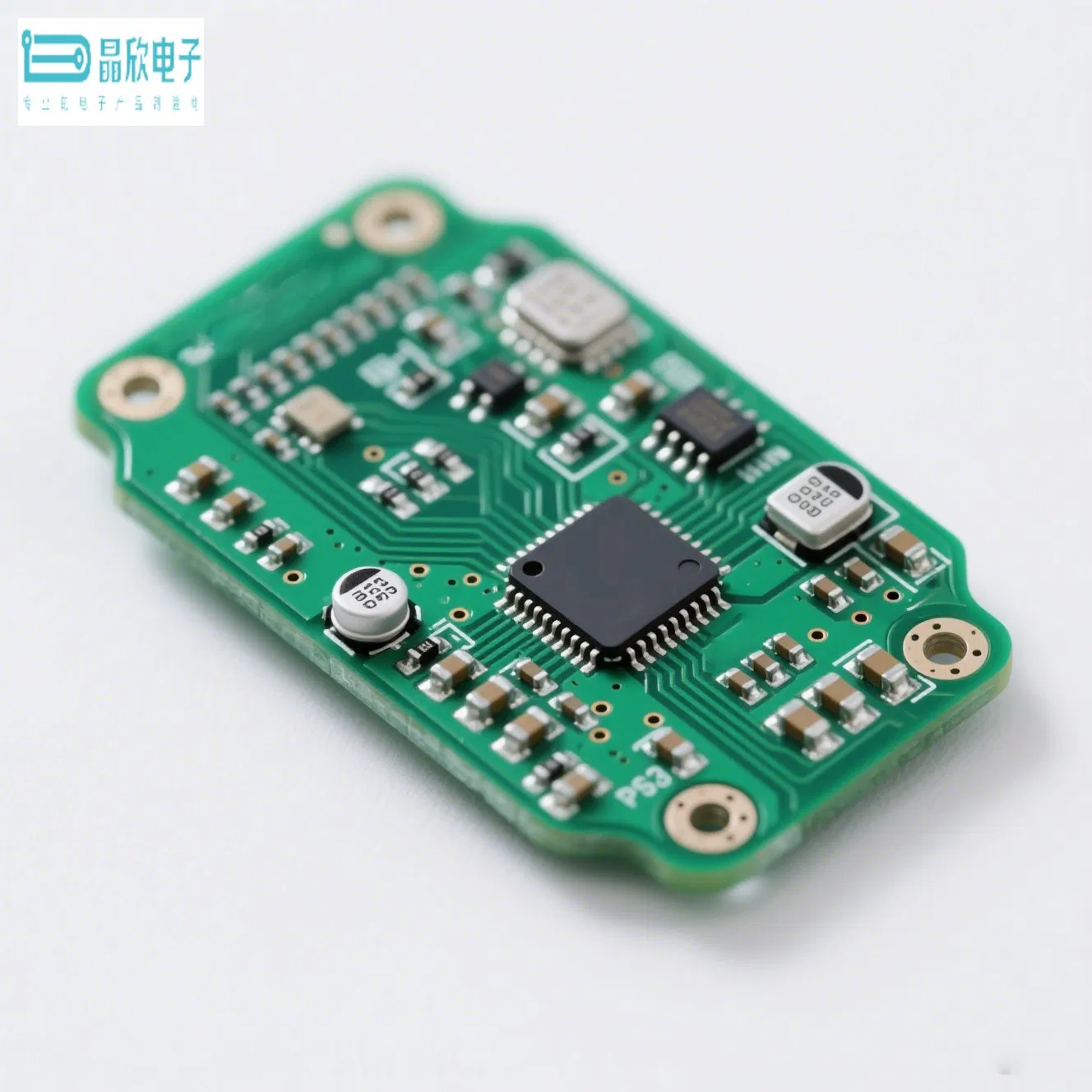

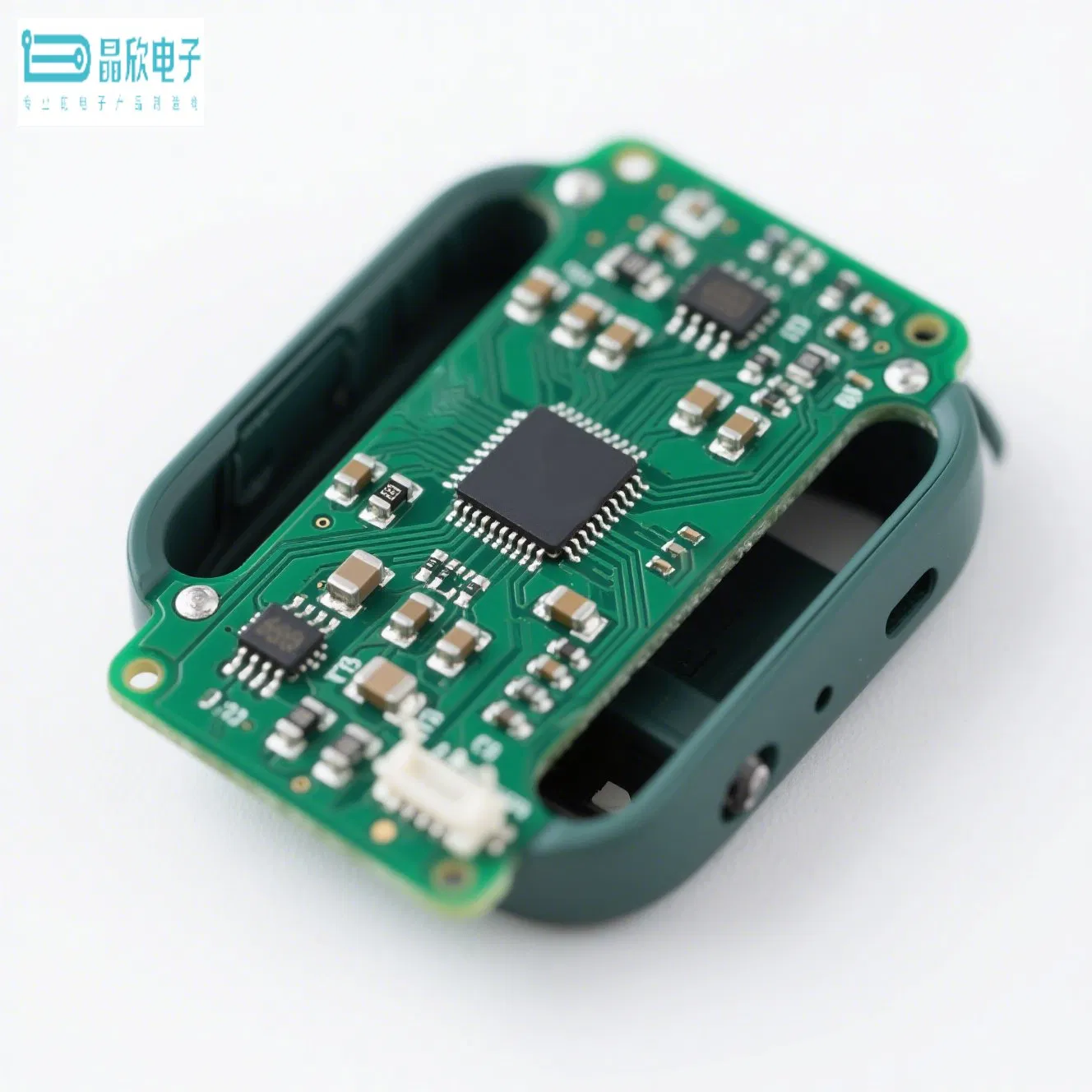

Compact PCB PCBA Solution for Health Monitoring Wearable Devices

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
PCB & PCBA Board
Material
Fiberglass Epoxy
Application
Communication
Flame Retardant
V0
Mechanical Rigid
Rigid
Base Material
Copper
PCB Type
Rigid, Flexible, Rigid-Flexible
Layer
1- 32 Layers
Board Thickness
0.3mm-4mm
Copper Thickness
18um-210um(6oz)
Surface Finish
HASL, Chemical Tin/Gold
Solder Mask
Green/Black/White/Red/Blue
Certificates
ISO9001, IATF 16949, ISO 13485
Production Capacity
10,000,000 PCS/Year
Our Capabilities
SMT & PCBA Manufacturing
  • No MOQ for Printed circuit board and SMT DIP assembly.
  • One-stop solution for various SMT DIP PCB assembly.
  • 100% PCBA AOI tested guarantee before shipping.
  • Turnkey EMS including components sourcing, conformal coating, and box build.
  • Rigid / flex / flex-rigid PCBs with professional engineering support.
  • Quick feedback: Inquiry offers within 1-4 hours.
PCB Solution
Quality & Testing Procedures
  • Visual Inspection & AOI (Automated Optical Inspection)
  • Flying probe and fixture tool testing
  • Impedance control & Solder-ability detection
  • Digital metallographic microscope analysis
  • ICT (In Circuit Test) & FCT (Functional Circuit Test)
Facility 1

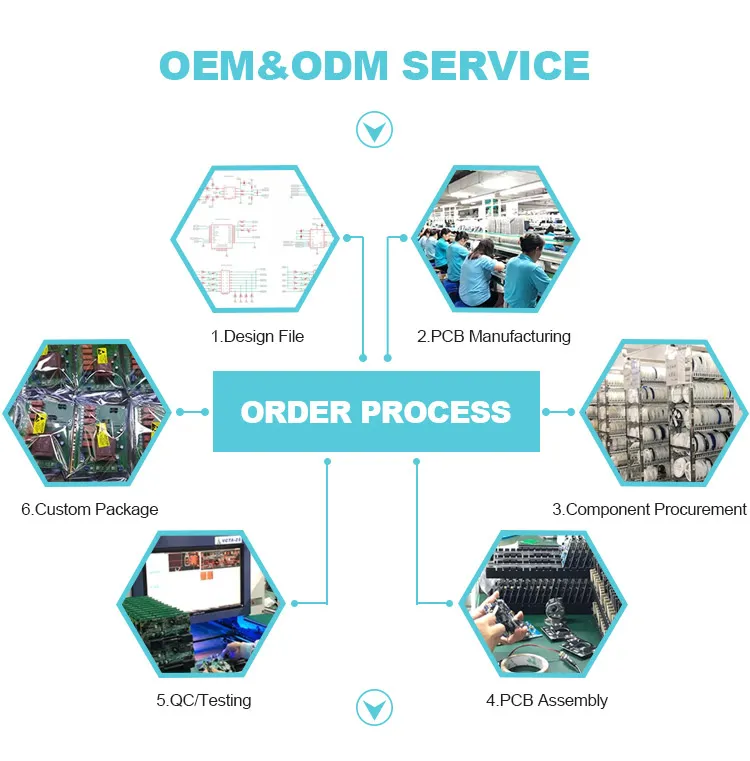

Facility 2
Technical Parameters
Items Capability Items Capability
Layers 1-32 layers Min Board Thickness 0.2mm
Max Board Size 635 × 1100mm Min Inner-layer Thickness 0.1mm
Min Trace/Space 0.075mm (3mil) Min Hole Size 0.1mm (Laser)
Surface Finish HASL, Immersion Gold/Silver, Plating Gold/Nickel, OSP
Board Material FR-4, High Tg, Halogen Free, Aluminium, Rogers, Isola
Industry Applications

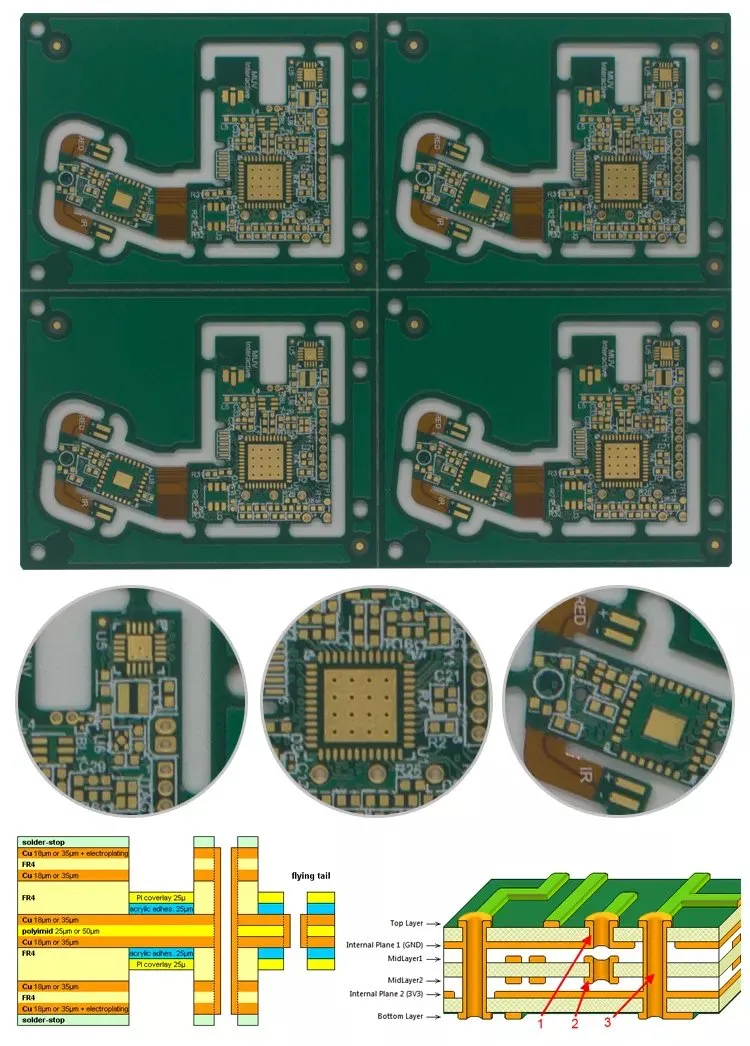

Application 1
Application 2
Application 3
  • Industrial Control
  • Medical Devices
  • Communication Devices
  • Automobile Electronics
  • Smart Home Systems
  • Food Equipment

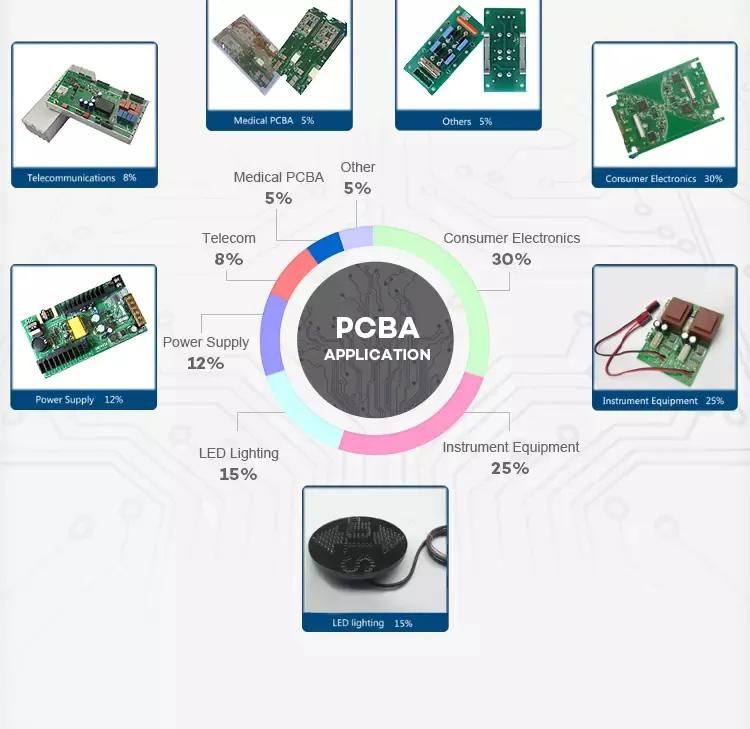

Application Grid
Packaging & Delivery
Packaging

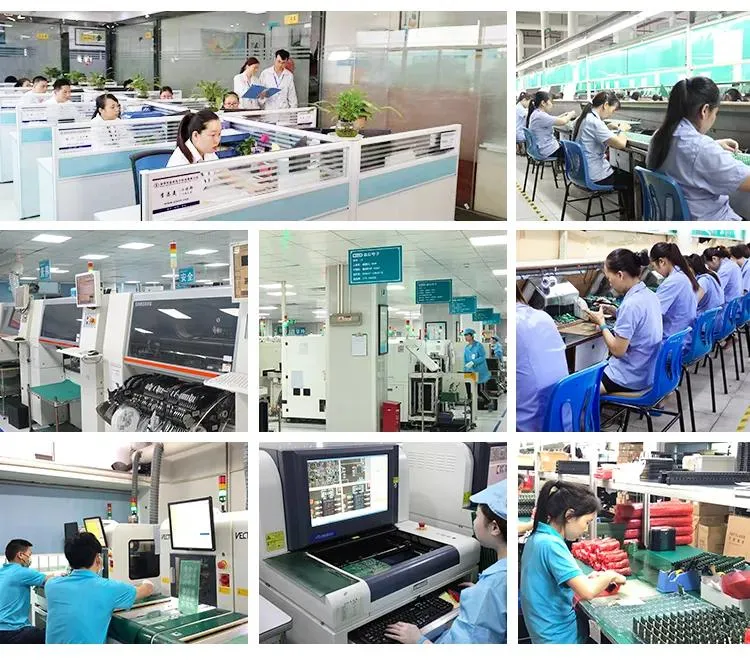

Logistics 1

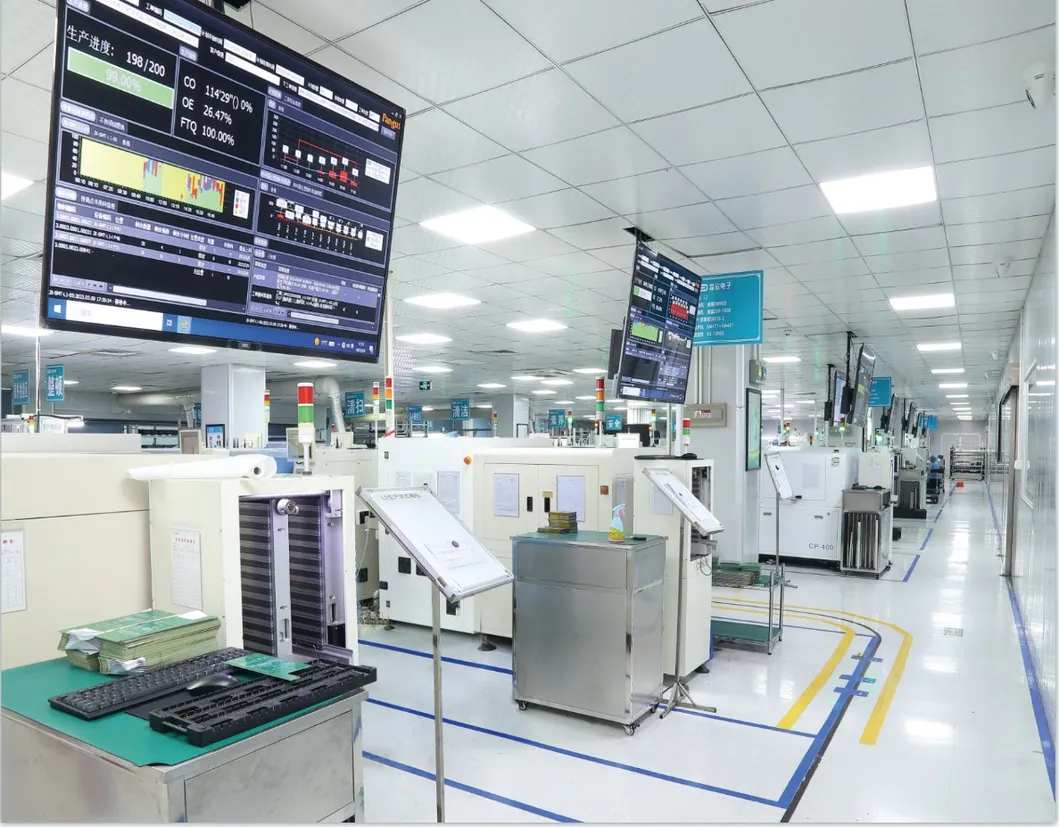

Logistics 2
Frequently Asked Questions
Q1: What files are required for a PCB and assembly quotation?
We require Gerber files, .pcb files, or Auto CAD drawings along with a detailed Bill of Materials (BOM).
Q2: How do you ensure the quality of the PCBA?
All products are 100% tested, including Flying Probe Tests for samples, E-test for mass production, and AOI (Automated Optical Inspection).
Q3: What is the typical lead time for production?
Samples usually take 3-5 working days. Batch production typically takes 7-10 working days depending on the files and quantity.
Q4: Will my design files be kept confidential?
Yes, keeping business secrets is our basic principle to protect our customers' rights and intellectual property.
Q5: What is the process to start an order with you?
Simply email us your layout files and BOM. We will confirm within 12 hours and provide an offer within 3-5 days. Once you confirm the price and payment, production begins.
Q6: What assembly technologies do you support?
We support SMT, THT, Reflow Soldering, Wave Soldering, Hand Soldering, and Mixed Assembly technologies.

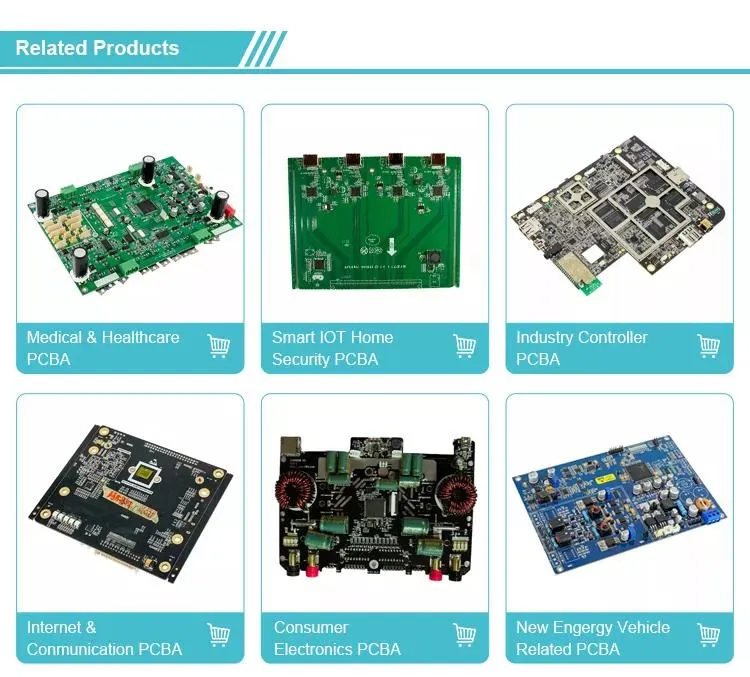

Related Products
