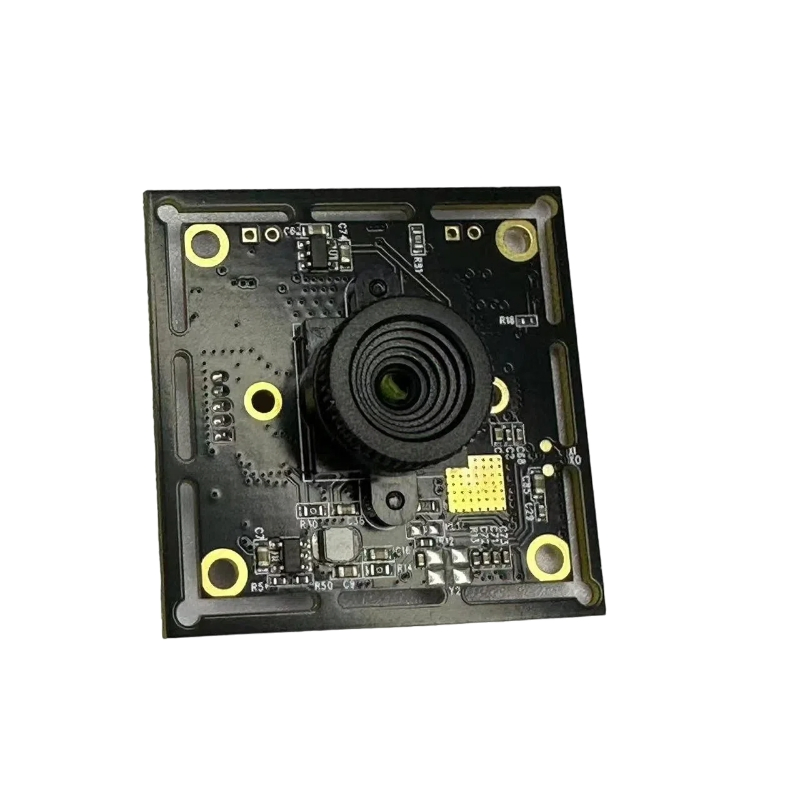

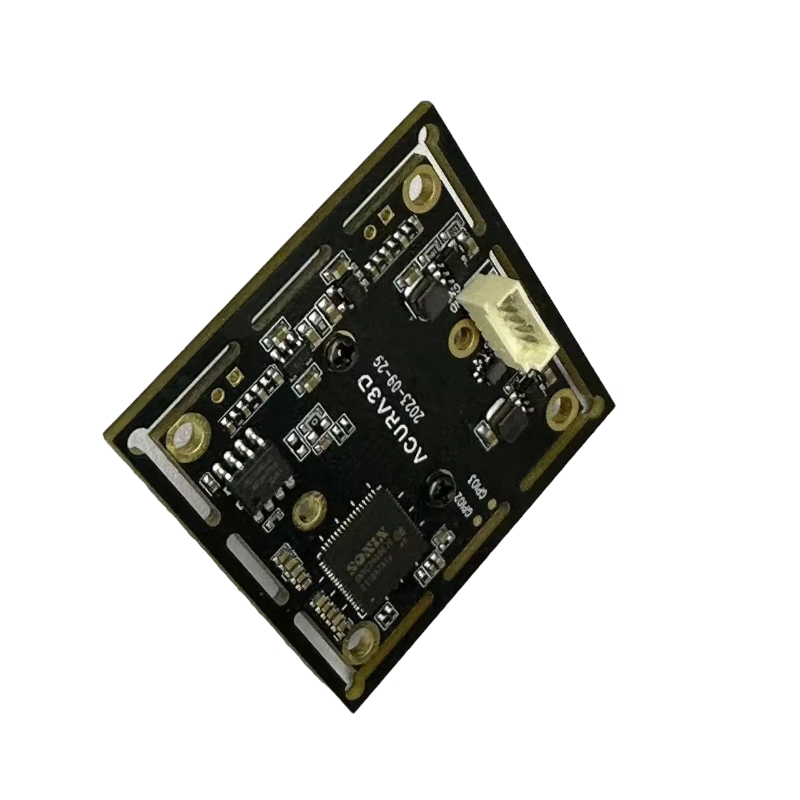

5MP High-Resolution USB3.0 Camera for Educational and ATM Use

1 / 5

5MP High-Resolution USB3.0 Camera for Educational and ATM Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

IMX568

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Resolution

520tvl

Focus

Manual Focus Lens

Certification

CE, FCC, CCC, RoHS, ISO9001

Feature

Waterproof, High Definition, Vandal-proof

Effective Distance

≧30m

Sensor Size

1/3 inch

Effective Pixels

H2448*V2048

Video Output

Mjpg/Yuy2

Frame Rates

2448*2048 @60fps

Interface

USB 3.0

Specification

38*38mm

Origin

China

Product Description

5MP USB3.0 Global Shutter Camera Module - High-Speed Imaging for Machine Vision

Unlock precision and performance with our 5MP USB3.0 Global Shutter Camera Module, engineered for demanding applications like industrial inspection, surveillance, video conferencing, and machine vision systems. Featuring a 1/1.8" CMOS image sensor and global shutter technology, this compact camera delivers distortion-free, high-resolution imaging even in fast-moving or low-light environments.

5MP Resolution Capture ultra-sharp details for accurate analysis in industrial automation and access control.

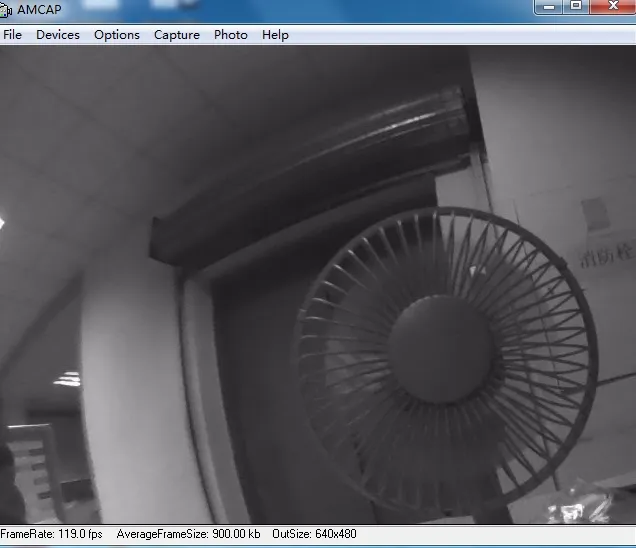

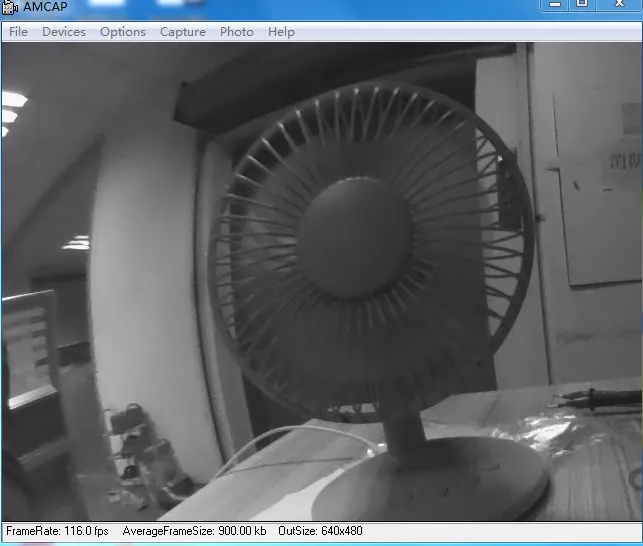

Global Shutter Eliminates motion blur for clear imaging of moving objects—ideal for robotics and logistics.

USB3.0 Interface High-speed data transfer up to 5 Gbps, enabling smooth 60FPS video at 1080p.

UVC/UAC Plug & Play Compatible with Windows, Linux, and macOS without additional drivers.

Technical Specifications

Parameter	Value
Image Sensor Size	1/1.8" inch
Effective Pixels	H2448 × V2048
Pixel Size	2.74 µm × 2.74 µm
Maximum Frame Rates	2448 × 2048 @ MJPG 60 FPS
Digital Interface	USB 3.0 (Type B)
Transfer Rate	3 Gbps
Operating Temperature	-30°C to +60°C
Field of View (FOV)	Diagonal: 94°, Horizontal: 78°, Vertical: 68°
Lens Mount	M12 × P0.5

Applications

Industrial Automation: PCB inspection, robotic guidance, quality control.
Security & Surveillance: ATM monitoring, facial recognition, license plate capture.
Video Collaboration: High-clarity webcams for conference rooms and remote education.
Healthcare & Retail: Document scanning, biometric verification, and interactive kiosks.

Product Visuals

#RaspberryPi #telecommunications #iot #robotics #ai #embedded #hardware #medical #drone #artificialintelligence #security #surveillance #video #imaging #3d #facialrecognition #camera #electronics #robot #consumerElectronics #machinevision #deeplearning #vr #ar #virtualreality #accesscontrol #computervision #vision

Frequently Asked Questions

1. What are the benefits of Global Shutter technology? Global shutter captures the entire frame at once, eliminating the rolling shutter distortion (jello effect). This is critical for capturing fast-moving objects in industrial and robotic applications.

2. Is this camera module compatible with Linux? Yes, the module is UVC (USB Video Class) compliant, meaning it is plug-and-play on Linux 2.6.2 and above, as well as Windows and macOS.

3. What is the maximum frame rate for 1080p video? The module supports up to 60FPS at 1080p resolution using MJPG encoding, ensuring smooth real-time video processing.

4. Does the camera require an external power supply? No, the camera is powered directly via the USB bus (5V), making it convenient for embedded systems and portable devices.

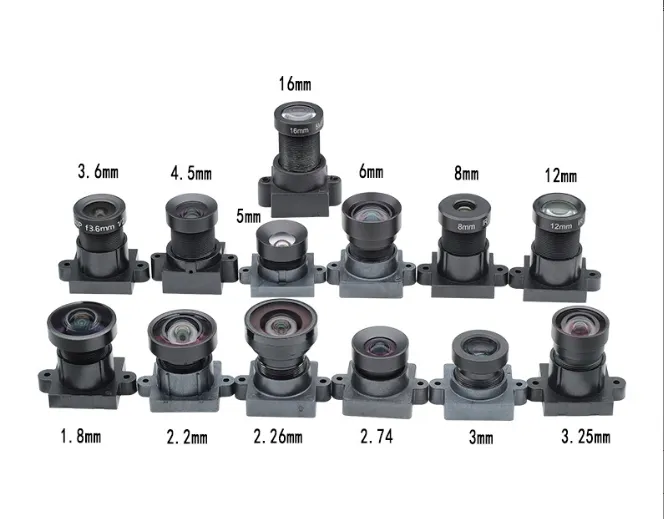

5. Can I swap the lens on this module? Yes, the module features an M12 lens mount and is also compatible with C/CS-mount lenses via an optional adapter, providing flexibility for different field-of-view needs.

6. Does it come with an SDK for development? Yes, an SDK is included for Windows and Linux, supporting popular platforms like OpenCV, Python, and C++.
