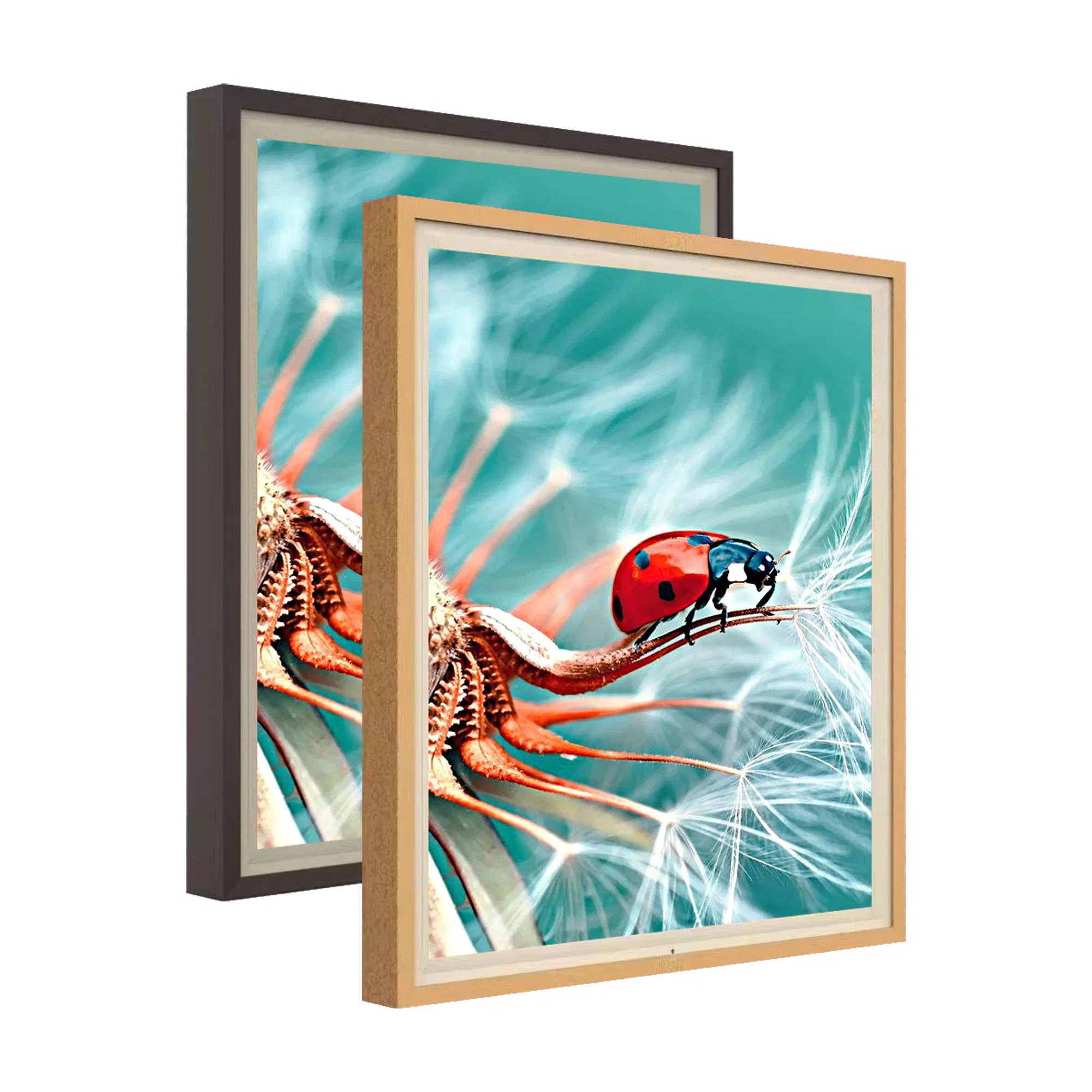

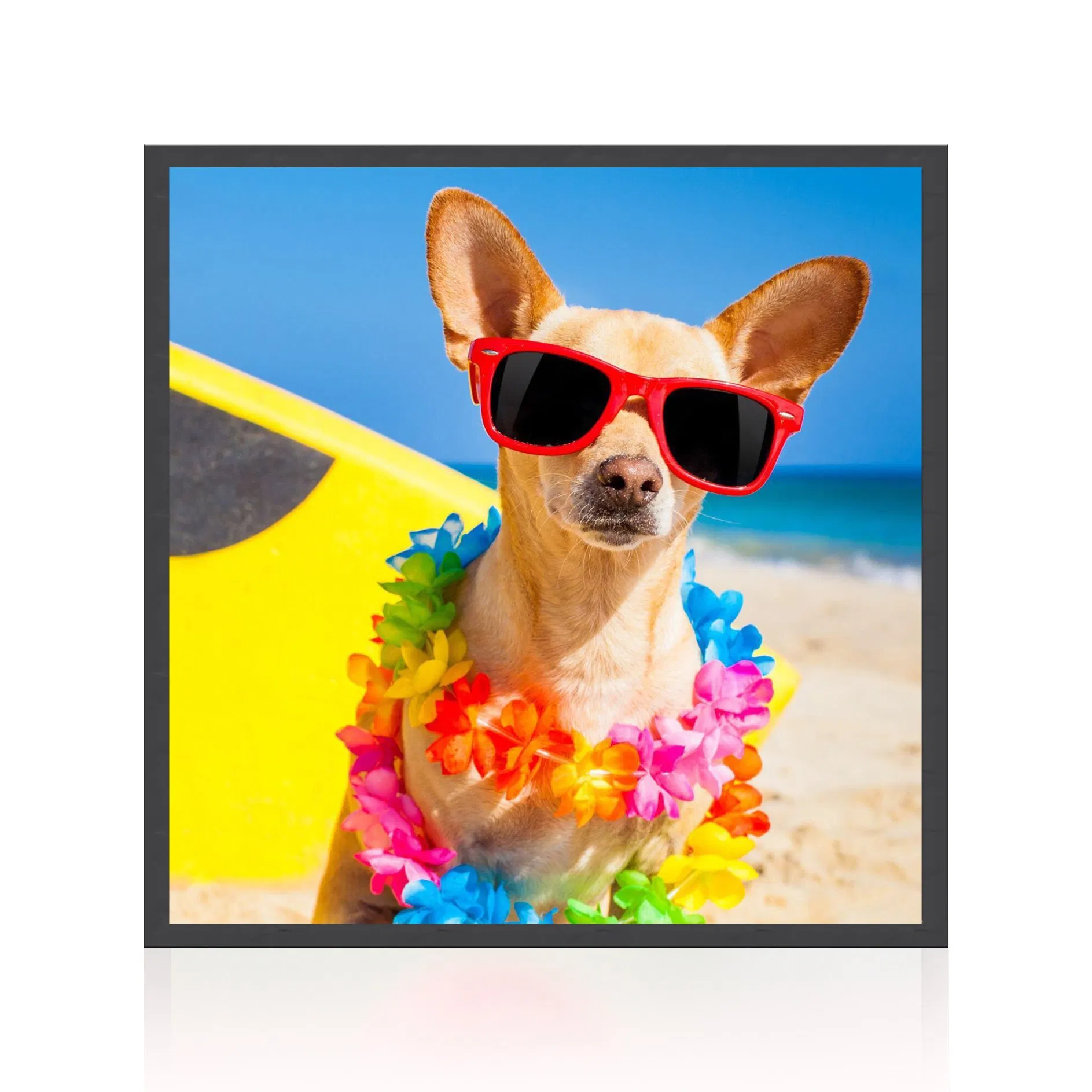

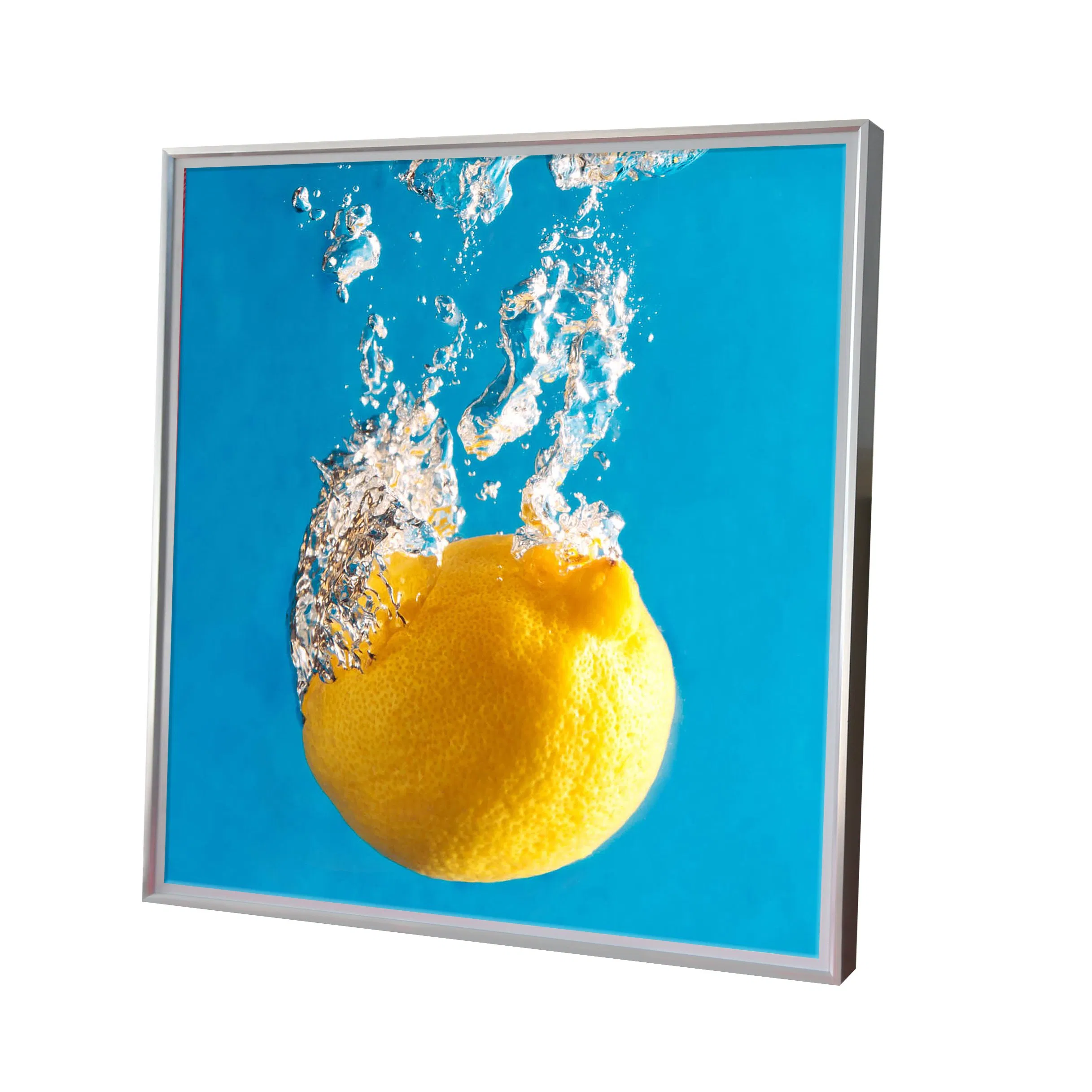

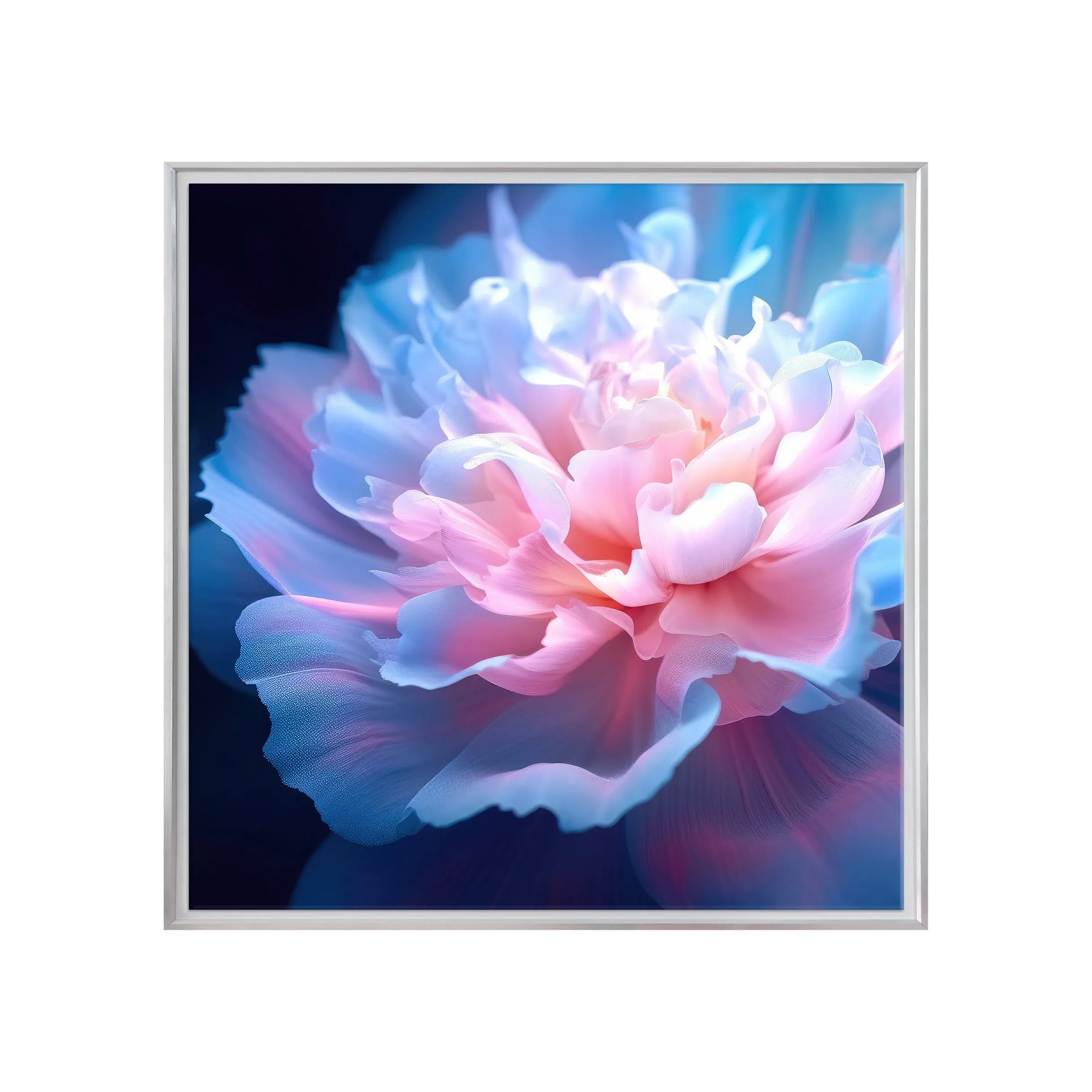

29.5 Inch QLED Backlight Square Display LCD Monitor for Museum, Art Exhibition, Amusement and Gaming Design
🚀 Key Features
- Resolution: High-definition 2k/4k output.
- Reflectivity: Within 1% using specialized AG glass for anti-glare performance.
- PCB Configuration: Supports high-speed IC, Android 13 logic, or standard HDMI/DP input.
- Backlight Technology: High-contrast QLED (1,000,000:1) and ordinary LED (3,000:1) options.
- Touch Functionality: Optional support for manual touch and stylus input.
- Smart Sensing: Optional human body sensing adjusts brightness automatically within 6 meters.
- Noise Reduction: Optional voice recognition and undistorted recording within a 6m range.
📋 Technical Parameters
| Display Specifications |
| Panel Type |
a-Si TFT-LCD |
| View Area |
529.42mm(H) x 529.42mm(V) |
| Display Ratio |
1 : 1 |
| Resolution |
2160 x 2160 |
| Brightness |
800 CD |
| Contrast Ratio |
1,000,000 : 1 |
| Backlight |
QLED |
| Viewing Angle |
178° (Full Viewing Angle) |
| Response Time |
8ms |
| System Configuration |
| CPU |
ARM Cortex-A55 |
| Memory / Storage |
2G DDR3 / 16G EMMC |
| Operating System |
Android 13.0 |
| Connectivity |
2.4G WIFI, Mini HDMI in* 1, USB2.0* 1, OTG* 1 |
| Dimensions |
553 × 553 × 22mm |
| Weight |
6.4 KG |

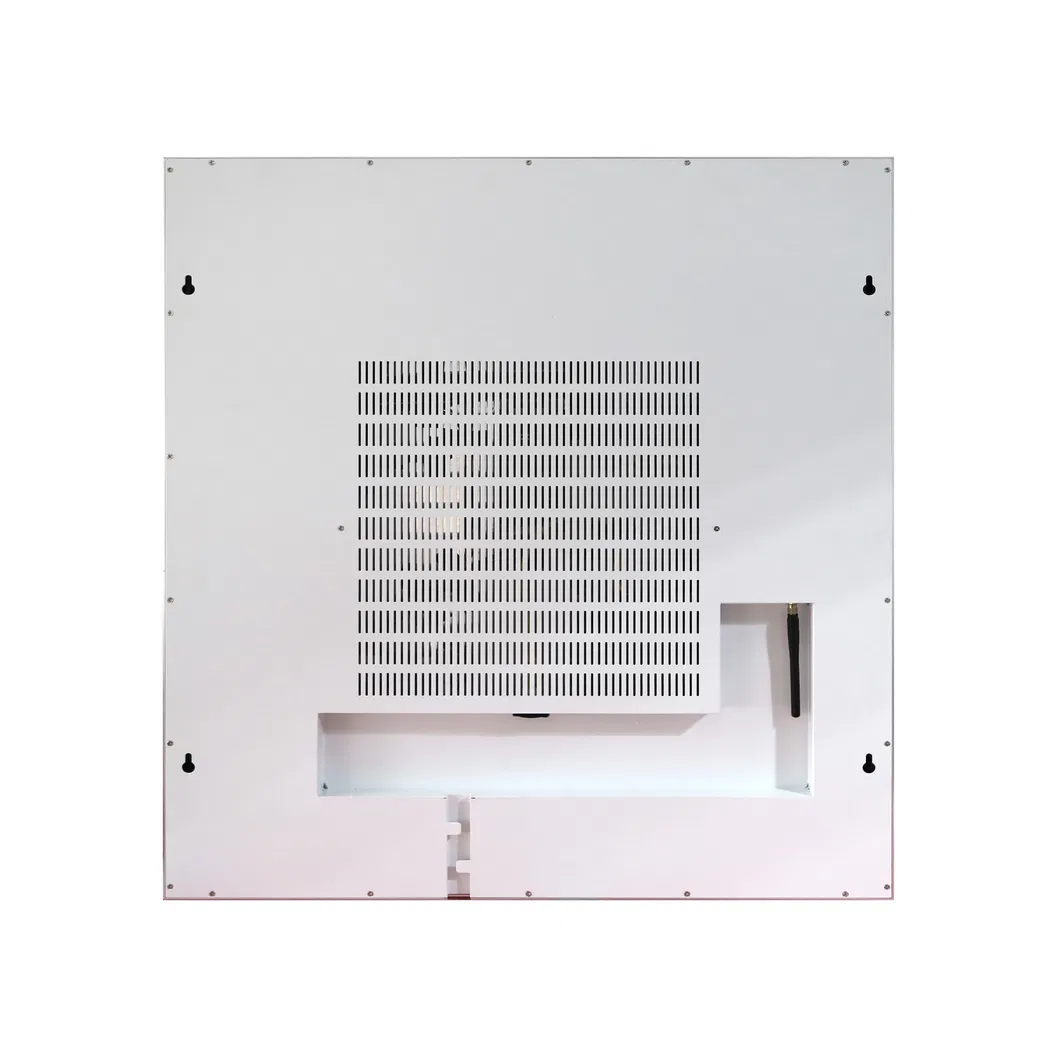

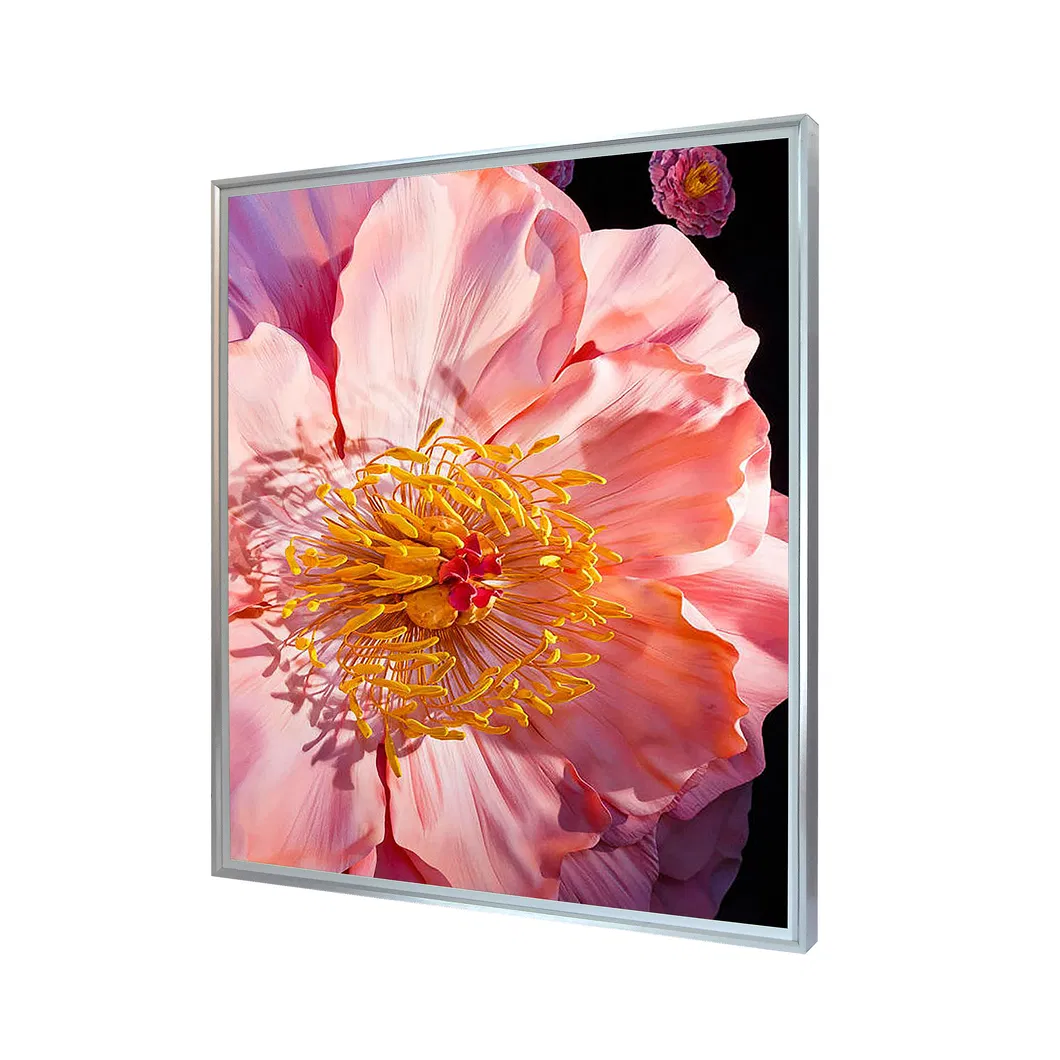

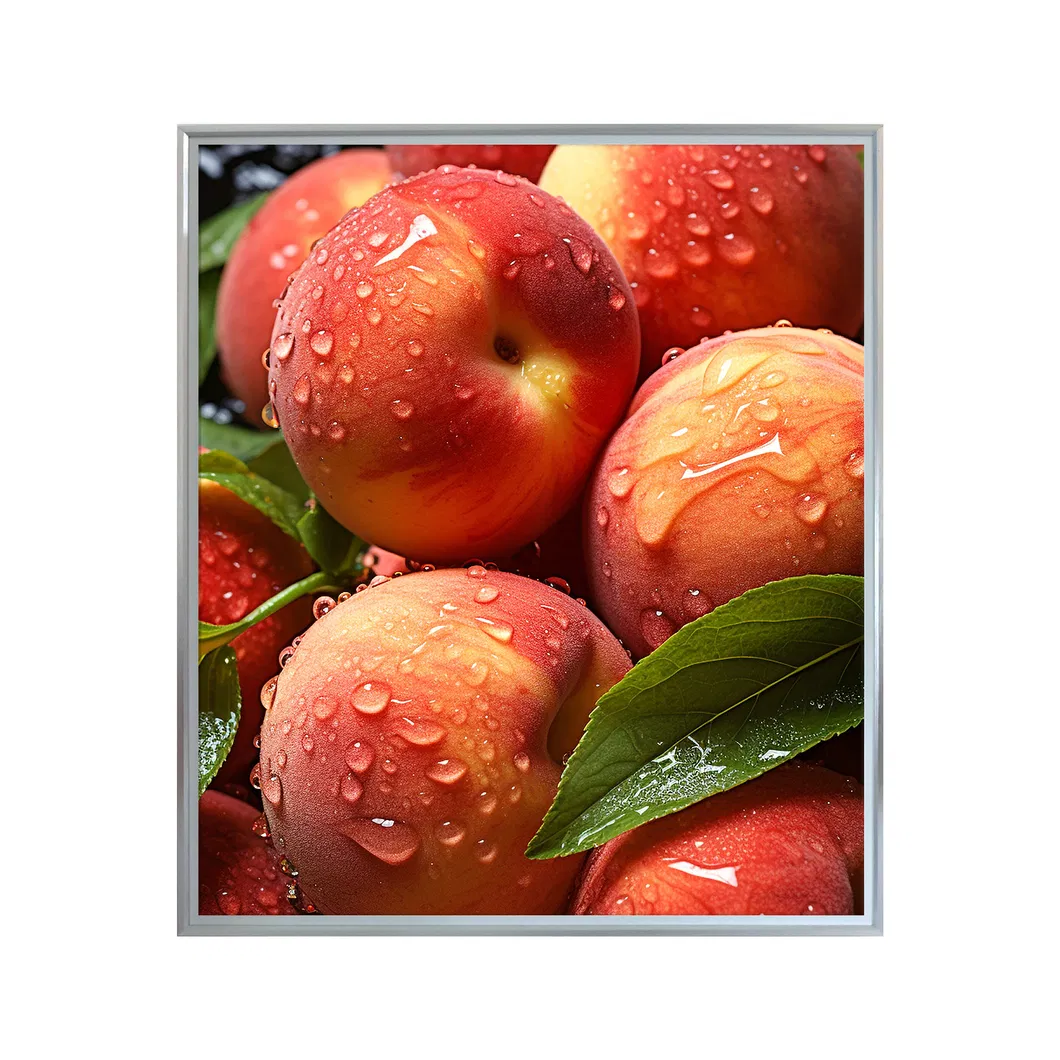

🖼️ Product Gallery
⚙️ Advanced Management Functions
- Real-time management and release via mobile phones, iPads, and PCs.
- Remote software and OTA (Over-the-Air) firmware upgrades.
- Synchronous playback across groups with intervals less than 500ms.
- Remote control of volume, rotation, power, and time zone settings.
- Full hardware and network status monitoring with real-time content feedback.
- Customizable scrolling subtitles and bullet comments (editable font/size).
- Multi-priority scheduling (Emergency / Insert / Normal).
- Supports Video, Images, RSS, PPT, PDF, and interactive components.

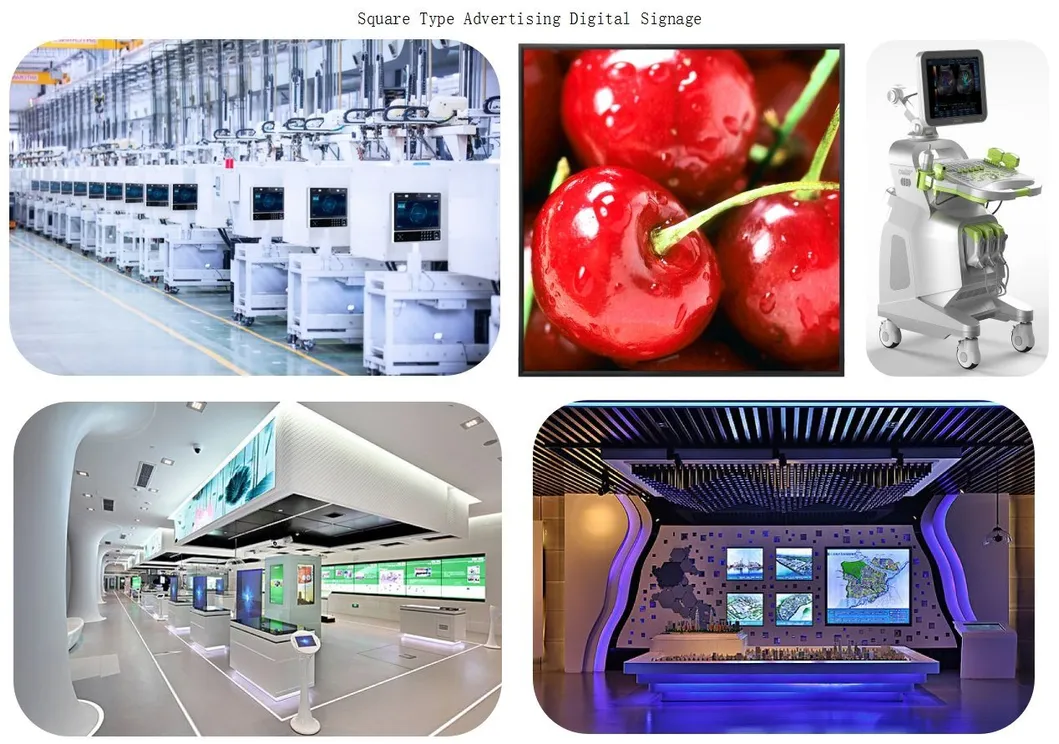

🌐 Versatile Applications
1. Retail & Showrooms: Digital shelf displays for advertising and branding.
2. Art & Museums: Digital gallery displays for high-fidelity art reproduction.
3. Gaming: Arcade machines, slot gaming, and digital scoreboards.
4. Transportation: Digital signage for buses, trains, and flight info.
5. Healthcare: Medical imaging and patient monitoring interfaces.
6. Corporate: Conference room displays and digital office directory boards.
📦 Logistics & Quality

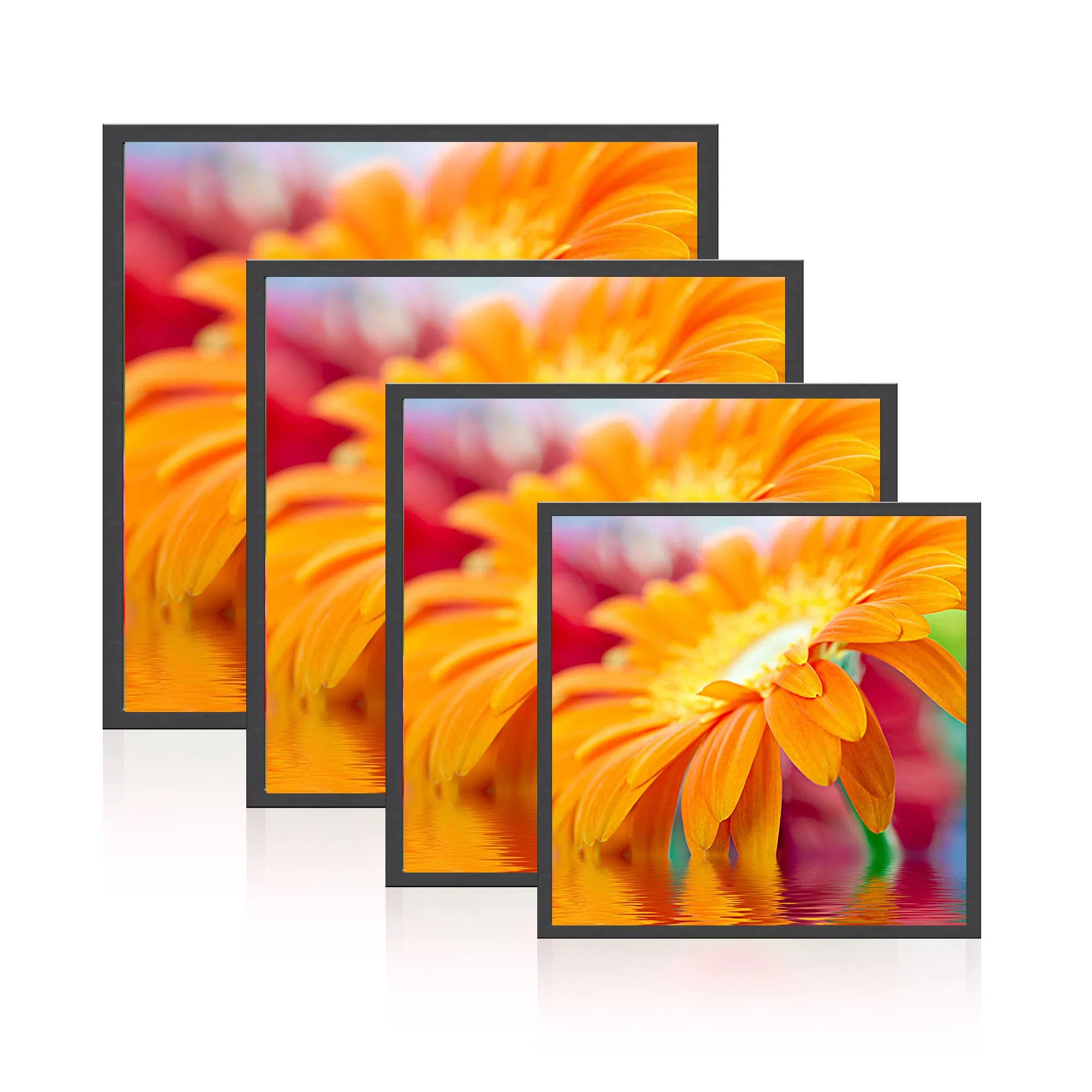

🔗 Related Square LCD Solutions

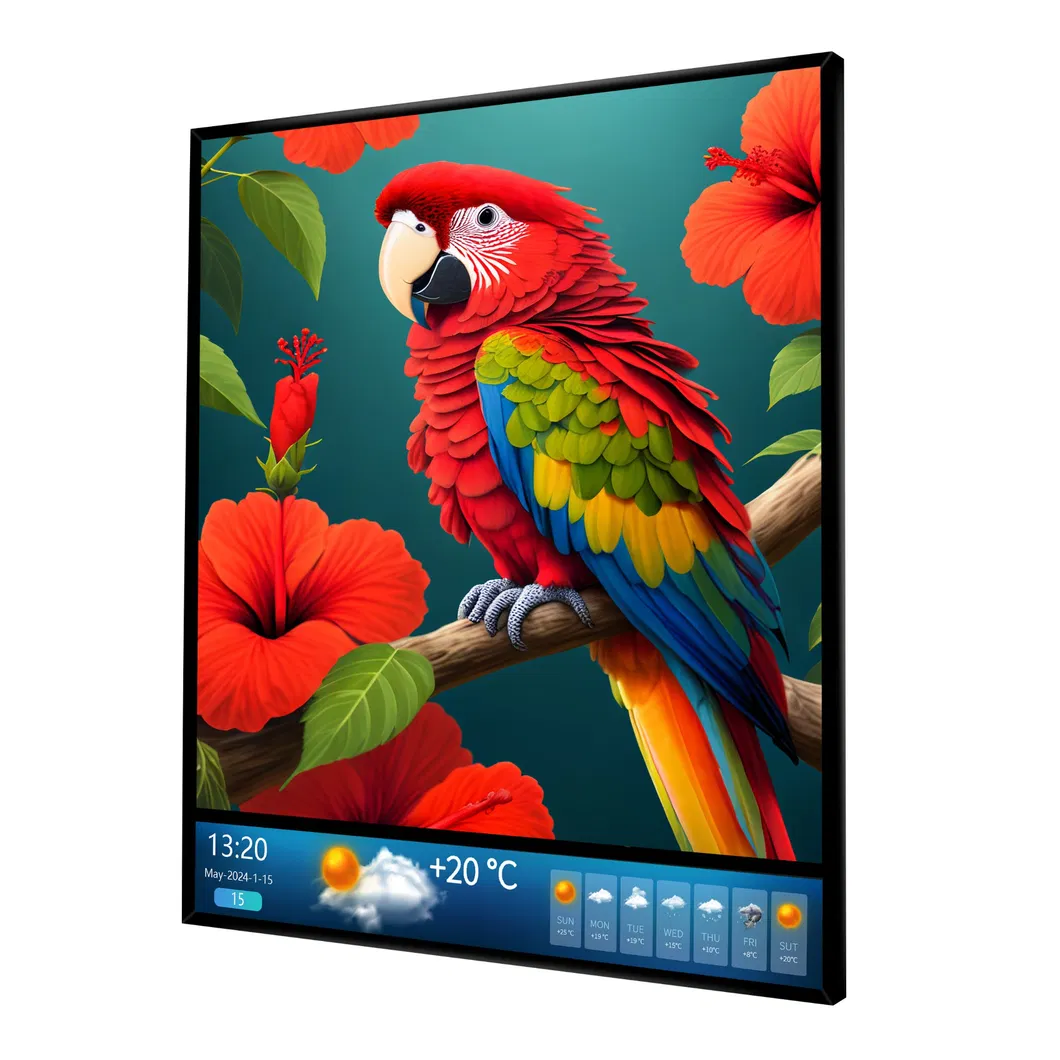

46.6'' Square LCD

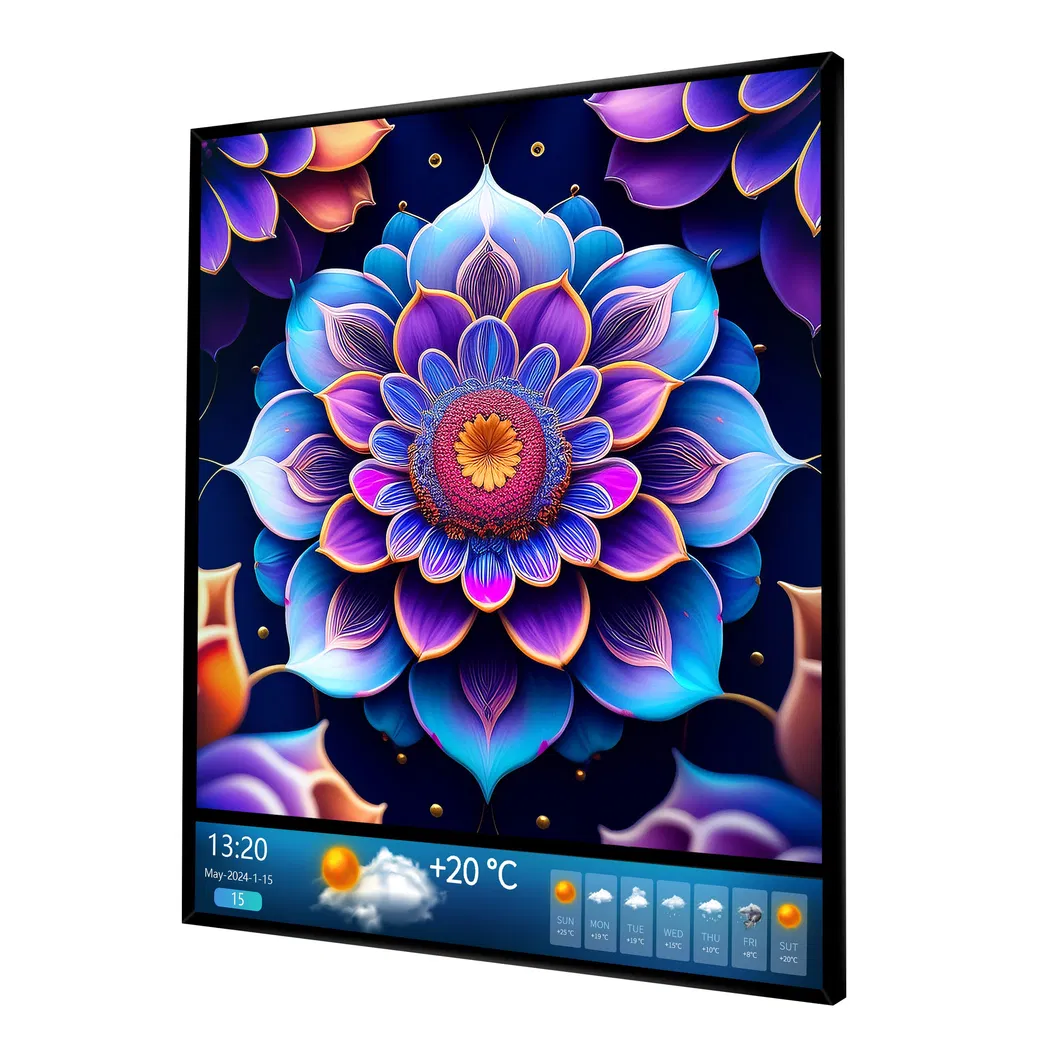

19.2'' Square LCD
29'' Square LCD
Frequently Asked Questions
Q1. What customization services do you offer?
We provide professional manufacturing of projected capacitive touch panels and TFT LCD modules, tailored to your specific project requirements.
Q2. What is the typical lead time for orders?
Samples are usually ready in 15-20 working days. Bulk cargo production typically takes 25-30 working days after payment receipt.
Q3. What are the payment terms?
A 50% deposit is required to initiate production, with the remaining 50% balance due prior to shipping.
Q4. Which shipping methods are available?
We offer shipping via sea, air, or express couriers including DHL, UPS, TNT, Fedex, and EMS.
Q5. Does this square monitor support 24/7 continuous operation?
Yes, our industrial-grade components and QLED backlight are designed to support long-term continuous display for commercial and museum environments.
Q6. Can I manage multiple screens from a single location?
Absolutely. The built-in management software allows for remote synchronization, content updates, and hardware monitoring for a group of displays via PC or mobile.
