Medical Equipment Portable CPAP System

Send Inquiry

Product Description

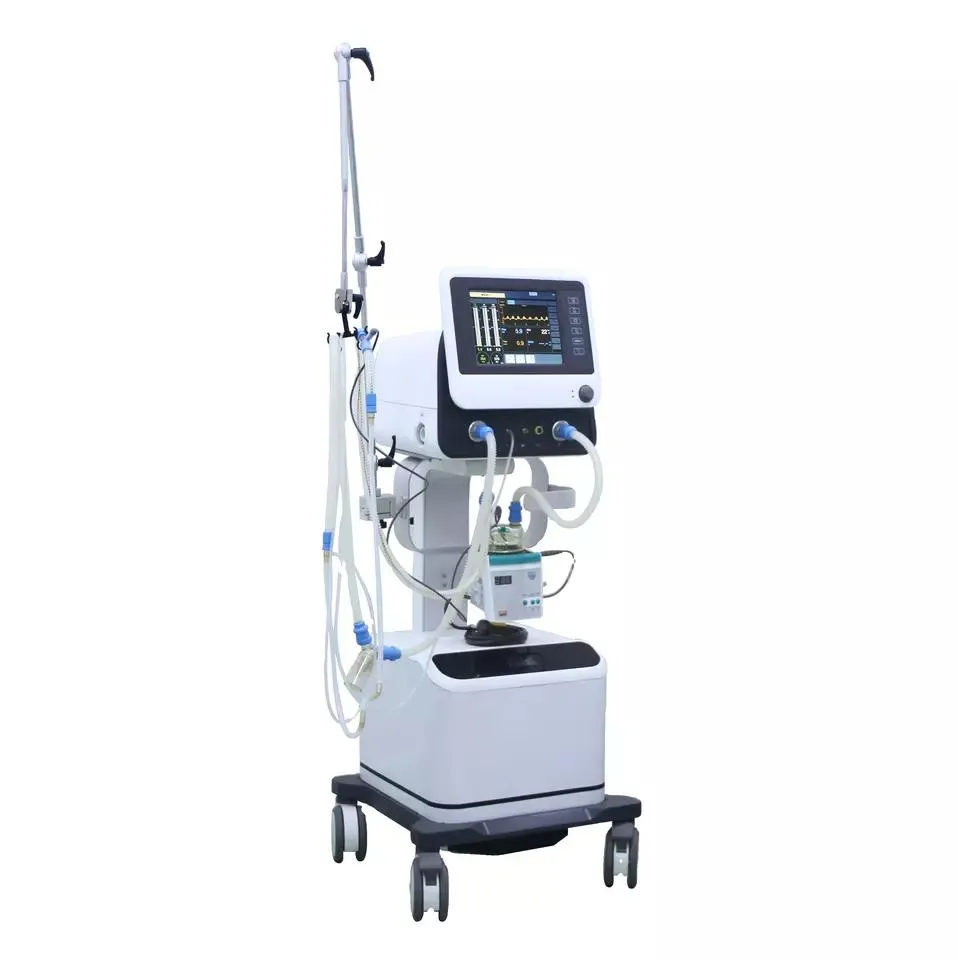

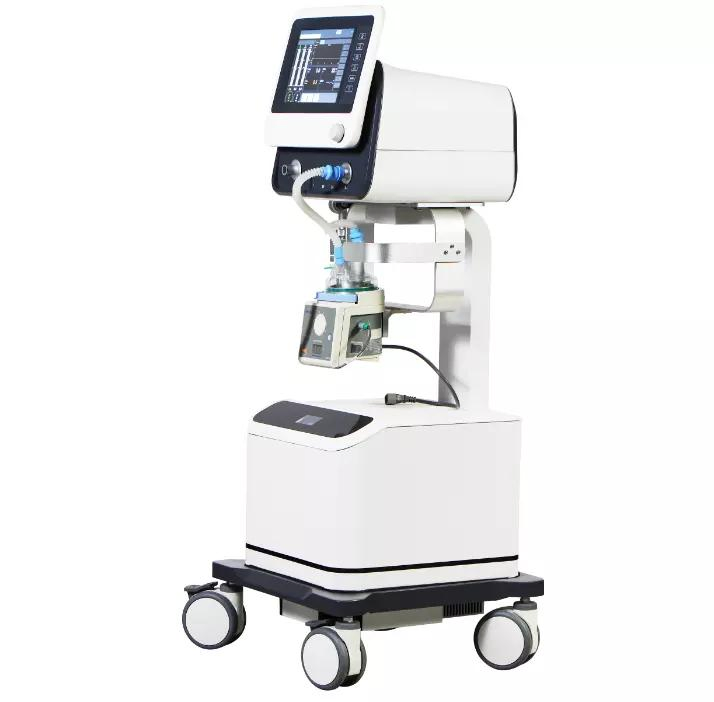

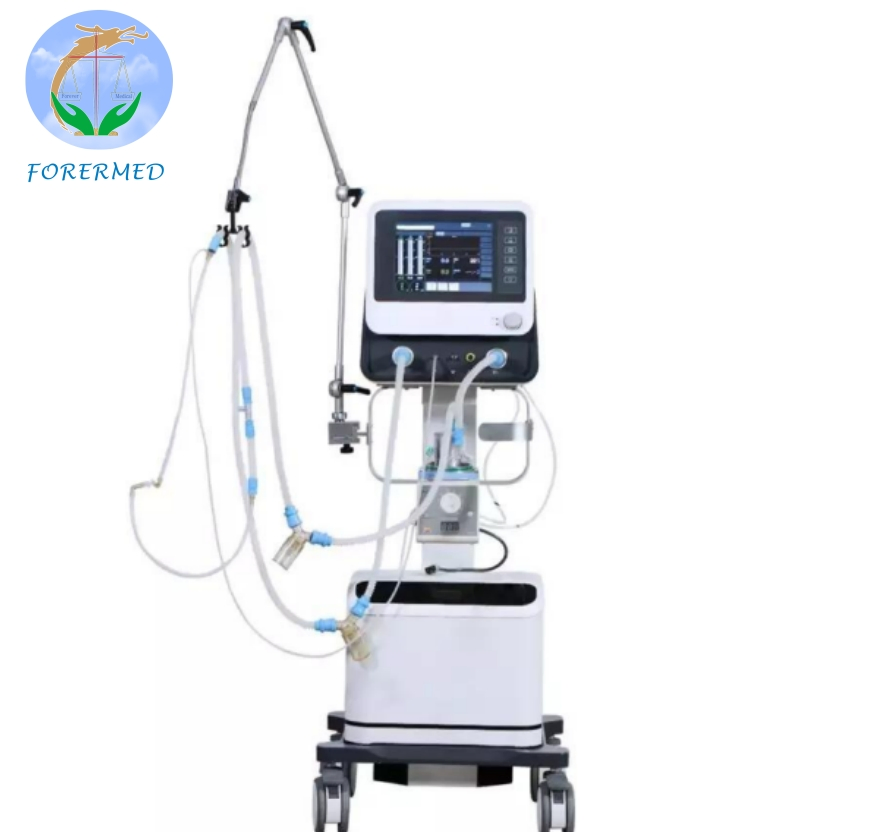

YJ-200A Medical Equipment Portable CPAP System

Key Features

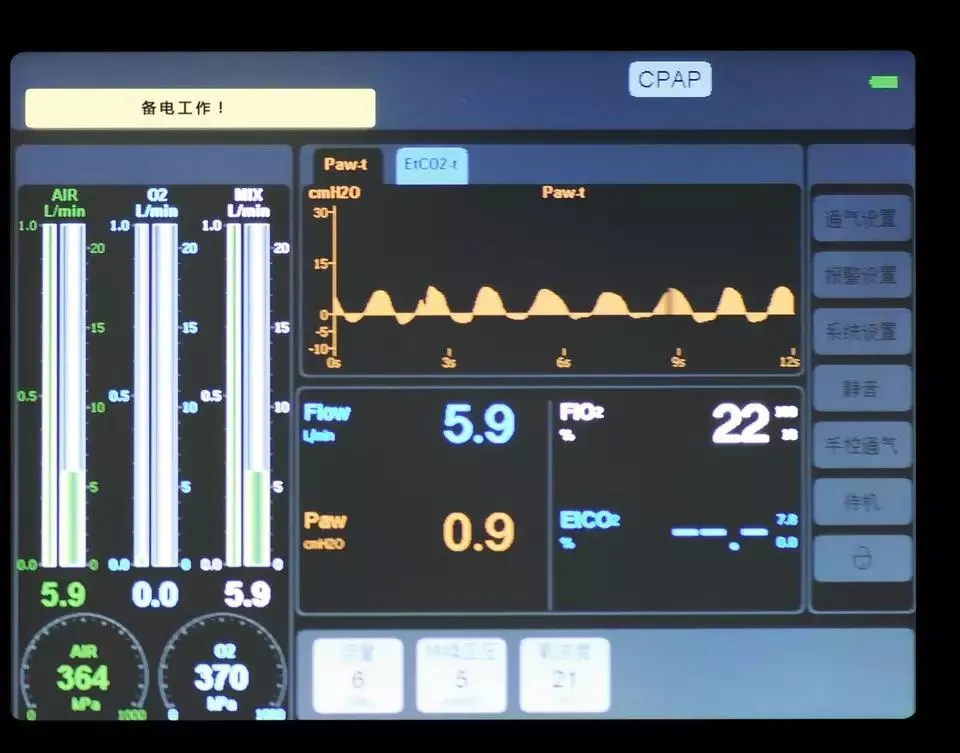

Advanced Display 7" TFT LCD screen displays ventilation parameters, alarm information, and oscillograms.

Integrated Design Integrated breathing circuit design ensures easy operation and maintains high hygiene standards.

Comprehensive Monitoring Multiple parameters monitoring interface ensures every parameter is clear, providing full status visibility.

Precision Detection Includes real-time pressure-time oscillogram and high-precision oxygen concentration detection.

Stable Oxygen Supply Built-in air and oxygen blender ensures stable oxygen concentration during treatment.

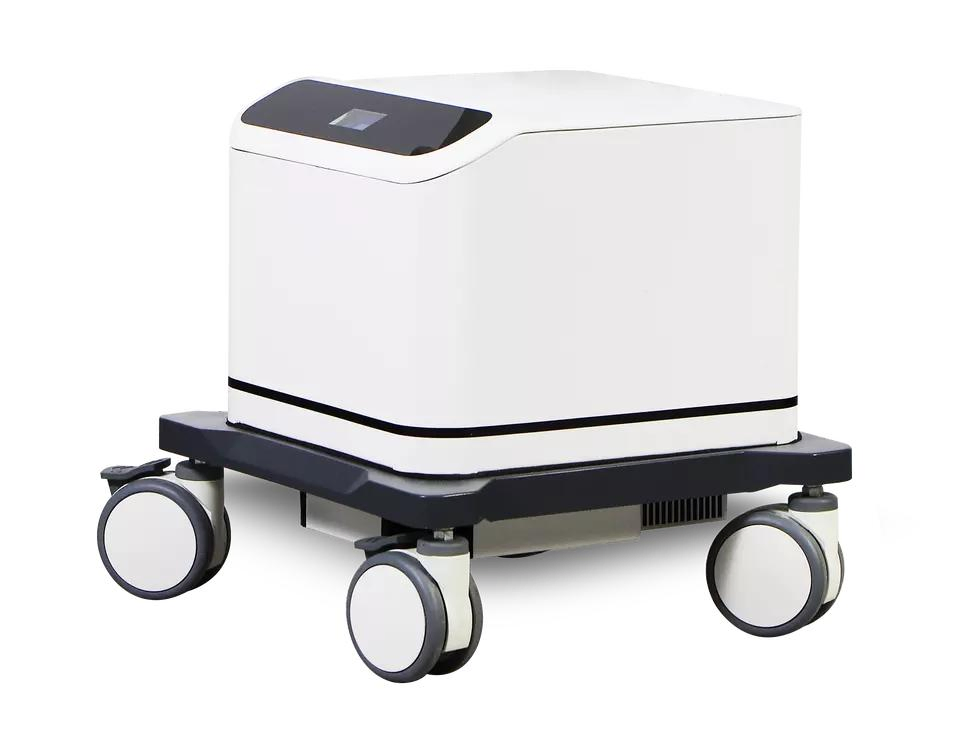

Low Noise Compressor Stable and low noise air compressor creates a quiet environment; supports 2-3 CPAP machines simultaneously.

Why Choose This System

Intuitive Interface: Configurable touch screen display with simplistic approach to diverse monitoring data.
High Mobility: Equipped with 4 wheels and front caster brakes for easy intrahospital transport.
Intelligent Humidification: Minimizes airway drying and inflammation with adjustable temperature/humidity settings.
Quiet Operation: Noise levels reduced to 50dB to maintain a peaceful ward environment.
Global Presence: Designed with over 25 years of experience and over 2,000 units installed worldwide.

Safety & Application

Safety First: Features a three-level alarm system (visual and audible), advanced power management, and a built-in backup battery for emergency power supply.

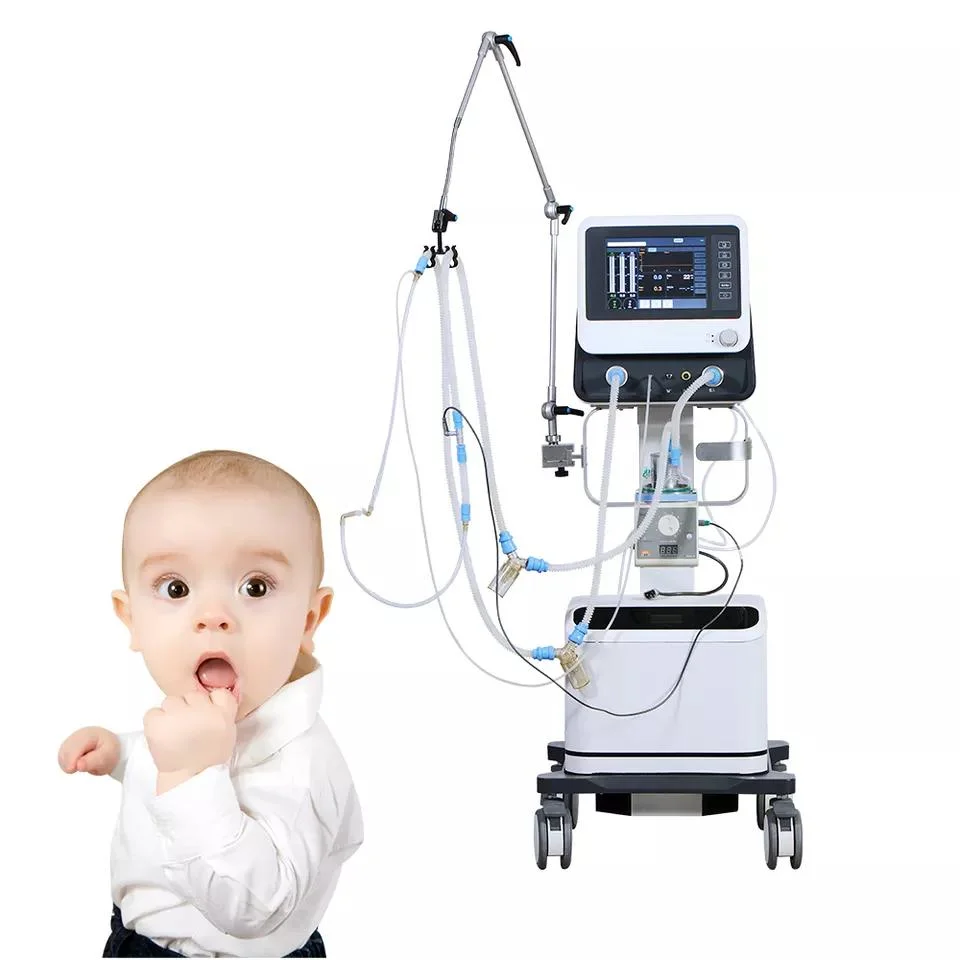

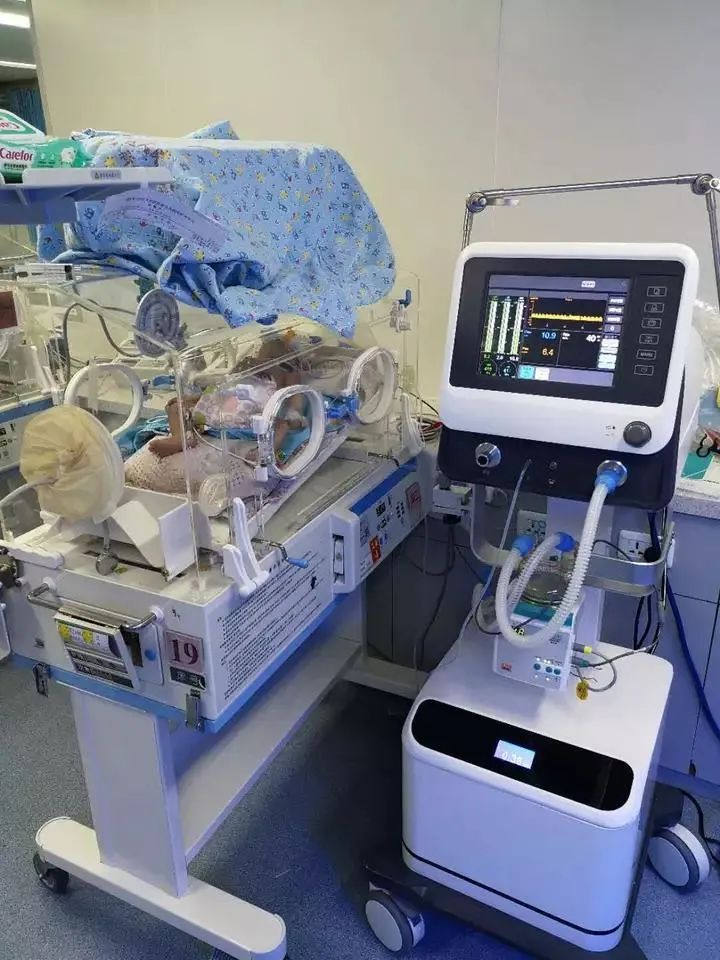

Clinical Application: Specifically designed for Neonatal Intensive Care Units (NICU), emergency wards, and delivery rooms. It nurtures infant breathing by providing continuous respiratory support throughout the cycle and maintaining functional residual capacity.

Product Technical Parameters

Parameter Category	Specification Details
Oxygen Concentration	Range: 21% - 100% (Adjusting) \| 15% - 100% (Monitoring)
CPAP Range	0cmH2O - 15cmH2O (Adjusting) \| 0cmH2O - 60cmH2O (Monitoring)
Continuous Flow	2L/min - 20L/min
Manual Ventilation	Output flow: 20L/min ± 5L/min
Air Compressor	Continuous: ≥ 25L/min \| Peak: ≥ 120L/min
Oscillogram	P-T (pressure - time) Oscillogram
Alarm Protection	AC power failure, Low battery (<11.3V), High/Low O2 concentration, High airway pressure
Working Condition	Gas Source: O2, Air \| Pressure: 280kPa - 600kPa \| Voltage: 100-240V
Size (Main Engine)	L 480 * W 670 * H 450mm \| Net Weight: 23KG
Size (Compressor)	L 683 * W 687 * H 1140mm \| Net Weight: 70KG

Detailed Product Gallery

Manufacturing Excellence

Frequently Asked Questions

What is the primary use of the YJ-200A CPAP System?

The YJ-200A is designed to support infant breathing in Neonatal Intensive Care Units (NICU), delivery rooms, and emergency wards by providing respiratory support throughout the breathing cycle.

Does the system have a backup power supply?

Yes, it includes a built-in backup battery that provides emergency power to the unit in case of an AC power failure.

How is the oxygen concentration controlled?

The system features a built-in air and oxygen blender, allowing for a stable and adjustable oxygen concentration range from 21% to 100%.

Is the operation of the device noisy?

No, the device is designed to minimize noise effects, operating at levels below 50dB to ensure a quiet environment for both doctors and small patients.

Can the air compressor support more than one machine?

Yes, the high-performance air compressor is capable of supporting 2 to 3 CPAP machines simultaneously.

What kind of parameters can be monitored on the screen?

The 7" TFT LCD screen displays real-time ventilation parameters, alarm information, and pressure-time (P-T) oscillograms.
