Basic Specifications
Certification
CE, ISO13485
Screen
2.4" TFT Colour LCD
Specification
128*69*36 mm
Production Capacity
10000/Month
Product Introduction

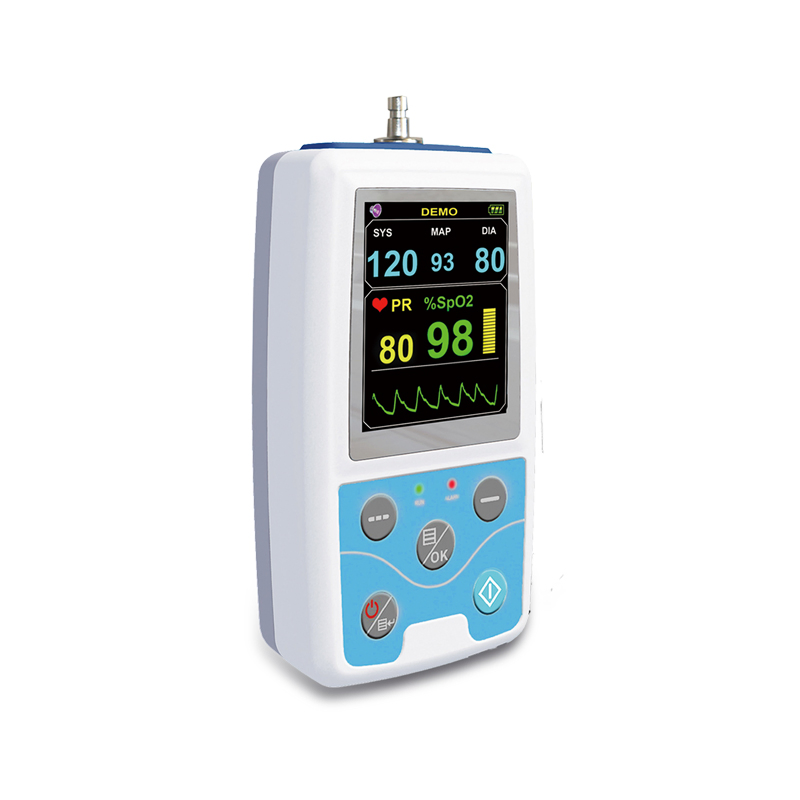

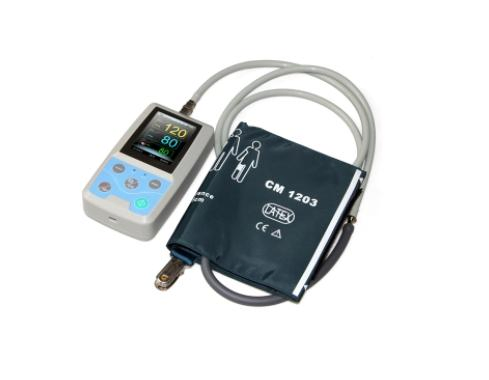

PM50 is a multifunctional patient monitor designed for long-term monitoring of SpO2 and NIBP, suitable for hospital wards or daily family health applications.
Key Features
- Compact and portable design, easy to operate.

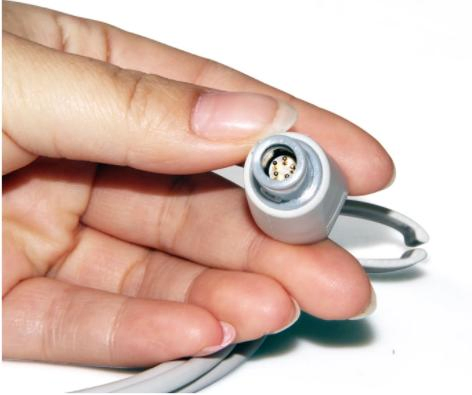

- Equipped with an Integrative SpO2 Probe.
- Double working modes: flexible monitoring and 24-hour ambulatory NIBP measurement.
- Long-term monitoring capabilities for both NIBP and SpO2.
- Large capacity data recording for NIBP and SpO2 results.
- User-friendly interface with list menus and measurement reviews.
- Rich display of status including low power, alarms, errors, and time.
- Optional parameter alarm functions for enhanced safety.
- Flexible patient information settings.
- Comprehensive case management via PC software for data analysis, trend viewing, and report printing.
Performance & Technical Details
NIBP Monitoring
- Method: Oscillometry
- Mode: Upper arm measurement
| Patient Type |
Measurement Range (SYS / MAP / DIA) |
| ADULT |
SYS: 40-270mmHg | MAP: 20-235mmHg | DIA: 10-215mmHg |
| PEDIATRIC |
SYS: 40-200mmHg | MAP: 20-165mmHg | DIA: 10-150mmHg |
| NEONATAL |
SYS: 40-135mmHg | MAP: 20-110mmHg | DIA: 10-100mmHg |
- Automatic Intervals: 5, 10, 15, 20, 30, 45, 60, 90, 120 minutes.
- Resolution: 1mmHg | Accuracy: ±3mmHg.
- Pressure Modes: Force pump (increase), Self-motion ladder (reduction).
SpO2 & Pulse Rate
- SpO2 Range: 0%~100% (Resolution: 1%).
- SpO2 Accuracy: 70-100% (±2%), below 70% unspecified.
- Pulse Rate Range: 0bpm~250bpm (Resolution: 1bpm).
- Pulse Rate Accuracy: ±2 bpm or ±2% (whichever is larger).
- Power Supply: DC 3V (Two "AA" 1.5V Alkaline Batteries).
- Safety: Type BF application part (defibrillator protected).
Professional Software Functions
- Supervise up to 1000 patient cases.
- 48-hour NIBP data processing window.
- High-speed USB interface connectivity.
- Data upload/download functionality.
- Visual analytics: Scoop-shape trends, histograms, pie charts, and correlation graphs.
- Annotation and editing for every data piece.
- Comprehensive medical records: Doctor's advice, medicine-taken info, and status instructions.
- Support for print preview and formal reporting.
Frequently Asked Questions
What parameters does the PM50 monitor?
The PM50 is designed to monitor Blood Pressure (NIBP) and Oxygen Saturation (SpO2) simultaneously over long periods.
Is this device suitable for all age groups?
Yes, the device features specific measurement modes and ranges for Adult, Pediatric, and Neonatal patients.
How long is the data storage capacity?
The device can record large amounts of NIBP and SpO2 data, and the PC software can process up to 48 hours of ambulatory NIBP data.
Can I export the data to a computer?
Absolutely. The PM50 connects via a USB interface, allowing you to upload data to PC software for detailed analysis and report printing.
What type of batteries does it use?
The monitor operates on two standard 1.5V "AA" alkaline batteries (DC 3V).
What is included in the case management function?
It allows for editing patient info, adding doctor's advice, recording medication status, and generating various trend graphs and pie charts.
