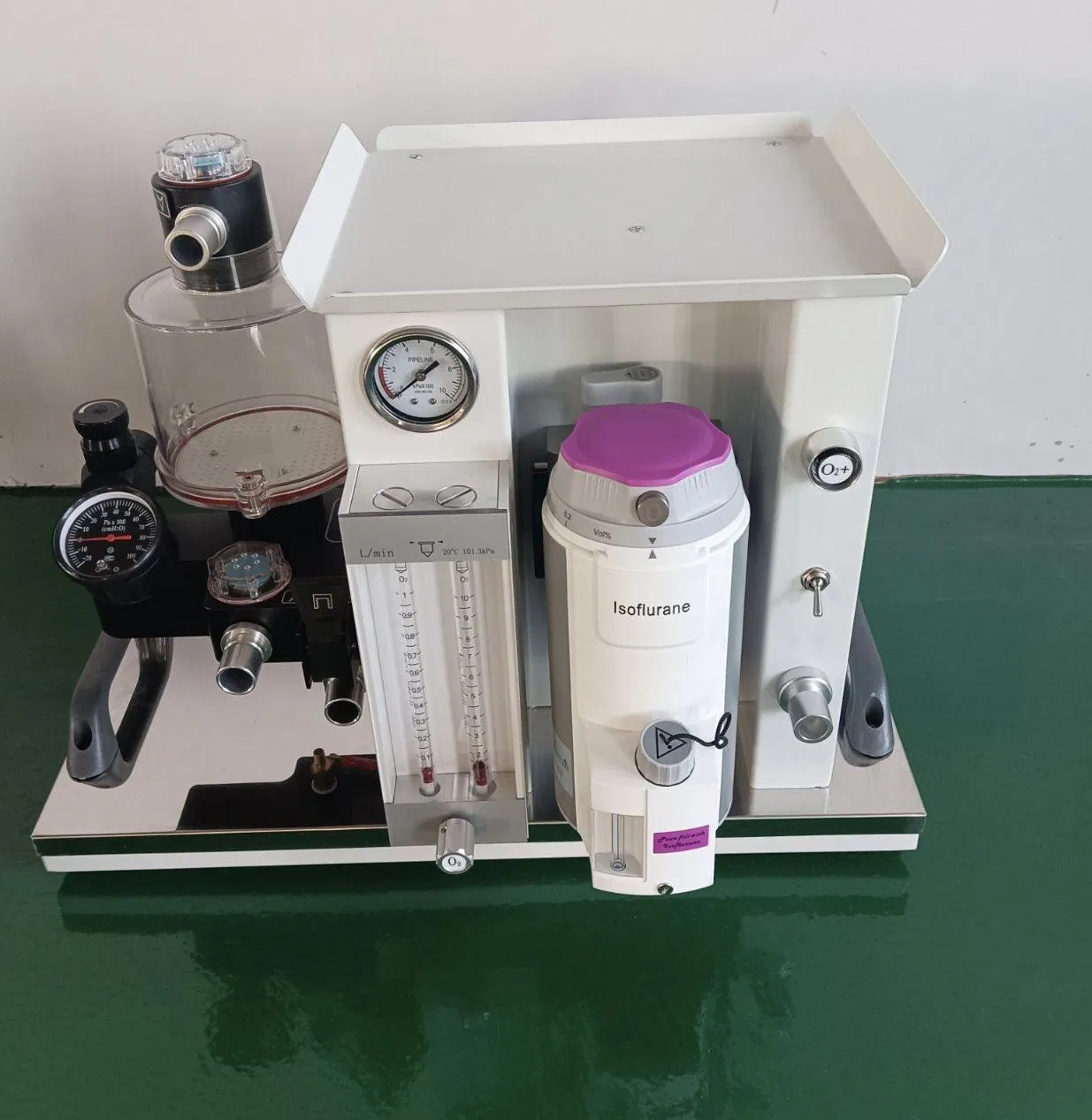

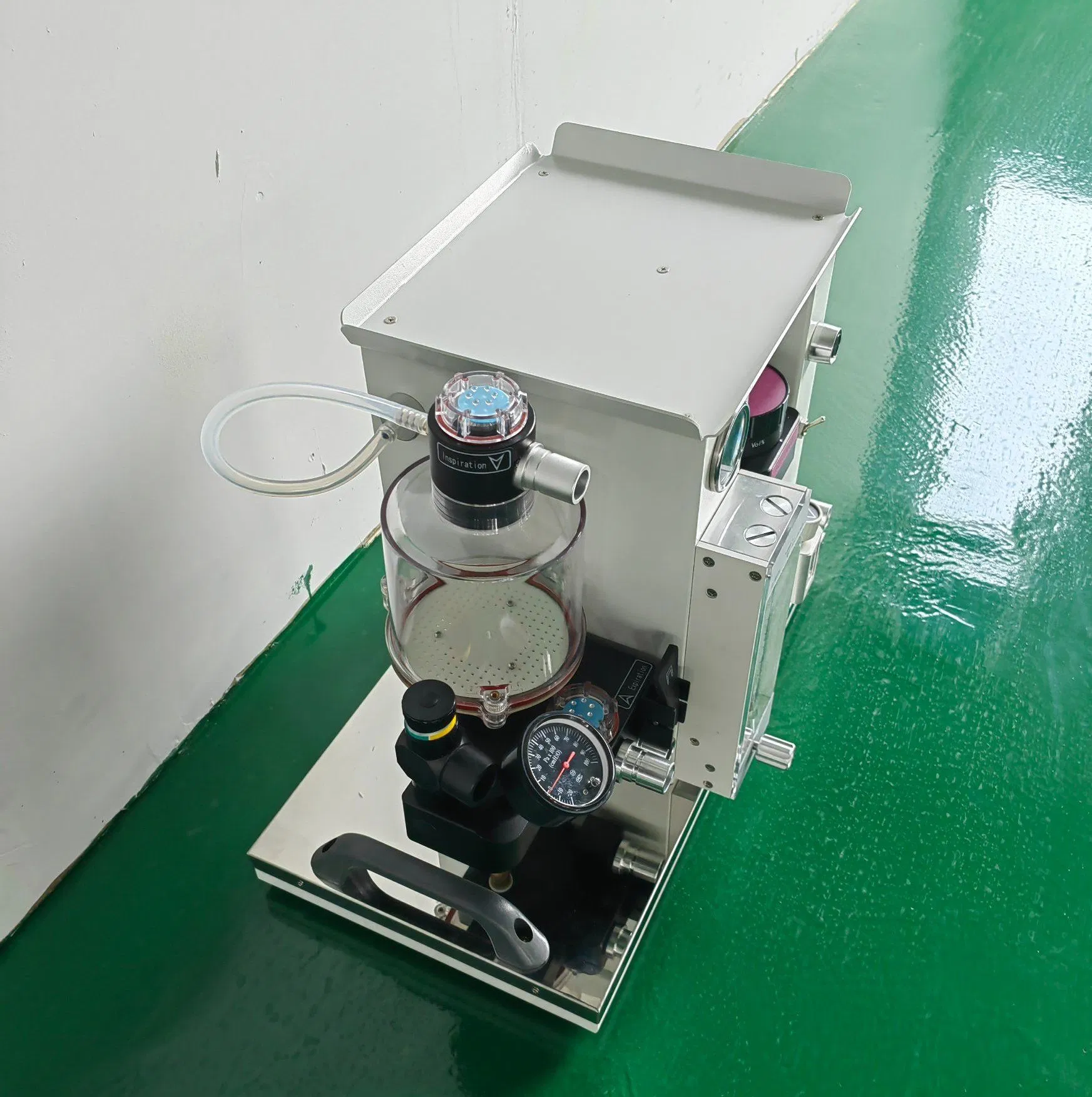

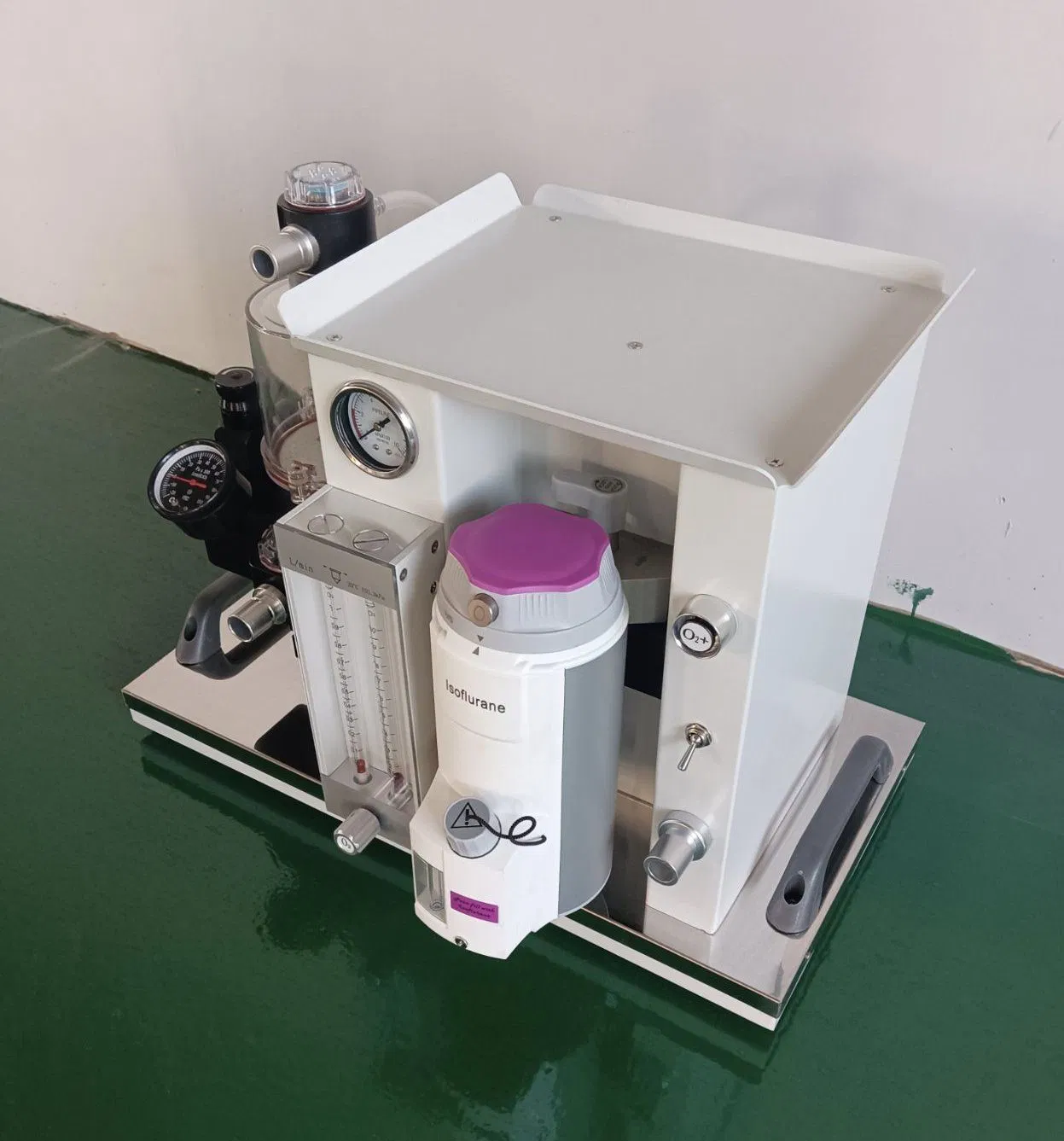

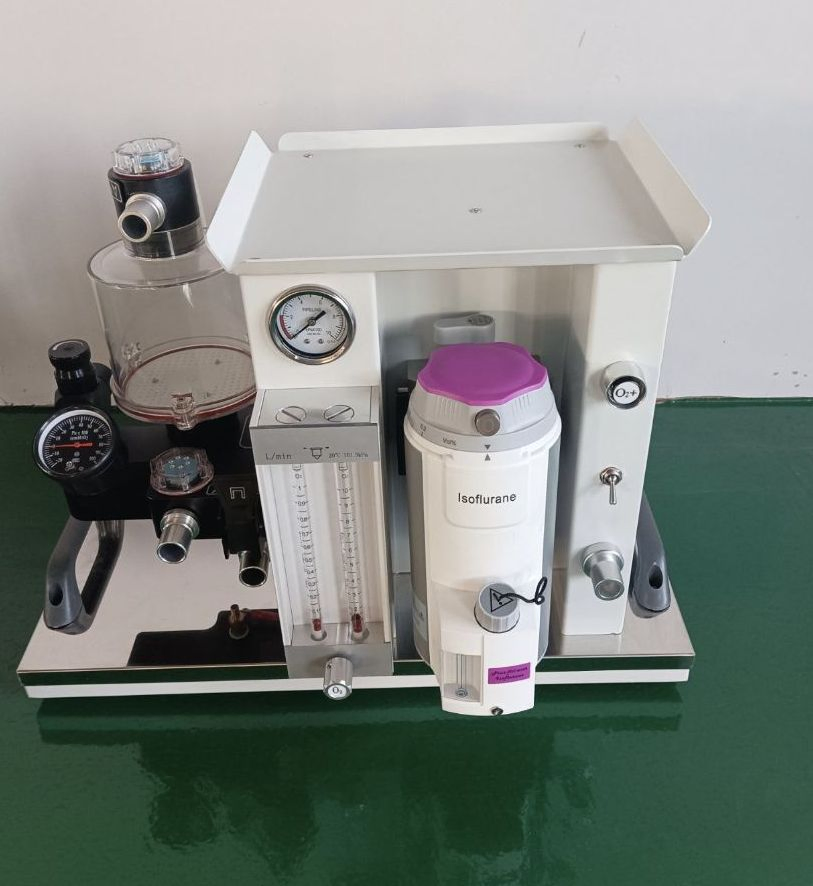

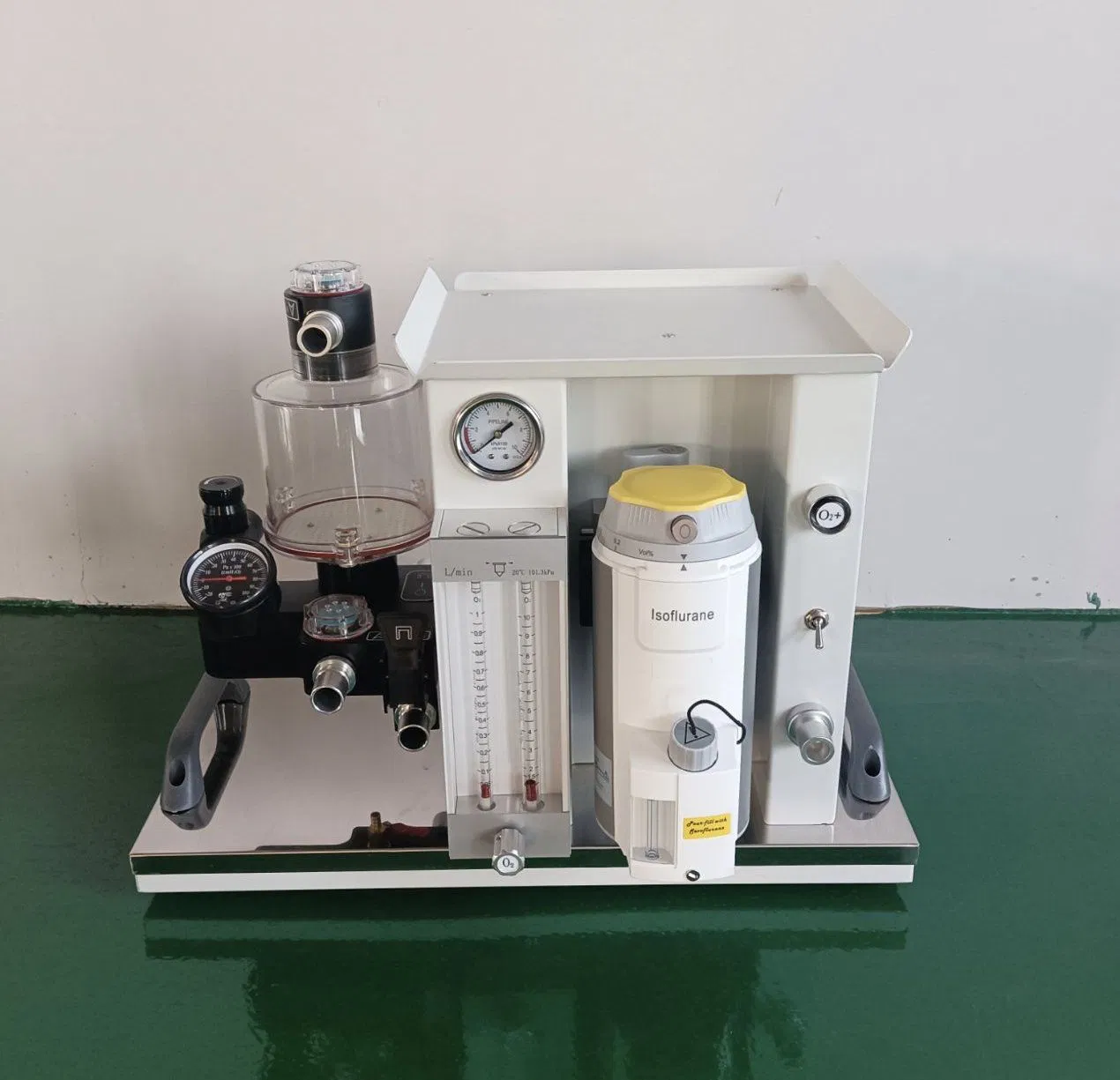

Minor Surgical Small Anesthesia Machine Mini Respiratory Anesthesia System

Customization: Available
Type: Anesthesia System
Group: Adult

Product Description

Basic Information
Model NO.
LTDS-55
LCD Display
Without LCD Display
Product Name
Anesthesia Machine
Working Method
Close, Semi-Close, Semi-Open, Open (Bain Circuit)
Application
for Veterinary Use
Gas Source
O2pressure:03~0.5MPa
02 Flush
25~75 L/Min
CO2 Absorber
1 Kg (Optional Addtional One CO2 Absorber)
Specification
440(W)*230(D)*540(H)mm
Origin
China
Detailed Photos

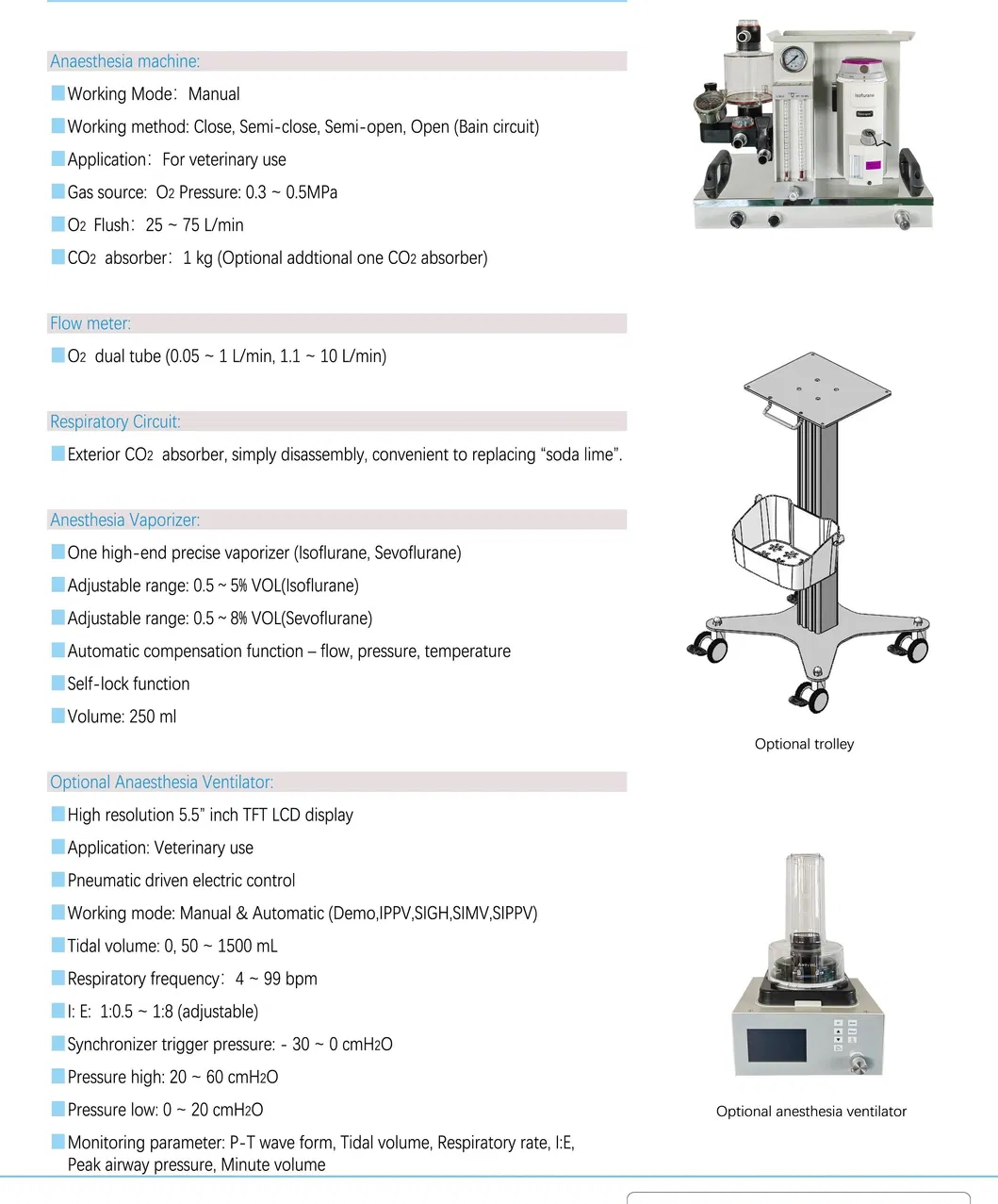

Anesthesia System Detail 1
Anesthesia System Detail 2

Main Technical Specifications

  • Working Mode: Manual
  • Working Methods: Close, Semi-close, Semi-open, Open (Bain circuit)
  • Application: Specially designed for veterinary use
  • Gas Source: O2 Pressure: 0.3~0.5MPa
  • O2 Flush: 25~75 L/min
  • CO2 Absorber: 1 kg capacity (Optional additional absorber available)
  • Flow Meter: O2 dual tube (0.05~1 L/min, 1.1~10 L/min)
  • Anesthesia Vaporizer: High-end precise vaporizer (Isoflurane/Sevoflurane). Adjustable range: 0.5~5% VOL (Isoflurane) / 0.5~8% VOL (Sevoflurane)
  • Safety Features: Automatic compensation function (flow, pressure, temperature) and Self-lock function

Optional Anaesthesia Ventilator

  • Display: High resolution 5.5" inch TFT LCD
  • Control: Pneumatic driven electric control
  • Working Modes: Manual & Automatic (Demo, IPPV, SIGH, SIMV, SIPPV)
  • Tidal Volume: 0.50~1500 ml
  • Respiratory Frequency: 4~99 bpm
  • Monitoring: P-T wave form, Tidal volume, Respiratory rate, I:E, Peak airway pressure, Minute volume
Working ModeManual
Working MethodClose, Semi-close, Semi-open, Open (Bain circuit)
Ventilation ModeLTDS-55
Gas SourceO2 Pressure: 0.3~0.5MPa
Hot Seller
Hot Selling Anesthesia Machine
Profile & Capabilities

We are a leading supplier of medical equipment, specializing in the medical device industry. Our broad product range covers surgical equipment, X-ray machines, laboratory equipment, patient monitors, electrocardiograms, ultrasound scanners, dental equipment and hospital furniture.

We have been committed to providing customers with high quality, competitive prices and good after-sales service. We have built an efficient global marketing network. Over the years, our products have been exported to Africa, Latin America, the Middle East, Southeast Asia, Europe and the United States, and have gained a good reputation.

We welcome customers from all over the world to explore our products. We can assure you of high quality, attentive service and competitive prices. Our cooperation will surely create a win-win situation.

Production Facility
Production Process
Production Process Flow
Packaging & Shipping
Packaging and Logistics
Frequently Asked Questions
What is the primary application of the LTDS-55 anesthesia machine?
The LTDS-55 is specifically designed for veterinary use, suitable for various animal surgical procedures.
What working methods does this system support?
It supports multiple working methods including Close, Semi-close, Semi-open, and Open (Bain circuit) configurations.
Does the machine come with an anesthesia vaporizer?
Yes, it includes one high-end precise vaporizer, with options for Isoflurane or Sevoflurane, featuring automatic compensation for flow, pressure, and temperature.
Is an automatic ventilation mode available?
The standard model operates in manual mode, but there is an optional Anaesthesia Ventilator available that supports both manual and automatic modes (IPPV, SIGH, SIMV, etc.).
What are the gas source requirements?
The machine requires an O2 gas source with a pressure range of 0.3 to 0.5 MPa.
How is the CO2 absorber managed?
The machine features an exterior CO2 absorber with a 1 kg capacity that is designed for simple disassembly and convenient replacement of soda lime.
