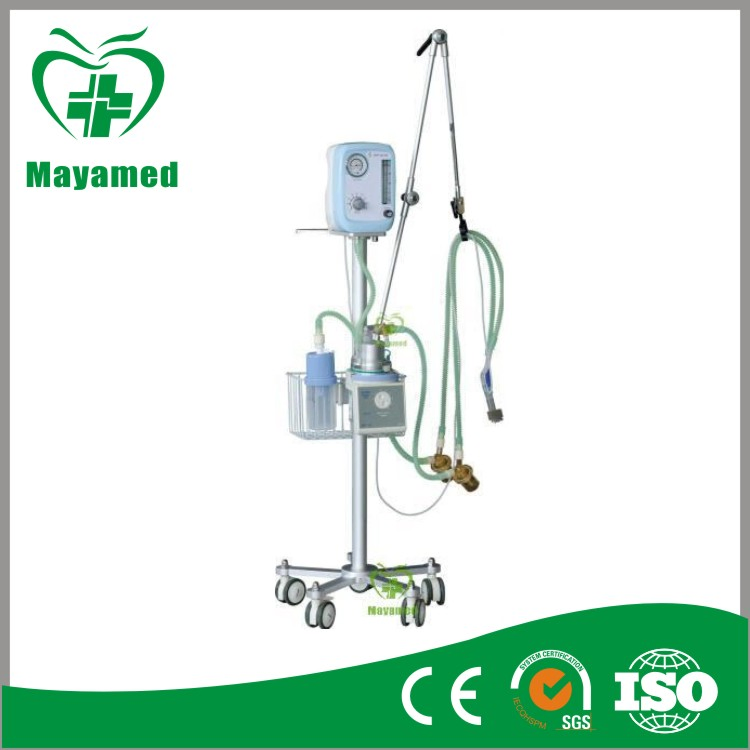

My-E005b Infant Bubble CPAP System
I. Intended Usage and Distinct Features
🎯
Intended Usage:
This CPAP system provides continuous positive airway pressure based on Non-invasive ventilation. It is used for treating infant slightly respiratory failure in patients with spontaneous breath. Suitable for Pediatrics and Neonatology for infants and children under 14 years old.
⭐
Distinct Features:
- CPAP ventilation modes keep children's spontaneous breath and reduce respiratory work.
- Provides constant flow and limited pressure specifically for newborn babies.
- Delivers Air/O2 mixture with adjusted O2 concentration to improve safety and efficiency.
- Equipped with a built-in air blender for stable O2 concentration adjustment.
- Reliable CPAP control valve and pressure monitoring system for high precision.
- Optional humidifier with heating devices.
- High cost-effective, reliable quality, and compact design for easy operation.
- 1 Year warranty and lifetime maintenance support.
II. Basic Structure
The MY-E005B Model consists of a frame, CPAP system, pressure generator, pressure indicator, breathing circuit, and breathing mask. The mixture of air and O2 is precisely adjusted by the O2/Air blender.
III. Main Technical Parameters
1) Parameter Adjustment
| Adjustment Item |
Range |
| CPAP Adjusting Range |
0 cmH2O ~ 10 cmH2O |
| Continuous Flow Adjusting Range |
1.5 L/min ~ 15 L/min |
| Oxygen Concentration |
21% - 100% |
2) Parameter Monitoring
| Monitoring Item |
Range |
Accuracy |
| CPAP/Airway Pressure |
0 cmH2O ~ 60 cmH2O |
±(2% full scale + 4% actual value) |
| Continuous Flow |
1.5 L/min ~ 15 L/min |
±4% |
3) Gas Supply & Environment
| Gas Source |
Medical O2 and Medical Air |
| Rated Working Pressure |
350 kPa |
| Work Temperature |
5 ºC ~ 40 ºC |
| Relative Humidity |
≤80 % (Work) / ≤90 % (Storage) |
| Atmospheric Pressure |
960 hPa ~ 1040 hPa |
Packing Details
Main Package: 690 x 690 x 370 (mm) | G.W.: 43.5kg | N.W.: 13.5kg
Column Package: 120 x 100 x 1050 (mm) | G.W.: 2.5kg | N.W.: 2kg
Our Advantages
- Rapid Response: Detailed inquiries replied to within 24 hours.
- Professional Team: Expert attitude in recommending medical products.
- Warranty: One-year free warranty with continued after-sales service.
- Customization: OEM services available, including logo printing.
- Technical Support: Experienced engineers to assist with product application.
Frequently Asked Questions
1. What is the intended age group for the Bubble CPAP system?
The system is designed for infants and children under 14 years old who have spontaneous breath but are experiencing slight respiratory failure.
2. Can the oxygen concentration be adjusted?
Yes, the system features a built-in air/O2 blender that allows for stable oxygen concentration adjustment ranging from 21% to 100%.
3. What are the CPAP adjustment ranges?
The CPAP adjustment range is between 0 cmH2O and 10 cmH2O, providing precise control for neonatal care.
4. Is the equipment easy to transport and set up?
Yes, the device features a compact appearance and design, making it easy to operate. It is shipped in two packages (Main and Column) for secure transport.
5. What kind of after-sales support is provided?
We provide a 1-year free warranty followed by lifetime maintenance services. Our technical team is available to assist with any operational needs.
6. Does the system include a humidifier?
A humidifier with heating devices is available as an optional part to enhance the comfort and efficacy of the respiratory therapy.
