Product Description

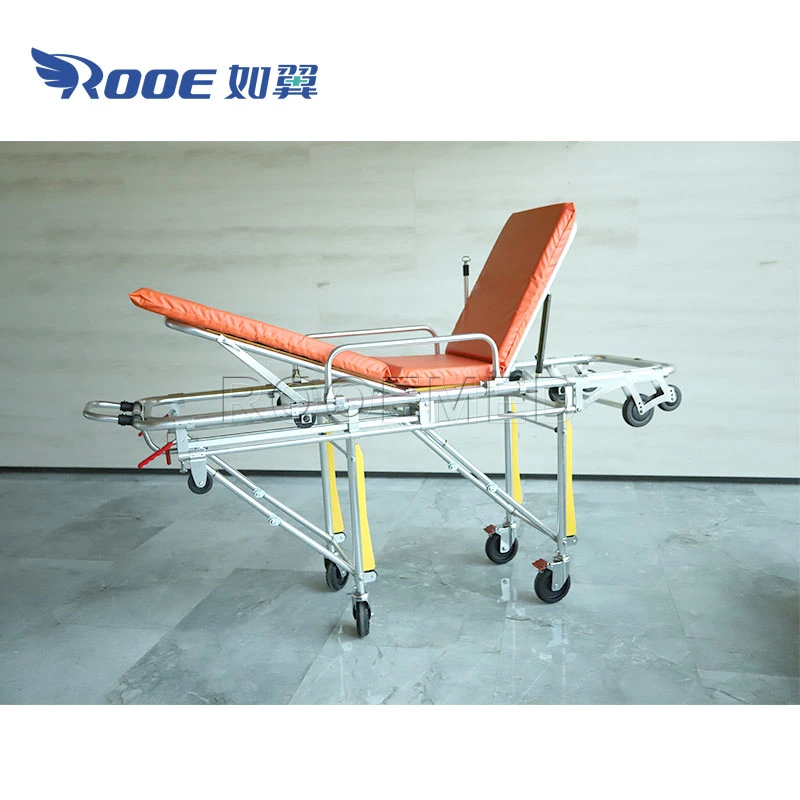

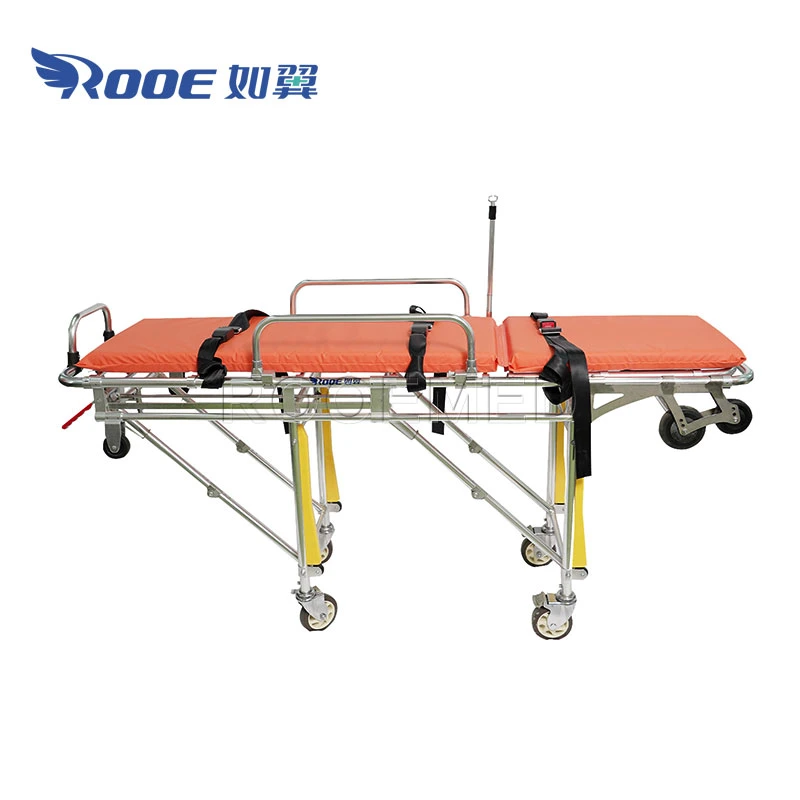

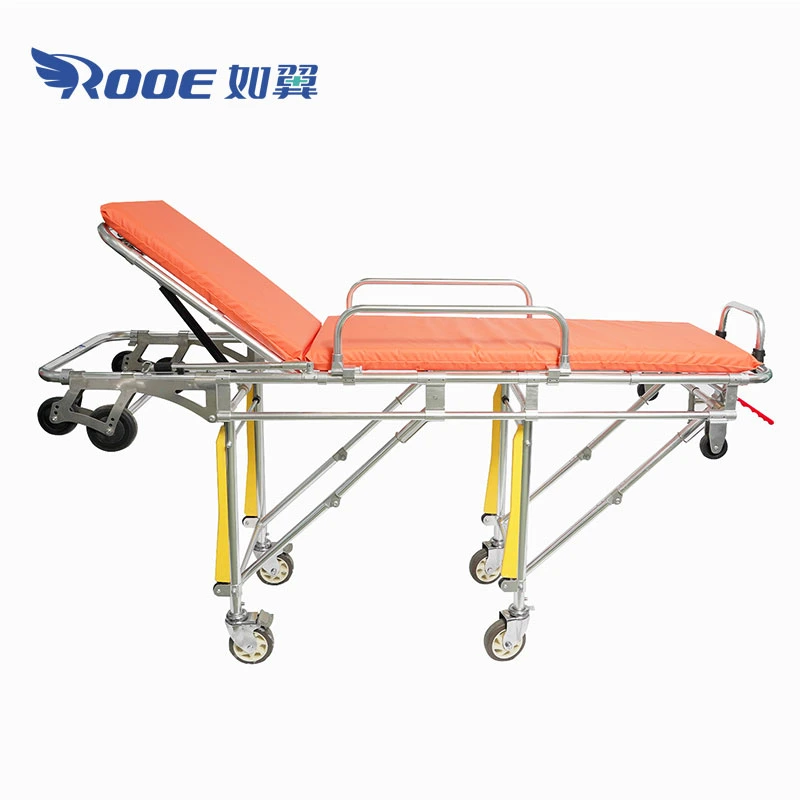

EA-3C First-Aid Folding Patient Transfer Ambulance Rescue Stretcher for Car Platform

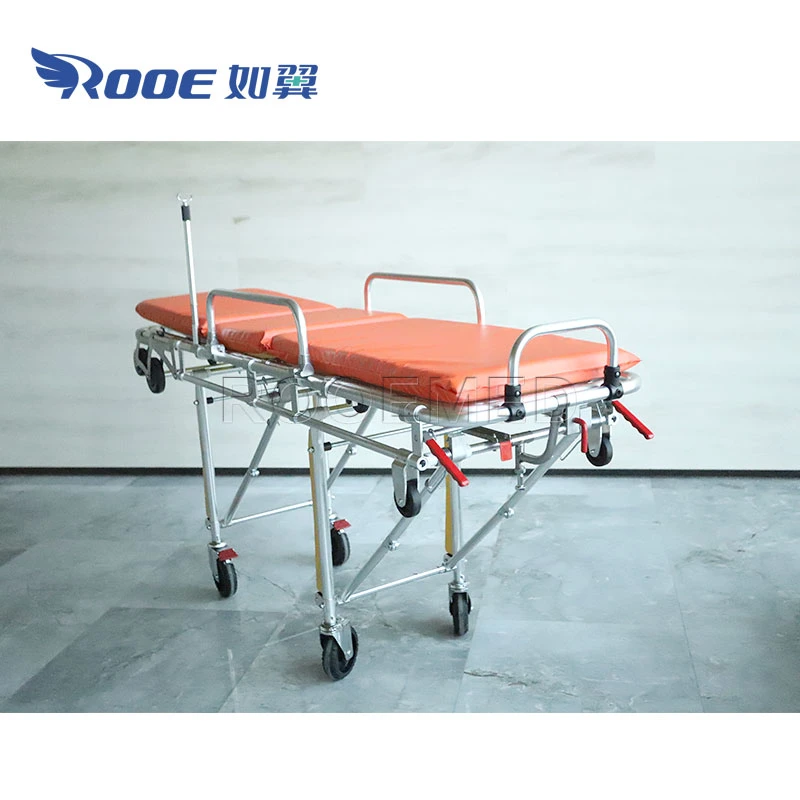

Ambulance Stretcher Main View
EA-3C Ambulance Stretcher Features
  • Made of high-strength aluminum alloy. Mainly used for ambulance, hospitals, emergency centers.
  • Two sets loading wheels to fit different height of ambulance board. Minimum upper car height is 65.5cm, maximum is 77.5 cm.
  • Backrest adjustable over 0-65 degrees by gas spring; leg height adjustable by 30°.
  • Swing-down side rails to protect patient during transfer.
  • φ12.5cm wide rubber castors, two equipped with brakes.
  • Mechanical legs controlled by handles on both sides, featuring a safety lever for secure folding/standing.
  • Operation designed for a single person to slide the stretcher into the ambulance.
  • Features a separable stretcher from the main frame.
  • Can be locked by a fixing device when inside the ambulance.
  • Easy locking/unlocking system to secure the separable stretcher into the trolley.
Model Variations
  • EA-3C(1): 12.5cm wide casters, two with brakes
  • EA-3C(2): 12.5cm ordinary casters, two with brakes

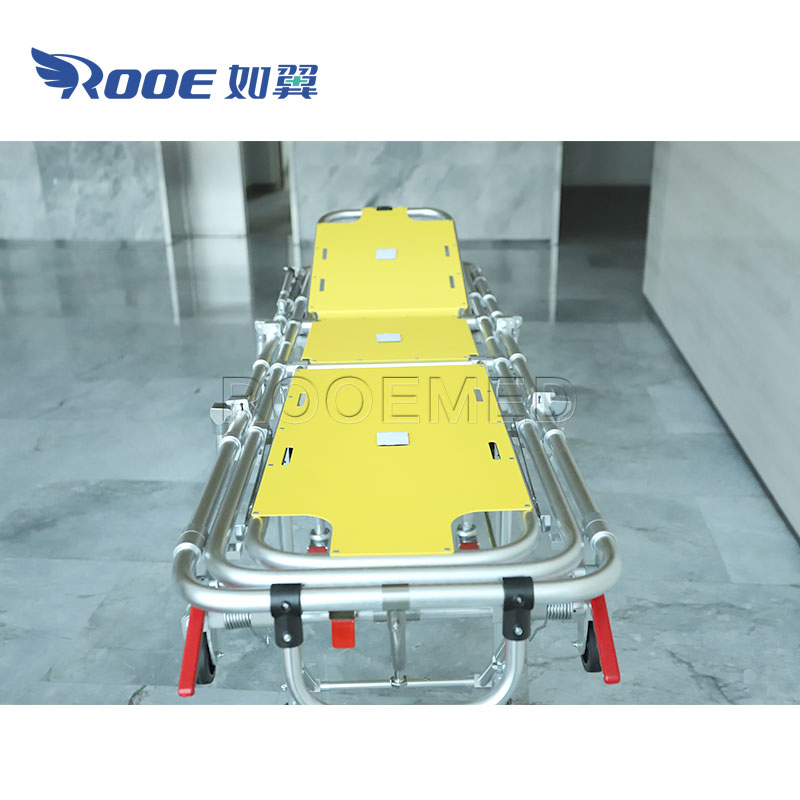

  • EA-3C(3): Separable stretcher. The main stretcher can be used independently with locking/unlocking devices.
Standard Accessories
  • Waterproof seamless welding PVC mattress (5cm thickness foam).
  • 3pcs belts for chest, hip and knee.
  • Fixing device.
  • Optional: IV pole; Pillow; Oxygen holder.
Model High Position Low Position Max Backrest Angle N.W Load Bearing Packing Qty Packing Size (L*W*H) G.W
EA-3C+ Wide rubber castor 195*55*85cm 195*55*25cm 65° 41kg 180kg 1 204*62*30cm 48kg
EA-3C+ Ordinary rubber castor 195*55*85cm 195*55*25cm 65° 37kg 180kg 1 204*62*30cm 45kg
EA-3C+ Separate stretcher 195*55*85cm 195*55*25cm 65° 43kg 180kg 1 204*62*30cm 50kg

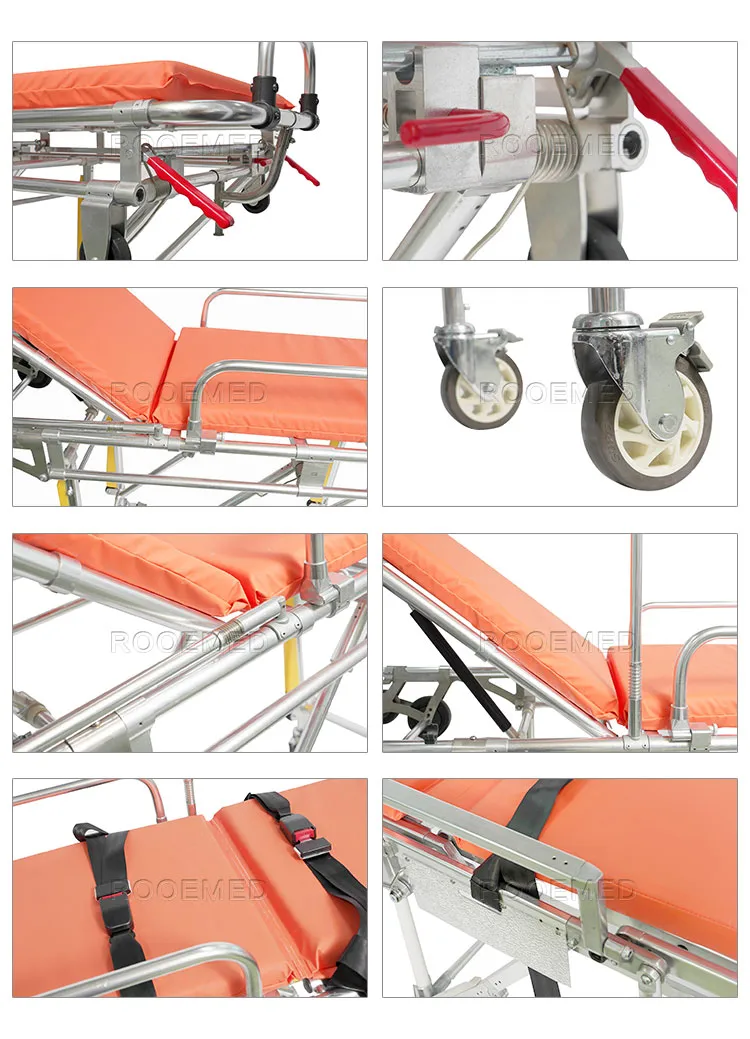

Stretcher Dimensions and Angles

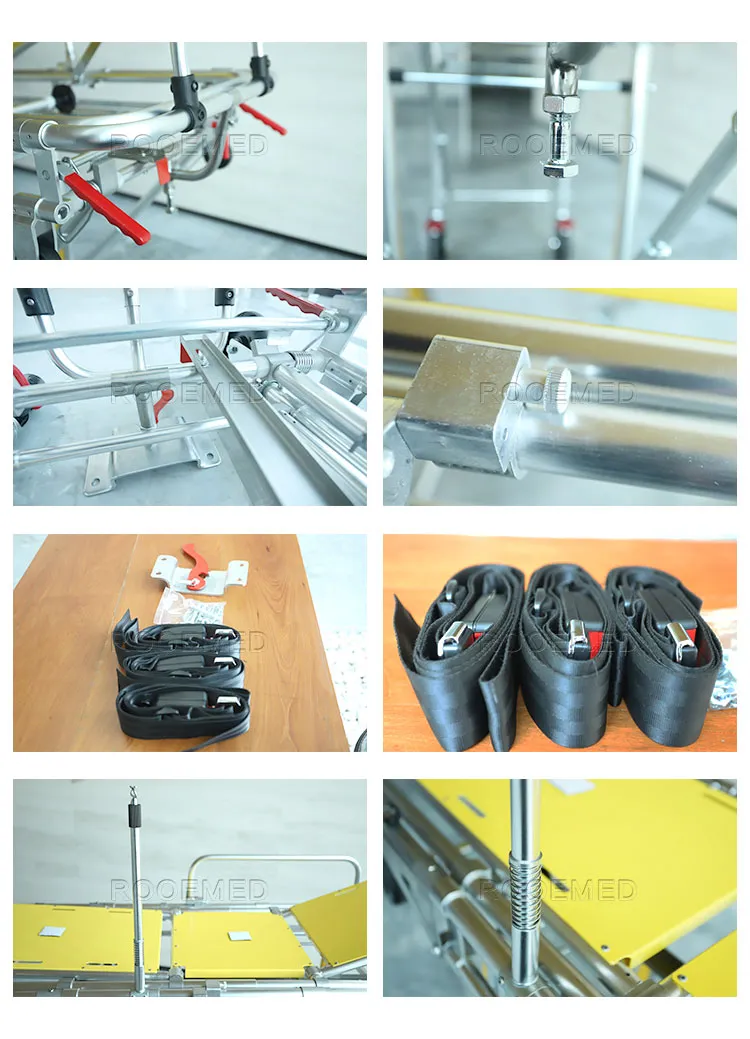

Stretcher Loading View

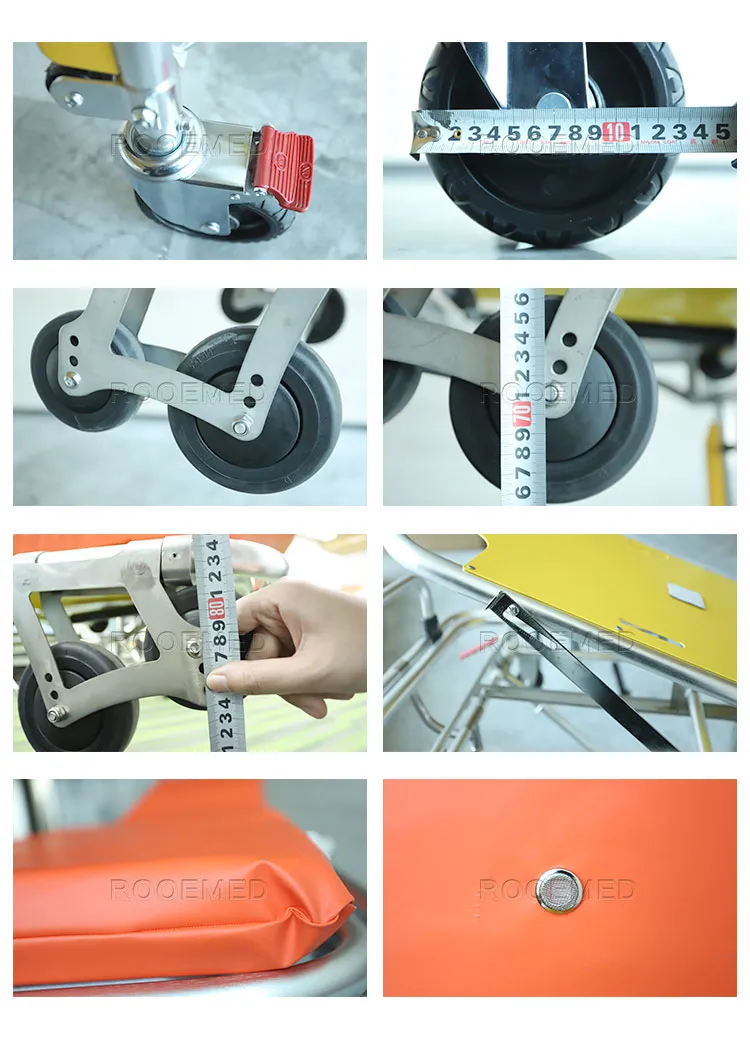

Stretcher Folding Mechanism
Stretcher Detail View
Frequently Asked Questions
Q1: What materials are used in the construction of the EA-3C stretcher? The stretcher is constructed from high-strength aluminum alloy, ensuring durability while remaining lightweight for emergency operations.
Q2: Can the loading height be adjusted for different ambulances? Yes, it features two sets of loading wheels to accommodate ambulance board heights ranging from a minimum of 65.5cm to a maximum of 77.5cm.
Q3: Is the stretcher mattress waterproof? Yes, the stretcher comes with a waterproof seamless welding PVC mattress with 5cm thickness foam for patient comfort and easy cleaning.
Q4: What is the maximum weight capacity of this ambulance stretcher? The EA-3C series is designed with a robust frame that supports a maximum load bearing capacity of 180kg.
Q5: Can one person operate the stretcher during loading? Yes, the mechanical legs and handle system are designed so that only one person is required to slide the stretcher into the ambulance safely.
Q6: Are the backrest and leg sections adjustable? The backrest is adjustable from 0 to 65 degrees using a gas spring, and the leg height can be adjusted by 30 degrees to optimize patient positioning.
