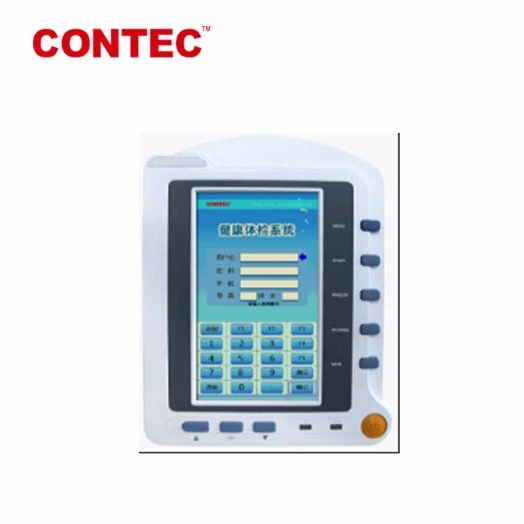

The CMS6500 is a portable patient monitor featuring a high-resolution touch screen. Designed for high-quality monitoring and operational safety, it incorporates full-isolation (floating) technology, ECG defibrillation-proof protection, anti-high frequency surgical unit interference, and NIBP dual-overpressure protection.
| Parameter | Specifications |
|---|---|
| ECG | Lead mode: 3-lead or 5-lead; Selection: I, II, III, aVR, aVL, aVF, V; Scan speed: 12.5mm/s, 25 mm/s, 50 mm/s |
| Heart Rate (HR) | Measurement range: 15~350 bpm; Accuracy: ±1 % or ±1 bpm; ST-segment monitoring: -2 mV ~ +2 mV |
| RESP | Method: R-F(RA-LL) Impedance; Range: 0~150 rpm; Apnea alarm: 10~40s |
| NIBP | Method: Oscillometry; Modes: Manual/AUTO/Continuous; Range: 10 ~ 270 mmHg; Over-pressure protection included |
| SpO2 | Measurement range: 0 ~ 100%; Accuracy: 70%~100% (±2%) |
| TEMP | Channel: Single-channel; Range: 0 ~ 50ºC; Accuracy: ±0.1 ºC |
| Power Supply | AC: 100 ~ 240 (V), 50/60 (Hz); Adapter: 9 (V) DC; Maximal input power: 150VA |
1. Adult fingertip SpO2 probe
2. SpO2 probe extension cable
3. Adult NIBP cuff & extension tube
4. ECG lead cable & electrodes
5. Temperature probe
6. Power cord & adapter
7. User Manual
Optional: Pediatric/Neonatal accessories, Telemedicine modules.
📏 Dimension: 192 mm(L) × 162 mm(W) × 243 mm(H)
⚖️ Weight: 2.0 Kg
